Item Condition:OPEN BOX COMPLETE

Max Series 2-Channel Car Amplifier • 5000W Max • 650W x 2-Chan. @ 2 Ohm • 450W x 2-Chan. @ 4 Ohm • Phase Shift 0-180° • 3-Way System Protection Circuitry • Stiffly Regulated PWM MOSFET Power Supply Learn more about the LS-mxa284-OBCra215532

Product Highlights

Item Condition:OPEN BOX COMPLETE

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition:OPEN BOX COMPLETE

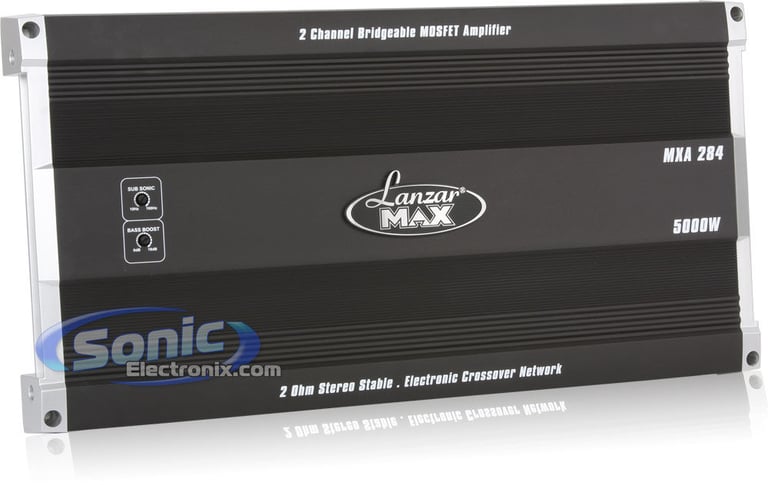

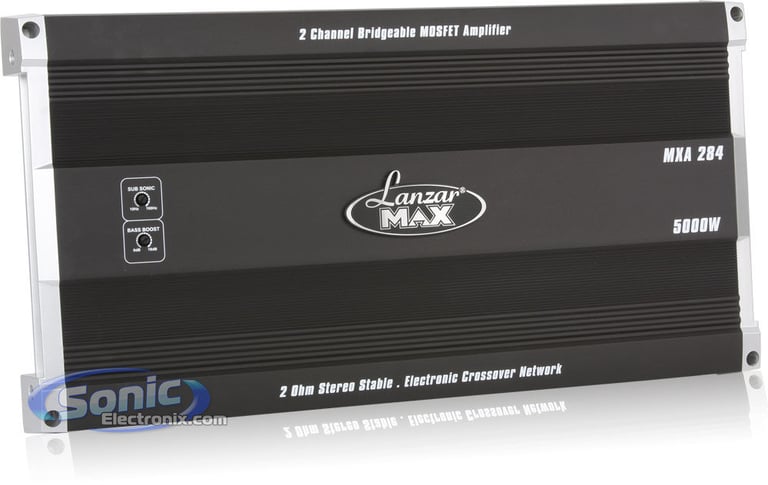

Max Series 2-Channel Car Amplifier
RMS Power Rating (14.4V, 1KHz):
- 4 ohm: 300 watts x 2 chan.
- 2 ohm: 450 watts x 2 chan.
- Bridged, 4 ohm: 5000 watts x 1 chan.
THD Power Rating:
- 4 ohm: 450 watts x 2 chan.
- 2 ohm: 650 watts x 2 chan.
Max power output: 2500 watts x 2 chan.
Stiffly regulated PWM (Pulse Width Modulated) MOSFET power supply
LED power (green) and protect (red) indicators

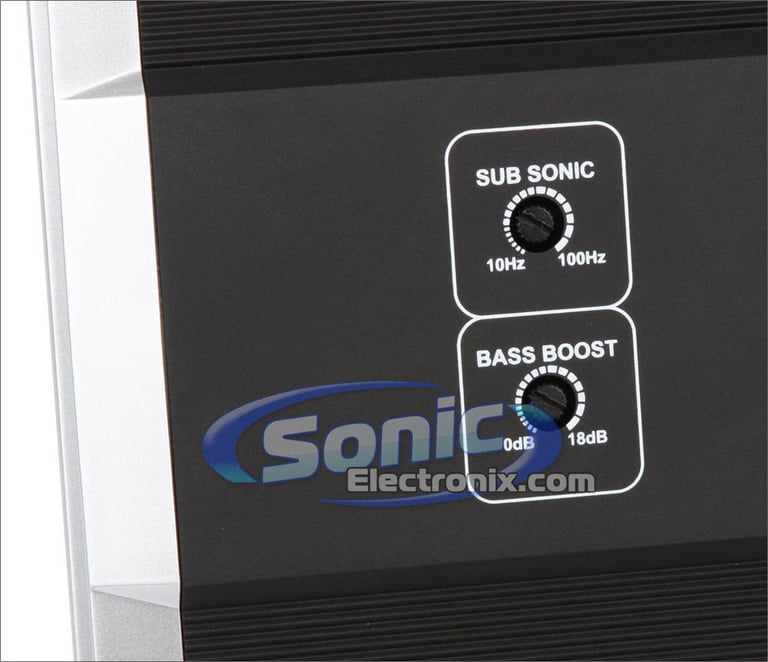

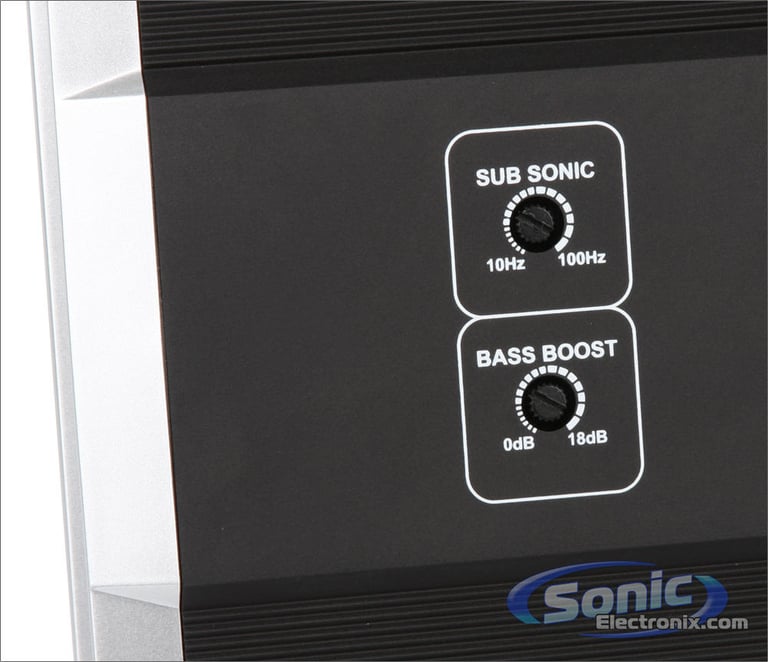

Bass Boost/EQ details (0 or +18 dB bass boost)
Input impedance: 10K Ohm
2/1 channel operation
Preamp RCA outputs
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Variable input level: 200mV-6V
Heavy duty aluminum alloy heatsink for maximum heat dissipation
Nickle-plated RCA level inputs
Nickle-plated screw terminals
Variable high-pass filter (40-250 Hz, 24 dB/octave)
Variable low-pass filter (40-250 Hz, 24 dB/octave)
Phase Shift: 0-180°
Frequency response: 15-30,000 Hz
Dimensions: 19"L x 10-5/8"W x 1-3/4"H

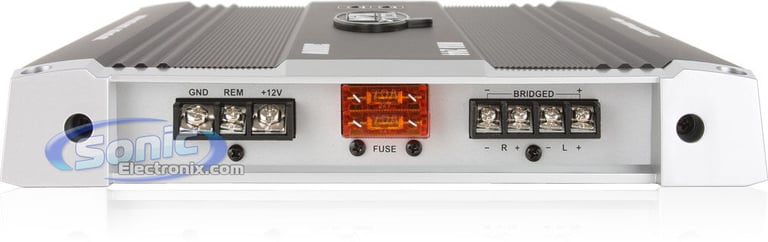

4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

450 watts x 2 channel

RMS Power @ 2 ohms

650 watts x 2 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

5000 watts x 1 channel

Amplifier Specifications

Number of Channels

2-Channel

Total Peak Power Output

5000 watts

Total RMS Power Output

5000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

40 - 250 Hz

Low-Pass Crossover Frequency

40 - 250 Hz

Signal-to-Noise Ratio

95 dB

Channel Separation

65 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Fuse Rating

70A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
