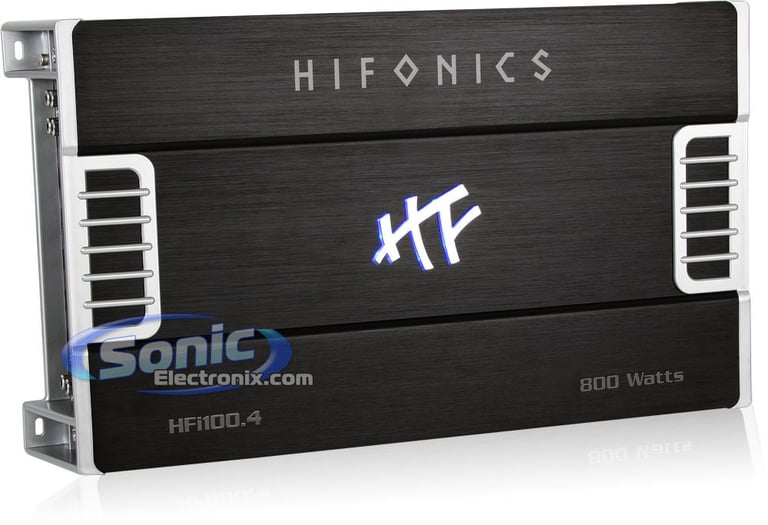

Hifonics HFi100.4 (HFi 100.4) 4-Channel Car Amplifier/Amp

Hifonics HFi100.4

800W RMS, 4-Channel HFi Series Amplifier (HFi 100.4)

HFi Series 4-Channel Class A/B Car Amplifier • 200W x 4-Chan. @ 2 Ohms • 100W x 4-Chan. @ 4 Ohms • Tri-Mode Speaker Operation • 4-Way System Protection Circuitry • Preamp RCA Outputs • Blue Illuminated Hifonics Badge

We apologize

This item has been discontinued

DESCRIPTION
Hifonics

Authorized dealer

Retro Look with New Design

The Hifonics HFi100.4 informs you of its main objective in the name, Hi-Fi audio. High end sound processing is the designs main focus, however it continues to bring value to the table by providing high power output in an pleasantly small chassis. The illuminating retro Hifonics logo brings an old-school look back into a new series.

This four channel HFi series amplifier integrates Pulse Width Modulated MOSFET power supplies to allow for affordable power, while causing minimal draw on your cars electrical system. Its bridging options allow bridging from their 4 channel down to 3 channels. This allows the amplifier to drive a bridged channel for a sub, and two unbridged channels for normal output for components such as door speakers. The bridging options also allow for bridging to two separate dedicated channels, to allow for high output to subwoofers, or high powered components.

This incredible power output is combined with the HFi series of amplifiers integrated high-dissipation heat-sink design, and built-in system diagnostics. Affordability does not have to sacrifice value or sound quality – making the HFi100.4 multi-channels the perfect choice.

  • HFi Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 100 watts x 4 chan.
    • 2 ohms: 200 watts x 4 chan.
    • Bridged, 4 ohms: 400 watts x 2 chan.
  • Pulse Width Modulated (PWM) MOSFET power supply
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)
  • Tri-mode speaker operation
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickle-plated RCA level inputs
  • Silver nickle-plated screw terminals
  • Input sensitivity:
    • Variable level: 200mV-6V
  • Variable high-pass filter (60-12,000 Hz, 12 dB/octave)
  • Variable low-pass filter (30-250 Hz, 12 dB/octave)
  • Damping factor: >180
  • Frequency response: 30-12,000 Hz
  • Dimensions: 16-1/4"L x 8-13/16"W x 2-7/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channels
RMS Power @ 2 ohms
200 watts x 4 channels
Bridged RMS Power
400 watts x 2 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Bridged Peak/Max Power
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
Peak Power @ 2 ohms
Peak Power @ 1 ohm
Amplifier Specifications
Amplifier Series
Marine Certified
Amplifier Class
AB
Number of Channels
4
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 12,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
30A x 2
Total Fuse Rating
Strappable
CEA-2006 Compliant
No
Sonic Certified Amplifier
Amp Bluetooth Connectivity
Hi-Res Certified
Authorized Dealer
Authorized Dealer

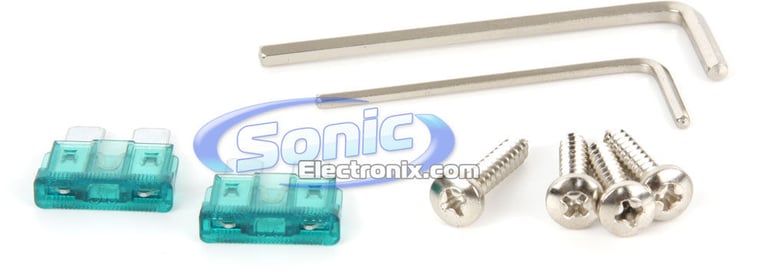

What is in the box?
WITB: Amplifiers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5

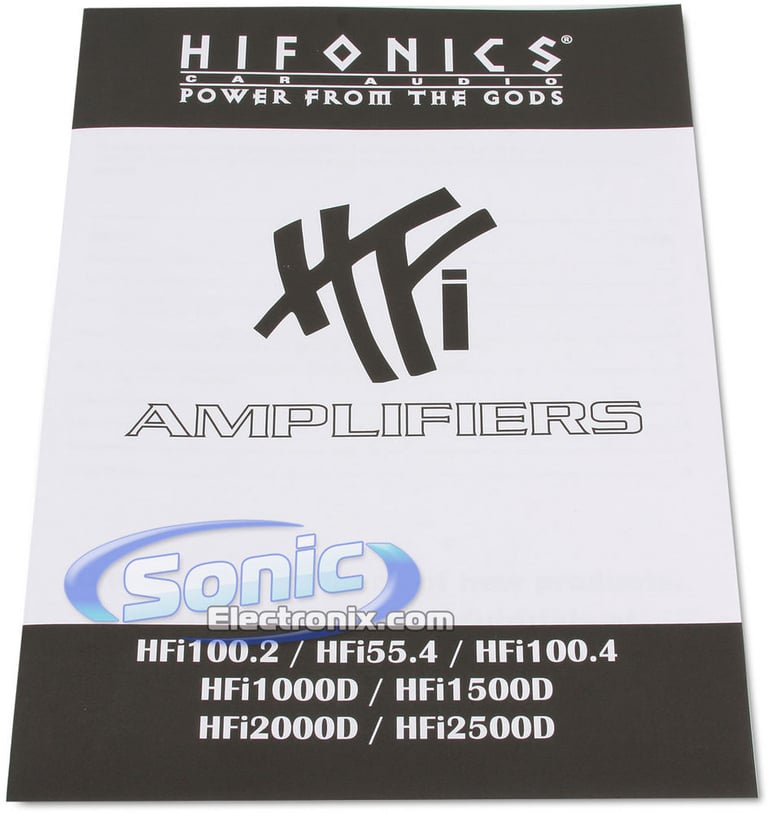

Paperwork
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
REVIEWS
Hifonics HFi100.4

Hifonics HFi100.4

4.2

(17)

Write a review

Overall rating distribution

5 star
41%
4 star
41%
3 star
18%
2 star
0%
1 star
0%

By feature average rating

Durability
4.4
Value
4.6
Features
4.5
Design
4.5
Usability
4.6

JB

April 13, 2011

Pretty good

It's good for its price. Had it powering a set of Hifonics ZXi6.5s on the doors. They sounded great but I came across a RF punch 400.2 and it now the components sound way better. I'd say this amp does from 60-80 rms a channel instead of the 100 RMS. But I will be using this amp for my tweeters!

Can't rate on durability since I used it for about a month.

11

found this helpful.

Luis

January 13, 2011

Hifonics

I was able to tune it to my EQ, very easy set up...one down fall...goes into protection after a while on hot summer days

10

found this helpful.

ramon

April 27, 2011

Not bad for the price ...

Recently purchased this amplifier and to be honest I don't think the RMS values are accurate at all ,... like a recent comment I read, I agree that the values are stretched a bit ... I put these numbers to the test and this amplifier did not hold up at all but for the price it does its job, just don't expect 400 R.M.S. out of this amplifier bridged

9

found this helpful.

gone boating

February 6, 2011

Great Amp

Has lots of power and sounds great.

9

found this helpful.

Kenneth

January 2, 2011

Good Amp

Great amp although it does get warm, puts out close to what it says.

9

found this helpful.

Jay

February 21, 2010

Very nice.

Well only having this installed for 2 days so far, I must say im pretty impressed. I have it in 4 channel mode powering 2 sets of the T1652-s of the R. Fosgate components. Easy install and setup. Pretty cool here on the East Coast atm but this amp can and does get really hot. I love the amp it works exactly how I want and need it too. Overall I would recommend this amp for a fairly cheap 4 channel. So 2 things that I have small issues with is the amp getting hot and at top volume for long periods of time the amp will lower its output due to being hot. And yes I have it in a well vented spot in my trunk.

8

found this helpful.

cesar

December 16, 2011

worth the money

Good amp. Clear highs. Have had it for 1 year no problems.

7

found this helpful.

Pete

October 2, 2011

Best amp for the money

This is the best amp for your mid's and high's for the money. I have owned it for 6 months and I would recommend it to any one if you are a beginner or like me have thousands invested in your system you would not be disappointed. The other neat trick about this amp is that if you get eight 4 ohm speakers you can actually increase the 400watts output to 800 watts pushing all eight speakers with no problem and trust me you won’t need more power than that. This is the best little amp for your money.

8

found this helpful.

kasper4278

September 17, 2011

great amp!

I purchased this amp to replace a 780 watt 2 channel pioneer amp. I have it hooked up to a pair of Alpine components in the front and SPL components in the rear. ( also purchased from SONIC) And I can not be happier. There is plenty of power and clarity. The Amp puts out a great deal of power and do not distort. Great amp for the price no complaints on it. I have been beating the heck out of it for several months now and it does not sweat.

8

found this helpful.

Tennessee's Finest

October 25, 2012

HFi100.4

I purchased this amp to power a pair of planet audio bb690's and a pair of Alpine spe-5000 and they sound as clear a a bell.

5

found this helpful.

rook1981@gmail.com

December 27, 2011

Love it!

I love this amp. It sounds great in my truck. I was looking for an that wouldn't over heat in a small space, and this amp has given me exactly what I needed.

6

found this helpful.

Carlos

December 13, 2011

High's on a budget

Works great, i have not had any issue's with this amp at all, this was more than enough power to run all my MB Quart high's that I also purchaced here at Sonic. Thank you Sonic. I would reccommened.

6

found this helpful.

Mark

September 6, 2011

Awesome Amp

This is my second Hifonics amp that I have put in my boat. The first one lasted over 7 years in marine conditions. I am sold on them. Great product

6

found this helpful.

DAVID

January 15, 2012

GREAT FOR RUNNING MIDS

Connected this to my mids. 2 6.5s and 2 6x9s. Would recommend to anybody looking to really boost their vocals!!

5

found this helpful.

Jim

October 19, 2011

hifonics hfi1004

Works great, powerful great amp. The sound is clean and crisp. I would suggest running a very heavy power cable. Also have a good battery and terminals and fuses. This is a power hungry amp. Do not go cheap on any of the things I mentioned. You are supposed to use a 0 gage cable even if the cost is high you want it for a reason.

5

found this helpful.
