Name: Sound Storm Labs (SSL) EV3000D [Refurbished]
Brand: Sound Storm Labs (SSL)
SKU: LS-ev3000d-RBC
Price: 84.99 USD
Availability: Discontinued

by Sound Storm Labs (SSL)

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

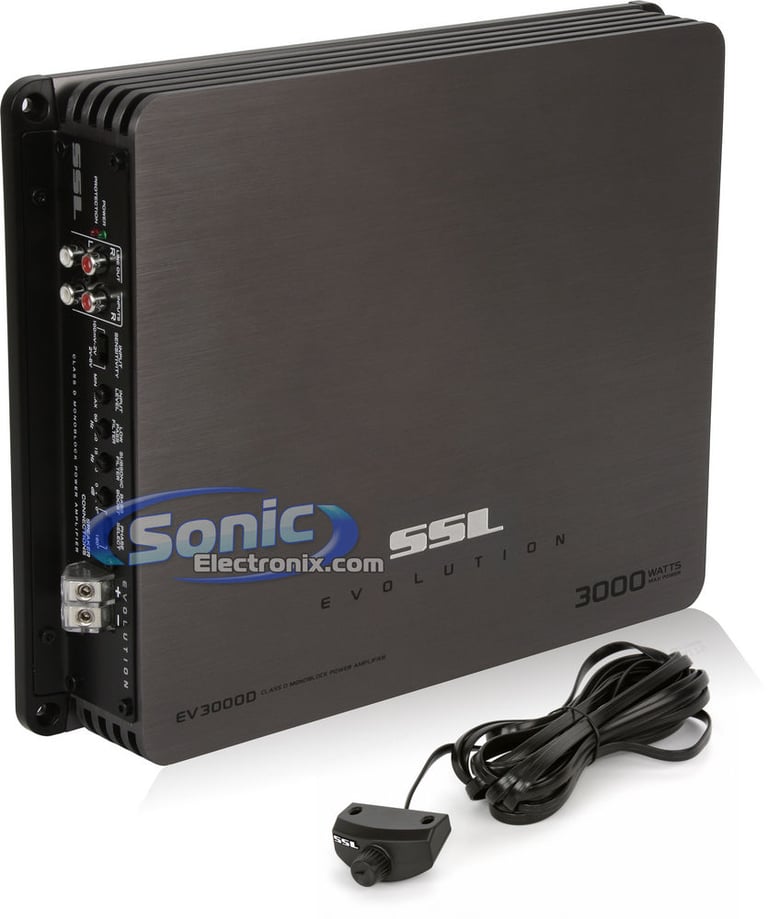

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 1 — Sound Storm Labs (SSL) EV3000D [Refurbished]

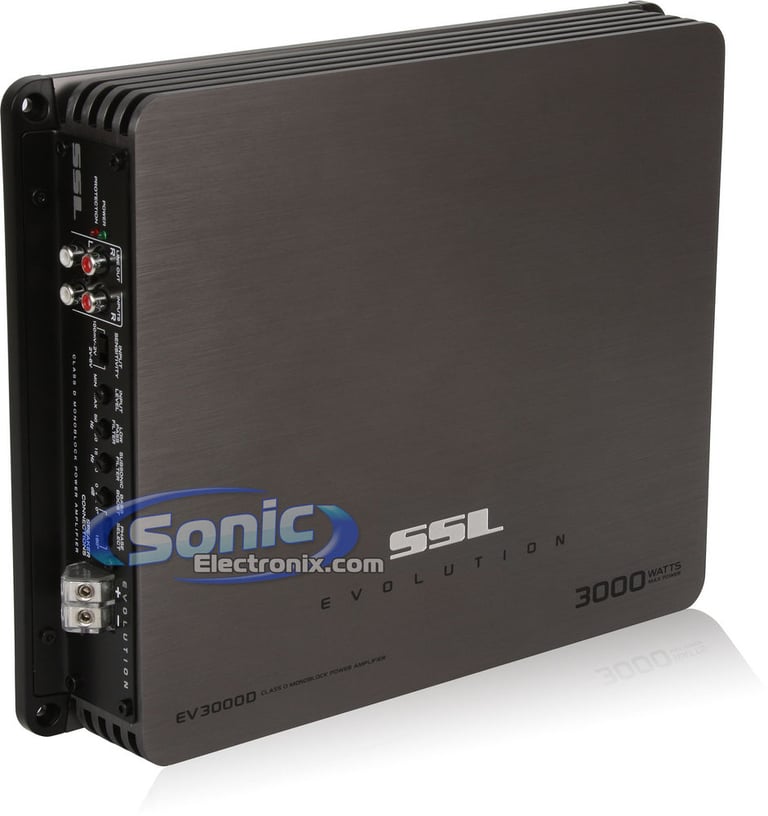

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 2 — Sound Storm Labs (SSL) EV3000D [Refurbished]

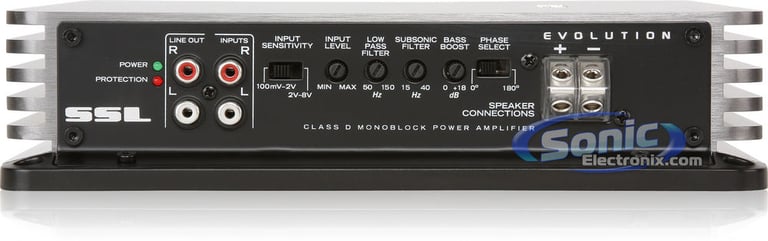

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 3 — Sound Storm Labs (SSL) EV3000D [Refurbished]

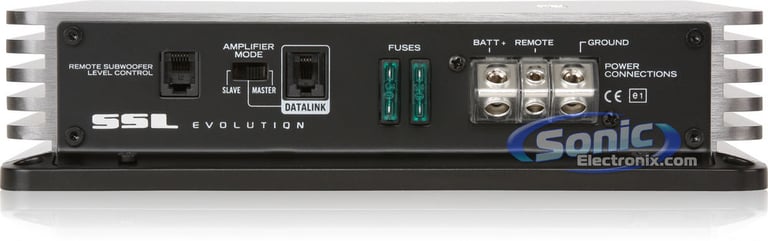

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 4 — Sound Storm Labs (SSL) EV3000D [Refurbished]

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 5 — Sound Storm Labs (SSL) EV3000D [Refurbished]

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 6 — Sound Storm Labs (SSL) EV3000D [Refurbished]

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 7 — Sound Storm Labs (SSL) EV3000D [Refurbished]

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 8 — Sound Storm Labs (SSL) EV3000D [Refurbished]

Sound Storm Labs (SSL) EV3000D [Refurbished] Image 9 — Sound Storm Labs (SSL) EV3000D [Refurbished]

Product highlights

• 563 Watts RMS x 1 @ 4 ohm
• 1125 Watts RMS x 1 @ 2 ohm
• 2250 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 3000 Watts
• Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
• Large aluminum heatsink for excellent heat dissipation
• 12.688"L x 10"W x 2.3"H

Learn more about the LS-ev3000d-RBC

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features:

SoundStormEvolution Series Monoblock Class-D Car Amplifier

RMS Power Rating:

4 ohm: 563 watts x 1 chan.
2 ohm: 1125 watts x 1 chan.
1 ohm: 2250 watts x 1 chan.

Total power output: 3000 watts

Pulse Width Modulated MOSFET power supply

Wired remote bass level control included

Power and protection LED indicators

Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz

1 Ohm stable

Single channel monoblock operation

Selectable input sensitivity: 100mV-2V or 2V-8V

Thermal, overload, and speaker short protection

1 Pair of preamp RCA outputs

Soft turn-on circuit

Selectable 0/180 phase shift

DataLink cable included for connecting two Sound Storm Evolution amplifiers together

Variable input gain control

Large aluminum heatsink for excellent heat dissipation

Nickel-plated RCA level inputs

Nickel-plated screw terminals

Variable low-pass filter (50 - 150 Hz, 12 dB/octave)

Subsonic Filter (15 - 40 Hz, 12 dB/octave)

Frequency response: 15 -500 Hz

Total Harmonic Distortion (THD): 0.01%

Signal to Noise Ration: 100 dB

Dimensions: 12.688"L x 10"W x 2.3"H

4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.

Authorized Internet Dealer

1-year Manufacturer's warranty

Package Includes:

Class D Amplifier

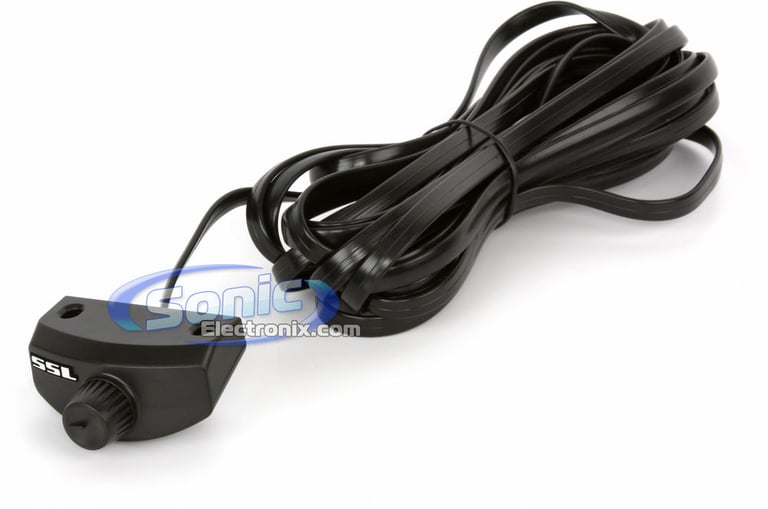

Remote subwoofer level control

Remote subwoofer control cable

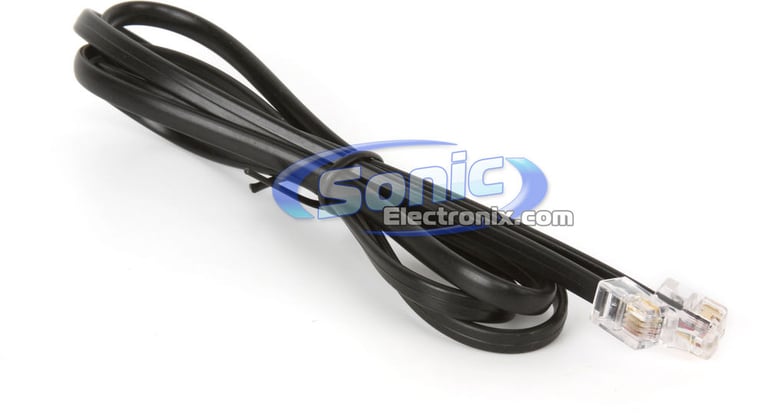

DataLink cable

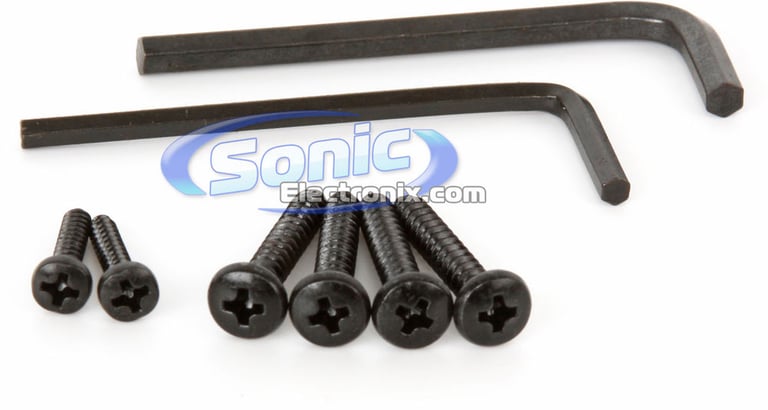

Four mounting screws

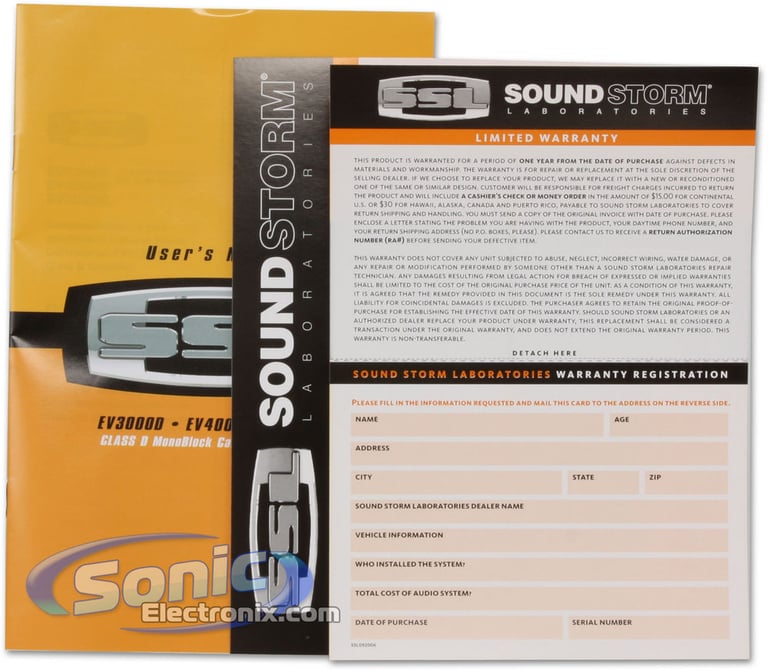

Check out the EV3000D Owner's Manual

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

563 watts x 1 channel

RMS Power @ 2 ohms

1125 watts x 1 channel

RMS Power @ 1 ohm

2250 watts x 1 channel

Amplifier Specifications

Series

Evolution Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3000 watts

Total RMS Power Output

2250 watts

Maximum Input Gauge Size

Any Gauge with use of Spade Terminal AWG

Minimum Impedance Unbridged

1 ohm

THD at Rated RMS Power

0.01%

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 150 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

35A x 2

Strappable

Yes

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
