SoundStorm (SSL) EV4000D - Open Box, Good Condition (Used)

4000W Max, Evolution Series Class D Monoblock Power Amplifier Open Box Complete (Good, Used)

highlight-star-icon

• RMS: 1600W x 1 @ 4 ohm
• Peak: 3000W x 1 @ 2 ohm, 4000W x 1 @ 1 ohm
• Wired Bass Level Remote
• Bass Boost: 0-18 dB
• DataLink Cable for Connecting Two Evolution Amps
• Dimensions: 10"D x 15"W x 2-3/8"H

Learn more about the LS-ev4000d-OBC5

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL) brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Good Condition:
A Good Open Box used product shows wear from consistent use, but it remains in good condition and works perfectly. It may be marked, have identifying markings on it, or show other signs of previous use or installation. Original packaging, paperwork or protective wrapping may be missing or not included in its entirety. Warranty details are included in the item description or comments.
SSL Platinum Dealer Amplifier Features:

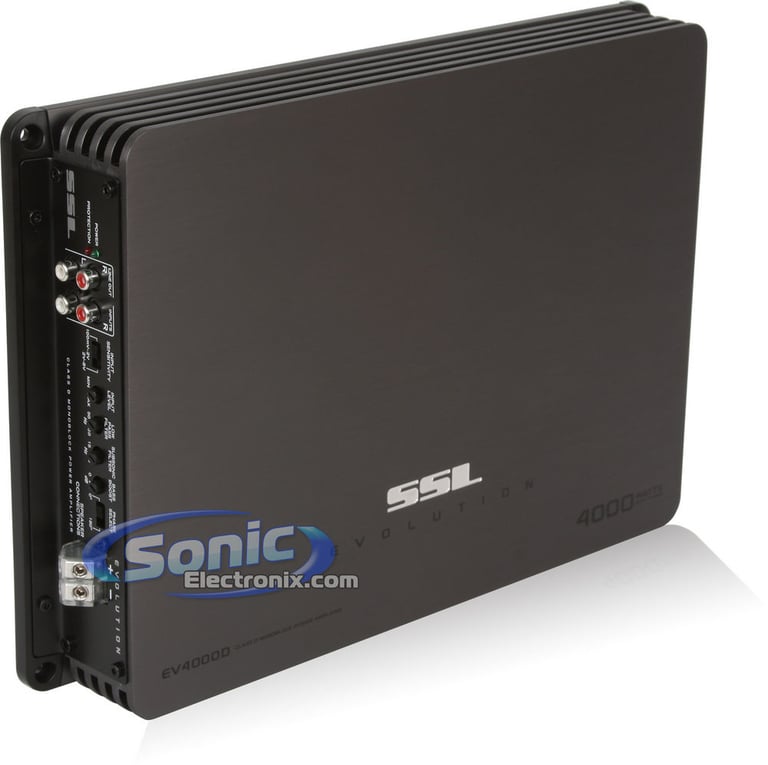

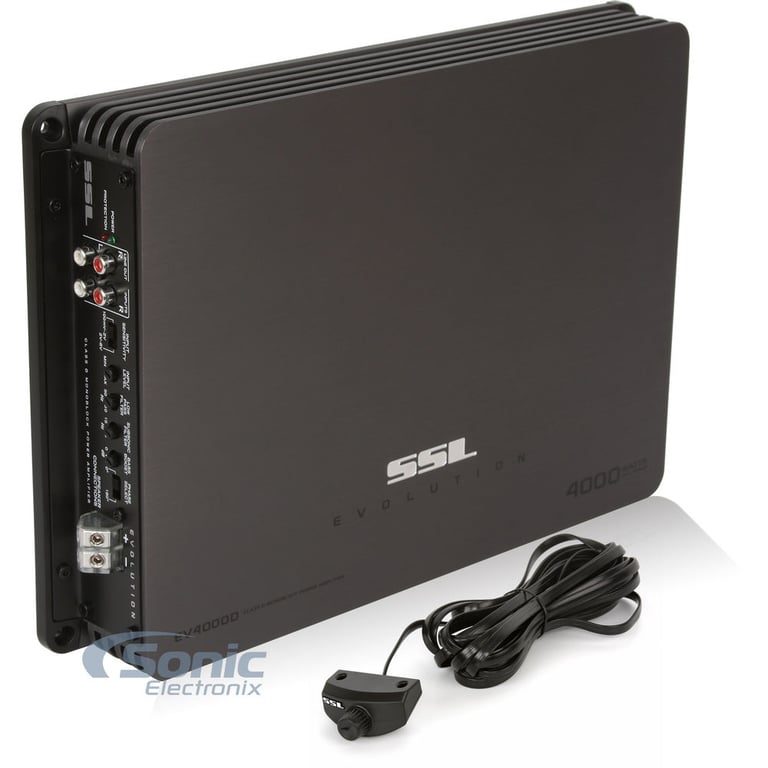

  • Evolution Series Single-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1500 watts x 1 chan.
  • Max power output:
    • 2 ohm: 3000 watts x 1 chan.
    • 1 ohm: 4000 watts x 1 chan.
  • MOSFET PWM (Pulse Width Modulated) power supply)

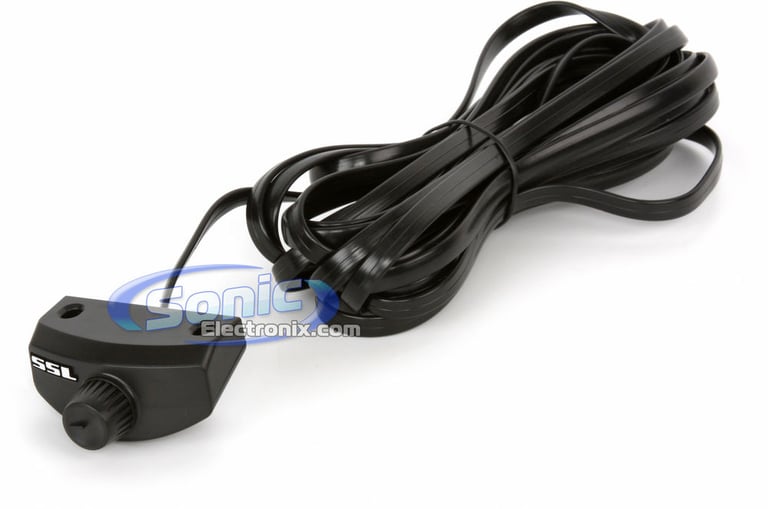

  • Wired remote bass level control included
  • Power and protection LED indicators
  • Variable tuned bass EQ (0-18 dB bass boost)
  • 1 Ohm stable
  • Single channel monoblock operation
  • Selectable input sensitivity (100mV-2V or 2V-8V)
  • Thermal, overload, and speaker short protection
  • 1 pair of preamp RCA outputs
  • Soft turn-on circuit
  • Selectable 0/180 phase shift

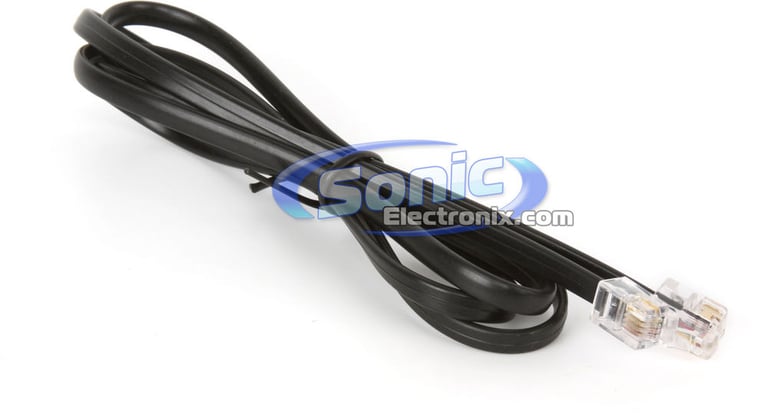

  • DataLink cable included for connecting two Sound Storm Evolution amplifiers together
  • Variable input gain control
  • Dark gray anodized heatsink
  • Large aluminum heatsink for excellent heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Subsonic Filter (15-40 Hz, 12 dB/octave)
  • Frequency response: 50-150 Hz
  • Dimensions: 10"D x 15"W x 2-3/8"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Package Includes:
  1. Class D Amplifier
  2. Remote subwoofer level control
  3. Remote subwoofer control cable
  4. DataLink cable

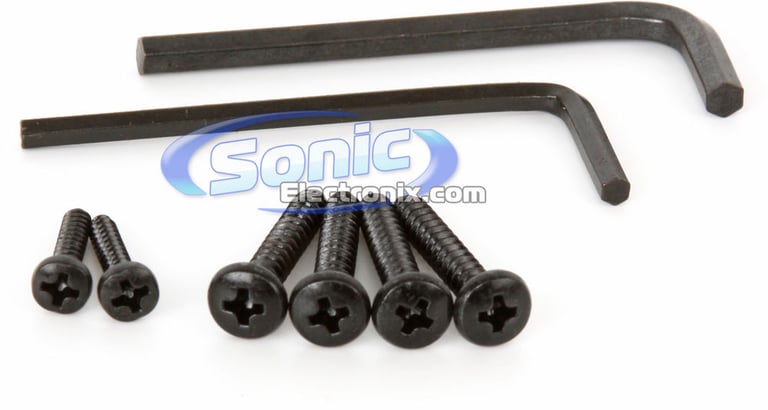

  5. Four mounting screws

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1500 watts x 1 channel
RMS Power @ 2 ohms
Not specified by manufacturer
RMS Power @ 1 ohm
Not specified by manufacturer
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
Not Specified by Manufacturer
Peak Power @ 2 ohms
3000 watts x 1 channel
Peak Power @ 1 ohm
4000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EV4000D-3

Weight:

13.00lbs

Internal SKU:

LS-ev4000d-OBC5

Internal Product ID:

136691
