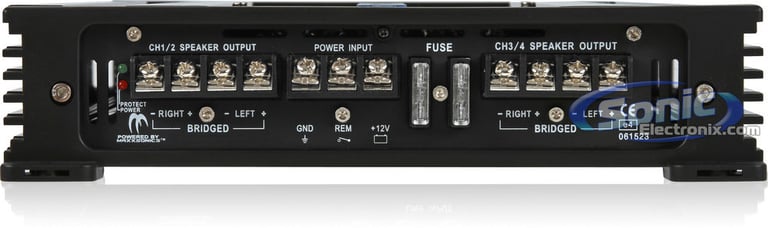

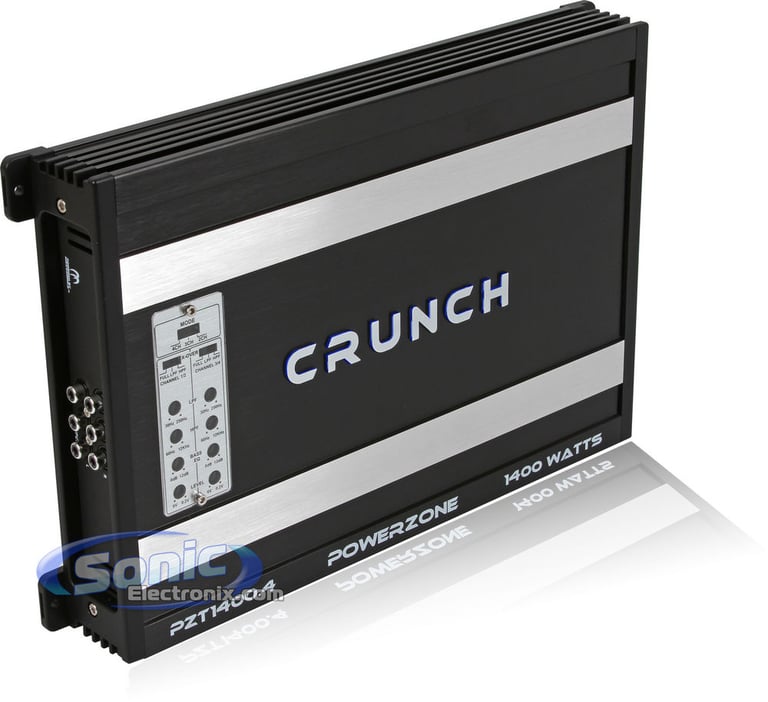

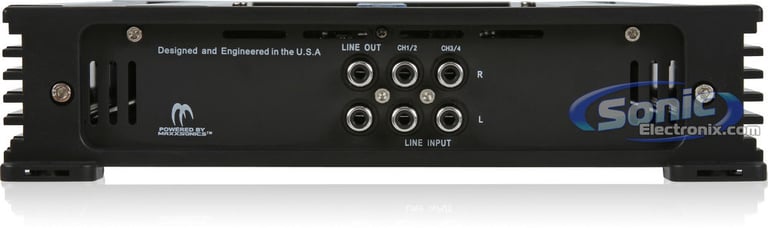

Crunch PZT1400.4 Image 1 — Crunch PZT1400.4

Crunch PZT1400.4 Image 2 — Crunch PZT1400.4

Crunch PZT1400.4 Image 3 — Crunch PZT1400.4

Crunch PZT1400.4 Image 4 — Crunch PZT1400.4

Crunch PZT1400.4 Image 5 — Crunch PZT1400.4

Product videos

Product highlights

PowerZone Series 4-Channel Car Amplifier • 175W x 4 chan. @ 4 Ohm • 350W x 4 chan. @ 2 Ohm • 700W x 2 chan. @ 4 Ohm • MOSFET Output Power Circuit Configuration • LED Power and Protection Indicators

Learn more about the pzt14004

Product Highlights

Description

Authorized dealer

PowerZone Series 4-Channel AB Car Amplifier
RMS Power Rating:

4 ohm: 87.5 watts x 4 chan.
2 ohm: 175 watts x 4 chan.
Bridged, 4 ohm: 350 watts x 2 chan.

Max Power Rating:

4 ohm: 175 watts x 4 chan.
2 ohm: 350 watts x 4 chan.
Bridged, 4 ohm: 700 watts x 2 chan.

MOSFET power supply
LED power and protection indicators
Tuned Bass EQ (0-12 dB bass boost at 45 Hz)
Variable bass equalization
Speaker-level inputs with soft turn-on
RCA Inputs and outputs
4-Channel operation
Top mounted controls for easy adjustment
4-Way protection (DC, short, thermal, overload)
Stereo mono amplifier mode switch
Illuminated CRUNCH logo
Silver-plated RCA level inputs
Silver-plated screw terminals
Variable high-pass filter (60-1200 Hz, 24 dB/octave)
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Variable input level control: 0.2V-5.0V
Top-mounted controls
Frequency response: 30-1,200 Hz
Dimensions: 13-3/8"L x 10"W x 2-1/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year Manufacturer's warranty

Product history:

	Crunch PZ1800.4 (newest, current model)
	Crunch PZA1600.4 (previous model, replaced by Crunch PZ1800.4)
	Crunch PZT1400.4 (previous model, replaced by Crunch PZA1600.4)
	Crunch P1400.4 (previous model, replaced by Crunch PZT1400.4)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

87.5 watts x 4 channel

RMS Power @ 2 ohms

175 watts x 4 channel

Bridged RMS Power

350 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1400 watts

Total RMS Power Output

700 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

60 - 1200 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

90 dB

Channel Separation

80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		50%
4 star		0%
3 star		0%
2 star		50%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		3.5
Value		3.5
Features		3
Design		4.5
Usability		5

Customer Reviews

Sort by:

bad power

Run it as a 2 channel is good but use it in a 4 channel its done and no sound control
I have a Jensen 720 got more power and control

By lee on February 9, 2011

6 found this helpful

Report abuse

Its Loud!!!!

I got it running @ 2 ohms on 2 channels on 4 250 watt rms Pops 6x9s and its at 1/4 gain. And on the remaining 2 channels I have 2 35 watt rms Pioneer 6 1/2s, 2 35 watt rms 4x6s and 2 sets of 100 watt rms tweets wired down to 4 ohms all running from a 2V output Pioneer deck and it all sounds clean!

By Debo on February 16, 2012

4 found this helpful

Report abuse
