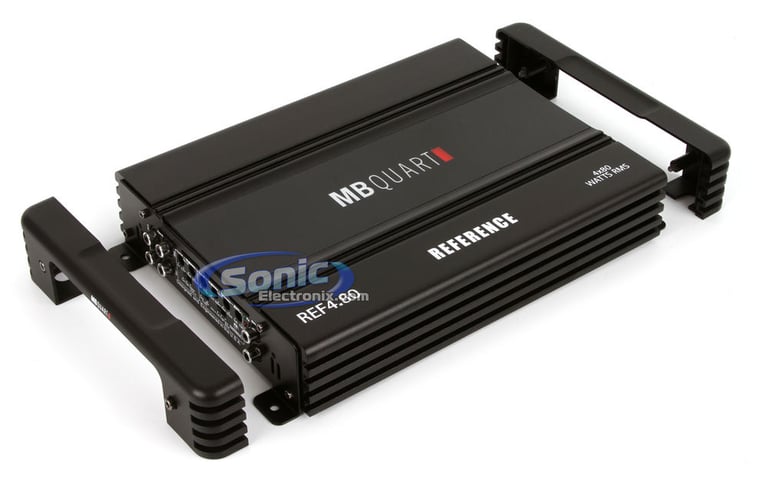

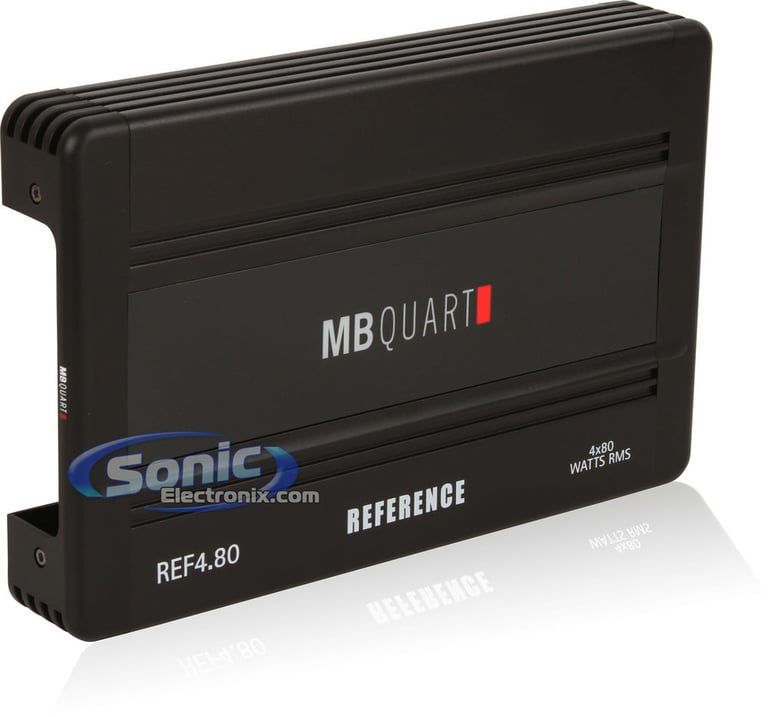

MB Quart REF4.80

640W RMS Reference Series 4-Channel Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

Reference Series 4-Channel Class A/B Car Amplifier • 640W RMS • 160W x 4-Chan @ 2 Ohm • Variable Bass Boost • Soft Start Turn-on • 4-Way System Protection Circuitry • Preamp RCA Outputs • MOSFET Power Supply

Learn more about the ref480

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
S2-S40 main

Alpine S2-S40

280W Peak (90W RMS) 4" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

37
-15.42%

$109.95

List price $130.00

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Product Highlights


Reference Series 4-Channel Class A/B Car Amplifier • 640W RMS • 160W x 4-Chan @ 2 Ohm • Variable Bass Boost • Soft Start Turn-on • 4-Way System Protection Circuitry • Preamp RCA Outputs • MOSFET Power Supply

Description


MB Quart brand icon

Authorized dealer

  • Reference Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 chan.
    • 2 ohm: 160 watts x 4 chan.
    • Bridged, 4 ohm: 320 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +9 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (15-250 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 15-45,000 Hz
  • Dimensions: 12-3/16"L x 7-3/4"W x 1-7/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
160 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
320 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
640 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
15 - 250 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Channel Separation
>80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
35A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REF4.80

Weight:

8.40lbs

Internal SKU:

ref480

Internal Product ID:

25535
