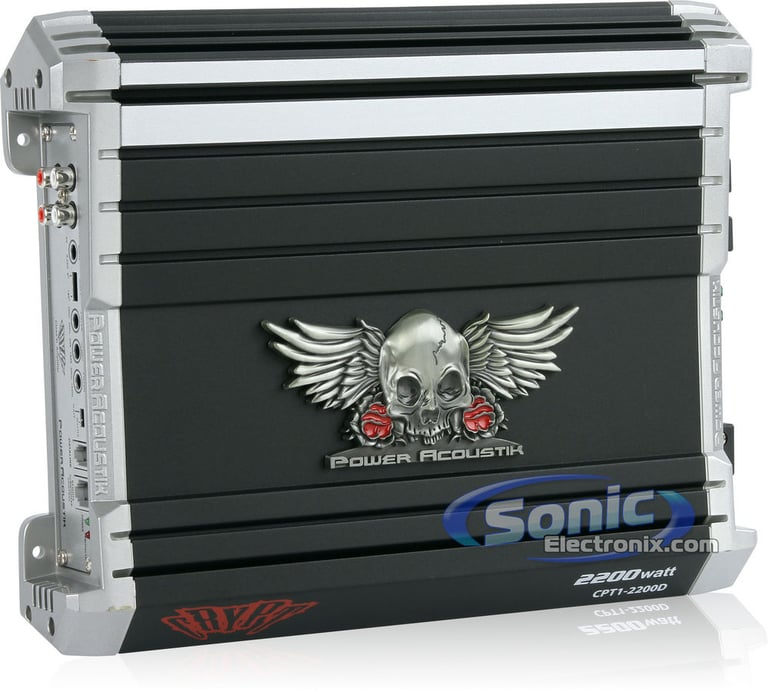

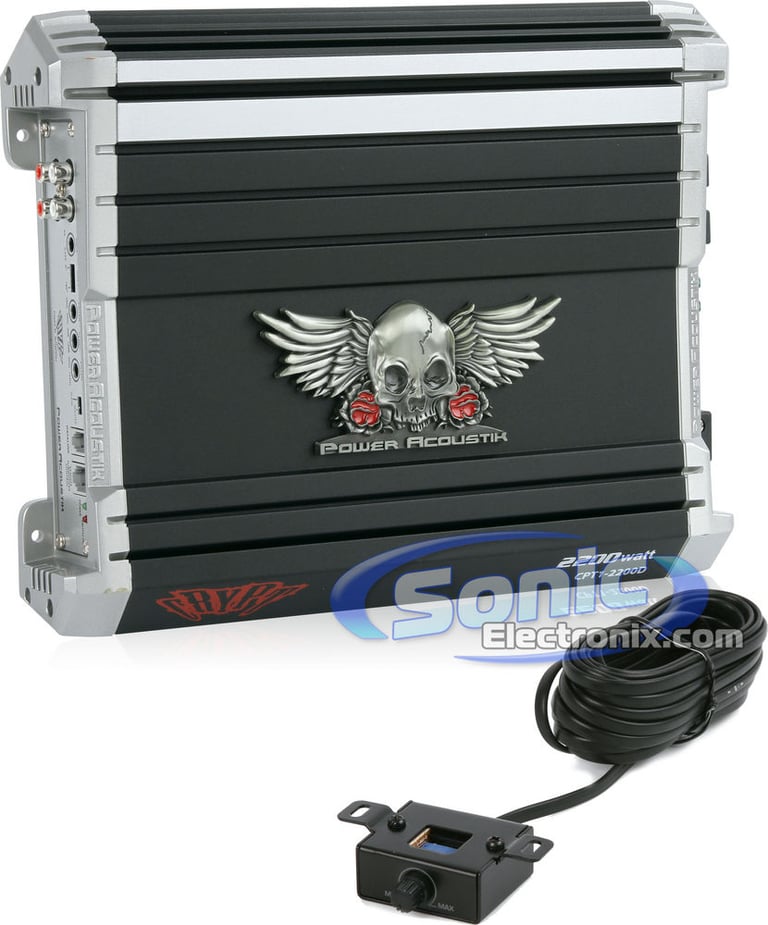

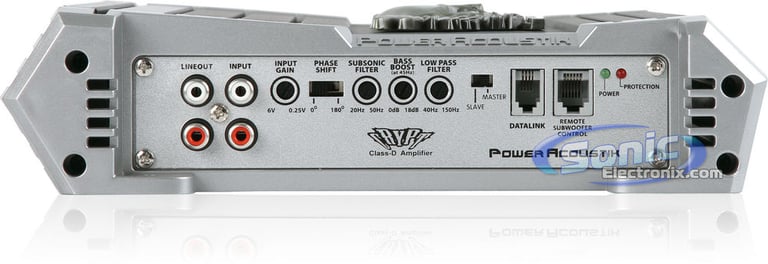

Power Acoustik CPT1-2200D

2200W Max, CRYPT Series Class D Monoblock Amplifier

Product videos
highlight-star-icon

• RMS: 700W x 1 @ 4 ohm, 950W x 1 @ 2 ohm, 1300W x 1 chan @ 1 ohm
• Total Peak Power: 2200W
• Class D Circuitry
• Bass Boost: 0-12 dB at 45 Hz
• 1 Pair of Preamp Outputs
• Dimensions: 12"L x 9-13/16"W x 2-5/16"H

Learn more about the cpt12200d

We apologize

This item has been discontinued


Loading...
TSB920 main

American International TSB920

6" to 6.5" Speaker Mounting Adapters for select 1998-2020 vehicles from Toyota, Scion, Lexus

6
-58.38%

$9.99

List price $24.00

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

Lowest price in 30 days
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
46CSS674 main

Kicker CSS67 (46CSS674)

600W Peak (200W RMS) 6.75" CS Series 2 Way Component 4-ohm Speaker System

2
-28.02%

$143.96

List price $199.99

TS-A1681F main

Pioneer TS-A1681F

700W Peak (160W RMS) 6.5" A-Series 4-Way Coaxial 4-ohm Speakers

3
-15.39%

$109.99

List price $130.00

43DSC6704 main

Kicker DSC670 (43DSC6704)

240W Peak (60W RMS) 6.75" DS Series 2-Way Coaxial Car Speakers with PEI Tweeters (DSC6704)

3
-10.53%

$84.99

List price $94.99

Club 9632 main

JBL Club 9632 (SPKCB9632AM)

510W Peak (170W RMS) 6x9" Club Series 3-way 3-ohm Coaxial Car Speaker

3
-20.59%

$134.95

List price $169.95

Product Highlights


• RMS: 700W x 1 @ 4 ohm, 950W x 1 @ 2 ohm, 1300W x 1 chan @ 1 ohm
• Total Peak Power: 2200W
• Class D Circuitry
• Bass Boost: 0-12 dB at 45 Hz
• 1 Pair of Preamp Outputs
• Dimensions: 12"L x 9-13/16"W x 2-5/16"H

Description


Power Acoustik brand icon

Authorized dealer

  • CRYPT Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 700 watts x 1 chan.
    • 2 ohm: 950 watts x 1 chan.
    • 1 ohm: 1300 watts x 1 chan.
  • Max power output: 2200 watts
  • Pulse Width Modulated power supply
  • MOSFET PSU Transistors

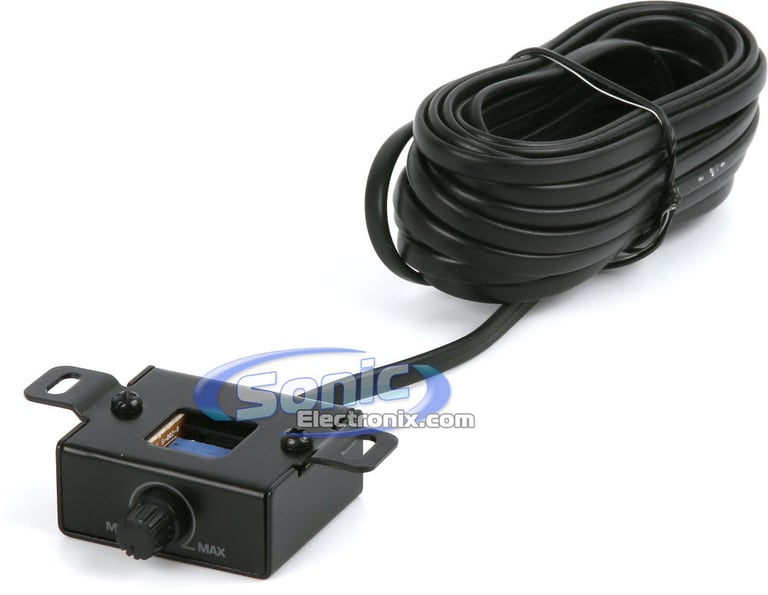

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Selectable bass boost (6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty extruded aluminum chassis heatsink for maximum heat dissipation
  • Black textured finish with silver trim and cast metal badge
  • Nickel-plated RCA level inputs

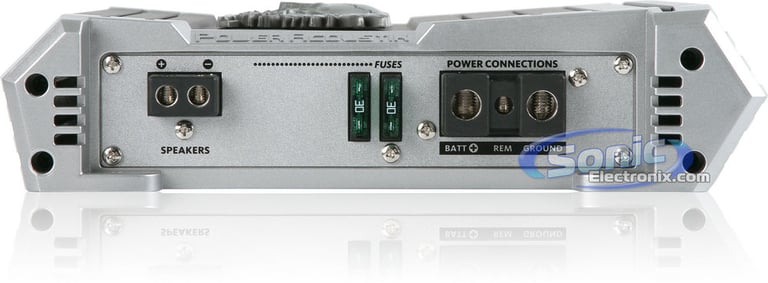

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-8V
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Subsonic filter (20-50 Hz)
  • Phase Shift: 0-180 Degrees
  • Frequency response: 15-150 Hz
  • Dimensions: 12"L x 9-13/16"W x 2-5/16"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
700 watts x 1 channel
RMS Power @ 2 ohms
950 watts x 1 channel
RMS Power @ 1 ohm
1300 watts x 1 channel
Amplifier Specifications
Series
Crypt Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2200 watts
Total RMS Power Output
1300 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
6, 12 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CPT1-2200D

Weight:

8.50lbs

Internal SKU:

cpt12200d

Internal Product ID:

25905

Product and How-to Videos


Customer Ratings & Reviews


Power Acoustik CPT1-2200D thumbnail image

5 star
43%
4 star
43%
3 star
0%
2 star
0%
1 star
14%



Durability
4.2
Value
4.3
Features
4.2
Design
4
Usability
4

Customer Reviews

Sort by:

Loading...

Decent

This is a good little amp. I was told Power Acoustik's are good amps, and mine is. My only problem is that I bought it to power my Fosgate T0, and it's not doing the job I expected. My sub hits super clean and semi-hard. It just doesn't get as loud as I had hoped for.. My buddy has a JL W3 hooked up to a MTX 600W amp and it easily hits twice as hard.. be sure to use this amp with a lower end sub.

By Bo on June 15, 2011

12 found this helpful


Pretty good

I've been using this amp for about 6 months now and I like it a lot it's powering my Eclipse SW8010 makes it pound pretty hard the one thing I don't like about it is I'm running the required gauge of wire and I turn the knob to half an its as high as the amp can go other then that I've always used power acoustik amps

By jerron on April 12, 2011

14 found this helpful


great product

Great product with a good price and fast shipping and with sonic always good tech support.

By Phillip on March 8, 2014

12 found this helpful


WAY OVERATED

I bought this amp and thought it would be a great amp, but it found out it was way overated. What I mean is it hits hard but when it supose to push 700 watts rms @ 4 ohms and I'm rumming a 350 watt rms @ 4 ohm walmart sub. You would think it would blow that sub easy, but it didnt. My nephew has a 1000 watt kenwood amp tthat is pushing the same kind of sub and it hits 10 times harder. Its not a bad amp, but im going to go with a name brand amp I trust.

By jethro on February 22, 2011

11 found this helpful


great for the price

This amp was pushing two 12" and it hit hard.

By jgroove on January 31, 2014

9 found this helpful


Stay Away From This Amp

At first it worked, but it wasn't putting out the power it was promising. This amp was very inefficient and I was maybe getting 500 rms at 2 ohms with it. Gain had to be turned up just to notice some vibes from my sub, didn't want to risk blowing the amp so I kept it turned down and the bass boost off.

I Went out to my car one day and all of a sudden in was in protection mode. No blown fuses, wires all secure, power and remote are getting 14.5v so they're fantastic, cables all good, etc. Just for funsies I plugged in another Kenwoo KAC amp I have, worked like a charm, signaling this amp had already gone bad after barely a month of light use.

TLDR, doesn't put out power it promises (if I wanted that I would have gone out and bought a BOSS amp), breaks extremely easily. On the bright side, it looks cool. So if you want to spend $100 on a decorative instrument, get it. Other than that, stay away from Power Acoustik amps (They do make good subs, however).

By Nick on April 22, 2014

8 found this helpful


Big power for your buck!!

This amp drives 2 massive audio 12" subs and they slam hard vibrating the trunk and anything loose.

By Islandbwoy on October 11, 2012

5 found this helpful




No picture

NVX NSH-5603

Install New Tweeters in select 2015-2024 F-150 and Bronco and Maverick

$7.99

List price $12.99

SRPM700.2D small

Cerwin-Vega SRPM700.2D

700W RMS Class D RPM Stroker Series 2-Channel Marine and Powersports Amplifier

$309.99

List price $371.99

XBBR2 small

NVX BassTracer Enhancer (XBBR2)

Compact 2-Channel LOC & Line Driver with Bass Restoration – Rebuilds Lost Sub-Bass with Parametric Control & Simple Remote Integration

(8)

$79.99

List price $119.99

OD1-3500D small

Power Acoustik OD1-3500D

Overdrive Series 3500W Max Monoblock Class D w/Bass Remote

(2)

$135.99

List price $119.99

Apex PA1502 small

JBL Apex PA1502

750W Peak (300W RMS) Class D Apex Series Compact 2-Channel Marine and Powersports Amplifier

$384.95

List price $439.95

SM8F4 small

Cerwin-Vega SM8F4

600W Peak (300W RMS) 8" RPM Stroker Series 2-Way Coaxial 4-ohm Marine Speakers with RGB LED

$319.99

List price $383.99

V8-RTN8-20 small

T-Spec V8-RTN8-20

20 Pack of V8 Series 4 Gauge 1/4" Crimp Ring Terminals (10 Red & 10 Black)

(3)

$31.99

List price $35.99

R2-750X1, XKIT42 small

Rockford Fosgate R2-750X1 with Amplifier Wiring Kit

Rockford Fosgate Prime 750 Watt MonoBlock Amplifier + NVX Premium Complete Amp Kit

(130)

$339.99

List price $523.98

M2LV418D2 small

DC Audio Level 4 18M2D2 (M2LV418D2)

2800W Peak (1400W RMS) 18" Level 4 Series M2 Version Dual 2-Ohm Car Subwoofer

(1)

$564.99

List price $764.49

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Mazda RX-8

1990 Cadillac DeVille

2010 Dodge Caliber

2000 Honda Prelude

2022 Subaru BRZ

2008 Audi RS4

2020 Audi Q5

2000 Audi A8 Quattro

2001 Toyota 4Runner

1985 Mercury Capri

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
