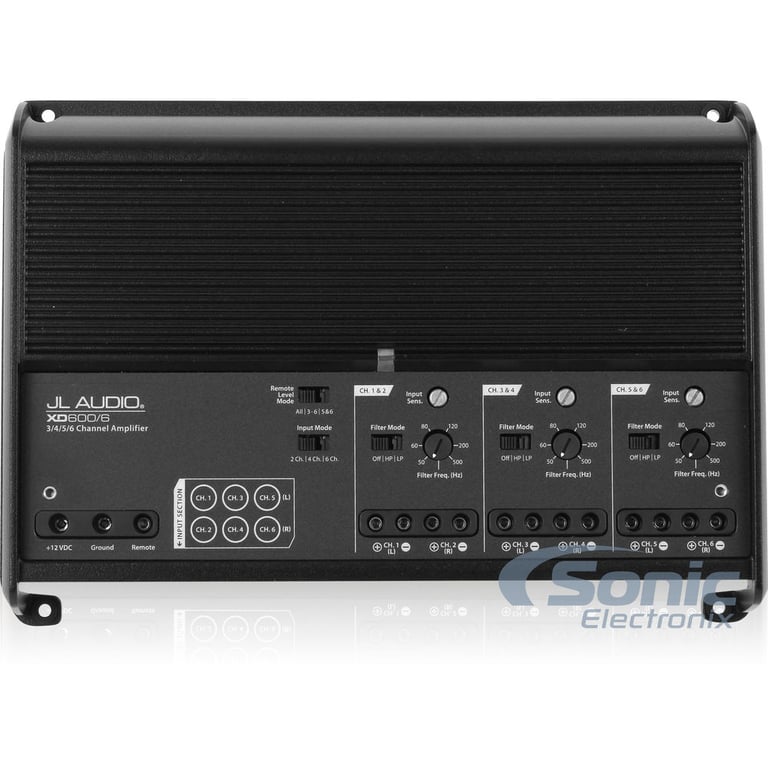

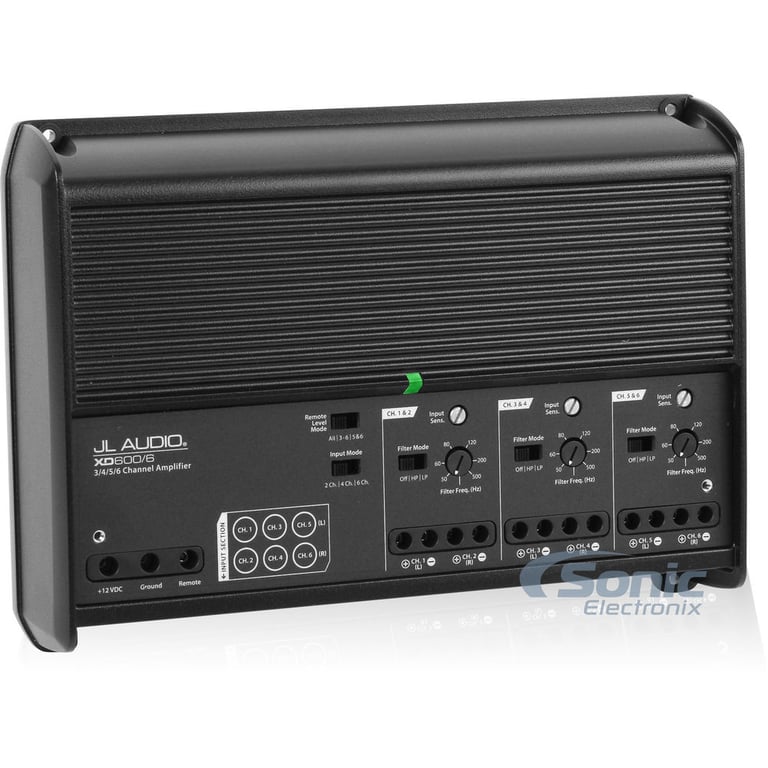

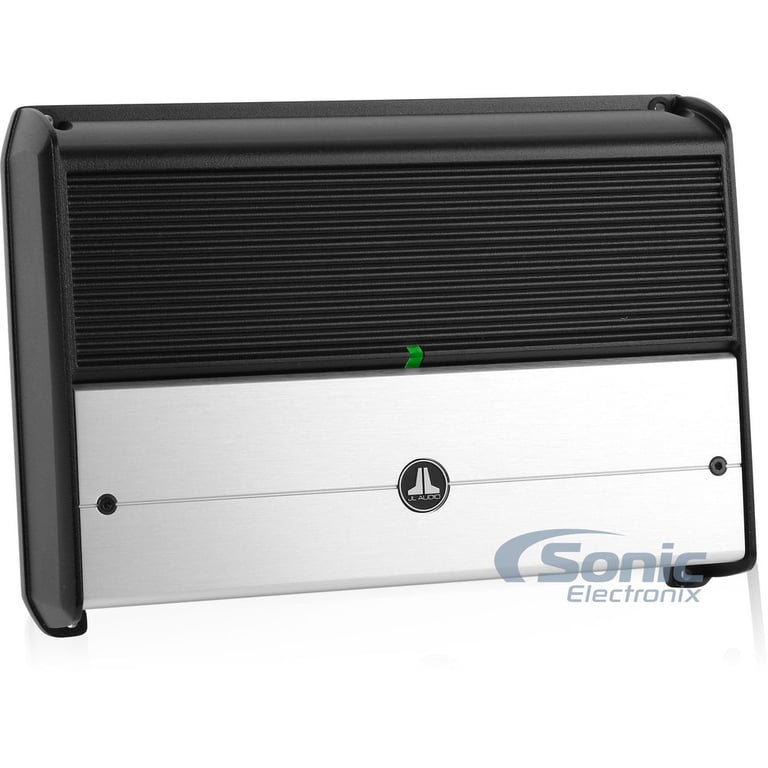

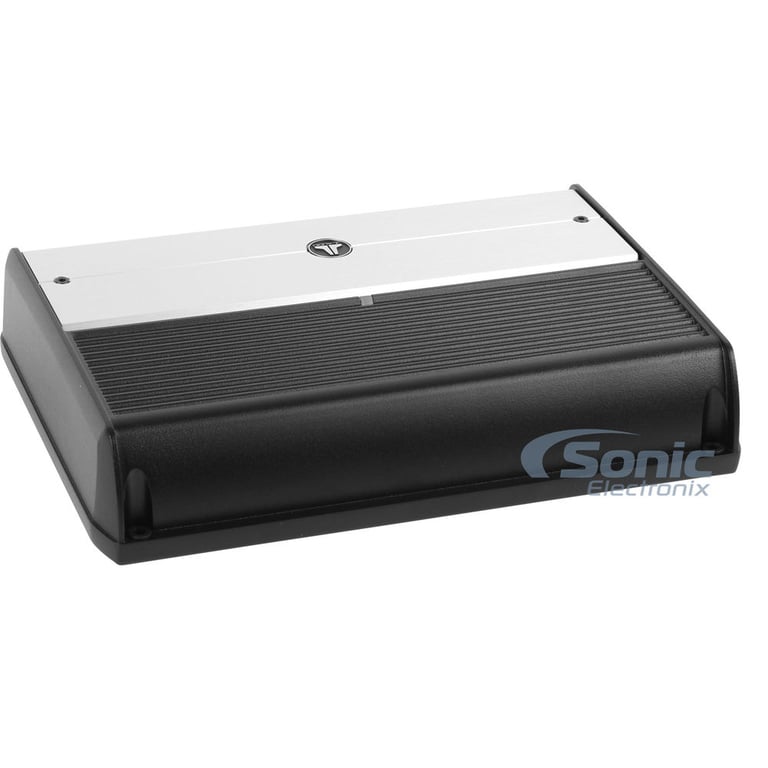

JL Audio XD600/6

600W RMS 6-Channel Class D XD Series Car Amplifier

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 100W x 6-Chan @ 2 Ohm
• NexD Ultra-High Speed Topology
• Preamp RCA Outputs
• Variable High/Low-Pass Filter
• 3-Way System Protection Circuitry
• Remote Bass Input

Learn more about the xd6006

We apologize

This item has been discontinued


Loading...
XAV-AX8100 main

Sony XAV-AX8100

8.95" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay and Android Auto (SiriusXM Ready)

3
-8.00%

$598.00

List price $649.99

INE-W970HD main

Alpine INE-W970HD

6.5" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, Android Auto and Built-in Navigation (SiriusXM Ready)

5
-16.67%

$999.95

List price $1200.00

Product Highlights


• 100W x 6-Chan @ 2 Ohm
• NexD Ultra-High Speed Topology
• Preamp RCA Outputs
• Variable High/Low-Pass Filter
• 3-Way System Protection Circuitry
• Remote Bass Input

Description


JL Audio brand icon

Authorized dealer

NEWER v2 Spec XD600/6v2 Now Available
Featuring High-Speed NexD™ Switching Design and Signal Sensing Turn-On! Click Here to View

General Features

  • XD Series 6-Channel Class D Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 75 watts x 6 chan.
    • 2 ohm: 100 watts x 6 chan.
    • Bridged, 8 ohm: 150 watts x 3 chan.
    • Bridged, 4 ohm: 200 watts x 3 chan.
  • RMS Power Rating (12.5V):
    • 4 ohm: 60 watts x 6 chan.
    • 2 ohm: 90 watts x 6 chan.
    • Bridged, 8 ohm: 120 watts x 3 chan.
    • Bridged, 4 ohm: 180 watts x 3 chan.
  • Unregulated MOSFET switching type power supply
  • NexD Ultra-High Speed Class D topology
  • Wired JL Audio HD-RLC remote level control sold separately
  • LED power (green) and protect (red/yellow) indicators
  • Independent input sensitivity controls
  • State-of-the-art microelectronic components
  • 6/5/4/3 channel operation
  • Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events
  • Studio-grade signal processing with fully variable crossover filters
  • Extruded aluminum alloy system setting security cover
  • Total amplifier efficiencies exceeding 80%
  • Noise-killing, highly flexible differential-balanced inputs

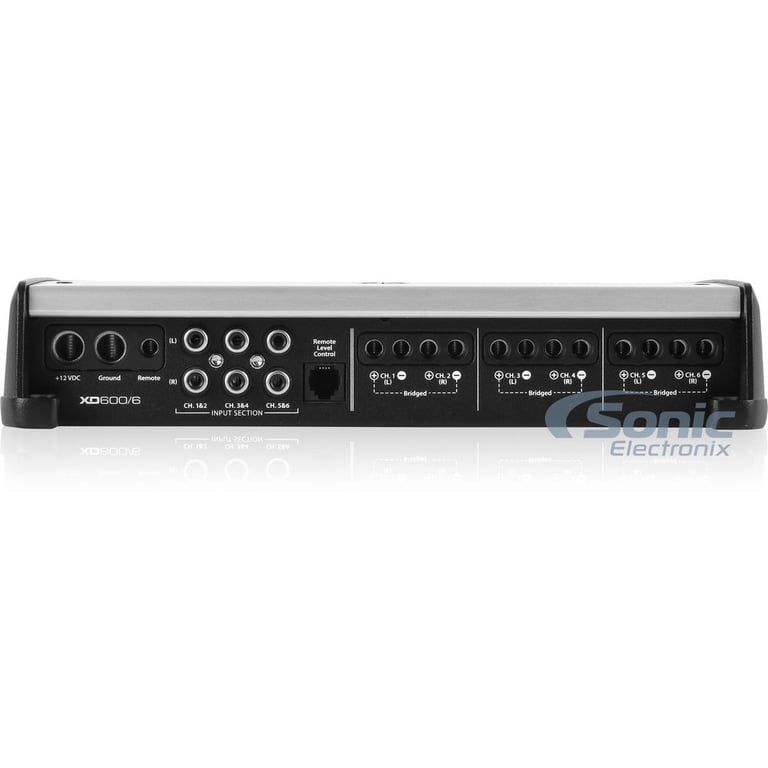

  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty compact unitary cast alloy heat sink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Level: 100mV-4V
  • Variable high-pass filter (50-500 Hz, 12 dB/octave Butterworth)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave Butterworth)
  • Damping factor: >150 @ 4 ohm per chan./ 50Hz
  • Frequency response: 12-22,000 Hz

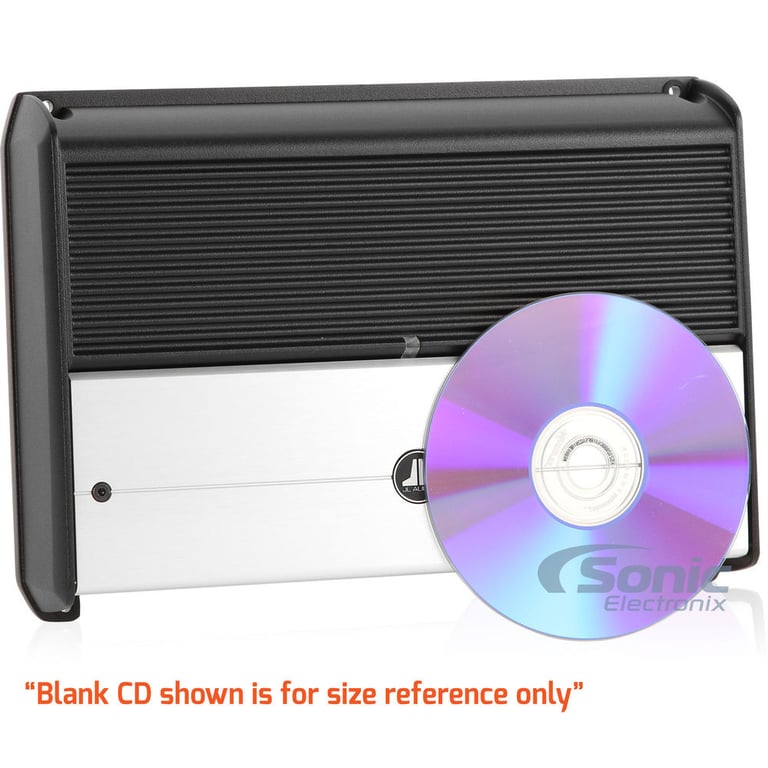

  • Dimensions: 10-1/4"L x 7-1/16"W x 2-1/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 2 Year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 6 channel
RMS Power @ 2 ohms
100 watts x 6 channel
Bridged RMS Power
200 watts x 3 channel
Amplifier Specifications
Series
XD Series
Amplifier Class
D
Number of Channels
6-Channel
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1.0%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>104 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
50A x 1
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD600/6

Weight:

6.00lbs

Internal SKU:

xd6006

Internal Product ID:

26847
