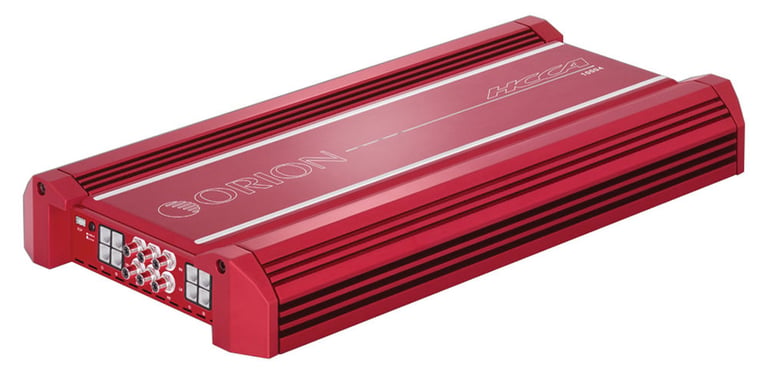

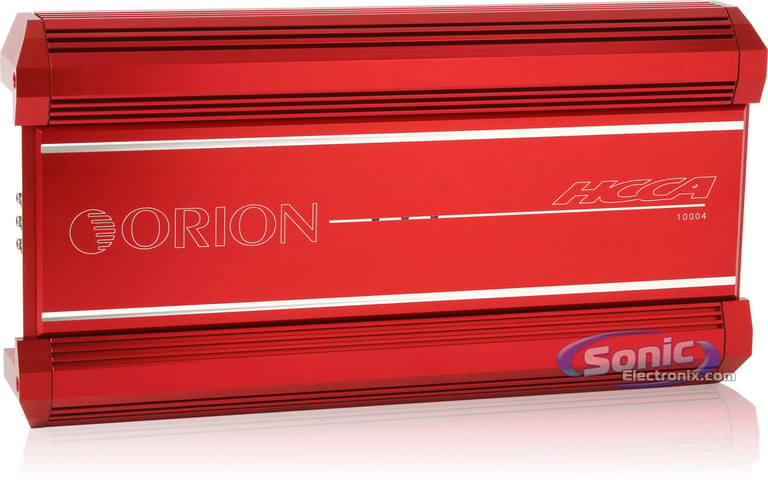

Orion HCCA10004

1000W HCCA Competition Series 4-Channel Amplifier

Orion
Shop all Orion
Product videos
highlight-star-icon

• 250W x 4-Chan @ 2 Ohm
• 125W x 4-Chan @ 4 Ohm
• Intelli-Q Variable Bass Boost
• Preamp RCA Outputs
• 5-Way System Protection Circuitry

Learn more about the hcca10004

We apologize

This item has been discontinued


Loading...
iLX-507 main

Alpine iLX-507

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wireless Android Auto (SiriusXM and iDataLink Maestro Ready)

16
-17.03%

$779.95

List price $940.00

Product Highlights


• 250W x 4-Chan @ 2 Ohm
• 125W x 4-Chan @ 4 Ohm
• Intelli-Q Variable Bass Boost
• Preamp RCA Outputs
• 5-Way System Protection Circuitry

Description


Orion brand icon

Authorized dealer

  • HCCA Competition Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 250 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
  • Max power output: 2,000 watts
  • Pulse Width Modulated MOSFET power supply

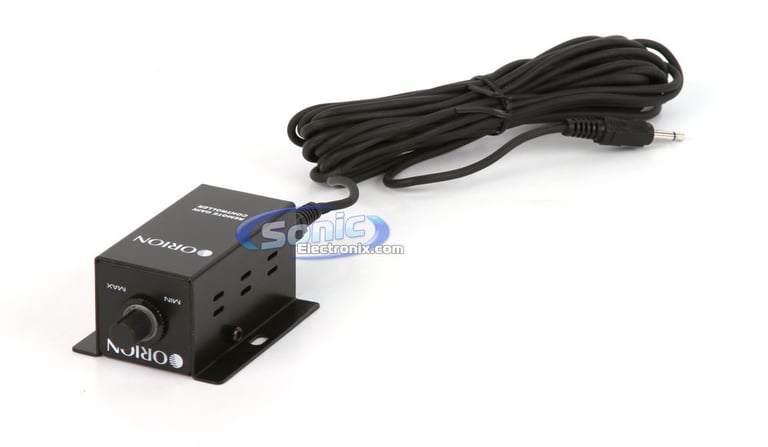

  • Remote bass level input (RGC2 remote level control included)
  • LED power (green) and protect (red) indicators
  • Intelli-Q Variable Bass Boost (0 to +10 dB bass boost at 20-200 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • Switchable on/off Intelli-Q maximizes the performance of any subwoofers used
  • ESP Port allows connection of a Directed ESP controller, like the Bitwriter
  • 5-Way System Protection circuitry (Thermal, DC offset, short protection, undervoltage, over-voltage)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation

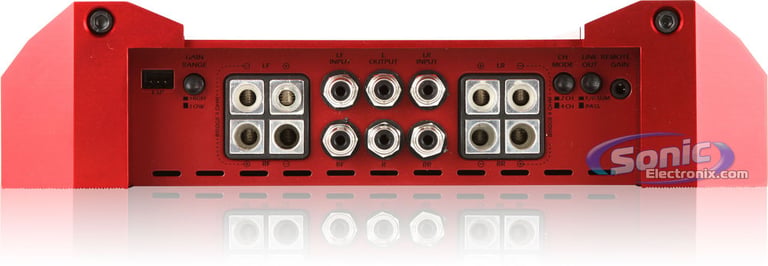

  • Silver-plated Balanced RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-4V
    • High level: 400mV-8V
  • Power supply voltage range (9 to 16V)

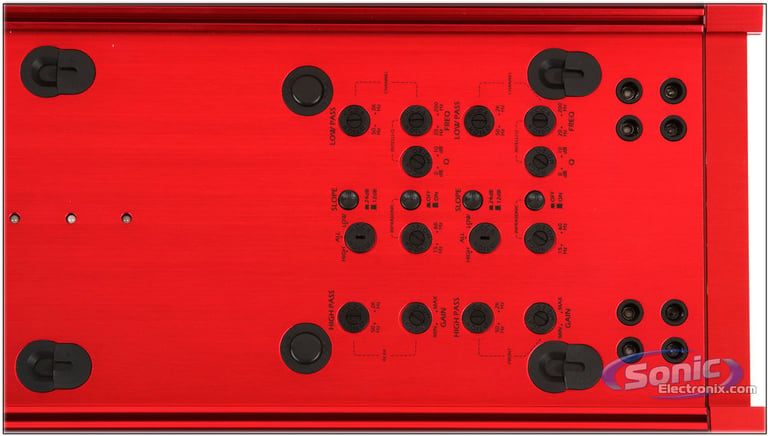

  • Variable high-pass filter (50-2,000 Hz, 12 dB/octave)
  • Variable low-pass filter (50-2,000 Hz, 12 dB/octave)
  • Variable Infrasonic filter (15-60 Hz)
  • Damping factor: >200
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz (+/- 2.5dB)
  • Dimensions: 19-3/4"L x 10-5/16"W x 2-1/2"H

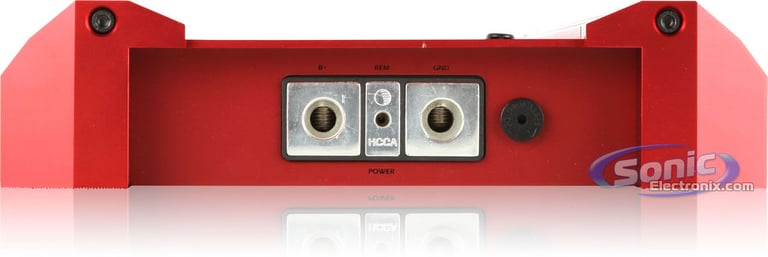

  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Sonic Electronix warranty

Loading...
(2) SMW10D4_A19210CP main

Atrend A192-10CP with NVX SMW10D4 for 2002-13 Chevy Avalanche, Cadillac Escapade

350W RMS Shallow-Mount 10" Dual 4-Ohm Subwoofer + Dual 10" Subwoofer Enclosure

11
-16.86%

$369.97

List price $444.97

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 4 channel
RMS Power @ 2 ohms
250 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
500 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 2,000 Hz
Low-Pass Crossover Frequency
50 - 2,000 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
100A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

HCCA10004

Weight:

26.00lbs

Internal SKU:

hcca10004

Internal Product ID:

28006
