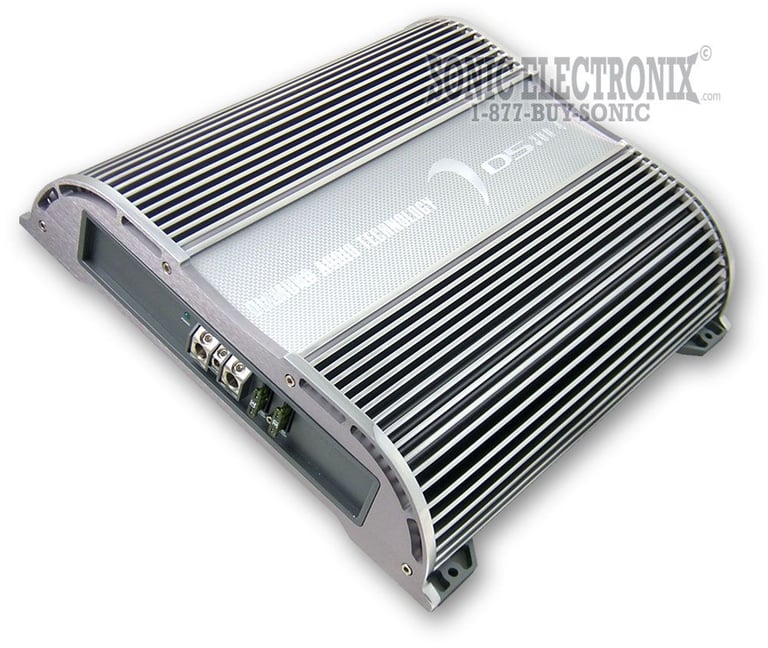

** CLOSEOUT!! ** Diamond Audio D5-300.4

4-Channel Amplifier

Product videos
highlight-star-icon

300 Watt 4 Channel Amplifier • 75W RMS x 2 Chan. @ 2 Ohm • HPF(15Hz-1.5kHz)/LPF(50Hz-5kHz) • RCA Outputs • 4 Gauge Power Connectors • 10 Gauge Speaker Connectors

Learn more about the d53004

We apologize

This item has been discontinued


Loading...
70-1743 main

Metra 70-1743 Wiring Harness

Install a new car stereo in select 1987-1996 vehicles from Mitsubishi, Dodge, Eagle

3
99-7000 main

Metra 99-7000 Dash Kit

Install a new Single-DIN car stereo in select 1985-1996 vehicles from Mitsubishi, Dodge, Eagle (Black)

-11.77%

$29.99

List price $33.99

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13

Product Highlights


300 Watt 4 Channel Amplifier • 75W RMS x 2 Chan. @ 2 Ohm • HPF(15Hz-1.5kHz)/LPF(50Hz-5kHz) • RCA Outputs • 4 Gauge Power Connectors • 10 Gauge Speaker Connectors

Description


  • 4 Channel 300 Watt Amplifier
  • Fully Regulated Power Supply
  • Up to 5V RMS Input Signal Voltage Capability
  • High-Pass Crossover: 12 dB/Oct. 50 Hz - 15 khz
  • High-Pass Multiplier: (x 10)
  • Low-Pass Crossover: Stereo, 12dB/oct. 50Hz - 5kHz; Mono (Ch 3/4), 24dB/oct. 50Hz - 5Khz
  • RCA Outputs
  • 2 oz. Silver Plated Copper Circuit Board
  • Massive Proprietary Heatsink
  • Vully Variable Electronic Crossovers
  • Nickel Plated SOlid Brass, Circuit Board Mounted, 4 Gauge Device Power/Ground Connector Blocks
  • Nickel Plated SOlid Brass, Circuit Board Mounted, 10 Gauge Direct or Banana Plug Direct Speaker Connectors
  • Fly Cut Aluminium End Plates
  • Fully Adjustable Mounting Feet
  • Crossovers Employ Second-Order 12dB/Octave Butterworth Filters
  • Dimensions: 12-1/2" L x 12" W x 2-3/4" H
  • 1-year SonicElectronix.com warranty

Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
37.5 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 . channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Number of Channels
4-Channel
Total RMS Power Output
300 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Signal-to-Noise Ratio
100 dB
Fuse Rating
20A x 3

Item Details


Manufacturer:

Model Number:

D5-300.4

Weight:

20.00lbs

Internal SKU:

d53004

Internal Product ID:

2987

Product and How-to Videos


Customer Ratings & Reviews


** CLOSEOUT!! ** Diamond Audio D5-300.4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Nothing better!

Ive owned and installed a lot of amps, but this is one of my favorites! Besides the fact that it looks cool. It sounds amazing!! I use one to push 2 sets of Diamond 6 1/2" speakers and wow. It sounds like there is more power than what it actually has. Diamond has always impressed me and for the people Ive installed it for. I'm sure you will be too.
