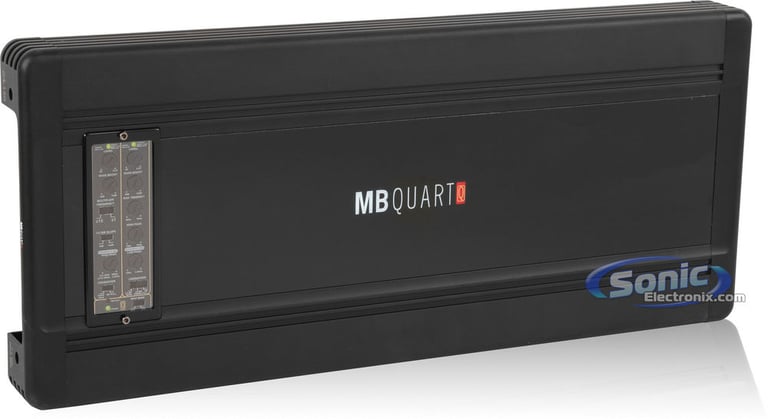

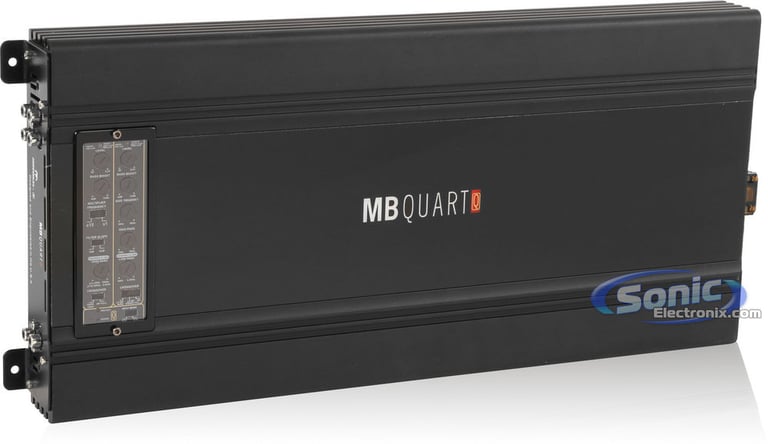

MB Quart Q4.150

880W RMS Q-Series 4-Channel Amplifier (Q4150)

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

Q Series 4-Channel Amplifier • 150W x 4 Chan @ 4 Ohm • 220W x 4 Chan @ 2 Ohm • PWM MOSFET Power Supply • Full Feature Crossover Design • Clipping Control with LED Indicator • Frequency Multiplier • Multi-Channel Configuration • Built-In System Diagnostics

Learn more about the q4150

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

AXDI-CH5 main

Axxess AXDI-CH5 Wiring Interface

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2013-2023 vehicles from Ram, Dodge, Fiat

-10.38%

$163.99

List price $182.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

Limited time!
KW-M180BT main

JVC KW-M180BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-24.40%

$189.00

List price $250.00

PRO-CF8.2NR main

DS18 PRO-CF8.2NR (Sold Individually)

600W Peak (300W RMS) 8" PRO Series Midbass 2-ohm Motorcycle and Powersports Loudspeaker

Product Highlights


Q Series 4-Channel Amplifier • 150W x 4 Chan @ 4 Ohm • 220W x 4 Chan @ 2 Ohm • PWM MOSFET Power Supply • Full Feature Crossover Design • Clipping Control with LED Indicator • Frequency Multiplier • Multi-Channel Configuration • Built-In System Diagnostics

Description


MB Quart brand icon

Authorized dealer

  • Q Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 220 watts x 4 chan.
    • Bridged, 4 ohm: 440 watts x 2 chan.
  • Max power output: 1760 watts
  • High Speed MOSFET Output Devices
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost from selectable frequency range 30-80 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

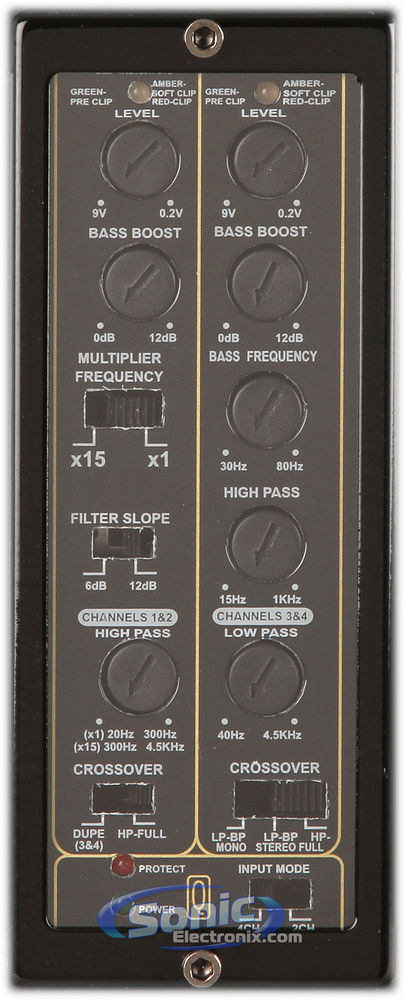

  • Top Mount Control
  • Variable Low Pass, and High Pass for specific tuning adjustments
  • Full Feature Crossover Design
  • Clipping Control with Pre-Clip, Soft Clip and Full Clip Visual Indicators
  • Built-in System Diagnostics
  • Double Sided PCB Design
  • High-density split-dome convection heat sink for high amounts of heat dissipation

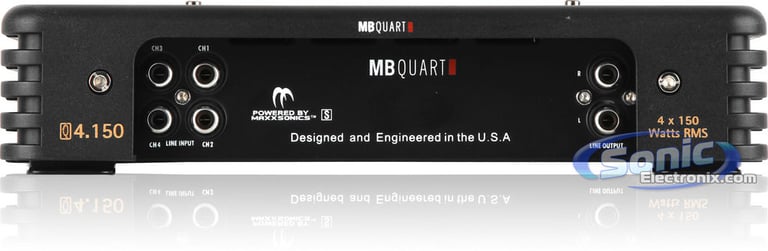

  • Plated RCA level inputs
  • Input sensitivity:
    • Low level: 0.2V-9V
  • Channels 1 & 2 high-pass filter (20-45,000 Hz)
  • Channels 3 & 4 high-pass filter (15-1000 Hz)
  • Variable low-pass filter (40-45,000 Hz)
  • Damping factor: >285
  • Frequency response: 15-45,000 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 20-1/4"L x 9-1/8"W x 2"H

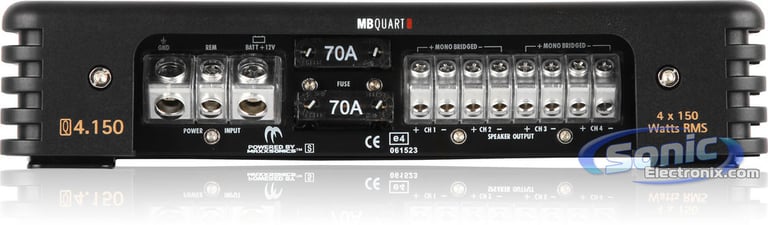

  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.15%

$211.66

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
220 watts x 4 channel
Bridged RMS Power
440 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1760 watts
Total RMS Power Output
880 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
20 - 45,000 Hz
Low-Pass Crossover Frequency
40 - 45,000 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No

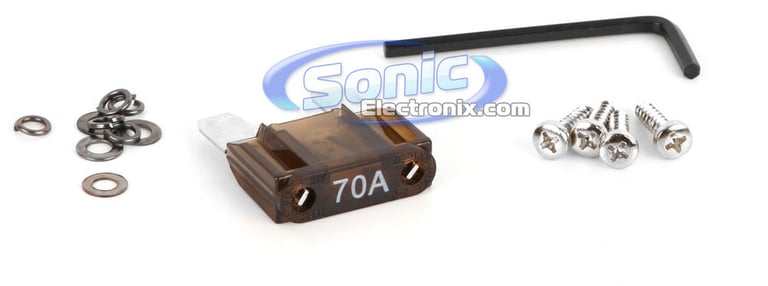

Fuse Rating
70A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Q4.150

Weight:

15.00lbs

Internal SKU:

q4150

Internal Product ID:

29975

Product and How-to Videos


Customer Ratings & Reviews


MB Quart Q4.150 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
5
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome amp

Great product at a great price. Super fast shipping. I don't have anything bad to say about this amp other then a few picky things.

PROS: cross over controls on top, runs cool at high volume levels for long periods of time, lots of power to play with, lots of different wiring options, sounds great, looks nice I'm sure there's some I'm missing

CONS: comes with one Allen wrench but 2 different size allens needed (1 for the side covers, which is included, 1 for taking the cover off of the cross over and gain controls) wiring screw downs are philips head they could have made them same size allens as the included wrench, this is a large amp not complaining just making sure you know it's not compact, that's it like I said just being picky.

OVERALL: great amp, I would recommend this to everyone and anyone. This could take the place of a 5 channel if you double up speakers on channel 1 & 2 (speakers need to be single voice coil 4 ohm to drop ohms to 2 ohm load) then bridge a dual voice coil 2 ohm subwoofer (wired at a 4 ohm load) to channels 3 & 4. You can run so many different configurations with this amp that is just one example. BUY THIS AMP!!! You won't be dissapointed. Enough said, hope this helps you with your decision.

By Neal on August 23, 2011

12 found this helpful


WOW!!!! Buy this amp!!!!!!

I have been looking, looking, looking to replace my old sKool Phoenix gold amp, trying to find the perfect combination of SQ, with head room. Well, if you DON'T buy this amp, your MISSING out!!!!! Thanks Sonic for quick shipping, and a STEAL of a price on this amp, now I have to decide... another of the same model for my subs bridged, or the mono Q amp???!! This amp LOOKS very NICE in person, the MB QUART logo lights up in white, and the red checklit, which matches my Audi Red/White interior PERFECTLY!!!! I AM VERY HAPPY WITH THIS PURCHASE 8-)

By christian on April 5, 2011

6 found this helpful


GREAT AMP!!

Bought this to run my door speakers and was blown away at the sound quality sounded better then the JL Audio 300/4 I was running with way more head room... picking up the Q4.80 to run my tweets in an active setup next overall very pleased with this amp1

By mrj858 on March 4, 2011

6 found this helpful


Read Me!

I tried so many amps. This amp is rediculous. It's not even normal how insanely clean this amp is. Ground loop? Normal hiss? Not with this amp. I have never heard such clean sound in my 13 years of car audio. This amp made me depressed for days thinking about what i've been missing. You can read reviews for all kinds of car audio and never know what to expect because every ear is different and its so selective. NOT WITH THIS AMP there is no human on the planet that could say this isnt a mind blowing expirence. Stop looking around, let this review change your life take a chance on a strangers review and when you hear it and say wow he was right pass the word along to the next guy as a thankyou to me. You are welcome!!!!!

By Audiophile on January 31, 2013

5 found this helpful




TSC50 small

Blaupunkt TSc50

$39.99

List price $79.99

RTT516B small

Xscorpion RTT516B

100 Pack of Blue 16/14 Gauge Crimpable Ring Terminals

$12.99

List price $12.99

MYGIGV3.0 small

Lock Pick MYGIG (V 3.0)

The Ultimate Navigation/Video Override Kit for Select Chrysler, Dodge and Jeep MYGIG Factory Radios

(7)

$174.99

List price $249.99

95-7953 small

Metra 95-7953

Double DIN Stereo Dash Kit for select 2006-2011 Grand Vitara (Matte Black)

(3)

$12.99

List price $26.99

EDT 770S small

Beyerdynamic EDT 770S

Replacement Earpads Designed Exclusively by Beyerdynamic for the DT550, DT880, DT880s, HS200, DT770m

(4)

$19.00

List price $29.00

VCCD-3 small

Soundstream VCCD-3 (CCD-3)

Bullet Style Rearview Backup Color Camera

$109.95

List price $149.99

HAR-RCA-M small

MobileVision HAR-RCA-M

Monitor Adapter 5-Pin to RCA

(1)

$4.99

List price $19.99

ID10 D4 V.4 small

Image Dynamics ID10 D4 V.4

250W RMS 10" ID V.4 Series Dual 4 ohm Car Subwoofer

(4)

$129.98

List price $179.99

MR F45-D small

Cobra MR F45-D

25 Watt High Output Fixed Mount 2-Way VHF Radio with Built-in NOAA Hazards Radio and Dual Watch Mode

$109.99

List price $149.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Dodge Dart

2005 Chrysler Sebring

2015 Dodge Ram C/V

2007 Ford Edge

2019 Ford Flex

1983 Mazda RX-7

1987 Dodge Caravan

1994 Dodge B150

2013 Ford Escape

2006 Kia Optima

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
