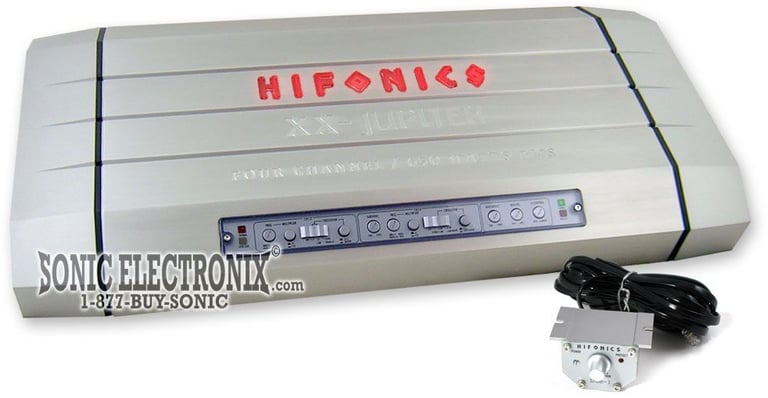

Hifonics XX-Jupiter

Generation XX 4-Channel Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

4-Channel A/B Amplifier • 75W RMS x 4 @ 4 Ohm • 110W RMS x 4 @ 2 Ohm • 20th Anniversary Heatsink Design • 1 Ohm Stable • Gold Plated RCA Connectors

Learn more about the xxjupiter

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


4-Channel A/B Amplifier • 75W RMS x 4 @ 4 Ohm • 110W RMS x 4 @ 2 Ohm • 20th Anniversary Heatsink Design • 1 Ohm Stable • Gold Plated RCA Connectors

Description


Hifonics brand icon

Authorized dealer

  • 4-Channel A/B Amplifier
  • 4/3/2 Channel Operation
  • A/B Amplifier Class Design
  • RMS Power Ratings:
    • 75 watts x 4 chan. @ 4 Ohm
    • 110 watts x 4 chan. @ 2 Ohm
    • 140 watts x 4 chan. @ 1 Ohm
    • 250 watts x 2 chan. @ 4 Ohm
    • 325 watts x 2 chan. @ 2 Ohm

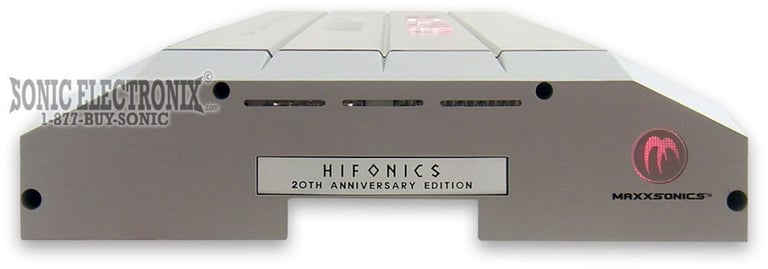

  • New Hifonics 20th Anniversary Heatsink Design
  • Illuminated Hifonics Badge
  • Illuminated Maxxsonics M Logo
  • Removable Twentieth Anniversary Endcaps

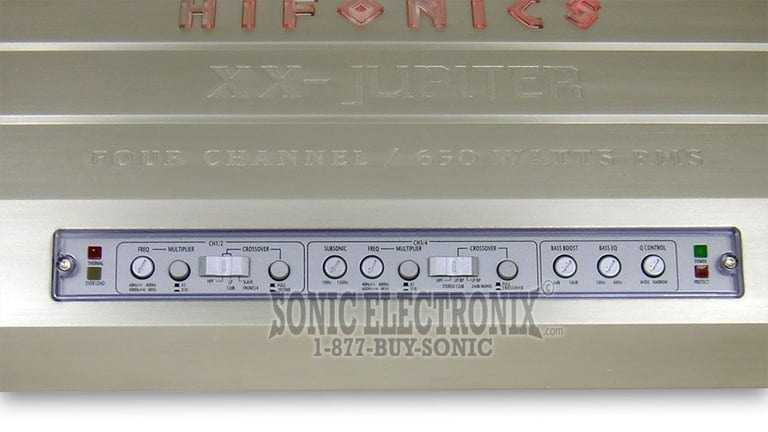

  • Top Mount Controls including:
    • 180º Phase Shift Left and Right
    • 3 Way Mono/Stereo and Off Switch
    • 10x Multiplier Crossover Switch
    • Low Pass Filter (Variable) 40 - 400 Hz +/- 24 dB
    • High Pass Filter (Variable) 40 - 400 Hz +/- 24 dB
    • Variable Q Control
    • Variable Bass EQ 30 - 60 Hz
    • Bass Boost 0 - 18 dB
  • Bass Remote with Blue LED
  • Ultra-Fi High Speed MOSFET Output Devices
  • Regualated PWM Power Supply
  • Generation XX EXVP (exponential vari-power supply)
  • Diagnostics Indicators: Thermal, Overload, Power, and DC Protect

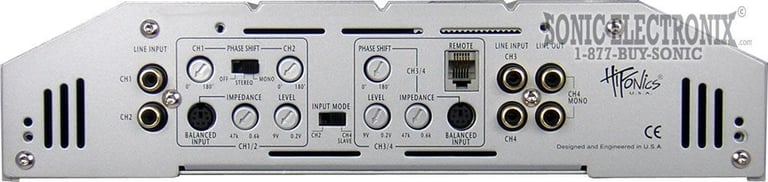

  • Gold Plated RCA Outputs ans Line Inputs
  • XLR Mini DIN Sockets for Balance Line Input
  • Variable input level: 200mV - 9V

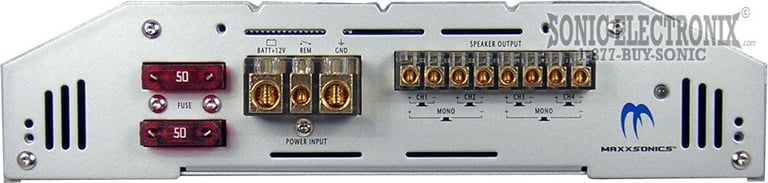

  • 2 Gauge Power Connectors
  • Maxxi-Fuse
  • Power From The Gods Included
  • Dimensions: 11.28" W x 2.68" H x 17.86" L
  • 1-year SonicElectronix.com warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
110 watts x 4 channel
RMS Power @ 1 ohm
140 watts x 4 channel
Bridged RMS Power
325 watts x 2 channel
Amplifier Specifications
Number of Channels
4-Channel
Total RMS Power Output
650 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
0.03%
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Fuse Rating
50A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XX-JUPITER

Weight:

19.00lbs

Internal SKU:

xxjupiter

Internal Product ID:

3029

Product and How-to Videos


Customer Ratings & Reviews


Hifonics XX-Jupiter thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
4.7
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

awesome amp eh

being from canada and seeing reviews of this companies product for years, i finally decided to purchase one. i was not disappointed in the least. even with the exchange rate, by far the best amp i have owned. my tweets and mids can finally keep up with my two 15' vegas!

By blaine on November 28, 2005

4 found this helpful


xx series jupiter.

I own two of these amps. I'm old school all the way when it comes to mids and highs amps, so I was a bit skeptical at first. I was running two us amps 400xs before I decided to go with the Jupiter's to match my sub amp. It was all for looks, until I hooked them up. Very impressed to say the least.

By leon on March 21, 2015

3 found this helpful


LIKE A BEAST!!!!!!!!!!!

BOUGHT THIS AMP FROM HIFONICS LAST MONTH INSTALLED IT WITH RAINBOW CMX465.25 COMPONENTS AND MAN ,IT SURE DEFINES THE MUSIC THE WAY IT SHOULD HAS ALOT PF POWER MAKE SURE U INSTALL IT RIGHT,HIFONICS MAKES 1 OF THE BEST AMPS ESPECIALLY WITH THE XX SERIES

By richard on July 12, 2007
