Kicker Solo-Baric L7 (11S10L74)

1200 Peak (600W RMS) 10" Solo-Baric L7 Series Dual 4-ohm Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 1200W Peak
• 600W RMS
• Titanium deposit impregnated cone woofer with rolled outer edge
• Santoprene rubber surround
• Highly-efficient UniPlate™ pole-piece/back plate

Learn more about the 11s10l74

We apologize

This item has been discontinued

Product Highlights


• 1200W Peak
• 600W RMS
• Titanium deposit impregnated cone woofer with rolled outer edge
• Santoprene rubber surround
• Highly-efficient UniPlate™ pole-piece/back plate

Description


Kicker brand icon

Authorized dealer

Kicker Solo-Baric L7 Subwoofers








Patented Square-Woofer Technology: Kicker Solo-Baric L7 Square Sub TechnologyThe Kicker Solo-Baric L7 woofers continue to be the best sub in their class. The patented square-woofer technology allows for 18% more cone, which translates to more bang for your buck compared to competing round subwoofers. All new for the 2011 series is a redesigned and improved SoloKon cone. The new beautiful look was inspired by the big brother SoloX series, and it's making everyone at Sonic go crazy as it's tougher looking and better-performing.

In addition to the SoloKon improvements, the new L7 woofers also provide a much easier installation. The solid pole piece allows more heat sink capabilities and perimeter venting is built into the spider landing unlike previous years. This also allows for a shallower installation as you no longer have to account for venting through the back of the magnet. To make things even easier on the installer, Kicker moved the binding post to the corners of the woofer allowing for an easier connection when running the subs in parallel or series.



Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)



Kicker Authorized Dealer

Key Features:

  • 10" Dual 4 Ohm Solo-Baric L7 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended power range: 300 - 800 watts RMS
  • Titanium deposit impregnated cone woofer with rolled outer edge
  • Santoprene rubber surround
  • Full coverage back bracing
  • Poly-cotton semi-progressive spider
  • Spiralead™ tinsel-lead technology
  • Highly-efficient UniPlate™ pole-piece/back plate
  • Heat-reducing T-cut top plate
  • Solid pole piece
  • Cast-aluminum basket
  • Spring loaded terminals
  • High-temp dual 4 ohm voice coil
  • Mounting Depth: 6.25"
  • Cutout Diameter: 9.3125"
  • Frequency Response: 24 - 100 Hz
  • Sensitivity: 86.8 dB @ 1 watt / 1 meter
  • Minimum Rec Ported Enclosure: 1.25ft³
  • Maximum Rec Ported Enclosure: 2.25ft³
  • Minimum Rec Sealed Enclosure: 0.66ft³
  • Maximum Rec Sealed Enclosure: 1.0ft³
  • Matching Amplifiers: (one subwoofer)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Priced Individually



Check out the Kicker L7 Solo-Baric Owner's Manual



Tips for Installing the 11S10L74 Subwoofer


Product history:

Kicker 11S10L74 thumbnail
(newest, current model)
Kicker 08S10L74 thumbnail
(previous model, replaced by Kicker Solo-Baric L7 (11S10L74))
Kicker 06S10L74 thumbnail
(previous model, replaced by Kicker Solo-Baric S10L74 (08S10L74))
Kicker 04S10L74 thumbnail
(previous model, replaced by Kicker 06S10L74 Solo-Baric L7 Series)
Kicker S10L74 thumbnail
(previous model, replaced by Kicker 04S10L74)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker Solo-Baric L7 (11S10L74) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker Solo-Baric L7 (11S10L74) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker Solo-Baric L7 (11S10L74) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker Solo-Baric L7 (11S10L74) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(27)

$524.99

List price $499.99

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(60)

$129.99

List price $129.99

NVX NSW102 Version 3 (NSW102v3)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 5.36"
• Sensitivity: 85 dB

(49)

$89.99

List price $107.99

NVX YSW102

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 5.90"
• Sensitivity: 85 dB

$149.99

List price $179.99

Kicker 47KBRW10 ReFLEX™

• 10" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

$59.99

List price $69.99

NVX YSW104

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 5.90"
• Sensitivity: 85 dB

(1)

$149.99

List price $179.99

NVX ESW104

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

(4)

$74.99

List price $89.99

Kicker CWRT104 (48CWRT104) (Sold Individually)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 3-7/16"
• Sensitivity: 84.8 dB

(3)

$179.96

List price $219.99

JL Audio 10W3v3-2

• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 5.93"
• Sensitivity: 85.37 dB

(47)

$399.99

List price $399.99

JBL Stadium 102SSI (JBLSUBSD102SSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber and Pulp/Kevlar Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

(1)

$259.95

List price $309.95

Specifications & Details


Subwoofer Specifications
Series
Solo-Baric L7 Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
24 - 100 Hz
Sensitivity
85.9 dB
Xmax (millimeters)
13.9 mm
Subwoofer Design
Square
Main Cone Color
Black
Woofer Composition
Titanium Deposit Impregnated w/ Rolled Outer Edge
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/4"
Cutout Diameter
9-5/16" x 9-5/16"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11S10L74

Weight:

23.00lbs

Internal SKU:

11s10l74

Internal Product ID:

31865

Product and How-to Videos


  • Kicker 2015 L7 Overview

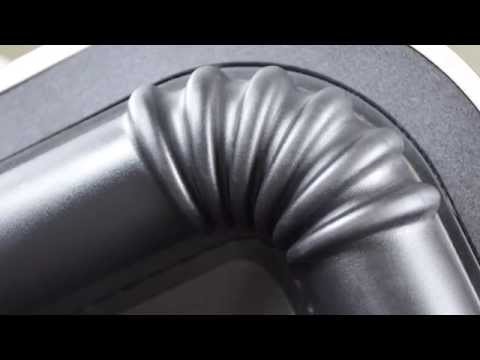

  • Inside Look at Kicker Subwoofer
  • Kicker L7 12" Subwoofer Demo | S12L74 Bass Test
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box

Customer Ratings & Reviews



5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.3
Features
4.5
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Heavy accurate bass

I own 2x of these subwoofers and they hit VERY hard. They are accurate and precise, and with a ported box it's hardly even bearable to crank it all the way up. These are great subs for sedans where the trunk is closed off too because of the amount of bass output the square woofer design allows. Recommended to all. Would marry this subwoofer if I could.

By Harry on May 16, 2011

35

found this helpful.

L7 10 inch sub

I have two of these in the ported box built by kicker, it's the box that is made for a regular cab truck. The subs sound better than anything else I've had in my 1978 Ford F-150, and the box fits behind my regular cab seat with room to spare. Like the other review says, "Give them time to break-in and you will have a solid sub set-up. For those wanting to know I have a Rockford Fosgate Punch P 500-2 running the subs and they are wired in stereo, also remember a sub in a ported box will not handle as much wattage as a sub in a sealed box.

By Southpaw on October 24, 2014

32

found this helpful.

Ok sub

This sub is ok once it's broke in! For the price, I'd thought his would be better. Take your time breaking this thing in and it will be a solid sub. Take at least a weak of break in time and then let her fly. It handles my 600 watt amp just fine.

By James on January 30, 2012

22

found this helpful.

kicker bass

This is the perfect sub. Not to big not to small. Dual 4 wires down to the 2 ohm awesome. I bought two of these subs they are loud. I prefer
sealed boxes. Ive tried ported with this sub but the sealed hits harder. sell
SE sells the boxes.

By E on January 8, 2016
