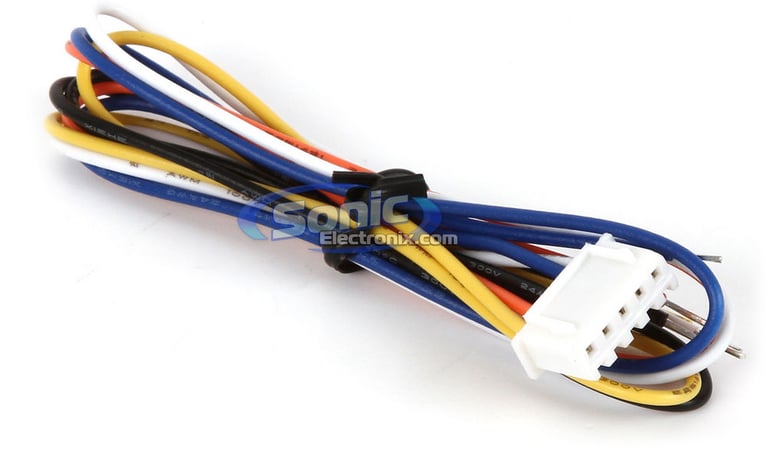

Autotek ATX3000.2 (Factory Refurbished) Image 6 — Autotek ATX3000.2 (Factory Refurbished)

Autotek ATX3000.2 (Factory Refurbished) Image 7 — Autotek ATX3000.2 (Factory Refurbished)

Autotek ATX3000.2 (Factory Refurbished) Image 8 — Autotek ATX3000.2 (Factory Refurbished)

Autotek ATX3000.2 (Factory Refurbished) Image 9 — Autotek ATX3000.2 (Factory Refurbished)

Autotek ATX3000.2 (Factory Refurbished)-video

Product videos

Product highlights

2-Channel Class AB ATX Series Car Amplifier • PWM MOSFET Power Supply • Bass Boost • Soft Start Turn-On • High Level Inputs • Preamp RCA Outputs • 4-Way System Protection Circuitry • Flat Panel Heatsink Design • Subsonic Filter

Learn more about the LS-atx30002-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

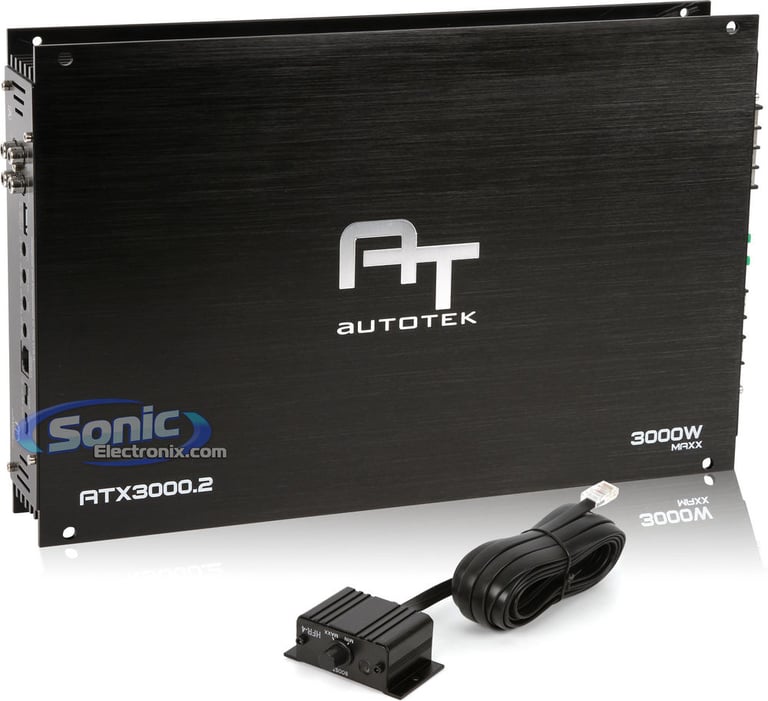

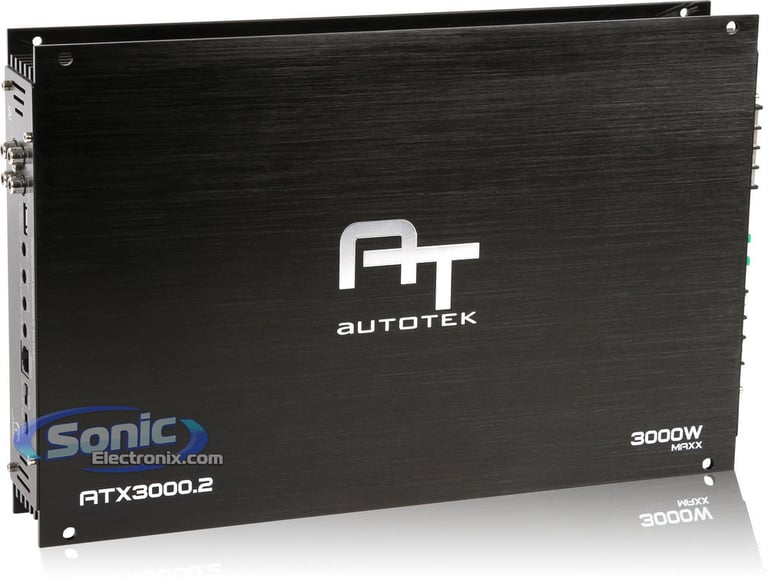

Autotek ATX3000.2 2-Channel ATX Series Amplifier

Sonic Electronix is now carrying the new 2011 line of Autotek ATX Series Amplifiers. These amps come in Monoblock, 2-Channel, and 4-Channel configurations as well as numerous different power ratings. Each one these Autotek ATX amplifiers feature a flat panel heatsink design, soft turn on circuit, 4-way protection circuitry, LED power & protect indicators, and much more.

The ATX3000.2 version has an MAXX power rating of 750 watts x 2-channels wired at 4 ohms and 1500 watts x 2-channels wired at 2 ohms. It is equipped with nickel plated RCA level inputs & screw terminals and is powered by a MOSFET power supply. The ATX Series amps have a wide variety of power and channel configurations for you to chose from.

Product Features

2-Channel Class AB ATX Series Car Amplifier
MAXX Power Rating:
- 4 ohm: 750 watts x 2 chan.
- 2 ohm: 1500 watts x 2 chan.
- Bridged, 4 ohm: 3000 watts x 1 chan.

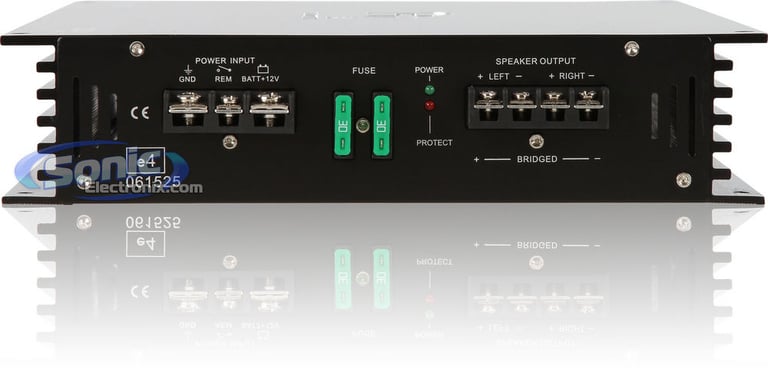

Pulse Width Modulated MOSFET power supply
LED power green and protect red indicators
Bass Boost (0-12 dB @ 45 Hz)
Soft Start Turn-on
2 or Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Flat panel heatsink design for extreme heat dissipation

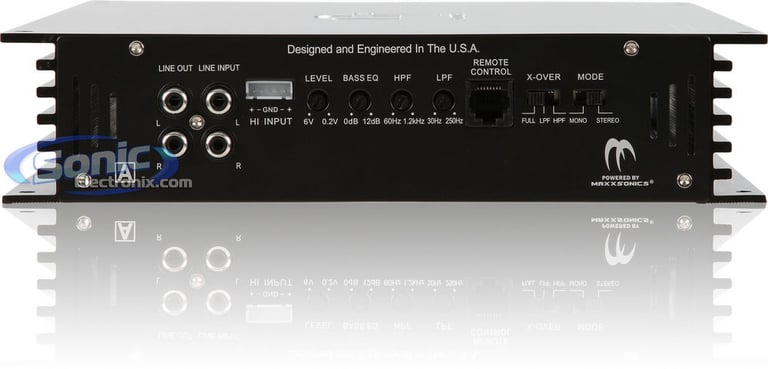

Nickel-Plated RCA level inputs
Nickel-Plated screw terminals
Variable High-Pass Filter (60-1200 Hz)
Variable Low-Pass Filter (30-250 Hz)
Subsonic Filter (60-1200 Hz)
Signal-to-Noise Ratio: >95 dB
Damping Factor: >200
THD (Total Harmonic Distortion): <0.05%
Channel Separation: >70 dB
Variable Input Level Control: 0.2V-5V

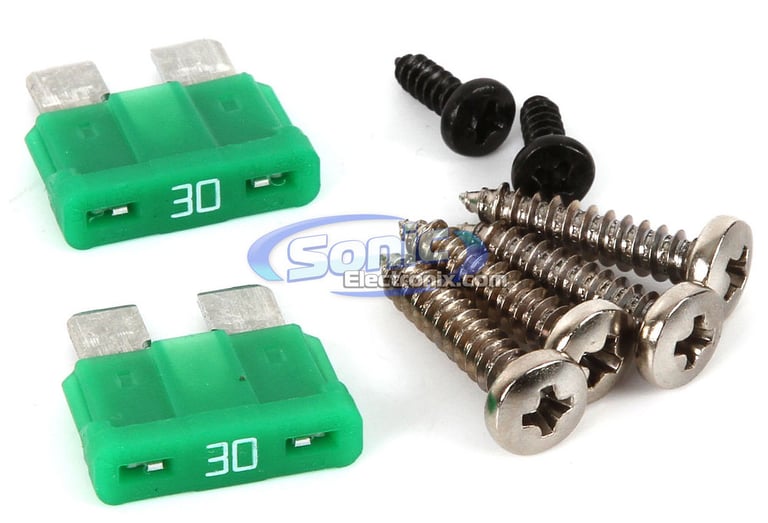

Fuse Rating: 2 x 30 Amp
Frequency Response: 30-45,000 Hz
Dimensions: 15"L x 9-3/4"W x 2-3/16"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

750 watts x 2 channel

RMS Power @ 2 ohms

1500 watts x 2 channel

RMS Power @ 1 ohm

Not specified by manufacturer

Bridged RMS Power

3000 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

3000 watts

Total RMS Power Output

Not specified by manufacturer

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

Not specified by manufacturer

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 1200 Hz

Low-Pass Crossover Frequency

30 - 350 Hz

Subsonic Filter

60 - 1200 Hz

Signal-to-Noise Ratio

>95 dB

Channel Separation

>70 dB

Bass Boost

0 - 12 dB

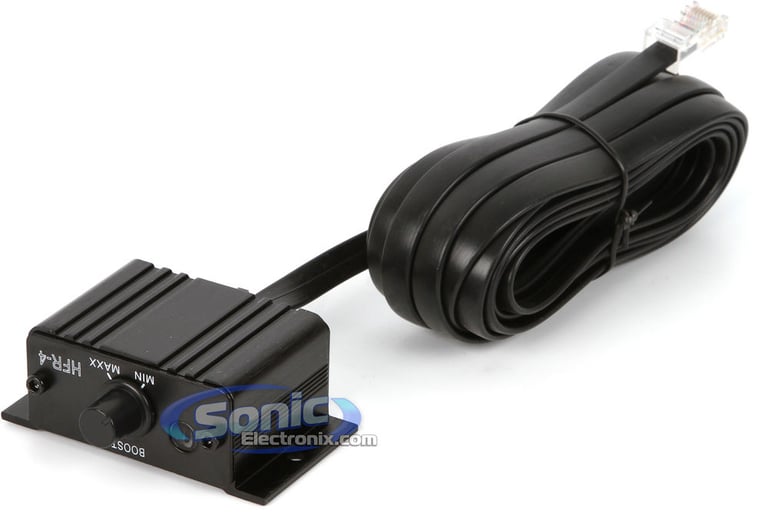

Remote bass/level controller

Yes

Fuse Rating

2A x 30

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
