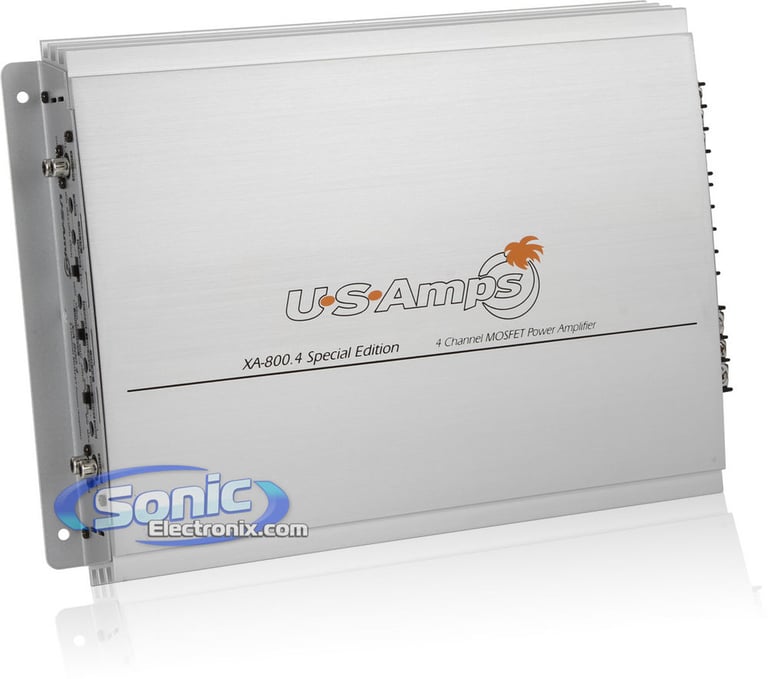

U.S. Amps XA-800.4

760W Max, 4-Channel XA Series U.S Amps Car Amplifier

U.S. Amps
Shop all U.S. Amps
Product videos
highlight-star-icon

XA Series 4-Channel Car Amplifier • 60W RMS x 2 Chan. @ 4 Ohm • 85W RMS x 2 Chan. @ 2 Ohm • 160W RMS x 1 Chan. @ 4 Ohm Bridged • MOSFET Power Supply • Variable Bass Boost • Variable High Pass • Variable Low Pass

Learn more about the xa8004

We apologize

This item has been discontinued


Loading...
99-5700 main

Metra 99-5700 Dash Kit

Install a new Single-DIN car stereo in select 1975-2000 vehicles from Ford, Mercury, Mazda

5
-12.50%

$27.99

List price $31.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

Product Highlights


XA Series 4-Channel Car Amplifier • 60W RMS x 2 Chan. @ 4 Ohm • 85W RMS x 2 Chan. @ 2 Ohm • 160W RMS x 1 Chan. @ 4 Ohm Bridged • MOSFET Power Supply • Variable Bass Boost • Variable High Pass • Variable Low Pass

Description


U.S. Amps brand icon

Authorized dealer

  • XA Series 4-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 85 watts x 4 chan.
    • Bridged, 4 ohm: 160 watts x 2 chan.
  • Max Power Rating:
    • 4 ohm: 120 watts x 4 chan.
    • 2 ohm: 190 watts x 4 chan.
    • Bridged, 4 ohm: 380 watts x 2 chan.
  • Max power output: 380 watts x 1 chan.
  • MOSFET power supply

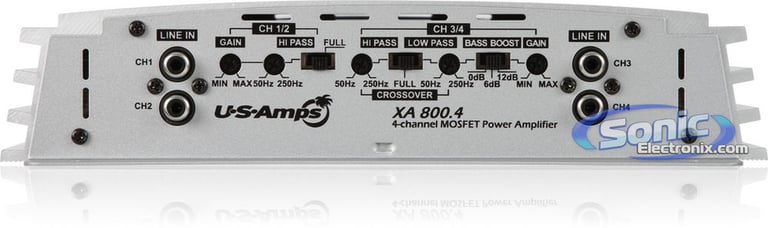

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • 4/3/2 channel operation
  • Pair of RCA outputs
  • 2-Way System Protection circuitry
  • Nickel-plated RCA level inputs

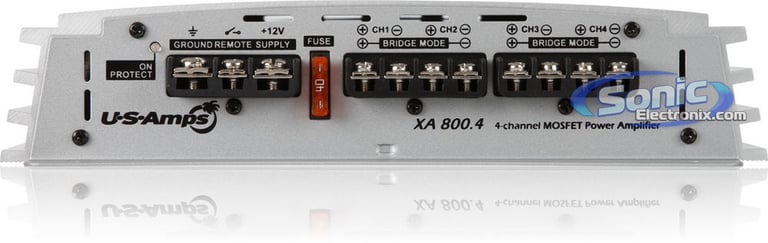

  • Nickel-plated screw terminals
  • Input sensitivity:300mv-8v
  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Frequency response: 10-25,000 Hz
  • Dimensions: 11-13/16"L x 9-5/8"W x 2-1/4"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
85 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
160 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
760 watts
Total RMS Power Output
320 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XA-800.4

Weight:

7.00lbs

Internal SKU:

xa8004

Internal Product ID:

37765

Product and How-to Videos


Customer Ratings & Reviews


U.S. Amps XA-800.4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
4.7
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

Great Amp

Buying one more for a friend, It powers my entire system. 2 tweeters, pair of 2way 6.5s, pair of 6.5 seperates and a 12" mtx sub. Loud and clean.

By Rohan on December 18, 2011

8 found this helpful


worth it!

This amp may not be the most powerful 4 channel but it is perfect for my JL audio 5.25s. No issues with installation and seems to stay cool. Only con would be its a tad on the large side.

By jacob on December 19, 2011

5 found this helpful


Love it

This is a great amp. It is true to its rms and it sounds great. I had this for a wile and i do recommend it. The heat sink on this amp is about a full cm of metal and relay feels like quality.

By michael on November 6, 2011

4 found this helpful




OD1-1500 small

Power Acoustik OD1-1500

1500W Peak (960W RMS) Class D Overdrive Monoblock Car Amplifier with Bass Remote

(4)

$71.63

List price $119.99

No picture

Belva BMRGBBK (Like New (Open Box))

500W Peak (250W RMS) 6.5" 2-Way Coaxial Marine Speakers with Multi-Color LED Lighting (Black)

$69.99

List price $119.99

10ZX300.1 small

Kicker ZX300.1 (10ZX300.1)

300W RMS, Monoblock ZX Series Class A/B Amplifier (ZX3001)

(15)

$123.21

List price $229.95

KAC-8405_AMP850BL small

Kenwood KAC-8405 + Amplifier Kit

720W Max, 4-Channel Performance Series Amplifier with 4 Gauge Amplifier Kit

$186.99

List price $402.97

AVH-P5700DVD small

Pioneer AVH-P5700DVD

In-Dash Touchsreen 6.5" LCD Multimedia Unit

(4)

$549.99

List price $899.99

BXi1208D small

Hifonics BXi 1208D

1200W RMS, Class D Monoblock Brutus BXi Series Amplifier (BXi1208D)

(15)

$199.99

List price $449.99

CDK651 small

American International CDK651

Double DIN Stereo Dash Kit for select 2006-2008 Ram 2500 / 3500 / 1500

(1)

$21.99

List price $59.00

AX303X small

Audiobahn AX303X 3-Way Electronic Crossover

$89.99

List price $199.99

P5T small

Cerwin-Vega P5T

390W Peak (190W RMS) 1" Pro Series 4-ohm Pro Audio Bullet Tweeter

$249.99

List price $269.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1987 Ford Bronco

2014 Ford Explorer

2014 Audi Q5

2008 Ford Focus

2003 Saturn L200

1999 Dodge Intrepid

2006 Buick Rainier

2010 Dodge Caliber

2012 Hyundai Veloster

2016 Nissan NV

Vehicle
Store
Delete

2019 Can-Am Defender DPS HD5

2022 Can-Am Defender DPS HD7

2024 Can-Am Defender MAX DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
