500W Crossfire + RE Audio Bass Bundle

Crossfire BMF1214 12" BMF Series Subwoofer + RE Audio XTX-1500.1 Amp + 4 Gauge Installation Kit

EXCLUSIVE
highlight-star-icon

12" Dual 2 Ohm BMF Series Car Subwoofer • 1000W MAX • 500W RMS • XTX Series Monoblock Full Range Digital Car Amplifier • CEA-2006 Compliant • Wired Remote Bass Level Control Included • Complete 4 Gauge Amp Kit

Learn more about the xtx15001_bmf1214

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

Description

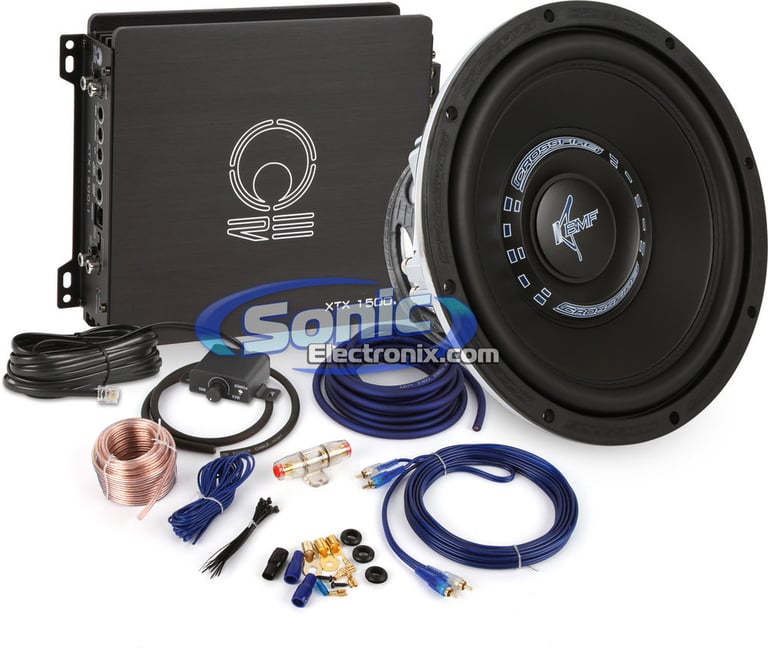

Crossfire and RE Audio Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a RE Audio XTX1500.1 Amplifier along with a 12" BMF Series, Crossfire Subwoofer. This excellent bass package pushes 500 watts of clean, continuous RMS power. The Crossfire Subwoofer has Dual 2 Ohm Voice Coils; meant to be wired in parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Crossfire BMF1214 12" BMF Series subwoofer requires 500 watts of RMS power. The included RE Audio XTX1500.1 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Crossfire subwoofer, RE Audio amplifier, and The Install Bay amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

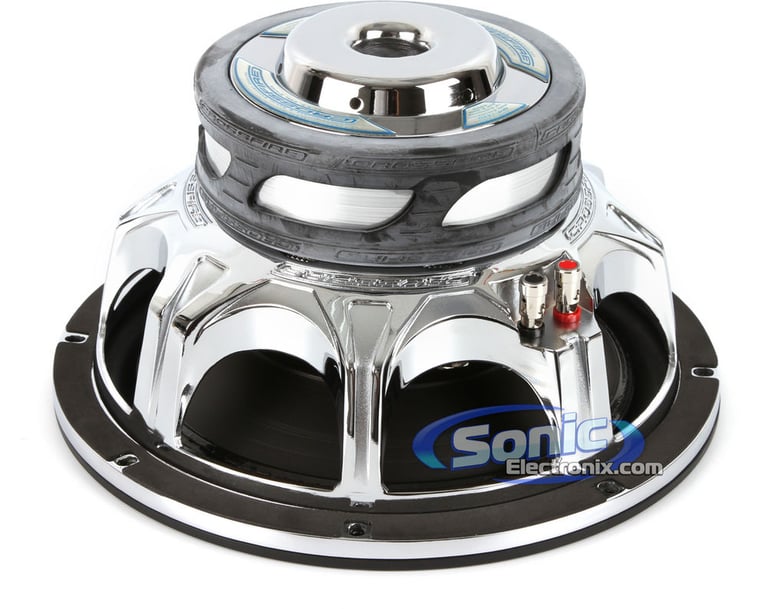

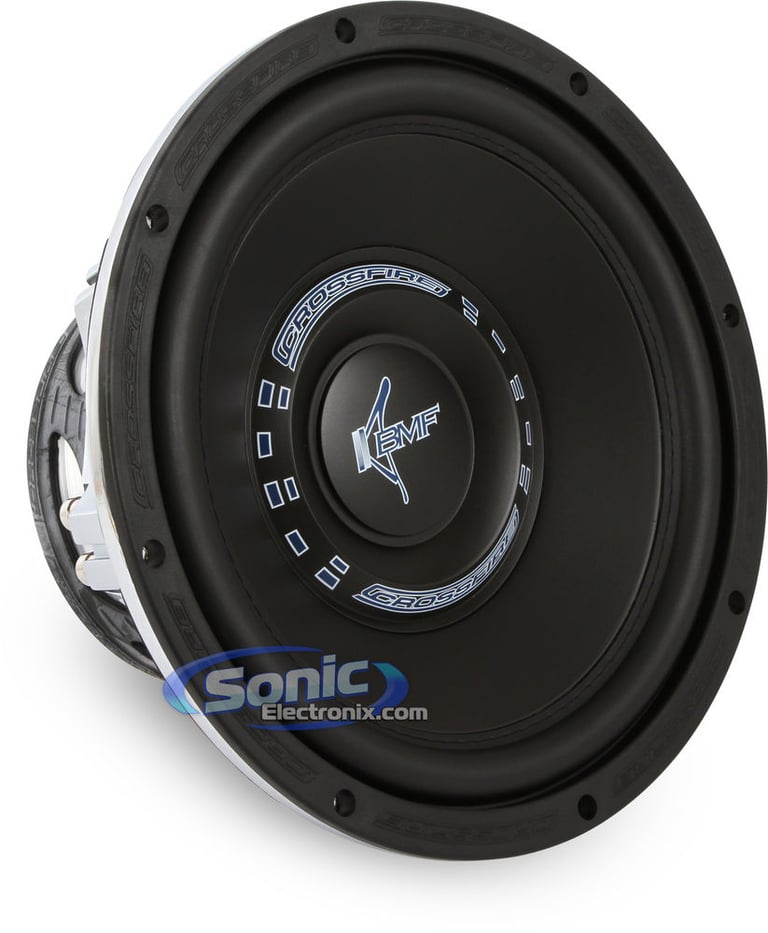

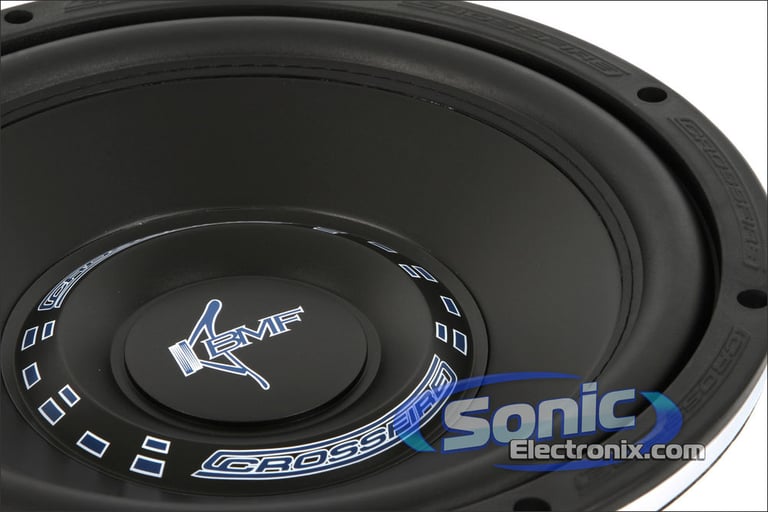

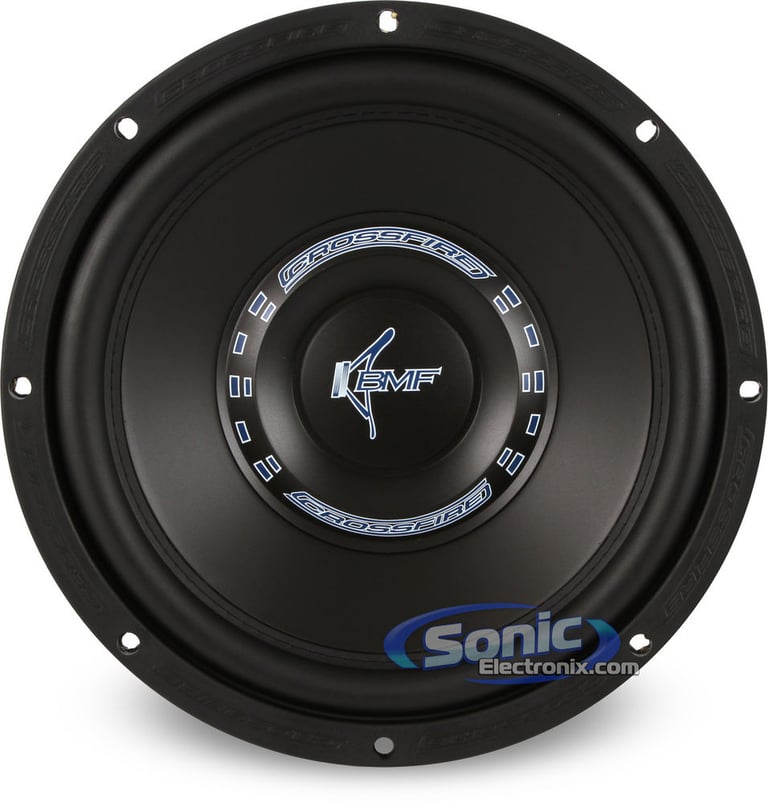

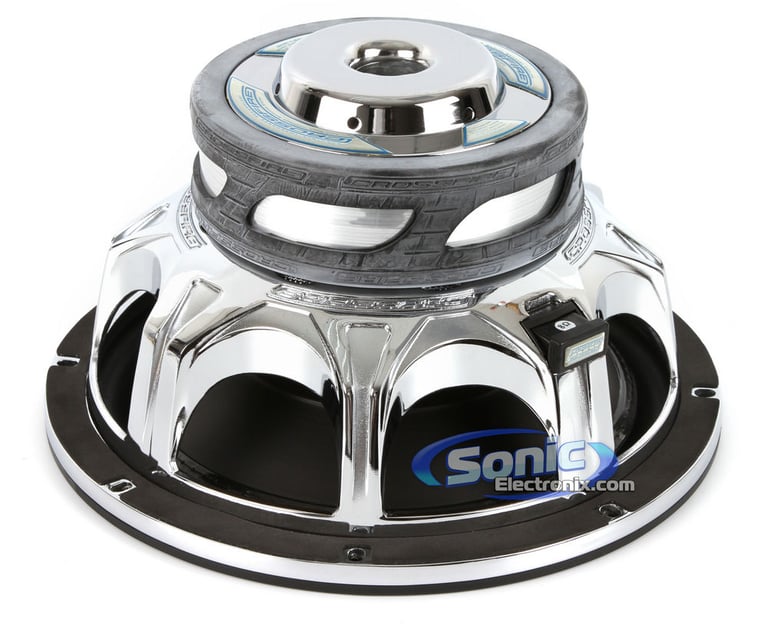

Crossfire BMF1214 Features:
  • 12" Dual 2 Ohm BMF Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: 2 Ohm
  • Co-polymer cone material
  • Stitched rubber surround
  • Proprietary chrome aluminum cast frame
  • Flexible Impedance Technology (FIT)
  • Dual Voice Coil (DVC) impedance selector
  • Chromed signature etched back plate
  • Chrome plated extended/vented back plate

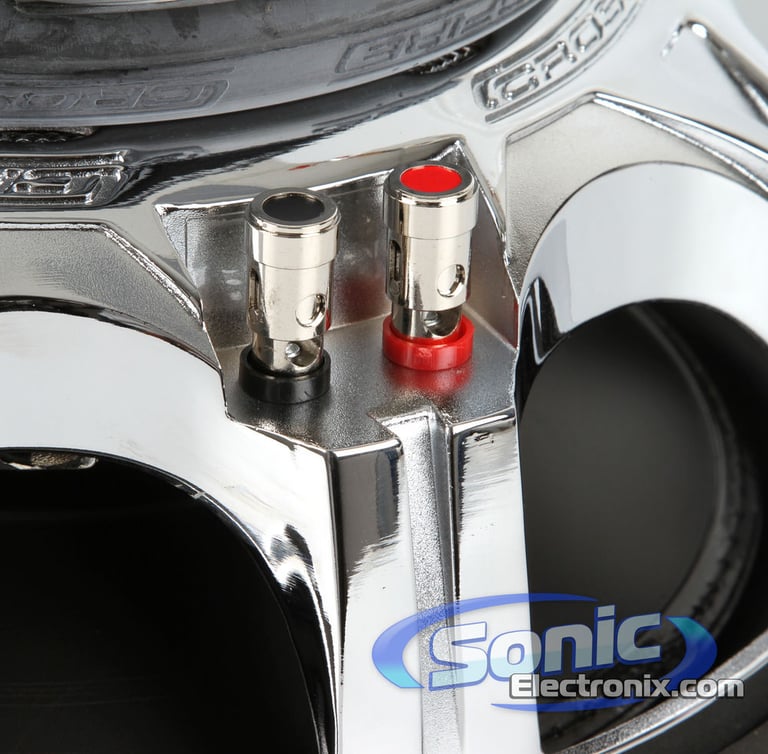

  • Compression nickel-plated sprig loaded input terminals
  • Designed for both vented and sealed enclosures
  • 2-1/2" 4 Layer Dual 4 Ohm Kapton voice coil
  • Dual 85 oz. ceramic stacked magnet structure
  • Frequency response: 20-250 Hz
  • Sensitivity: 84.6 dB
  • Xmax: 14mmm
  • Mounting depth: 6-3/8"
  • Cutout dimensions: 11-1/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

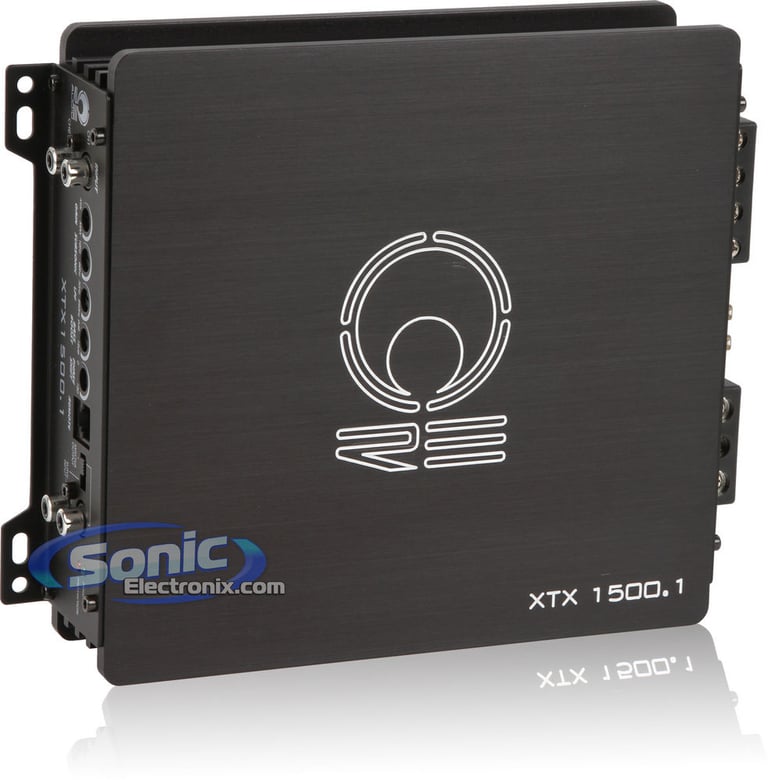

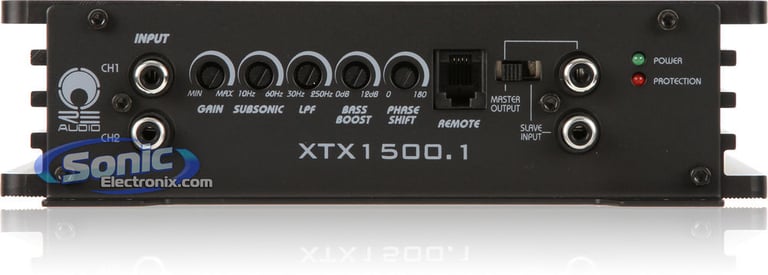

RE Audio XTX1500.1 Features:
  • XTX Series Monoblock Full Range Digital Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 190 watts x 1 chan.
    • 2 ohm: 330 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • Dynamic power output: 2000 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators

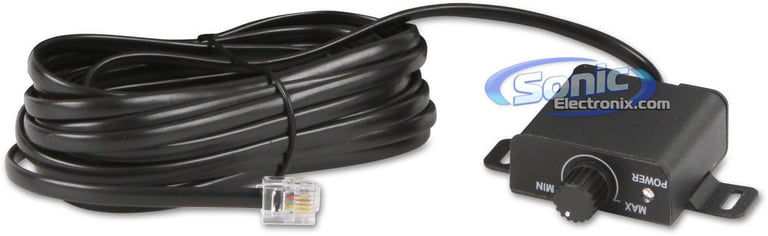

  • Wired remote included
  • Selectable bass boost (0-12 dB at 45 Hz)
  • Single channel operation
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs

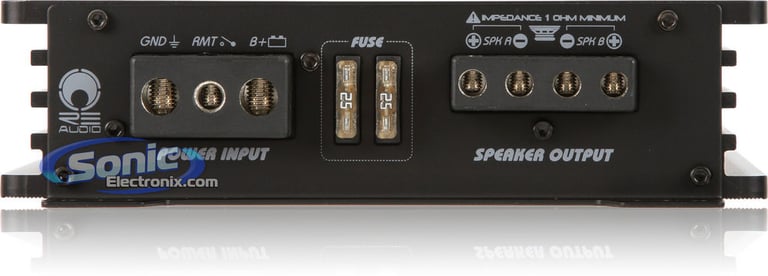

  • Nickel-plated 8-18AWG screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable low-pass filter (30-250 Hz, 24 dB/octave, Butterworth)
  • Subsonic filter (10-60 Hz, 24 dB/octave)
  • Signal to noise ration: >90dB
  • Phase Shift Control: 0 - 180°
  • Frequency response: 10-350 Hz
  • Dimensions: 5-15/16"L x 7-1/2"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

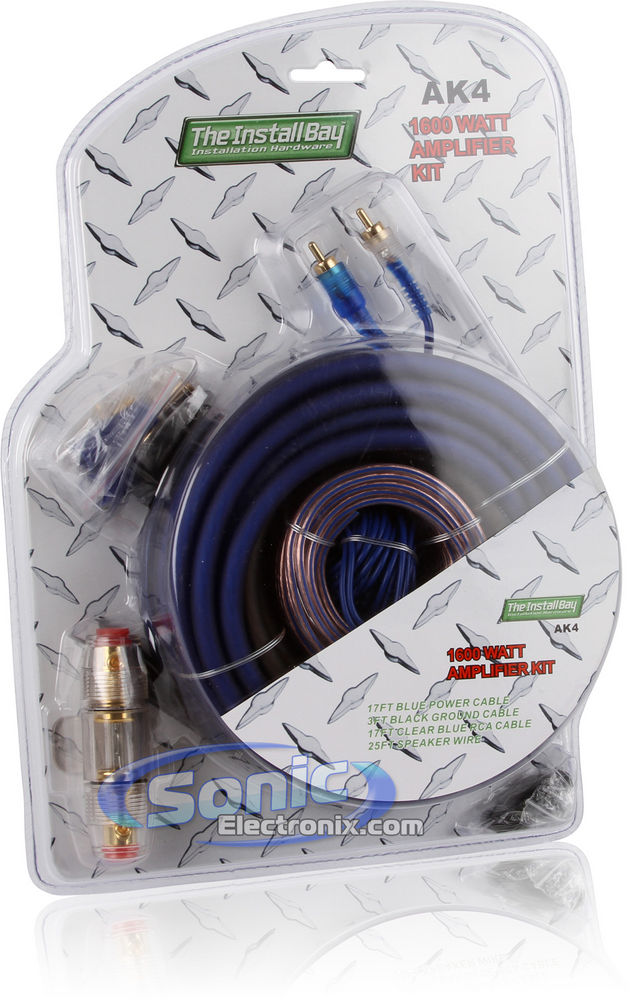

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier
  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay AK4 Includes:

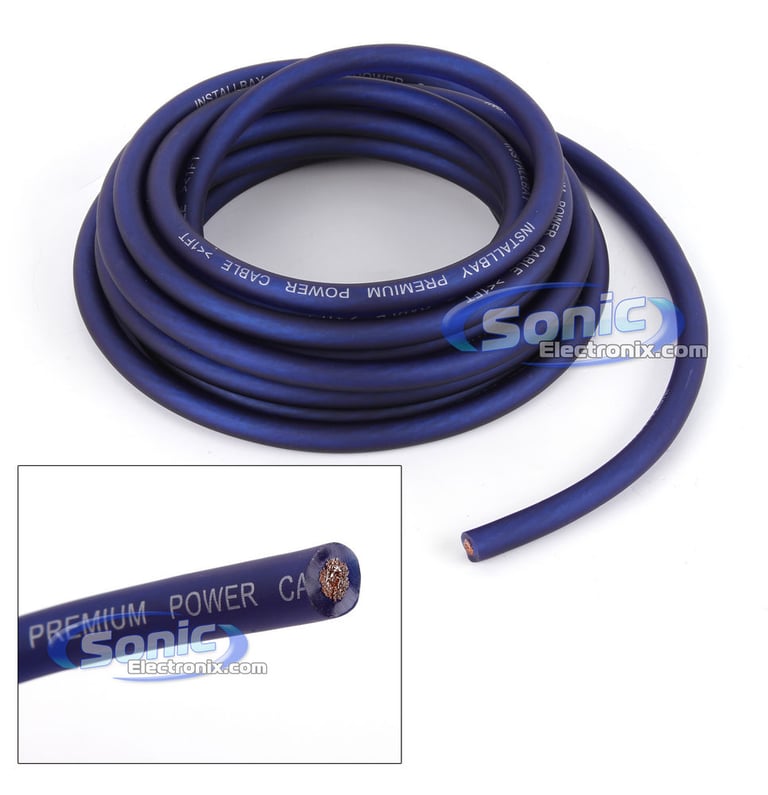

  1. 17 ft. of Blue power cable

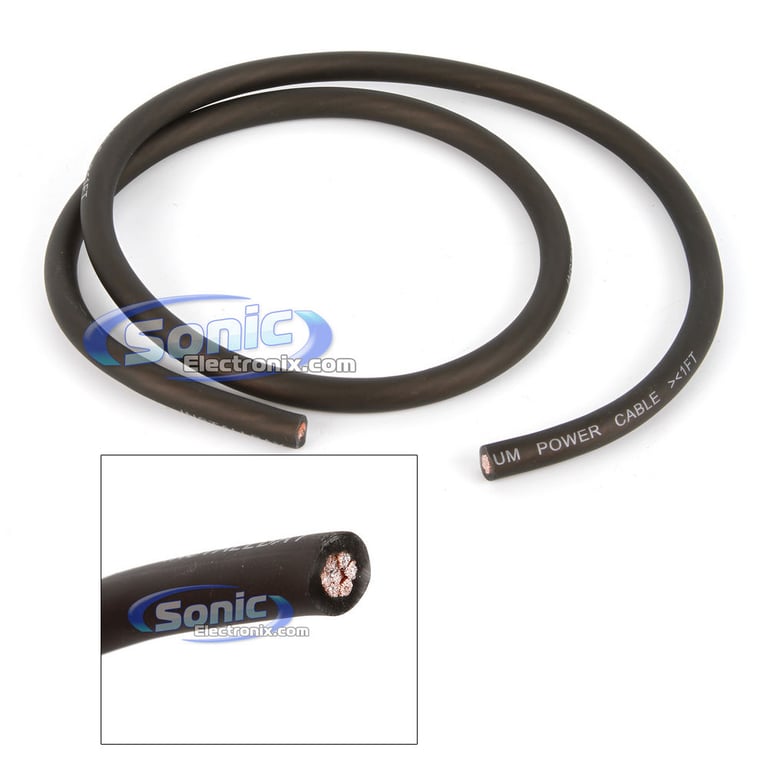

  2. 3 ft. of Black ground cable

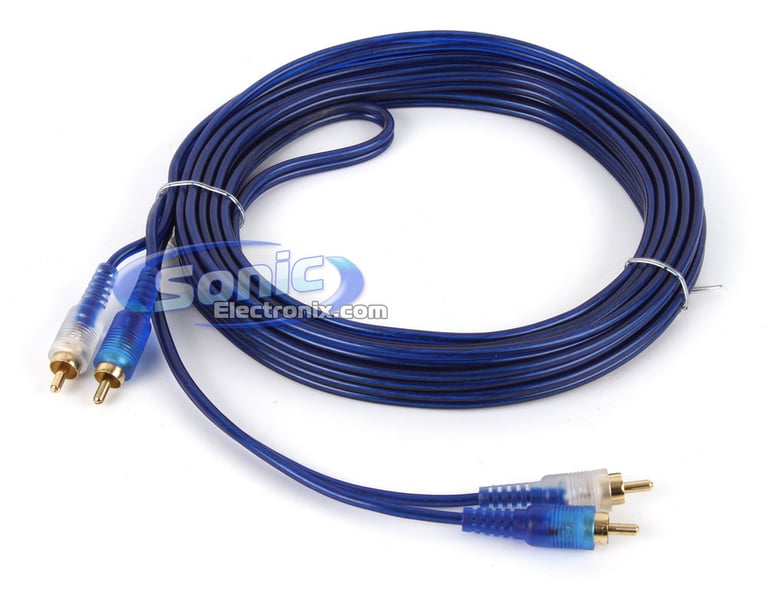

  3. 17 ft. of Clear/blue RCA cable

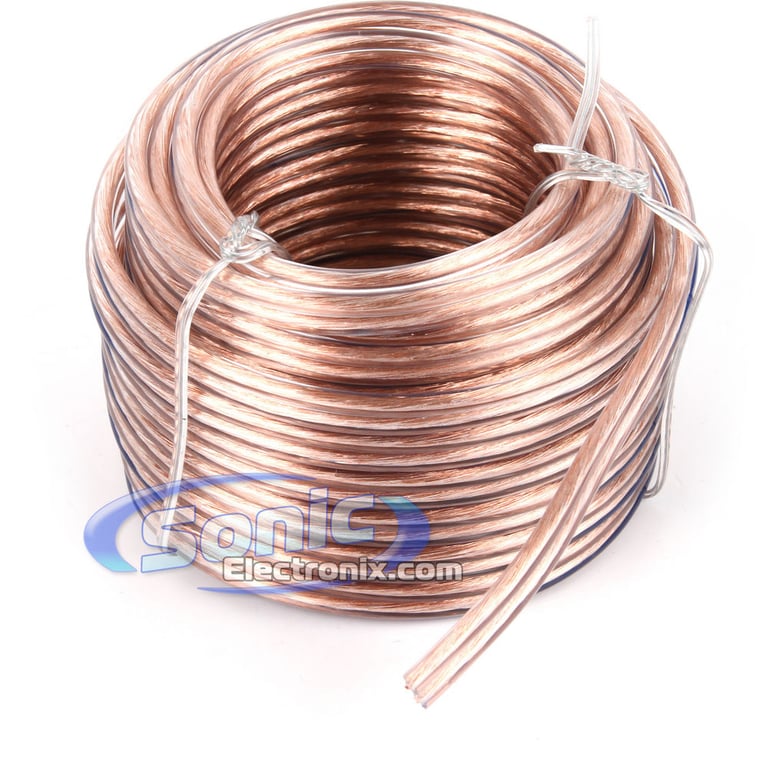

  4. 25 ft. of Speaker wire

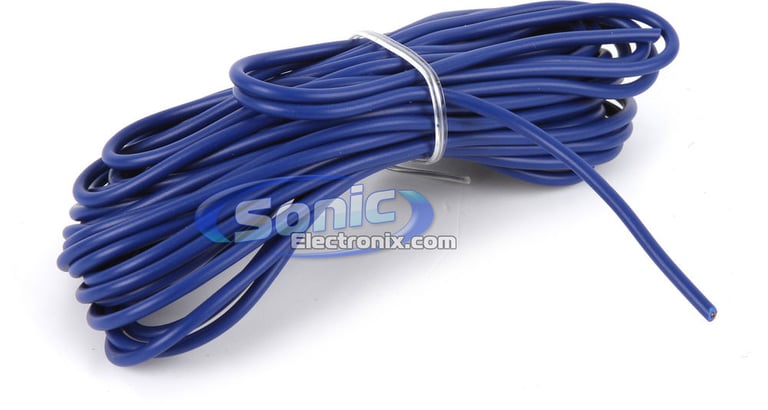

  5. 17 ft. of Remote turn-on wire

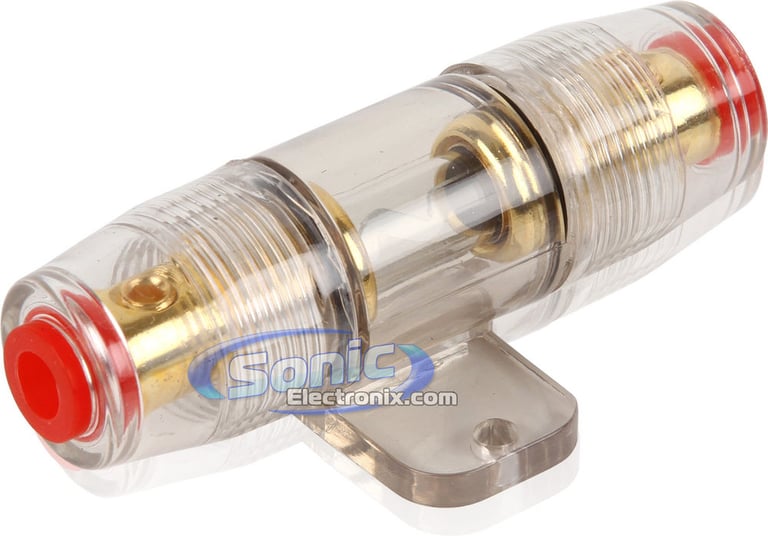

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

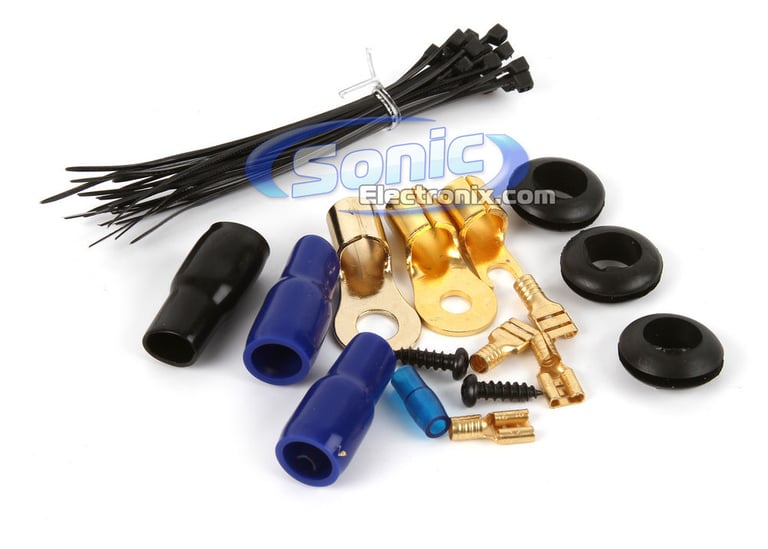

  8. Installation hardware

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
190 watts x 1 channel
RMS Power @ 2 ohms
330 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Peak Power Output
2000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
10 - 60 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
500 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1000 watts
Total Peak Power Handling
1000 watts
Woofer Surround
Rubber
Woofer Composition
Copolymer
Minimum Sealed Box Volume
0.70 cubic feet
Maximum Sealed Box Volume
1.70 cubic feet
Minimum Ported Box Volume
1.40 cubic feet
Maximum Ported Box Volume
2.65 cubic feet
Sensitivity
84.6 dB
Frequency Response
20 - 250 Hz
Xmax (millimeters)
14 mm
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
11-1/8"
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XTX-1500.1_BMF1214

Weight:

28.16lbs

Internal SKU:

xtx15001_bmf1214

Internal Product ID:

37817

Customer Ratings & Reviews


500W Crossfire + RE Audio Bass Bundle thumbnail image

5 star
55%
4 star
30%
3 star
10%
2 star
3%
1 star
2%



Durability
4.4
Value
4.6
Features
4.3
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

has it all

The following review is for AK4, which is a part of the bundle you are viewing.

Kit has everything you need for a hassle free installation, I was thinking I wasn't going to need it, but was glad I had it after things got going.

By steven on September 10, 2012

110 found this helpful


Great Value!!!

The following review is for AK4, which is a part of the bundle you are viewing.

If your looking for an amp install kit with all of the necessities that doesn't cost and arm and a leg this is it. The kit came with everything needed to get power to my amp the length was perfect for a extended cab pickup. The RCA's lack a little but I just used these single channel RCA's to run my sub amp and I bought some Streetwire 4 ch RCA's for the 4 ch amp and it's turned out great. I've always had good luck with Install Bay products!!! I would recommend to any one in search of a good Amp Install Kit!!!

By Dalton on October 5, 2013

106 found this helpful


Love

The following review is for AK4, which is a part of the bundle you are viewing.

I bought this my my 2007 jetta. It work really good the it was easy to put on. I would buy this again.

By Kiera on February 1, 2013

109 found this helpful


2nd time with this install bay kit

The following review is for AK4, which is a part of the bundle you are viewing.

its a great kit for the price. I bought it once for a buddys Suby and then for my father in laws econoline van. never had a problem with either. sonic can be slow at shipping. but if on a budget this kit kicks butt for the price....not much online can compare for a 4 gauge and price. never a problem with feed back or crappy rca. might have to get a few better connectors but hey its a given. anyways great kit. also great for a basic systems. I wouldn't run more then 100 amps of power max.

By marklar on September 17, 2013

104 found this helpful


Does what its suppose to do!

The following review is for AK4, which is a part of the bundle you are viewing.

This product is exactly what it is, a kit! I LOVE IT, everything i needed was included and durable! the 4ga wire is true to size! (not just labeled 4ga IT REALLY IS!) if needed, id purchase again!

By Alex on August 14, 2012

103 found this helpful


New amp kit

The following review is for AK4, which is a part of the bundle you are viewing.

Not much to review, It works fine. The only issue is that the power cable doesn't fit into the fuse holder. The fuse glass and holder plastic actually cracked when trying to close it. I'm sure I'll have to replace them soon. Other then that, it's good enough to power my amp with no issues. Yes, I would recommend it to others, just be careful when connecting the fuse holder and power wire. Don't use force!

By Rey on November 12, 2013

103 found this helpful


Decent Install Kit

The following review is for AK4, which is a part of the bundle you are viewing.

This kit isn't too bad it does the job. The fuse holder seems a little bit cheap on the plastic material but it works. The power cable held up to my abuse when I ran it through my tight space trims in my vehicle and I had to really pull them hard to get through. The RCA cable is a bit thin but I used it for my subs anyways so no problems there.

By Michael on September 10, 2012

99 found this helpful


Decent for the money

The following review is for AK4, which is a part of the bundle you are viewing.

I originally bought and 8 gauge cuz that's what my amp called for, it was a joke so I returned it and got this 4. Easy return/ exchange. Sounds like it happens a lot...
I think these kits are measured on the outside including plastic diameter not the inside wire.

Anyways buy the next size down from what you need. Kit came with lots of little parts to make the install ez. Would buy again for a 200-400 watt amp

By Land rover on November 7, 2013

98 found this helpful


AK4

The following review is for AK4, which is a part of the bundle you are viewing.

Bought the Installbay AK4, pretty decent pricing although its wire is very brittle and falls apart when splicing it so be careful. Also remember your going to need a crimping tool so look for one before getting too excited. Overall good product, no problems encountered

By image on March 3, 2011

97 found this helpful


Great product!

The following review is for AK4, which is a part of the bundle you are viewing.

Now my 1993 honda accord sounds better than ever! Exellent product 100% recomended!

By Andres L. San Miguel on October 31, 2014

100 found this helpful




AK4 main

Install Bay 4 Gauge Amplifier Power Wiring Kit (AK4)

• 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
• Perfect for 1600 Watts Amplifier Setup
• 17ft. Blue Power Cable
• 3ft. Black Ground Cable
• 17ft. Blue RCA Cable

(119)

$57.99

List price $64.99


KDC-MP145 small

Kenwood KDC-MP145

In-Dash CD, MP3, WMA Car Stereo Receiver with Front Panel 3.5mm Aux Input

(28)

$74.99

List price $109.99

E10BLU small

JBL SYNCHROS E10 In-Ear Headphones - Blue

In-Ear Headphone, Single Button Mic Remote

$39.95

List price $48.00

J22 Black small

JBL J22 - Black

High Performance In-Ear Headphones

$39.95

List price $49.95

Vega-69 small

Cerwin-Vega Vega 69 ** CLOSEOUT **

6" x 9" 2-way VEGA Series Speakers (Vega69, V69)

(5)

$59.95

List price $129.99

BT OV STU WHT small

Beats Studio 2.0 - White

Professional Over-Ear Studio Headphones with Built-In Active Noise Cancelling Function

(2)

$175.96

List price $299.95

J22i Black small

JBL J22i - Black

High Performance Earbuds Stereo Headset with iPhone Remote/Mic

$49.95

List price $79.95

XA1-500.1 small

MB Quart XA1-500.1

500W Monoblock X-Line Series Class SQ A/B Amplifier

(4)

$99.99

List price $259.99

KDC-MP142 small

Kenwood KDC-MP142

In-Dash CD, MP3, WMA, AM/FM Car Radio Receiver with 3.5mm Front Aux Input and Remote

(16)

$99.99

List price $119.99

PATHFINDER-2 small

Koss Pathfinder (PATHFINDRB) Stereo Ear Buds Black

In-Ear Headphones w/ Memory Ear Cushions (Pathfindrb)

(1)

$12.99

List price $19.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Porsche 911

2008 Ford Expedition

2024 Audi e-tron GT

2016 Maserati Ghibli

2022 Ford E Series

1995 Mercury Sable

2011 Ram 5500

2016 Chrysler 300

2012 BMW 550i

2002 GMC Envoy XL

Vehicle
Store
Delete

2000 Harley Davidson FXSTD/I Softail Deuce

Vehicle
Store
Delete

2021 Can-Am Commander 1000R DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
