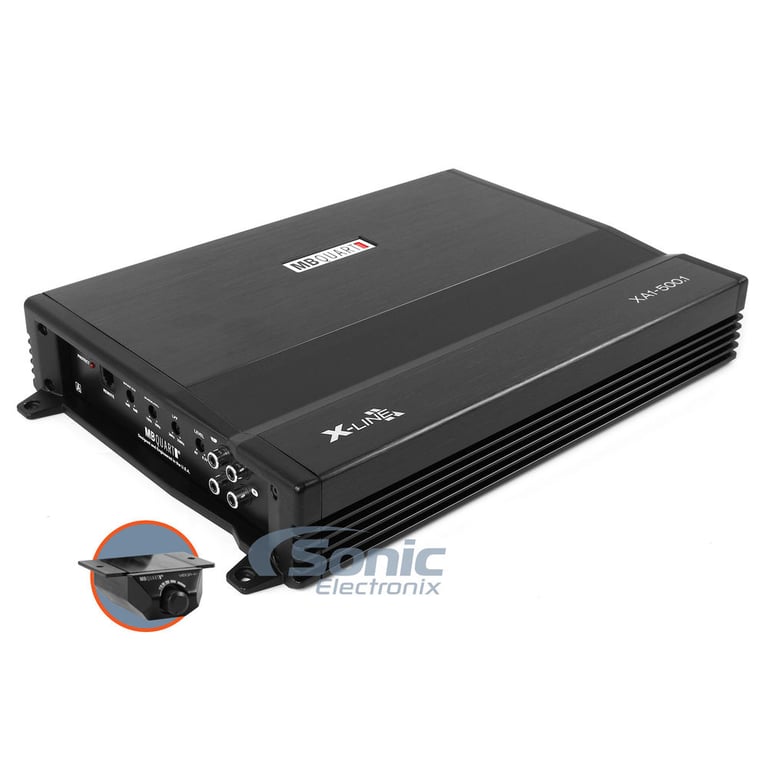

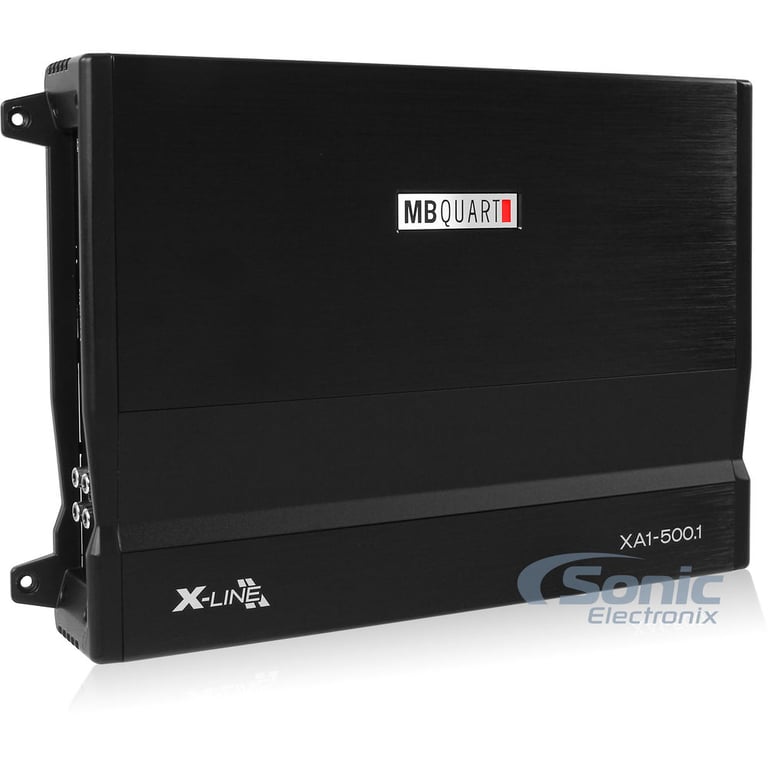

MB Quart XA1-500.1

500W Monoblock X-Line Series Class SQ A/B Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• RMS: 250W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range

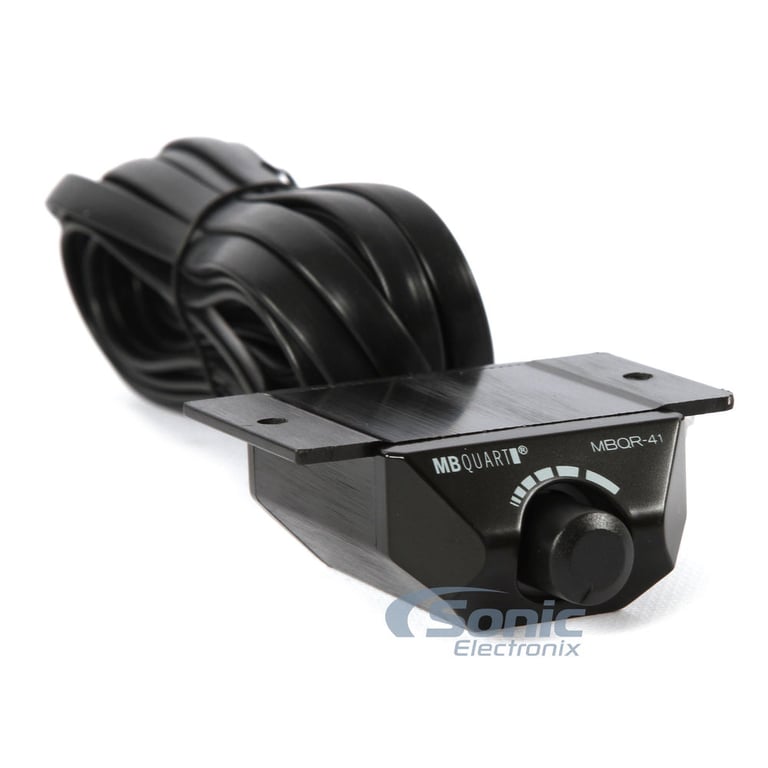

• Elaborate preamplifier with extended control
• Frequency Response: 15 - 250 Hz

Learn more about the xa15001

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AXTC-CH5 main

Axxess AXTC-CH5

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2013-2023 vehicles from Ram, Dodge, Fiat

-10.00%

$197.99

List price $219.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

C2-600X main

JL Audio C2-600X

120W RMS 6” C2 Series 2-Way Coaxial 4-ohm Car Speakers

8
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Product Highlights


• RMS: 250W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Elaborate preamplifier with extended control
• Frequency Response: 15 - 250 Hz

Description


MB Quart brand icon

Authorized dealer

General Features:

  • X-Line Series Monoblock Class SQ A/B Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Fluid-FETS hand selected insulated MOSFETS
  • Focused mass heat sink designs
  • Q-Stasis preamp stage with wide input range
  • Elaborate preamplifier with extended control
  • Easy access mounting tabs for a secure install

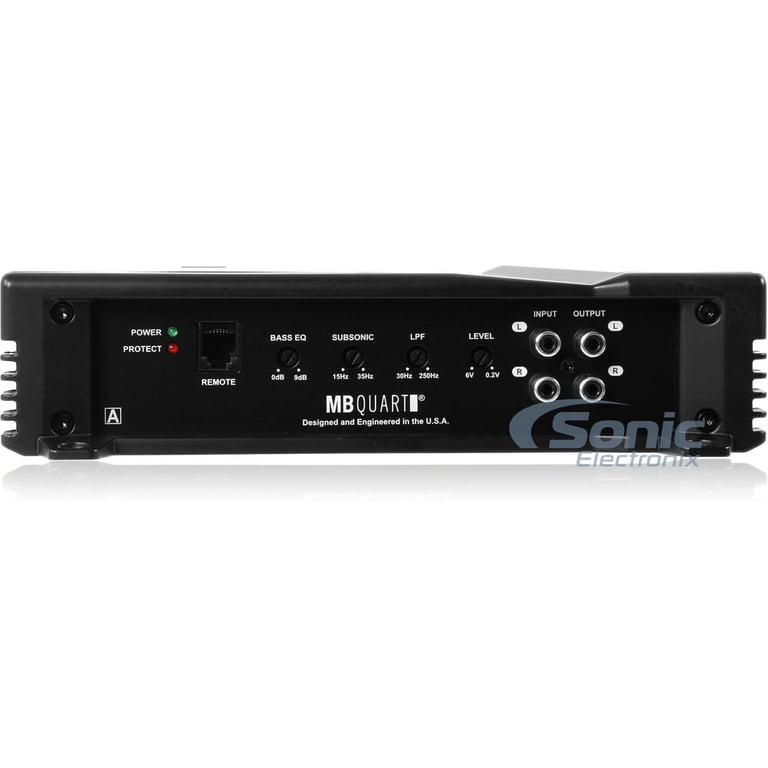

  • LED power (green) and protect (red) indicators
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • Signal to Noise Ratio: >95 dB
  • Total Harmonic Distortion (THD): <0.5%
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • Variable low-pass filter: 30 - 250 Hz
  • Subsonic filter: 15 - 35 Hz

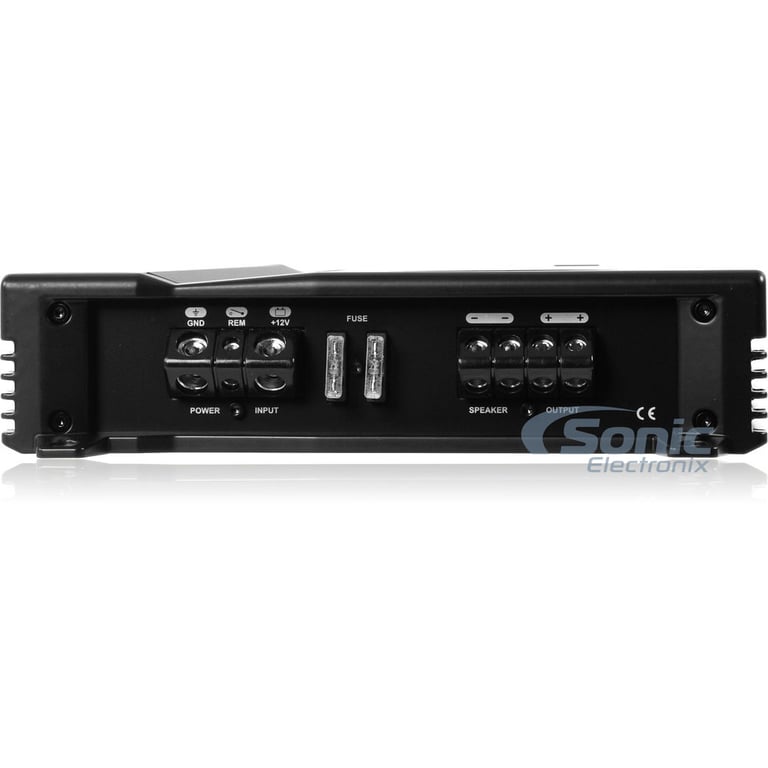

  • Fuse Rating: 25A x 2
  • CEA-2006 compliant amplifier
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9.20"W x 14.70"L x 2.20"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Series
X-Line Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Fuse Rating
25A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XA1-500.1

Weight:

8.80lbs

Internal SKU:

xa15001

Internal Product ID:

94869

Product and How-to Videos


Customer Ratings & Reviews


MB Quart  XA1-500.1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Very good clean constant power.

I originally ordered this amp to drive a Single Infinity Kappa 120.9 however never got to that project. I ended up getting a Silverado crew cab, and using this amp to power 2 Infinity Reference REF1200s the Infinity slim subs with select-able ohms. I was a bit confused it is a mono amp but had 2 positive and 2 negative speaker outputs, however they are not arranged like a typical two channel with a left and right side. Instead it has 2 positive on one side and two negative on the other. I planned to run the subs @ 2 ohms then I saw this mono amp had 2 output spots. So I flipped the subs back to 4 ohms and just hooked it up like a 2 channel. I am very impressed the amp delivers the power to the subs flawlessly, the amp does get very warm but has never gone in to protection. I have put the amp through its paces between bass heavy music with long sustained bass and punchier kick drum bass. I have been using the amp for a month with out any issues. I like the bass controller it comes with turn the amp down when children are riding in the truck. I am satisfied with my purchase and recommend this amp for any who needs roughly 500 strong watts! Even though I bought it over a year ago, I was finally able to use it and I think it is discontinued.

By travis on August 14, 2017 Checkmark Icon Verified purchase


Lotd of power

This amp is an old school hard hitter. I had to install a cooling fan to keep it from shutting down after loud volume continued use.[30mins] It now never shuts down.I owned for 6months now

By alan on November 3, 2016 Checkmark Icon Verified purchase


Great amp!

So i have a lincoln navigator. This might be a little too much for my 8" mb quart sub. But it is doing its job real well. This is the first time buying on line from sonicelectrionics but i am very satisfied!

By jesus on April 25, 2016


Great product

This amp is great. Good steady clean power in a dual setup. I'm very impressed.

By DubStak on November 13, 2015




OTTR1000-05-SJ small

OtterBox 1000-05-SJ (Yellow)

1000 Series Protective Waterproof Case

$8.99

List price $11.49

SP-CE356M small

Steele Product Corp SP-CE356M

3.5 HP 6 Gallon Air Compressor with Wheel Kit

$189.99

List price $229.95

Tone HBS-700 small

LG Tone HBS-700 (Black)

Bluetooth Headset w/ Noise Reduction, Echo Cancellation, Text Reader, & 10-Hour Talk Time Battery

(46)

$44.99

List price $69.99

5000-CA5 small

Brandmotion Curb Alert PRO (5000-CA5)

IR LED Curb Warning & Detection System

(2)

$119.56

List price $239.95

SP-CE415M small

Steele Product Corp SP-CE415M

3.5 HP 15 Gallon Air Compressor with Wheel Kit

$219.99

List price $239.95

GDI-AQCSE100 small

Grace Digital Eco Extreme GDI-AQCSE100

Rugged Portable Waterproof Speaker Case (Orange)

(1)

$37.99

List price $49.99

No picture

Jabra MOTION UC with Travel & Charge Kit

Unified Communications Wireless Bluetooth Headset with Earset and Travel Kit

$139.95

List price $219.95

MB903LLA small

Apple iPod Nano 16GB Silver - MB903LL/A

Silver 16 GB 4th Generation iPod Nano

$174.94

List price $199.99

SP-CE155QT small

Steele Product Corp SP-CE155QT

Steele Quietzone 1.5 HP 4.6 Gallon Twin Tank Air Compressor

$279.99

List price $399.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Acura Legend

2015 Dodge Dart

1985 Porsche 944

2003 Dodge Ram 3500 Van

2013 Lexus ES350

2016 Tesla Model S

1999 Dodge Intrepid

2013 MINI Cooper

2002 Ford Thunderbird

1995 Ford Probe

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
