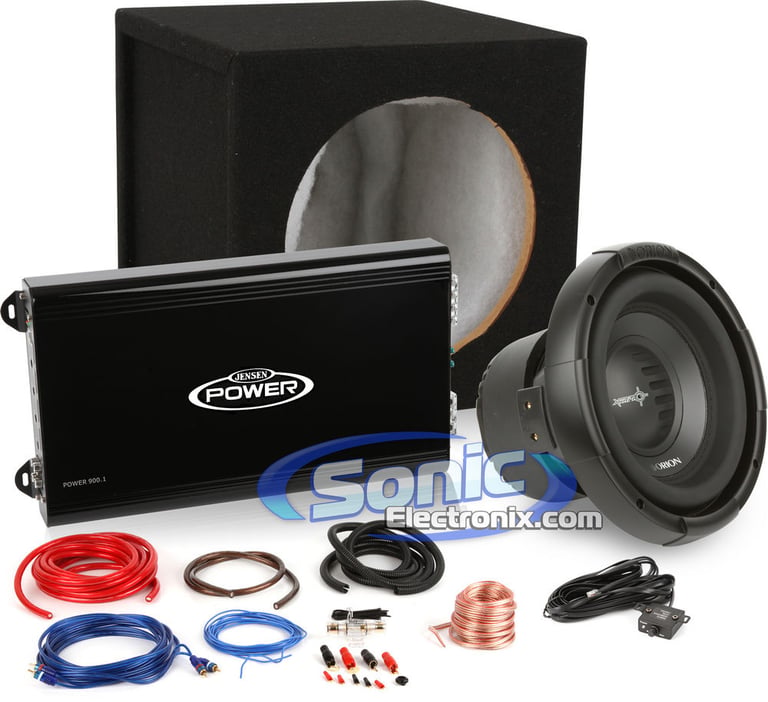

1000W 10" Orion + Jensen Bass Bundle

10" Orion XTRPRO104 XTR PRO Series Subwoofer + Jensen Power 900.1 Monoblock Amplifier + Amp Kit

Orion
Shop all Orion
EXCLUSIVE
highlight-star-icon

10" Dual 4 ohm XTR PRO Series Subwoofer • 1000W Max • 500W RMS • Jensen Power Monoblock Class A/B Car Amplifier • MOSFET Power Supply • Variable Bass Boost • The InstallBay AK4 4 Gauge Amplifier Kit

Learn more about the xtrpro104_power9001

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


Orion brand icon

Authorized dealer

Orion and Jensen Bundle

This Sonic Electronix Exclusive Bass package showcases a Jensen Power 900.1 Amplifier along with one 10" XTR PRO series Orion subwoofer. This excellent bass package pushes 450 watts of clean, continuous RMS power. The Orion subwoofer has a Dual 4 ohm voice coil; meant to be wired directly to the amplifier, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Orion XTRPRO104 XTR PRO series subwoofer requires 500 watts of RMS power. The included Jensen Power 900.1 amplifier will compliment this required power by supplying a near perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Pioneer subwoofer, Jensen amplifier, and db Link amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

Orion XTRPRO104 Features:
  • 10" XTR PRO Dual 4 ohm Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Polypropylene dust cap and paper cone is moisture and UV resistant
  • Nitrile-butadiene rubber surround enhances the linear excursion
  • Symmetrical tuned long-throw surround
  • Dual interlaced conex spider
  • Custom cast aluminum frame
  • Custom trim ring
  • Tinsel leads stitched and looped across spider
  • Venting in voice coil former is part of the enhanced voice coil cooling system
  • Advanced forced convection cooling system
  • Tri-cooling system
  • Copper wound voice coil on aluminum former
  • Sensitivity: 82 dB
  • Two large 48 oz. double stacked ceramic magnets (96 oz. total)
  • 1-year Sonic Electronix warranty
Jensen Power 900.1 Features:
  • Monoblock Power Series Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 450 watts x 1 chan.
  • Max power output: 900 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • Remote input level control with 5m cable
  • LED power (green) and standby/fault (red) indicators
  • Variable bass EQ (0-12 dB @ 45 Hz)
  • Soft Start Turn-on
  • Monoblock operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, DC-Offset, and speaker short protection)
  • Heavy duty extruded heatsink for extreme heat dissipation
  • High current bi-polar output transistors
  • Optimized class AB design minimizes distortion and reduces idle current
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable Low-Pass Filter (40-300 Hz, 12 dB/octave)
  • Subsonic Filter (10-40 Hz @ 12 dB)
  • Signal-to-Noise Ratio: >100 dB
  • Frequency Response: 5-300 Hz
  • Variable Input Level: 400mV - 5V
  • THD (Total Harmonic Distortion): 0.02%
  • Fuse Rating: 2 x 30 amps
  • Dimensions: 9"D x 15-3/4"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
House Brand 10SSPF Enclosure Features
  • 10" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil
  • Gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 11"
  • Subwoofer cutout diameter: 9-1/8"
  • Box volume: 0.7 cubic feet (per chamber)
  • Total box volume: 0.7 cubic feet
  • Dimensions: 12-1/2"D x 12-1/2"W x 12-1/2"H
The InstallBay AK4:
  • Complete 4 Gauge Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Includes everything that you need to install a single amplifier
  • Premium power and ground cable
  • 1-year Manufacturer's warranty
Package Includes:
  1. 17 ft. of Blue power cable
  2. 3 ft. of Black ground cable
  3. 17 ft. of Clear/blue RCA cable
  4. 25 ft. of Speaker wire
  5. 17 ft. of Remote turn-on wire
  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse
  8. Installation hardware

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
450 watts x 1 channel
Peak Power Output
900 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
500 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1000 watts
Total Peak Power Handling
1000 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Reinforced Paper
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
82 dB
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
12-1/2"
Width
12-1/2"
Depth
12-1/2"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XTRPRO104_Power 900.1

Weight:

49.83lbs

Internal SKU:

xtrpro104_power9001

Internal Product ID:

39465

Customer Ratings & Reviews


1000W 10

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


Mixdeck and DLS15p small

Numark Mixdeck and American Audio DLS15p with FREE Cables and Stands

Complete Pro DJ System featuring Numark MixDeck with FREE Cables and Stands

$1111.95

List price $2094.68

XT-A4-BB small

Plateau XT-A4-BB (Black Oak)

Audio and Video Entertainment Stand with 4 Shelves

$299.99

List price $349.99

VZ401 small

Clarion VZ401 (Factory Refurbished)

In-Dash DVD, CD, MP3, WMA Player with 7" Touchsceen Monitor and Built-in Bluetooth

(1)

$199.99

List price $599.99

FESCP01C12U small

MTX Audio Thunderform FESCP01C12U (Charcoal, Unloaded)

Unloaded Single 12" Custom-Fit Bass Slammer Subwoofer Enclosure for 2001-2004 Ford Escape

$349.95

List price $449.95

99-5826CH small

Metra Ford Mustang Dash Kit 99-5826CH

Single DIN / Double DIN Dash Installation Kit for 2010-2014 Ford Mustang

(1)

$289.95

List price $399.99

MH BTS IE DY WH CT small

Monster Cable Diddybeats In-Ear Headphones (MH BTS IE DY WH CT)

Diddybeats High Performance In-Ear Headphones w/ ControlTalk & Tangle-Free Flat Cable Design (White)

$109.99

List price $179.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2024 Ram Promaster 2500

1998 Lexus LX470

2000 Chrysler Concorde

2005 Chevrolet Aveo

1980 Ford Mustang

2012 Dodge Ram C/V

2011 Hyundai Sonata

1970 Mazda 1500

2015 Land Rover Range Rover Evoque

2025 Ford Ranger

Vehicle
Store
Delete

2007 Harley Davidson FXSTSSE Screamin Eagle Softail Springer

2000 Harley Davidson FXST Softail Standard

2007 Harley Davidson FLHTCSE Screamin Eagle Electra Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
