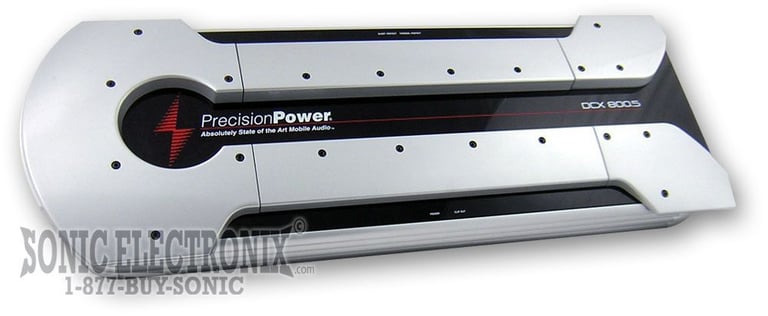

Precision Power PPI DCX 800.5

Class-AB 5-Channel Competition Car Amplifier

Precision Power
Shop all Precision Power
Product videos
highlight-star-icon

Class-AB 5-Channel Amplifier • 75W RMS x 4 + 200W x 1 @ 4 • 300W RMS x 2 @ 4 Bridged • QBASS PLUS Bass Boost • RCA Output • Phase Control • Adjustable Input Gain • Independant Output Crossover • PowerLOCK Connectors

Learn more about the dcx8005

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

PPROV2-8 main

Rockford Fosgate Punch Pro V2 PPROV2-8

300W Peak (150W RMS) 8" Punch Pro Series Pro Audio Midrange 4-ohm Car Speakers

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

1
-17.26%

$239.95

List price $290.00

Product Highlights


Class-AB 5-Channel Amplifier • 75W RMS x 4 + 200W x 1 @ 4 • 300W RMS x 2 @ 4 Bridged • QBASS PLUS Bass Boost • RCA Output • Phase Control • Adjustable Input Gain • Independant Output Crossover • PowerLOCK Connectors

Description


Precision Power brand icon

Authorized dealer

  • 800 Watt Class-AB 5-Channel Competition Amplifier
  • Advanced Instrumentation Input Stage
  • Independant Line Output Crossover: 30 Hz - 4 kHz
  • TC-X Crossover: HP, LP (30 Hz - 4 kHz)
  • Adaptive PWM Power Supply
  • Fully Complimentary Darlington Output Stage
  • AP-IV Protection Circuitry
  • QBASS PLUS Bass Boost 0 - 18 dB at 30, 36, 44, or 60 Hz w/ Q-Factor of 2
  • High Voltage Input Capability with -12 dB Attenuation Switch
  • Gold Plated RCA Input and Output Connectors
  • PowerLOCK Speaker and Power Wire Connectors
  • RMS Power Rating:
    • 50 watts x 4 chan. + 200 watts x 1 chan. @ 4 Ohm
    • 100 watts x 4 chan. + 400 watts x 1 chan.@ 2 Ohm
    • 200 watts x 2 chan. @ 4 Ohm Bridged
  • Adjustable Input Sensitivity
  • 0 / 180° Phase Adjust
  • RCA Outputs: 1 Pair
  • Dimensions: 28-1/8" L x 10-1/2" W x 2-3/4" H
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 chan. + 200 watts x 1 chan.
RMS Power @ 2 ohms
100 watts x 4 chan. + 400 watts x 1 chan.
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Number of Channels
5-Channel
Total RMS Power Output
400 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
No
Signal-to-Noise Ratio
110 dB
Bass Boost
0 - 18 dB
Fuse Rating
100A
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

DCX-800.5

Weight:

29.00lbs

Internal SKU:

dcx8005

Internal Product ID:

3998
