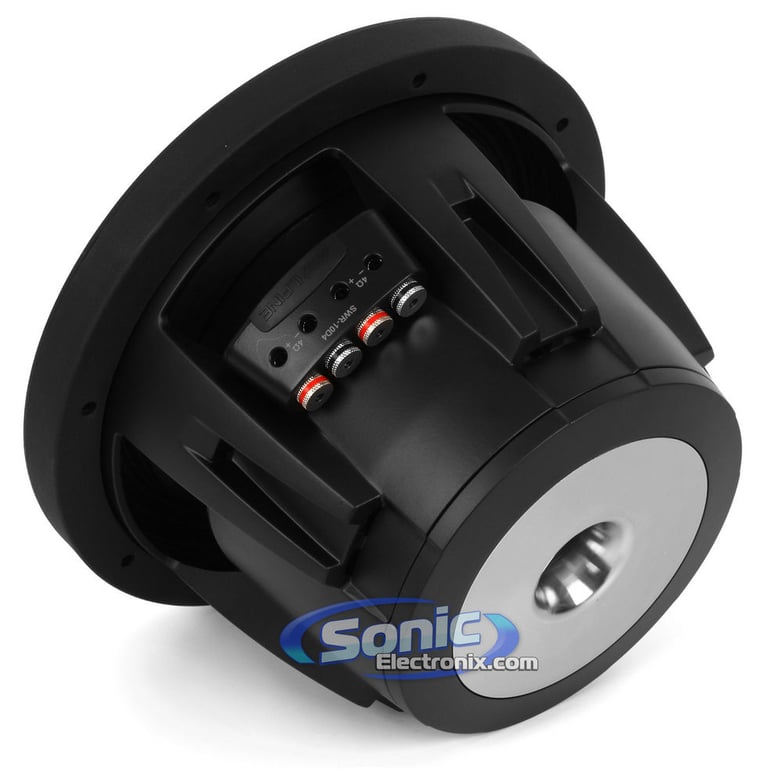

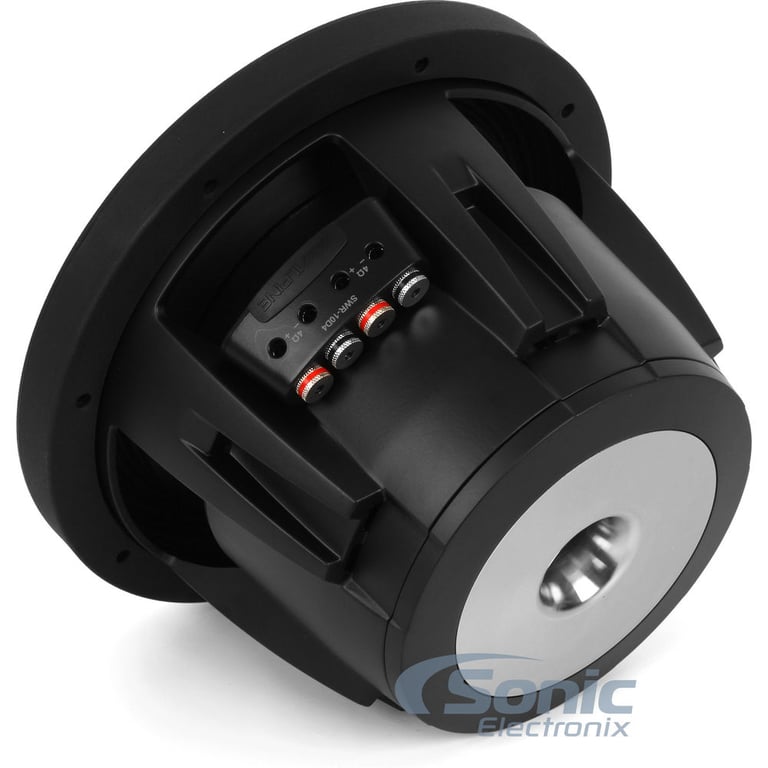

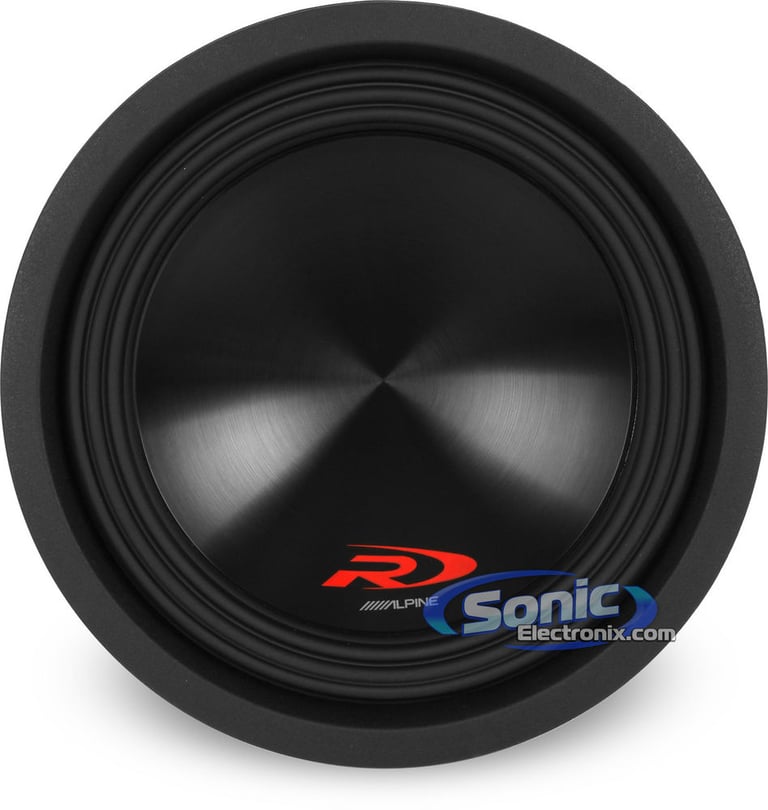

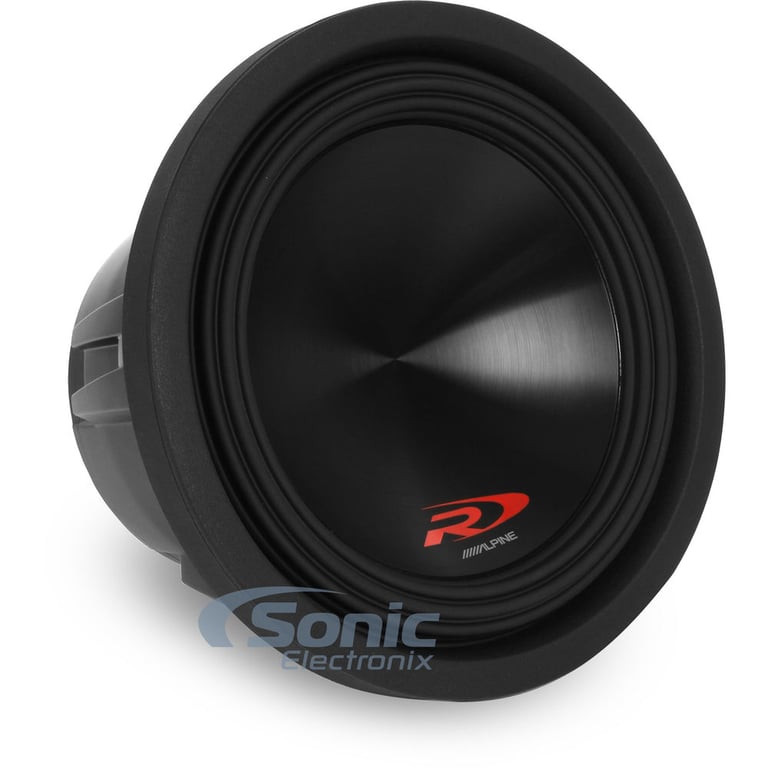

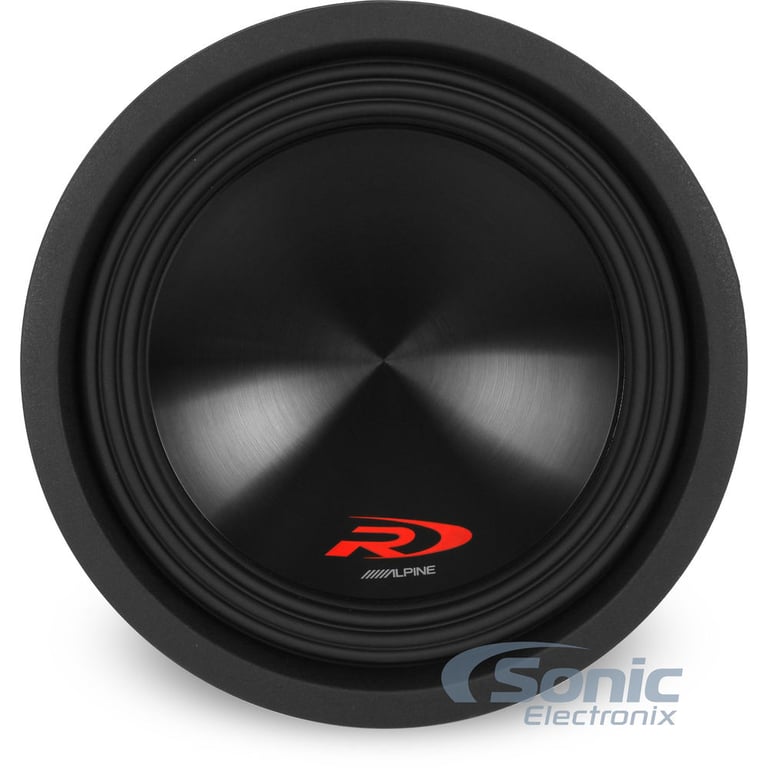

Alpine Type-R SWR-10D4

3000W Peak 10" Type-R Series Dual 4-Ohm High Performance Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• 3000W Peak
• 300-1000W RMS
• Dual 4-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene™ Surround

Learn more about the swr10d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

rw10d4 thumbnail

Alpine R-W10D4

OUR PRICE: $299.95

View item

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

72-5605 main

Metra 72-5605

Install a New Tweeter in select 2011-2024 vehicles from Ford, Lincoln

-22.23%

$13.99

List price $17.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

Product Highlights


• 3000W Peak
• 300-1000W RMS
• Dual 4-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene™ Surround

Description


Alpine brand icon

Authorized dealer



General Features:

  • 10" Dual 4-Ohm Type-R Series Car Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 300-1000 watts
    RMS Notification: The objective rated wattage for the SWR-10D4 Subwoofer is 750W RMS. Alpine historically labeled this subwoofer as "up to" 1000W RMS so it would line up versus other brands that at times unscrupulously overrated their subwoofers. The new R-W10D4 from Alpine (which we can upgrade you to for a limited time) is built on an improved platform, with a more efficient design and will outperform the SWR-10D4 across the board. Enjoy!
  • Recommend power: 400 - 750 watts RMS
  • Impedance: Dual 4 ohm
  • Kevlar treated pulp cone
  • Durable HAMR Santoprene surround
  • Progressive Conex spider
  • Compound Radius Curve pole geometry
  • Oversized 2.6", High-Temperature, 4-Layer Dual Voice Coil
  • 10" Protective 2-Piece Subwoofer Grille Available, sold separately:
  • Frequency response: 26-300 Hz
  • Resonance Frequency (Fs): 31Hz
  • Top-mount depth: 5-7/8"
  • Cutout Diameter: 9-1/16"
  • Sensitivity: 82dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Priced Individually

Product history:

Alpine R-W10D4 thumbnail
(newest, current model)
Alpine SWR-10D4 thumbnail
(previous model, replaced by Alpine R-W10D4)
Alpine SWR-1043D thumbnail
(previous model, replaced by Alpine Type-R SWR-10D4)
Alpine SWR-1042D thumbnail
(previous model, replaced by Alpine SWR-1043D)
Alpine SWR-1041D thumbnail
(previous model, replaced by Alpine SWR-1042D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine Type-R SWR-10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine Type-R SWR-10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine Type-R SWR-10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine Type-R SWR-10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
Peak Power Handling
3000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
26 - 300 Hz
Sensitivity
82 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.45 cubic feet
Optimum Sealed Box Volume
0.58 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
0.95 cubic feet
Optimum Ported Box Volume
1.1 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
18 liters
Total Speaker Q Value (Qts)
0.51
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SWR-10D4

Weight:

10.00lbs

Internal SKU:

swr10d4

Internal Product ID:

45523

Product and How-to Videos


  • Alpine Type R Subwoofer | Is the 5th gen the best yet?
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Alpine Type-R SWR-10D4 thumbnail image

5 star
74%
4 star
13%
3 star
11%
2 star
0%
1 star
2%



Durability
4.5
Value
4.7
Features
4.7
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great cheap bass!!

These things are loud! For what you pay you get more then expected. Best bang for your buck. Put two of these in my 2014 sierra in a under the seat ported fox box and it bangs! Just make sure ou break them in correctly. I had 2 12 alpine type r shallows and fried them hit me too hard too soon. Alpine recommends 4-6 weeks of breakin in. Otherwise great overall!

By Changa on March 16, 2014

45 found this helpful


sportman

Wow this thing hits like Thor. I already had a swr10d43-x and was very impressed with it. It is 600 watts rms. This new swr 105 is a positive step above at 1000 watts rms and just as clear if not clearer than before. I can't think of one bad thing about this sub unless it is the fact that I don't have room for two. Thanks again Sonic you are by far the best when it comes to electronics. Keep up the good work.

By Randy on May 19, 2014

41 found this helpful


Durable is an understatement!

I am currently running two SWR-D2 Alpine subs with a RF T1500-1bdCP at 1 ohm with less than 1/3 gain. The birth sheet for the amp reads 1867 Watts RMS. With a OFC 1/0 gauge power and ground complimented with a 137 amp aftermarket alternator than states a 160 amp draw at 2000 rpm's with a constant 13.5 volt draw at an idle. in a slot ported box tuned at 33 hz with a gross internal volume of 1.33 cubic feet each. the T1500 is easily over powering the subs with the PEQX3 sub knob you have to be careful not to boost the bass too much because the voice coil will start slapping the magnet structure (which i do on accident all the time). I've been running these things at least 3 hours a day sometimes up to 6 hours continually at max blast for the last 4 months!!! very dependable and always stays cool (which you can feel on the cone)as long as you amp doesn't peak out. i have ran 6 different amps with these subs trying to find the perfect 1. always abused and driven to the full excursion capable of these subs at 20 mm one way which equals 1.5 inches from all in to all out. i think its closer to 2 inches but its impossible to measure, its just a guess based on the travel of the alpine emblems. my only complaint is the wire jumper terminals that come with the subs are unreliable because it hits so hard and the SPL is so high it pushes them out, however if you just use your speaker wire instead, it holds firm and tight forever. always remember that the output of the sub is relative to the amp pushing them and more important is the box they are in. i originally had them in a seal box of .75 cubic feet each but i enjoy more bass output with the same clarity tuned at 33 hz in my new box.i have spent over $2200 on my system and know i would not be where i am at now without alpine quality and sonic electonix great prices and never failing customer support and warranties.

By steffan on February 2, 2013

40 found this helpful


Spend the extra money to get something better sonic offers

Pros - Clear sound with somewhat decent volume for the price.

Cons - Durability isn't that great. Other subs offered by sonic are much "louder" with the same or better sound quality and last much longer.

Sub is very clear. Not as "loud" as everyone claims. Broke in the sub for the correct break in period and after that the sub completely fried out. With just a few more dollars a much better sub can be purchased.

By matt on April 16, 2014

39 found this helpful


apline swr- 10d4

I am pushing a single swr-10d4 in my f-150 after destroying two other subs. I currently have 500 watts rms pushing my alpine but this beast needs more. The response, sound quality and durability of this sub is amazing. This sub is badass and I recommend it to anyone looking for better sound in their ride.

By Joe on September 5, 2013

37 found this helpful


Great buy!!

Would recommend to anyone that is looking for good clean low bass and sound quality.

By Aj on June 26, 2013

37 found this helpful


Best bang for the buck

Well worth the price compared to the competition. I'm running one of these in a custom box made for a 350Z. Simply amazing what this single 10" subwoofer can do. My amp is a Rockford Fosgate P400-1 and they are set for 2 ohms. The actual RMS output for the amp is 534 watts @ 2 ohms. I thought I might end up needing more but I'm very satisfied with the results. I highly recommend this sub.

By Del on June 22, 2012

37 found this helpful


Type R 10s

Great subs hit every note clean great value wish I could get 2 more

By Jwilly on September 28, 2014

36 found this helpful


good sub but some probs

Sub sounds great hits the low notes perfectly but it seems to get loose sounding over extended playing has happened twice to me now glad that sonic has A1 customer support or this would have been a horrible turn out

By bassbeast on September 22, 2014

36 found this helpful


Bump for your Buck

This subwoofer surprised the hell out of me for it's size and how much I paid for it. I have it in a sealed box and powered at 2ohms. It's getting 800watts RMS! This sub is almost as loud as my 2 12s and those were in a ported box and it less than half the size so I'm saving room too! Planning on getting a ported box for it so I can really see how loud it is! I recommend this for anyone needing to save room, money, and be loud at the same time!!!

By Terry on January 29, 2013

36 found this helpful




TS-A1601C small

Pioneer TS-A1601C

700W Peak (160W RMS) 6.5” A-Series 2-way 4-ohm Component Speaker System

(2)

$150.00

List price $180.00

IEP386GRN small

iLuv iEP386GRN JetTurbo - Green

JetTurbo Earphones/Headphones with Smartphone SpeakEZ Remote (Green) (IEP386GRN)

(1)

$6.99

List price $34.99

E9LCD small

Encore E9LCD Remote (Requires Programming)

Replacement LCD Remote Transmitter for Encore E9 Car Alarm

$79.99

List price $179.99

ACS110LG-TW1 small

JL Audio PowerWedge+ ACS110LG-TW1

400W Amplified Subwoofer Sealed-Enclosure System with Single 10" 10TW1 Subwoofer

(5)

$829.99

List price $829.99

ST2000 small

Absolute ST2000 12"

(2)

$169.99

List price $329.99

70-2021 small

Metra 70-2021 Wiring Harness

Install a new car stereo in select 2000-2001 Impala and Monte Carlo

(6)

$9.99

List price $24.99

VRCPAA-106M small

Sound Stream VRCPAA-106M

10.6" Double DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

(1)

$229.99

List price $449.99

07CVT124 small

Kicker CompVT 07CVT124

Shallow-Mount 12" Single 4 ohm CompVT Subwoofer CVT124 CVT12

(3)

$99.95

List price $169.99

EL2000 small

Absolute EL2000 12"

(1)

$249.99

List price $599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Ford Escape

1986 Ford EXP

2021 Volvo V60

1998 Ford Windstar

2000 Mazda 626

2001 Dodge Durango

2003 Dodge Viper

2004 Mazda B3000

2012 Audi A5

2011 Ford Expedition

Vehicle
Store
Delete

1997 Honda VFR750F Interceptor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
