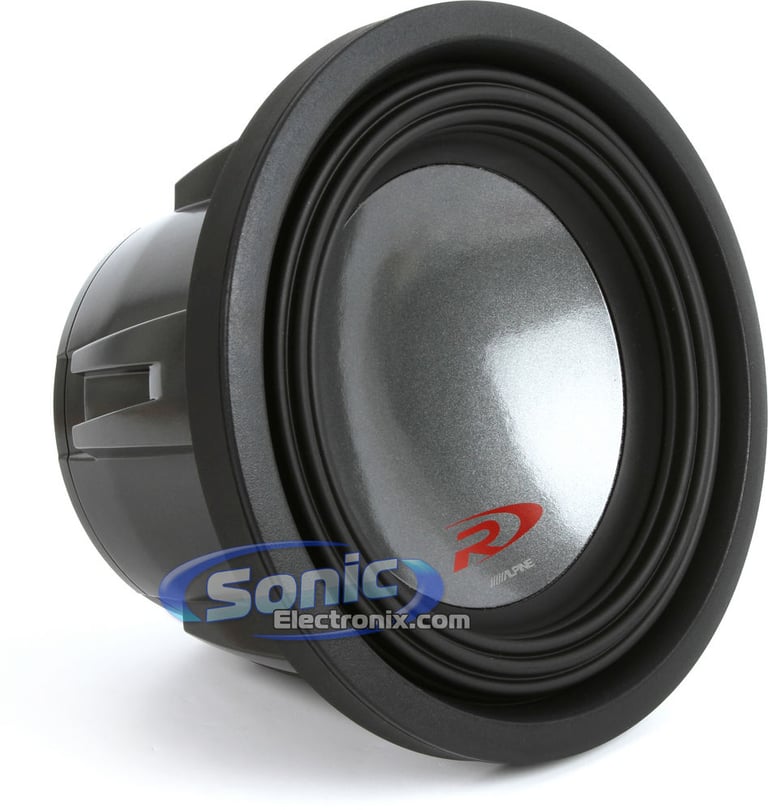

Alpine SWR-1043D

10" Dual 4 ohm Type-R Series Car Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

10" Dual 4 ohm Type R Subwoofer • 1800W Max • 600W RMS • Kevlar Reinforced Pulp Cone Woofer • Santoprene Rubber Surround • Progressive NOMEX Spider • 4-Layer Dual Voice Coil

Learn more about the swr1043d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

rw10d4 thumbnail

Alpine R-W10D4

OUR PRICE: $299.95

View item

Loading...
72-6515 main

Metra 72-6515

Install New Speakers in select 1999-2024 vehicles from Dodge, Jeep, Chrysler

11
-10.01%

$8.99

List price $9.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

JBL GX9638 (JBLGX9638AM)

600W Peak (200W RMS) 6x9" GX Series 3 Way Coaxial 2.3-ohm Speakers with Dual Tweeters

16
-10.01%

$89.95

List price $99.95

Product Highlights


10" Dual 4 ohm Type R Subwoofer • 1800W Max • 600W RMS • Kevlar Reinforced Pulp Cone Woofer • Santoprene Rubber Surround • Progressive NOMEX Spider • 4-Layer Dual Voice Coil

Description


Alpine brand icon

Authorized dealer

New and Improved Alpine Type-R:

Introducing the 10" Dual 4 ohm Type-R subwoofer powering a peak of 1800 watts of pure power! This reinforced pulp cone woofer delivers the best bass output, while having enhanced audio playback to become your ideal sound system. Type-R's new depth design offers a 20% reduction while adding the new and improved magnet structure. With this updated double-stacked strontium magnet, this product gains over 20% more motor force to provide a louder, cleaner bass. The optimized CRC machined motor creates an even magnetic field to provide the user with less distortion and overall improves the subwoofers power handling. This subwoofer features a High-Amplitude Multi Roll (HAMR) to provide excellent excursion with overall better output. Having a new and improved airflow management system controlling the temperature of the voice coils, the air is redirected across the heatsink to avoid overheating. With heavy playing time, this heatsink feature minimizes the amount of compression to reduce any heat damage to the voice coils giving you a long-lasting subwoofer.

  • 10" Dual 4 ohm Type R Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 300-600 watts

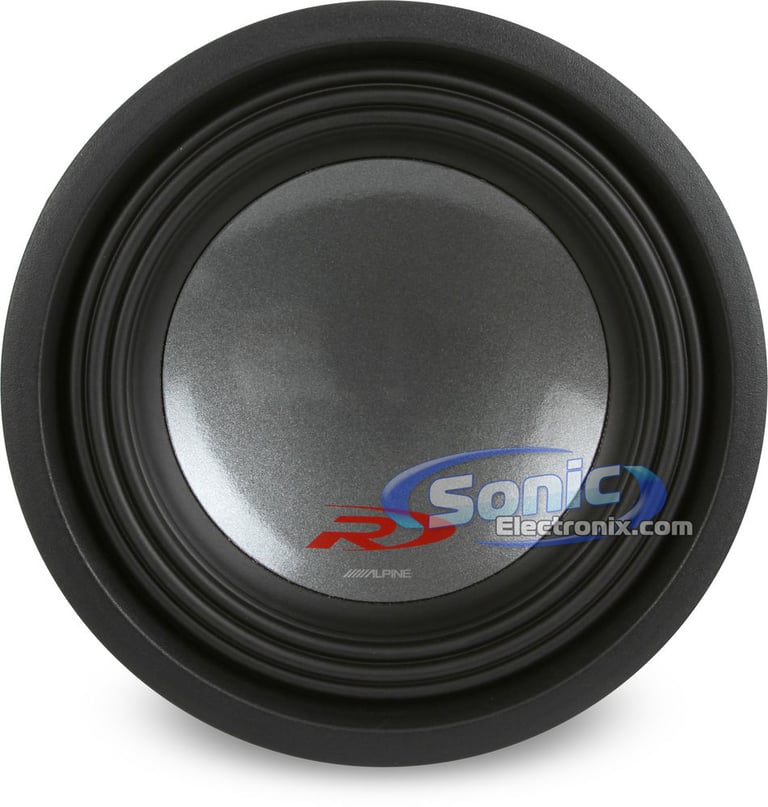

  • Kevlar reinforced pulp cone woofer
  • 2-Piece Structural Parabolic diaphragm design
  • Injection molded Santoprene rubber surround
  • Alpine exclusive High Amplitude Multi-Roll (H.A.M.R) surround for impressive excursion and clean, accurate bass
  • FEA Optimized progressive NOMEX spider
  • Radial vented VC head sink
  • Concealed mount gasket system
  • Reinforced layer spider integration tinsel leads
  • Oversized 2-1/2" Voice coil
  • 4-Layer dual voice coil design
  • Voice coil made from 180°C high temperature wire on spiral cut aluminum former

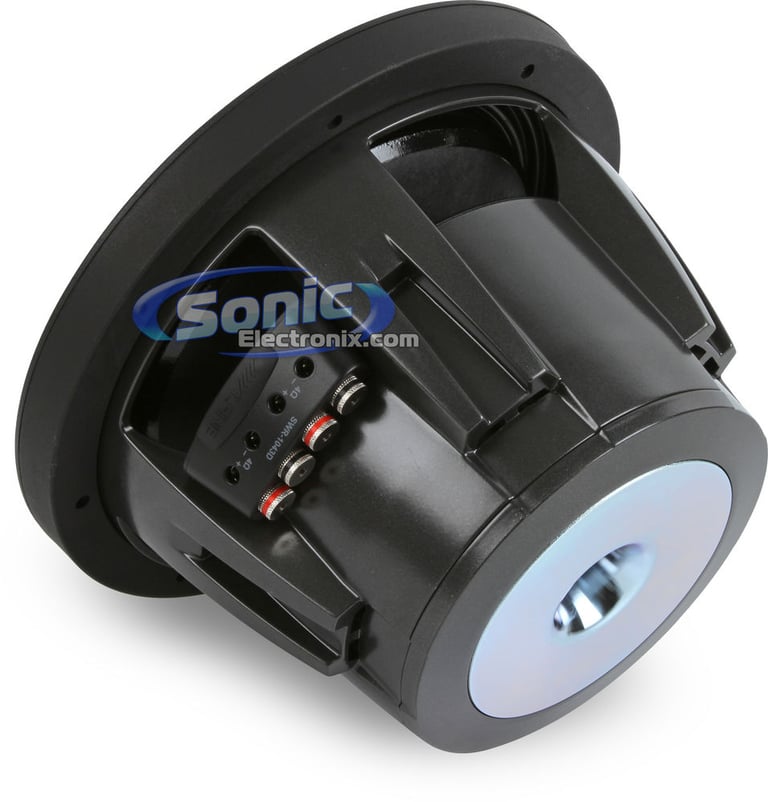

  • Single-piece cast aluminum frame with Alpine Patent Pending Airflow Management System for efficient cooling
  • Airflow Management system controls the temperature of the voice coil by directing the air across the heatsink

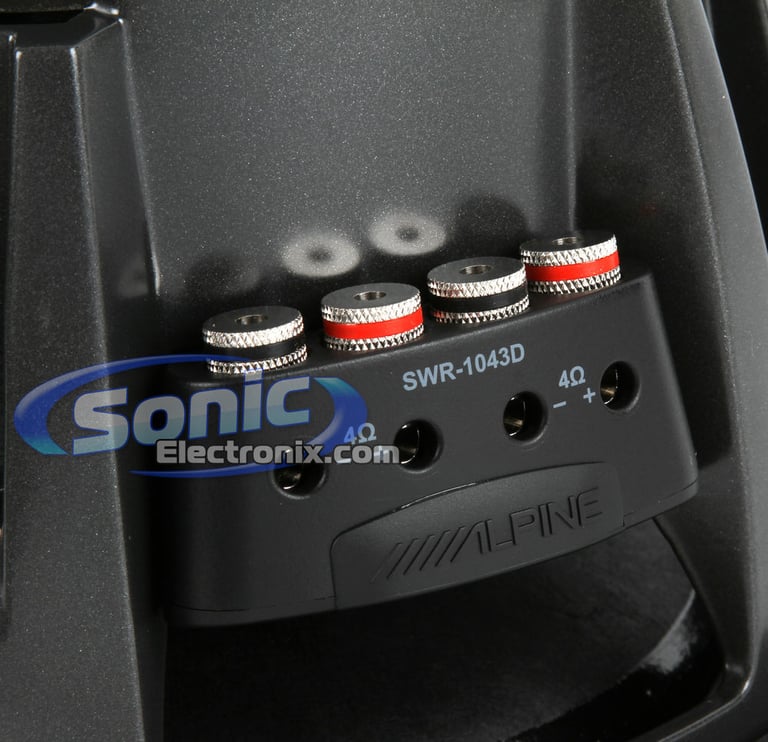

  • One sided push terminals make installation and wiring fast and simple
  • Each terminal accepts up to 8 AWG wire for high power signal transfer
  • Concealed gasket mounting system hides the screw holes and makes for a clean install
  • Integrated grill technology allows for a seamless installation of a grill
  • US Patented Compound Radius Curve (CRC) design with integrated short sleeve configuration
  • CRC Machined motor structure creates a symmetrical magnetic field for less distortion and improves power handling
  • High-power, double-stacked strontium magnet structure
  • Newly redesigned for a 20% depth reduction
  • Frequency response: 26-400 Hz
  • Sensitivity: 83 dB
  • 1-year Sonic Electronix warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Product history:

Alpine R-W10D4 thumbnail
(newest, current model)
Alpine SWR-10D4 thumbnail
(previous model, replaced by Alpine R-W10D4)
Alpine SWR-1043D thumbnail
(previous model, replaced by Alpine Type-R SWR-10D4)
Alpine SWR-1042D thumbnail
(previous model, replaced by Alpine SWR-1043D)
Alpine SWR-1041D thumbnail
(previous model, replaced by Alpine SWR-1042D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine SWR-1043D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine SWR-1043D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine SWR-1043D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine SWR-1043D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
Peak Power Handling
1800 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 400 Hz
Sensitivity
83 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Kevlar Fiber
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SWR-1043D

Weight:

23.00lbs

Internal SKU:

swr1043d

Internal Product ID:

24186

Product and How-to Videos


Customer Ratings & Reviews


Alpine SWR-1043D thumbnail image

5 star
83%
4 star
13%
3 star
4%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Nice

This Alpine Type R is nice i have it with a kole audio amp 980w but it gives me 800w rms. I also have it with a epicenter and a equalizer and a capacitor and i have an amp for the speaker doors. This thing is loud Oh and i have a custom box for it and that box is a beast..it it louder than 2 12 cvrs and 2 15 memphis. this 10 makes my whole dash move

By CJ on August 9, 2011

38 found this helpful


Very nice...

Once I pulled this out of the box I was very impressed with the build quality, not surprised, but impressed none the less. Sub definitely needs to broken in, cone is very stiff when new. Sound is incredible, very clean, tight bass. Wouldn't recommend for those looking for wide, boomy bass. Although with the right equipment and box probably could fulfill those needs as well. Make sure not to under power, fairly power hungry. However, when powered right, very nice.

By Dennis on January 10, 2012

37 found this helpful


pretty good

These subs pound pretty good for the price, but you get what you pay for. if your on a budget then these would be a good choice. I would recommend these to anybody who is looking for a good sub at a decent price

By spuds on February 16, 2011

37 found this helpful


Decent

For the money I have few complaints. I am used to larger subs(12-15) and this is not like those. The audible bass is loud and clean but its not shaking the car next to me. Which is what I was looking for when I bought only one of these. I installed it in a .6^2ft box and am happy to have most of my trunk back to being useable.

By Jonathan on November 2, 2011

34 found this helpful


Underpowered and still kills

I have one of these in a sealed box at 2 ohms hooked up to an Alpine MRP-M500. The sub is a little bit underpowered but it still hits ridiculously hard. I am definitely going to get a second one of these. The value is amazing.... Similar Kicker and RF's are more expensive and don't have as good of specs. In my experience with Alpine, you'll get what you expect plus much much more.

By KNIZ on November 30, 2010

35 found this helpful


Alpine SWR-1043D

I replaced my 12" Sony Xplod in a sealed box with this Alpine SWR 1043D in a new ported box and this sub hits twice as hard as my Sony! Looking forward to purchasing another soon. Pros: Great sound for a awesome price! Cons: None

By Connor on December 21, 2011

34 found this helpful


Alpine SWR-1043D

Great speakers. I absolutely love them! Great deal! Thanks again!

By Kristen on March 25, 2012

33 found this helpful


good buy

thing pounds. make sure you have very durable box cause this thing will tear it up its almost ridiculous if you are pushing 600 true rms into it. i bought two but am only able to use one cause otherwise i cant hear anything for rest of day

By king on May 5, 2010

32 found this helpful


BUY THIS SUB

I am SQ guy and had a 8" RE & then Infinity. Could not get exactly what I was looking for with the 8". Read a lot on 1042d and it got great reviews. The new upgrade interested me. Bought sub and Alpine mono amp to run DVC @ 2 ohms. It sounds awesome and will run you out of car if you wanted it to.
Pro: Great sub. Great in a .75cu' sealed box. Running -2 on Pioneer 4200dvd.
Con: Trying to find one.

By Michael on March 20, 2011

32 found this helpful


Alpine SWR-1043D

I would recommend this sub to anybody. I had it in a crew cab Chevy Colorado in a sealed box. The sub hit all the notes well and deep. There's more than enough power there for me And I listen to mainly rock and some rap. The design of the subwoofer is great as well, very well built and the mounting depth was perfect for what i was looking for. I love it and will buy another if this one ever gives out!!!

By Danner on January 22, 2012

30 found this helpful




DXB500DVR small

NavAtlas DXB500DVR

IP66 2-Channel Full HD DVR with 2.7" TFT LCD

$219.99

List price $498.99

AP-601 small

Architech AP-601

Architech Pro Series 6.5” In-Ceiling Speakers

$46.99

List price $99.99

DVH704HD small

Dual DVH704HD

7" Wide Screen LCD Headrest Monitor with DVD Player and DualMirror Technology

$122.60

List price $299.99

VTB201 small

Universal Weatherproof And Water Resistant Back Up Camera

BOYO Vision VTB201

$68.98

List price $164.99

NX404 small

Clarion NX404

Double-Din In-Dash DVD Receiver w/ GPS, Bluetooth & 6.2" Touchscreen

(14)

$419.99

List price $899.99

No picture

Alpine SWR-12D4 Open Box Missing (Acceptable, Used)

3000W Peak (1000W RMS) 12" Type-R Series Dual 4-Ohm Car Subwoofer

$119.99

List price $280.00

LRM2060ST small

LG LRM2060ST

2.0 Cu. Ft. Countertop, 1200W Microwave (Stainless Steel)

$159.99

List price $169.00

05SW16-100FT small

Kicker 05SW16 (100FT)

100 ft. - Kicker 16 Gauge S-Series Speaker Wire Precut from Roll of 05SW16250

$74.99

List price $99.99

GTO637 small

JBL GTO637

Grand Touring Series 6-1/2" 3-way Speakers GTO 637

(1)

$69.99

List price $139.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2022 Jeep Compass

2000 Toyota 4Runner

2019 Subaru Impreza

1996 Mazda 929

2013 Ram C/V

2011 Dodge Challenger

2005 BMW M3

1983 Ford LTD

1987 BMW 735i

2022 MINI Cooper

Vehicle
Store
Delete

1995 Honda VFR750F Interceptor

2002 Harley Davidson FLHTCI Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
