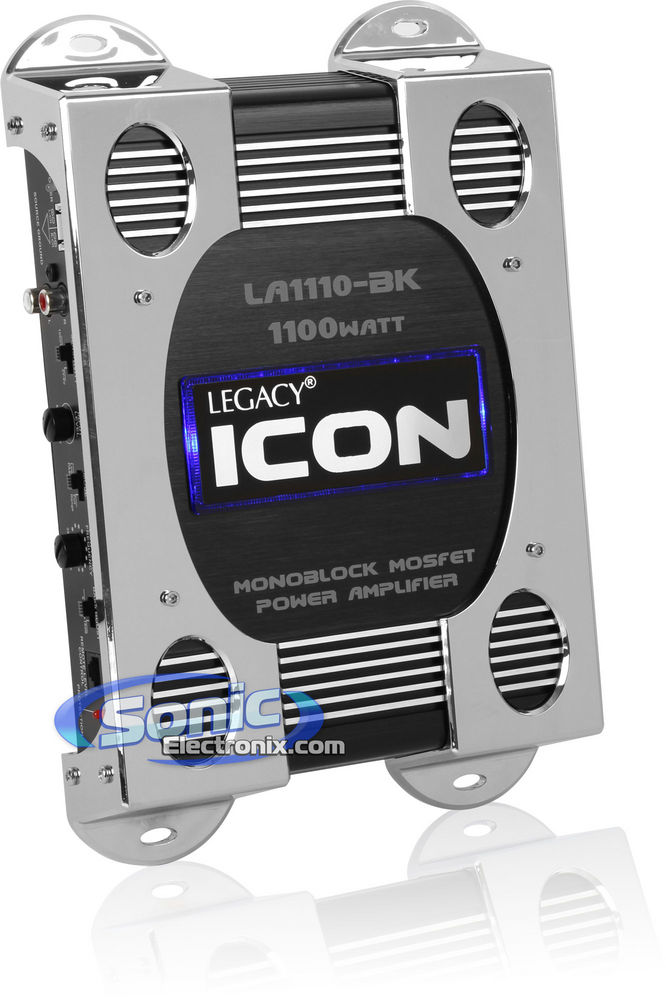

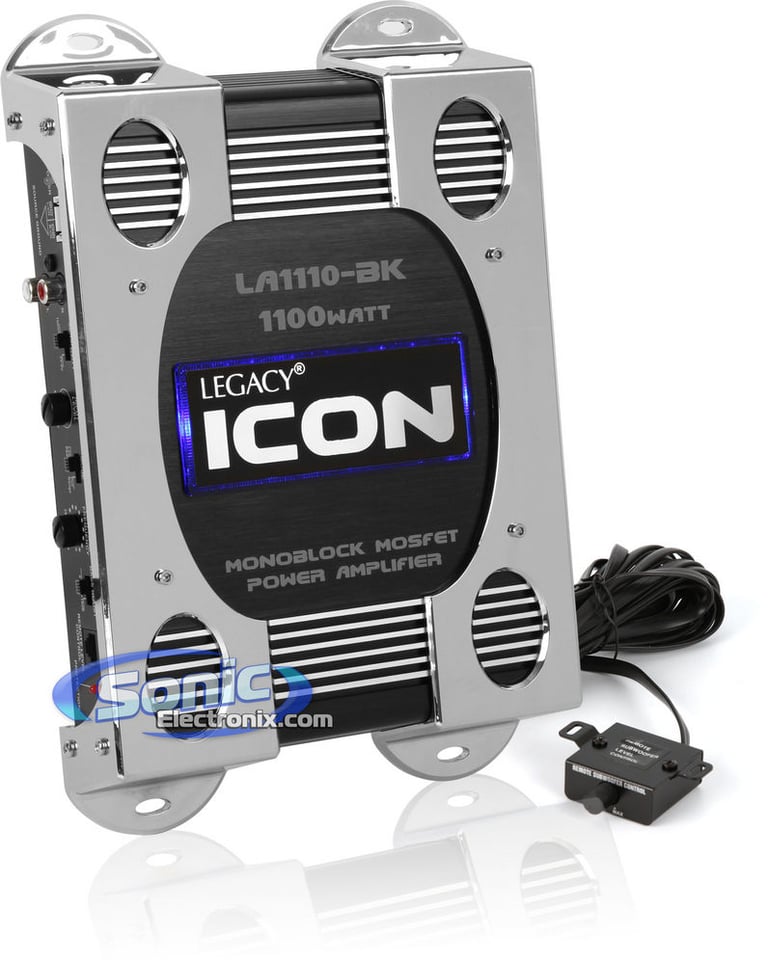

Legacy LA1110BK (Black)

1100W Max, Class D Monoblock Icon Series Car Amplifier with Black Color Chassis

Legacy
Shop all Legacy
Product videos
highlight-star-icon

Legacy Icon Series Monoblock Class D Car Amplifier • 500W RMS @ 4 ohm • 1100W Max @ 2 ohm • Variable Bass Boost • High and Low Level Inputs • Variable Low-Pass Filter • 3-Way System Protection Circuitry • Color: Black

Learn more about the la1110bk

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

Product Highlights


Legacy Icon Series Monoblock Class D Car Amplifier • 500W RMS @ 4 ohm • 1100W Max @ 2 ohm • Variable Bass Boost • High and Low Level Inputs • Variable Low-Pass Filter • 3-Way System Protection Circuitry • Color: Black

Description


Legacy brand icon

Authorized dealer

General Features:

  • Legacy Icon Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
  • Max Power Rating:
    • 2 ohm: 1100 watts x 1 chan.
  • Pulse Width Modulated Dual MOSFET power supply

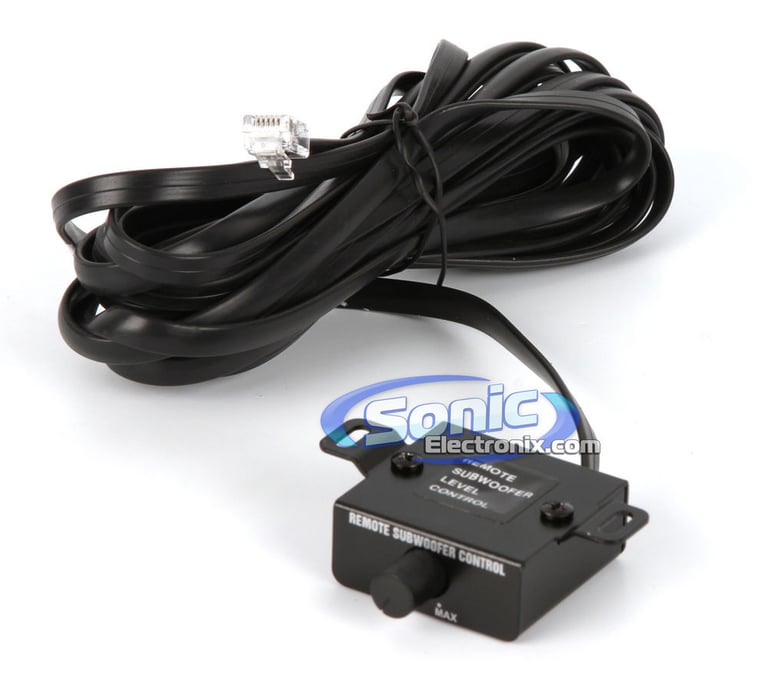

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost 0 to +12 dB bass boost
  • Soft Start Turn-on
  • 2 ohm stable
  • Mono channel operation

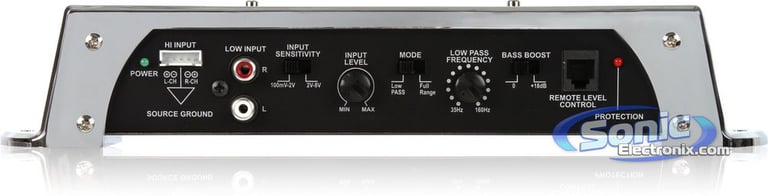

  • Speaker-level (high-level) inputs
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs

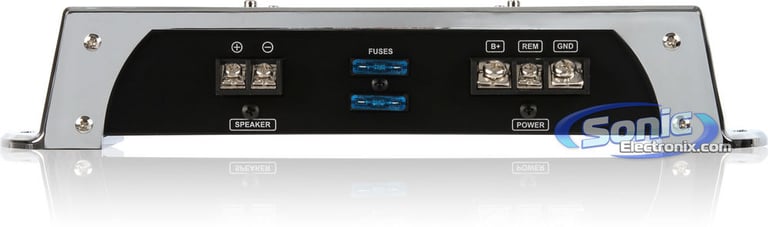

  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 150V-4V
    • High level: 1.5V-8V
  • Fixed high-pass filter at 200 Hz
  • Variable low-pass filter (36-160 Hz,)
  • Frequency response: (40-150 Hz)
  • Chassis Color: Black
  • Also comes in: Silver
  • Dimensions: 13-15/16"L x 11-1/8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1100 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.04%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
200 Hz
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
15A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LA1110BK

Weight:

5.00lbs

Internal SKU:

la1110bk

Internal Product ID:

42351

Product and How-to Videos


Customer Ratings & Reviews


Legacy LA1110BK (Black) thumbnail image

5 star
56%
4 star
22%
3 star
22%
2 star
0%
1 star
0%



Durability
4.2
Value
4.8
Features
4.8
Design
4.6
Usability
4.9

Customer Reviews

Sort by:

Loading...

legacy la1110Bk

I have a 2012 Mustang GT and I was looking for a Sub system for it. I checked all of the venders and came across Sonic. I found the best Prices and the equipment you have is great. I looked for the best combo for my car and came up with the Legacy amp, 10" sub by Pioneer that matches, with a Absolute SS-10 Sub Box. Oh my god the sound is great. Everyone that hears the system thinks I paid a ton of money for it. I tell them no I got it from Sonic Electronix. The amp works great and it make clean power. I can play it at low volume or high and as the say it Kicks Ass. Oh I also added Kicker speaker on the front doors ( 35 watt ) that match the output of the factory system. Now the car sounds as if it has an after market System. Thank you very much.

By Hosemon on June 6, 2012

4 found this helpful


it was ok

Cheaply made, screws for positive and ground were bent. Once you get passed that, good amp.

By Adam on March 25, 2012

3 found this helpful


A GREAT product!

Pros: This is truly a great product. I have a 1100w /550 RMS 18" speaker. This amp gets the job done with no problem. I drive 1.2 hours to work every day and the amp NEVER overheats. WOW!
Cons: There are none. What a great customer service team. Swift, prompt, and they "Get’er done."

By Scottie on January 20, 2012

3 found this helpful


indeed

i have had this amp far about 2 years now. have never had a problem out of it. it sounds amazing and works great. i love it but only have one problem with it, it gets a little warm because it doesn't have a fan to cool but it never overheats so it's not really a problem at all. over all, it's a an outstanding amp for the money.

By lumley on February 14, 2013

2 found this helpful


would buy again

Pumps out a lot of power for the size. Nice that it comes w volume control and hi/low inputs to install easily. May not be the most reliable product but im not sure how common/rare this is: I had to return the first amp I was shipped cause it didn't work (Sonic made that easy). The replacement has been serving me more than well for 6 months or so. Audio snobs may have some critiques, but for the common listener who's trying to ball on a budget, Im not sure there is a better amp purchase.

By Carey on March 11, 2013

1 found this helpful


Great Value

I am very content and happy with my purchase. I would recommend this product to everybody.

By Jesus on March 5, 2013

1 found this helpful


Great price nice sound!

I totally recommend this amp only if your in a tight spot on money. Usually i get top notch high quality material but i was i a pinch and needed a quick cheap replacemant and thats totally what this was. So far in the summer when it was super hot it kept cutting off due to over heating but during this winter time cool weather it acts totally fine. Also i have to note that i do have a camaro so its in the direct sunlight all day which may be why it over heats but you get your moneys worth out of this amp.

By DeAris on January 13, 2013

1 found this helpful


Works Great

Installed this bad boy in my golf cart to run one sub woofer.
cant beat the price!
sounds great!

By kube on November 7, 2012


Good budget amp and it's compact

I always pull apart my electronics. I'm halfway through my engineering degree so it's nothing new.
Overall for the money, you won't find better. It's well made, good quality PCB, name brand amplifier chips. High part count circuit with a toroid. Always good signs.

Not tremendously loud but it's a budget amp. Competition style design but commercial quality. If you plan to drive a single sub, go for higher wattage. A pair of subs wired for 2 ohms, it's a great starter amp.
It's doing around 350-400 RMS into 2 ohms. The right subs and a well designed box brings out it's best. 60Hz boost so it's good for metal, rock, rap, electronic etc.

I chose it because it's class D, fits under my driver's seat and it is obviously very affordable.

By JonnyDeath on October 29, 2012




BRO-TUBE/BK small

DS18 BRO-TUBE/BK

Mounting Tube for Tower Speakers in select 2021-2025 Bronco and Bronco Sport

$323.95

List price $388.99

MBUSDU2P small

GROM Audio MBUSDU2P (GROM-USB2P-HON92)

Android and iOS Smartphone Integration for Select 1991-2005 Acura and Honda Vehicles

$99.99

List price $134.99

11ZX1500.1 small

Kicker ZX1500.1 (11ZX1500.1)

1500W RMS, Class D Monoblock ZX Series Amplifier (ZX15001)

(1)

$599.95

List price $999.95

XTX-1500.1 small

RE Audio XTX-1500.1 (XTX1500.1)

XTX Series Mini Monoblock Full Digital Class D Car Amplifier

(8)

$139.99

List price $574.98

AUXBOX small

PAC Audio AUX-BOX (AUX2CAR)

Universal Auxiliary Audio Input (AUXBOX)

(5)

$57.99

List price $79.95

STADIUM62CF_SDBSK2 small

JBL Stadium 62CF (JBLSPKSD62CFAM) with Sound Damping

660W Peak (220W RMS) 6.5" Stadium Series 2-way 3-ohm Component Speaker System + NVX SDBSK2 Premium Sound Damping

(50)

$464.94

List price $498.69

70-1859 small

Metra 70-1859 Wiring Harness

Install a new car stereo in select 1995-2003 vehicles from GMC, Chevrolet, Pontiac

(1)

$22.99

List price $25.99

NC-X2i small

Neucleus NC-X2i by American International

Universal AUXPOD iPod Connector Box for iPod, MP3 players and video players (Nucleus NCX2i; Revised NC-AUXPOD)

(1)

$99.99

List price $129.99

P3D210 small

Rockford Fosgate Punch P3D210 (09P3D210)

10" Dual 2 ohm Punch Stage 3 Series Car Subwoofer

(13)

$119.99

List price $269.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Mazda B2300

1997 Dodge Neon

2014 Subaru Forester

1980 Ford LTD

1989 Mazda B2600

1985 Chevrolet Cavalier

1981 Ford Mustang

1995 Chrysler Cirrus

1997 Dodge Ram 2500

2003 Ford Taurus

Vehicle
Store
Delete

2023 Can-Am Defender DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
