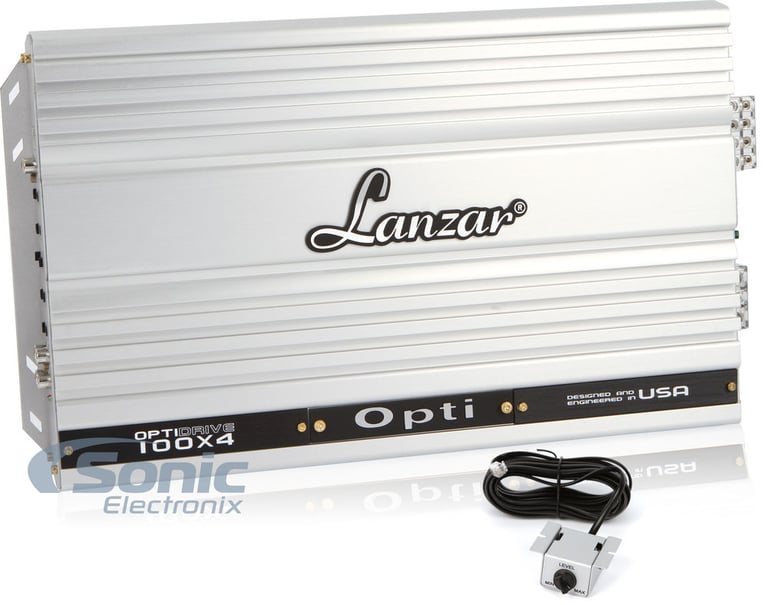

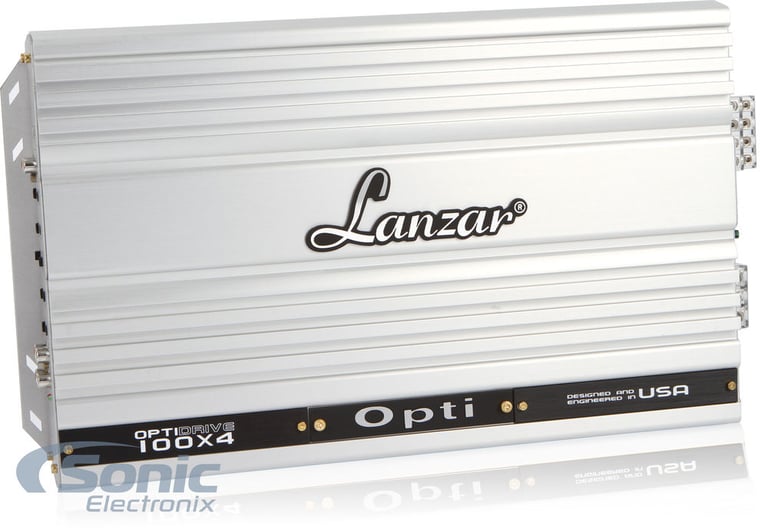

Lanzar OPTI100X4

800W Optidrive Series 4-Channel Class A/B Amplifier

Lanzar
Shop all Lanzar
Product videos
highlight-star-icon

• 4 ohm: 100 watts x 4-Chan.
•2 ohm: 175 watts x 4-Chan.
• Max Bridged, 4 ohm: 400 watts x 1 chan.
• Max power output: 800 watts x 2 chan.

Learn more about the opti100x4

We apologize

This item has been discontinued


Loading...
72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

19
-28.59%

$9.99

List price $13.99

99-6514B main

Metra 99-6514B (Includes Wiring Harness)

Single/Double DIN Installation Kit for select 2011-2014 Charger

3
-43.03%

$469.99

List price $824.99

Limited time!
KFC-XP6903C main

Kenwood eXcelon KFC-XP6903C

600W Peak (200W RMS) 6x9" eXcelon Series 2-way 4-ohm Component Speaker System for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

1
-34.69%

$209.00

List price $320.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

VSP69 main

NVX VSP69

900W Peak (300W RMS) 6x9" V-Series 2 Way Coaxial Car Speakers

54
-16.67%

$109.99

List price $131.99

XSP692 main

NVX XSP692

900W Peak (300W RMS) 6x9" X-Series 2 Way Coaxial Car Speakers

13
-32.29%

$129.99

List price $191.99

P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

81
43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Lowest price in 30 days
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

Product Highlights


• 4 ohm: 100 watts x 4-Chan.
•2 ohm: 175 watts x 4-Chan.
• Max Bridged, 4 ohm: 400 watts x 1 chan.
• Max power output: 800 watts x 2 chan.

Description


Lanzar brand icon

Authorized dealer

General Features:

  • Optidrive Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 175 watts x 4 chan.
    • Max Bridged, 4 ohm: 400 watts x 2 chan.
  • Max power output: 800 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply

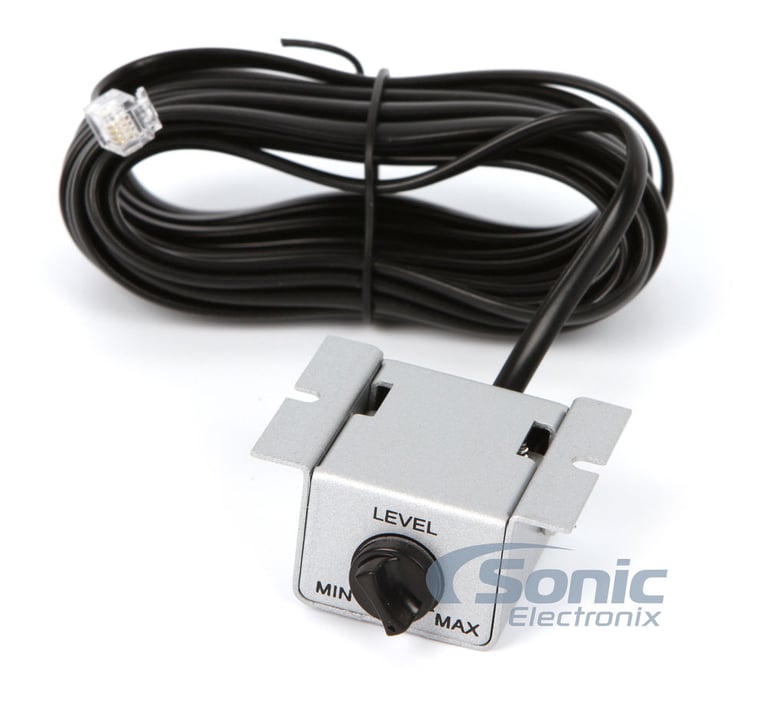

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 2 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity: 200mV-8V

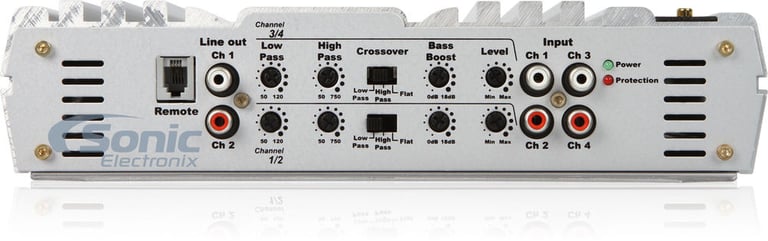

  • Variable high-pass filter (50-750 Hz, 24 dB/octave)
  • Variable low-pass filter (50-120 Hz, 24 dB/octave)
  • Frequency response: 10-35,000 Hz

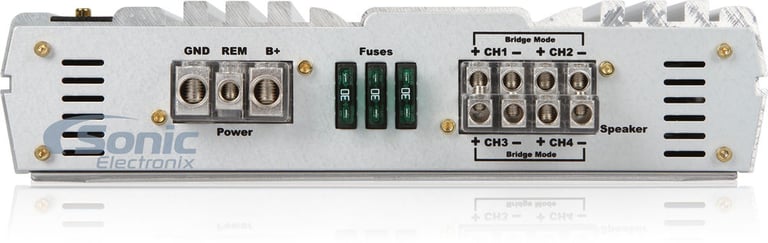

  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10"W x 15-3/4"L x 2-1/10"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

186
-38.19%

$255.08

List price $412.71

82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
175 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.04%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
50 - 120 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OPTI100X4

Weight:

15.00lbs

Internal SKU:

opti100x4

Internal Product ID:

42951

Product and How-to Videos


Customer Ratings & Reviews


Lanzar OPTI100X4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Lanzar OPTI100X4

This is a great amp highly recommended, works great with my Polk Audio component speakers & gives a great frequency output as well

By Warren on May 1, 2014

18 found this helpful


Great Item!

Excellent amp at a very good price for what it does very recommended!!!

By chicocangri23 on September 18, 2013

16 found this helpful




SDHP-SK small

Ballistic SDHP-SK

1.7 Sq Ft. (10" x 12") Hollow Point Series Sound Damping Speaker Kit

(1)

$17.99

List price $19.99

HMS 10 S2-LD-SW small

Hertz HMS 10 S2-LD-SW

600W Peak (300W RMS) 10” Hertz Marine Series Single 2-ohm Marine Subwoofer with LED and Sports White Grille

$529.99

List price $600.00

C-30XR small

Power Acoustik C-30XR

3-way 12db Electronic Crossover

(1)

$44.99

List price $129.99

KIT-EDG3 small

iDataLink Maestro KIT-EDG3 Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2014-2018 Edge (Requires MRR or MRR2 module)

$279.99

List price $339.99

SSBK-2 small

Ballistic SSBK (by Metra)

36 ft. of "Silence It" Sound Dampening Kit for Entire Car

(2)

$335.99

List price $373.99

HDA-V90, XKIT46 small

Alpine HDA-V90 with NVX 4 Gauge Amp Kit

900W RMS Status Series Class-D 5-Channel Car Amplifier

(45)

$1099.95

List price $1499.99

MB531LLA small

Apple iPod Touch 16GB 2nd Generation - MB531LL/A

16 GB 2nd Generation iPod Touch (Newest Second Generation Release)

$269.99

List price $299.99

SDRLR1 small

NVX SDRLR1 Sound Dampening Rubber Roller

Universal Professional Heavy Duty Roller for Sound Deadening Mat

(125)

$10.99

List price $13.99

DEH-P6200BT small

Pioneer DEH-P6200BT

Car Stereo CD/MP3/WMA Receiver with Built-in Bluetooth, Aux In, and USB/iPod Direct Control

(8)

$144.99

List price $239.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Cadillac SRX

2011 Dodge Charger

2012 Honda Odyssey

1997 Dodge Viper

1973 Datsun 610

2018 Lincoln MKC

2009 Volkswagen Eos

1997 Lexus LS400

2011 Infiniti M37

2006 Mazda 3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
