Lanzar MNX260

1000W Max 2-Channel Mini Max Series Car Amplifier

Lanzar
Shop all Lanzar
Product videos
highlight-star-icon

• 4 Ohm: 250 Watts X 2 Chan.
• 2 Ohm: 350 Watts X 2 Chan.
• Max Bridged, 4 Ohm: 1000 Watts X 1 Chan.
• Pulse Width Modulated Mosfet Power Supply

Learn more about the mnx260

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

61
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Product Highlights


• 4 Ohm: 250 Watts X 2 Chan.
• 2 Ohm: 350 Watts X 2 Chan.
• Max Bridged, 4 Ohm: 1000 Watts X 1 Chan.
• Pulse Width Modulated Mosfet Power Supply

Description


Lanzar brand icon

Authorized dealer

General Features:

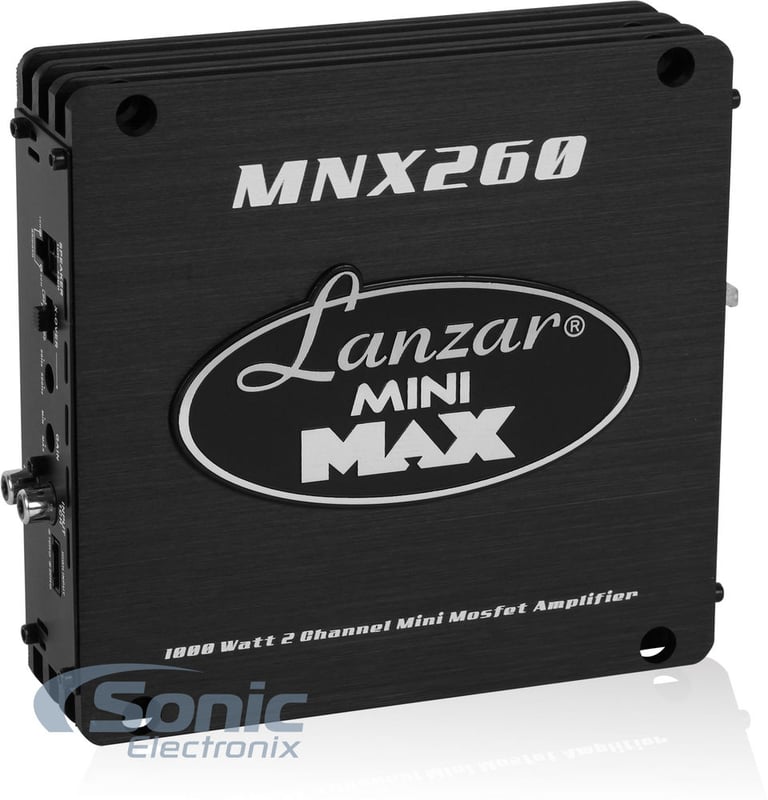

  • 2-Channel Mini Max Series Car Amplifier
  • MAX Power Rating:
    • 4 ohm: 500 watts x 2 chan.
    • Bridged, 4 ohm: 1000 watts x 1 chan.
  • RMS Power Rating:
    • 4 ohm: 250 watts x 2 chan.
    • 2 ohm: 350 watts x 2 chan.
    • Bridged, 4 ohm: 700 watts x _ chan.
  • Pulse Width Modulated MOSFET power supply

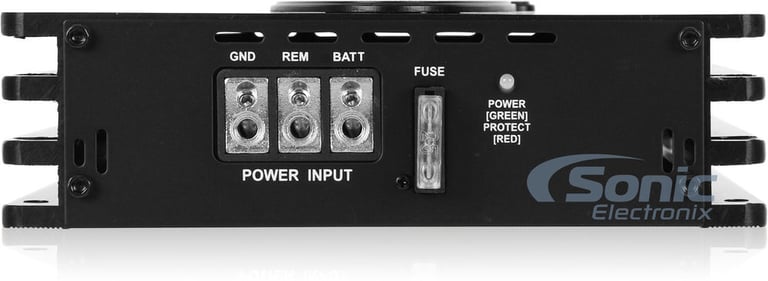

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

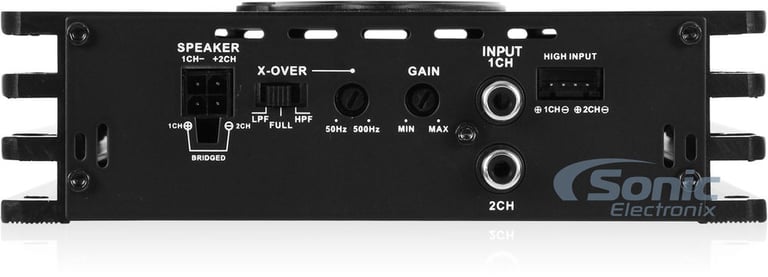

  • Speaker-level (high-level) inputs
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Selectable crossover modes: LPF / FULL / HPF
  • Variable crossover filter point: 50 - 500 Hz, 24 dB/octave
  • Frequency response: 20 - 40,000 Hz
  • Fuse Rating: 25A x 1
  • 10 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions:6-1/4"W x 6-1/2"D x 1-1/3"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
250 watts x 2 channel
RMS Power @ 2 ohms
350 watts x 2 channel
Bridged RMS Power
700 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
500 watts x 2 channel
Peak Power @ 2 ohms
Not Specified by Manufacturer
Bridged Peak/Max Power
1000 watts x 1 channel
Amplifier Specifications
Series
Mini Max Series
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
700 watts
Maximum Input Gauge Size
10 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MNX260

Weight:

3.10lbs

Internal SKU:

mnx260

Internal Product ID:

43569

Product and How-to Videos


Customer Ratings & Reviews


Lanzar MNX260 thumbnail image

5 star
50%
4 star
0%
3 star
50%
2 star
0%
1 star
0%



Durability
4
Value
4
Features
4
Design
4.5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Small amp, big sound!

I have this bridged at 4 ohms running a single 10" sub and it really packs a punch. Nice and clean too! No hassles with the installation and the compact size makes it easy to put this amp almost anywhere. Both low level and high level inputs too. After hours of playing music, the amp does not get hot at all. Very pleased with my purchase. Would recommend to anyone looking for a compact amp to run a 4 ohm sub.

This amp is NOT stable at 2 ohms bridged, as stated.

By Ty on October 6, 2013

22 found this helpful


Good Very good

I would recommend it to all. It is a product of great quality.

By Maicon on September 17, 2013

22 found this helpful
