Alphasonik PMA640HCA

4-Channel High Current Amplifier

Product videos
highlight-star-icon

4-Channel High Current Power Amplifier • 160W RMS x 4 @ 4 • 960W RMS x 2 @ 1 • Hour Meter • Remote Voltmeter • Bass Remote • ANL Fuse Holder and Fuse • Acrylic Cover

Learn more about the pma640hca

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


4-Channel High Current Power Amplifier • 160W RMS x 4 @ 4 • 960W RMS x 2 @ 1 • Hour Meter • Remote Voltmeter • Bass Remote • ANL Fuse Holder and Fuse • Acrylic Cover

Description


  • 4-Channel High Current Power Amplifier
  • RMS Power Rating:
    • 160 watts x 4 chan. @ 4 ohm
    • 290 watts x 4 chan. @ 2 ohm
    • 490 watts x 4 chan. @ 1 ohm
    • 500 watts x 2 chan. @ 4 ohm bridged
    • 825 watts x 2 chan. @ 2 ohm bridged
    • 960 watts x 2 chan. @ 1 ohm bridged

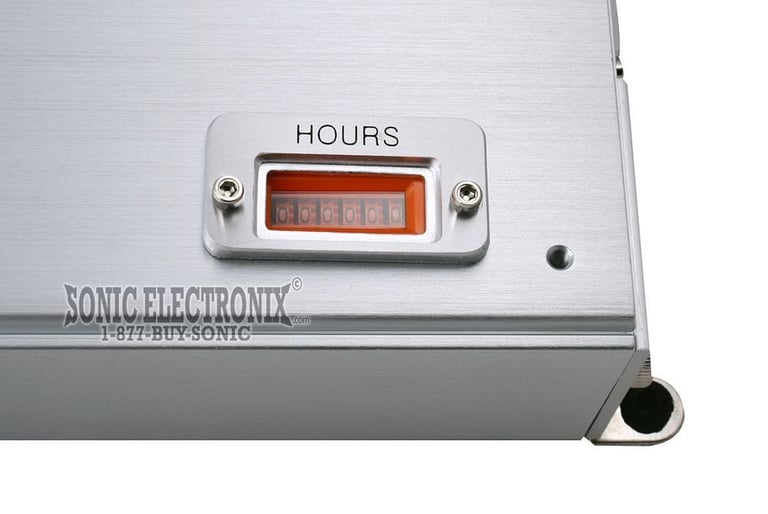

  • Hour Meter

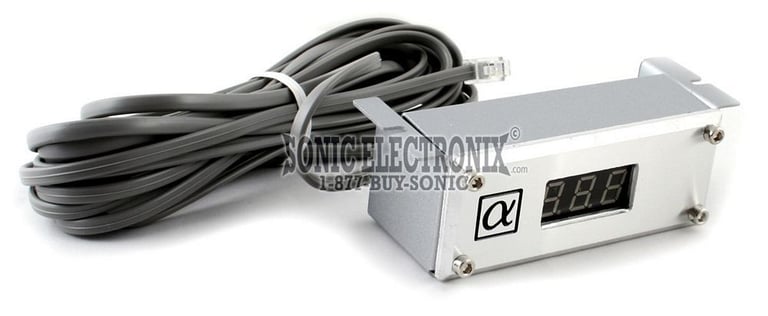

  • Remote Mount Digital Voltmeter Included

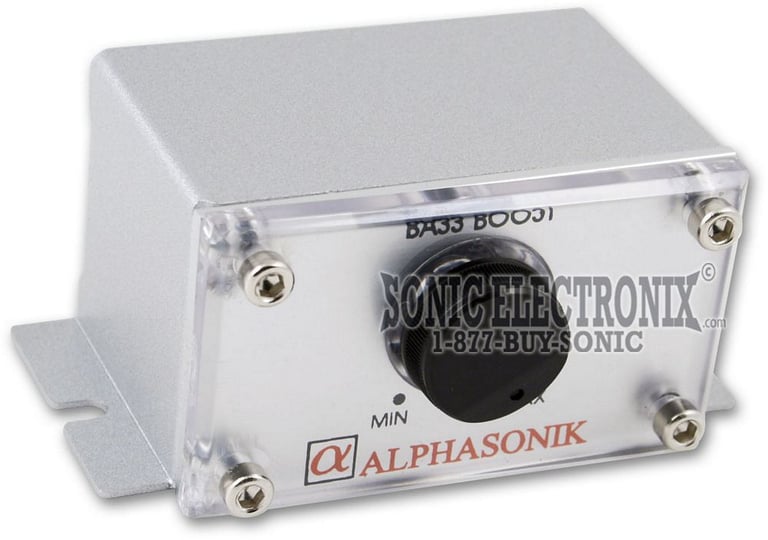

  • Bass Remote Included
  • Clear Acrylic ANL Fuse Holder and 80 Amp Fuse Included
  • Heavy Duty Heat Sink
  • Beveled Clear Acrylic Protective Cover
  • 1 Pair RCA Outputs
  • Tiffany-Style Input and Output RCA Jacks
  • High Speed Switching Power Supply
  • Double-Sided Glass Epoxy Circuit Board
  • Variable Low-Pass Filter: 50 - 250 Hz
  • Variable High-Pass Filter: 50 - 250 Hz
  • Variable Subsonic Filter: 15 - 60 Hz
  • Variable Bass Boost @ 45 Hz: 0 - 18 dB
  • Input Sensitivity: 200 mV - 8 V
  • Input Impedance: 10,000 ohm
  • 4-Way Protection Circuitry: Thermal, Short-Circuit, Overload, and DC Offset
  • On-Board Hook Up Terminals
  • Frequency Response: 5 Hz - 50 kHz
  • Dimensions: 19-3/4" L x 9" W x 2-5/8" H
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
160 watts x 4 channel
RMS Power @ 2 ohms
290 watts x 4 channel
RMS Power @ 1 ohm
480 watts x 4 channel
Bridged RMS Power
960 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
1920 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 60 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1

Item Details


Manufacturer:

Model Number:

PMA640HCA

Weight:

20.00lbs

Internal SKU:

pma640hca

Internal Product ID:

4640

Product and How-to Videos


Customer Ratings & Reviews


Alphasonik PMA640HCA thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4
Usability
4

Customer Reviews

Sort by:

Loading...

great amp

great amp a lot of power, doesn't overheat,running 2 re sxx10's bridged at 1ohm, insanely loud

By chad on January 26, 2011
