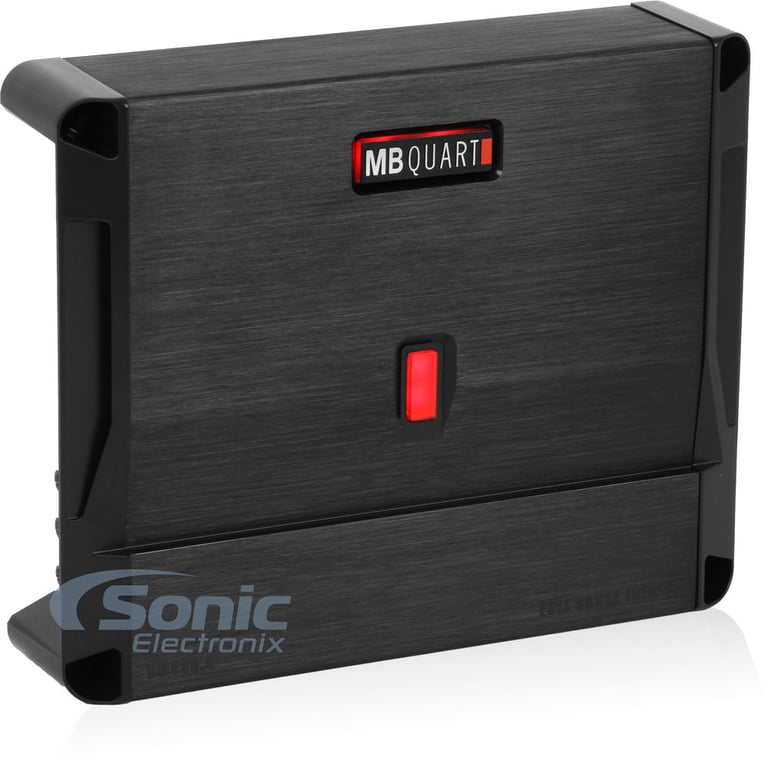

MB Quart RM440.4

440W 4-Channel Reference MYKRO Series Hybrid Class D Full-Range Car Power Amplifier (RM4404)

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 75W x 4-Chan. @ 4 ohms
• 110W x 4-Chan. @ 2 ohms
• 220W x 2 Chan. @ 4 ohms
• 4-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Learn more about the rm4404

We apologize

This item has been discontinued

Product Highlights


• 75W x 4-Chan. @ 4 ohms
• 110W x 4-Chan. @ 2 ohms
• 220W x 2 Chan. @ 4 ohms
• 4-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Description


MB Quart brand icon

Authorized dealer

General Features:

  • Reference MYKRO Series 4-Channel Hybrid Class D Full-Range Car Amplifier
  • Max Power Rating:
    • 4 ohms: 75 watts x 4 chan.
    • 2 ohms: 110 watts x 4 chan.
    • Bridged, 4 ohms: 220 watts x 2 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • Q-Stasis Pre-amplifier stage for a cleaner signal from the source unit
  • Ultra low ESR high capacity power supply storage bank
  • Hybrid Class D Full range design for small footprint and exceptional sound quality
  • LED power (green) and protect (red) indicators

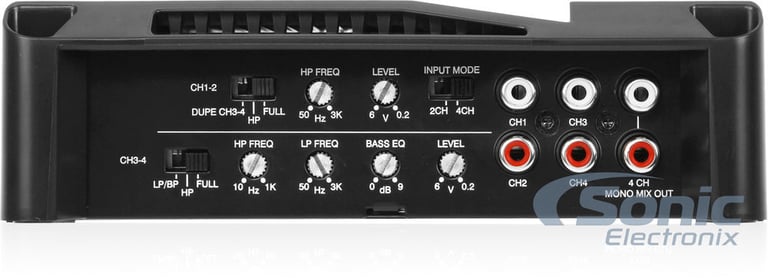

  • Built-in system diagnostics and top-mounted controls
  • 4/3/2/1 Channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-way protection circuitry (thermal, overload, and speaker short protection, DC offset)
  • Extruded aluminum heatsink design
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (50-3000 Hz 24 dB/octave)
  • Variable low-pass filter (Chan 3 & 4 50-3000 Hz 24 dB/octave)
  • Frequency response: 10-20000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.

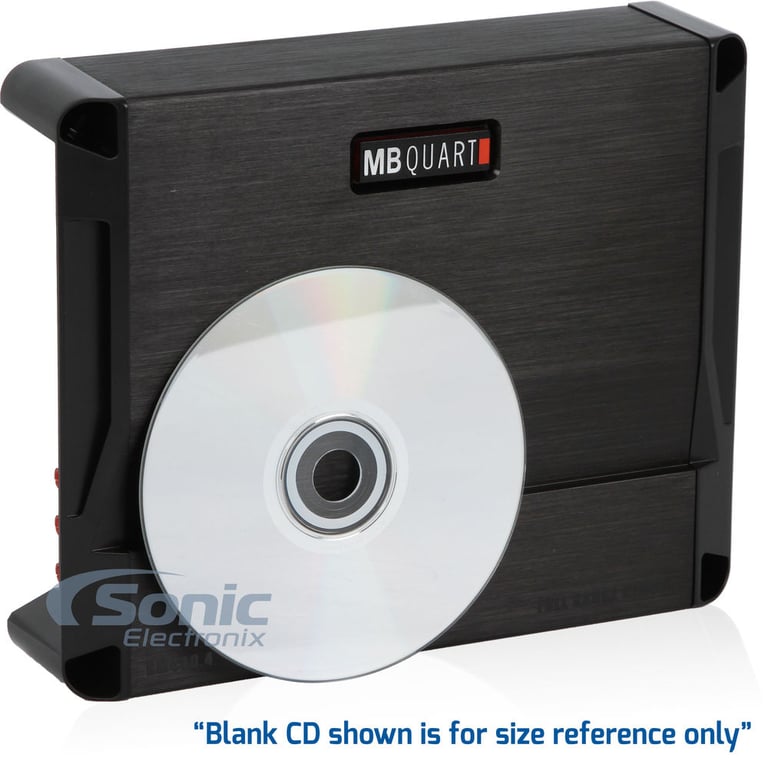

  • Dimensions: 6-1/2"W x 7-1/8"D x 1-15/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
110 watts x 4 channel
Bridged RMS Power
220 watts x 2 channel
Amplifier Specifications
Series
Reference MYKRO Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
440 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 3000 Hz
Low-Pass Crossover Frequency
50 - 3000 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No

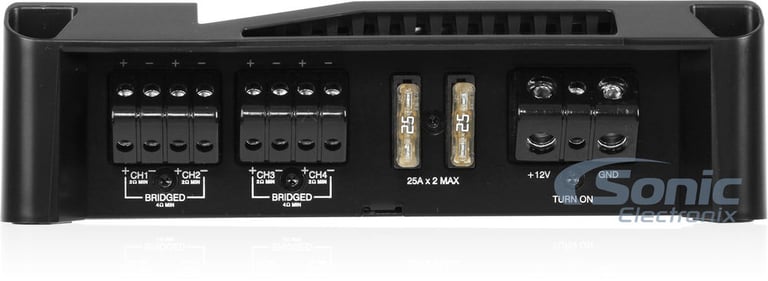

Fuse Rating
25A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RM440.4

Weight:

5.50lbs

Internal SKU:

rm4404

Internal Product ID:

67885
