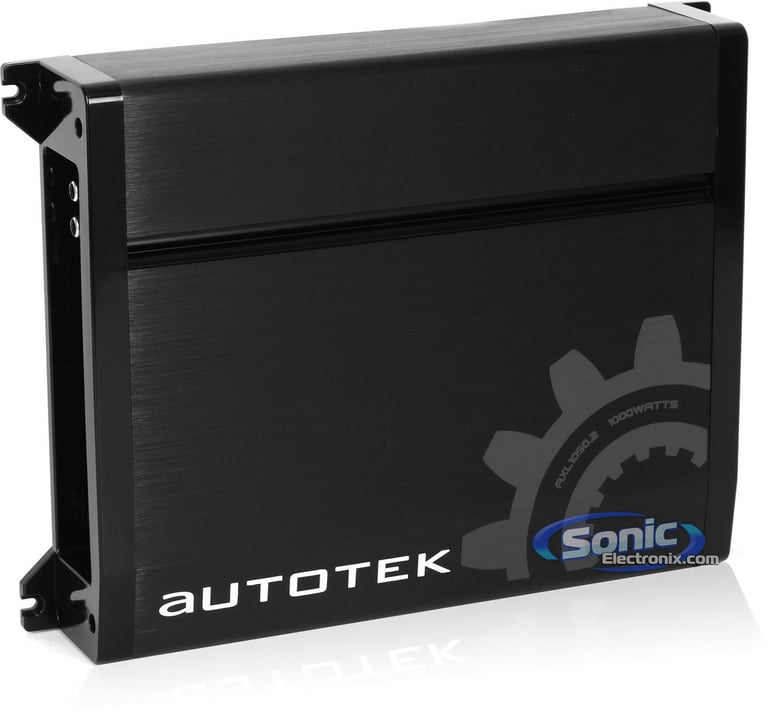

Autotek AXL1050.2

1000W Max 2-Channel AXL Series Class AB Car Amplifier

Autotek
Shop all Autotek
Product videos
highlight-star-icon

• 250W x 2 Chan. @ 4 ohm
• 500W x 2 Chan. @ 2 ohm
• 1000W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Illuminated Logo for Stylish and Unique Design

Learn more about the axl10502

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• 250W x 2 Chan. @ 4 ohm
• 500W x 2 Chan. @ 2 ohm
• 1000W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Illuminated Logo for Stylish and Unique Design

Description


Autotek brand icon

Authorized dealer

General Features:

  • AXL Series 2-Channel Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 250 watts x 2 chan.
    • 2 ohm: 500 watts x 2 chan.
    • Bridged, 4 ohm: 1000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-way protection circuitry (thermal, overload, and speaker short protection, DC)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 200mV-5V
  • Variable high-pass filter (60-12,000 Hz)
  • Variable low-pass filter (30-250 Hz)
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/16"W x 12"D x 2-5/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
250 watts x 2 channel
RMS Power @ 2 ohms
500 watts x 2 channel
Bridged RMS Power
1000 watts x 1 channel
Amplifier Specifications
Series
AXL Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AXL1050.2

Weight:

6.50lbs

Internal SKU:

axl10502

Internal Product ID:

67966

Product and How-to Videos

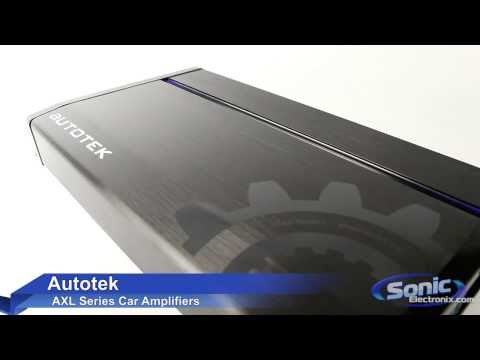

  • Autotek AXL Series Car Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Autotek AXL1050.2 thumbnail image

5 star
0%
4 star
0%
3 star
100%
2 star
0%
1 star
0%



Durability
3
Value
5
Features
3
Design
4
Usability
3

Customer Reviews

Sort by:

Loading...

Great for the $

I bought this to power a 350w rms subwoofer.
The amp performs very well and I would consider it a very good buy.
Unfortunately, the lower price brands like Autotek DRASTICALLY over-rate their equipment for power. Autotek doesn't even specify RMS power. They claim it's 1000w "maxx" power which is marketing code for "we aren't going to say what it will actually do".
All that aside -- judging by the pair of 30A fuses this amplifier should be capable of 400-500w rms at minimum impedance which I consider to be a lot of power for the price. That is why I bought it. It has performed well for the few weeks I've been using it.

By Justin on September 10, 2014
