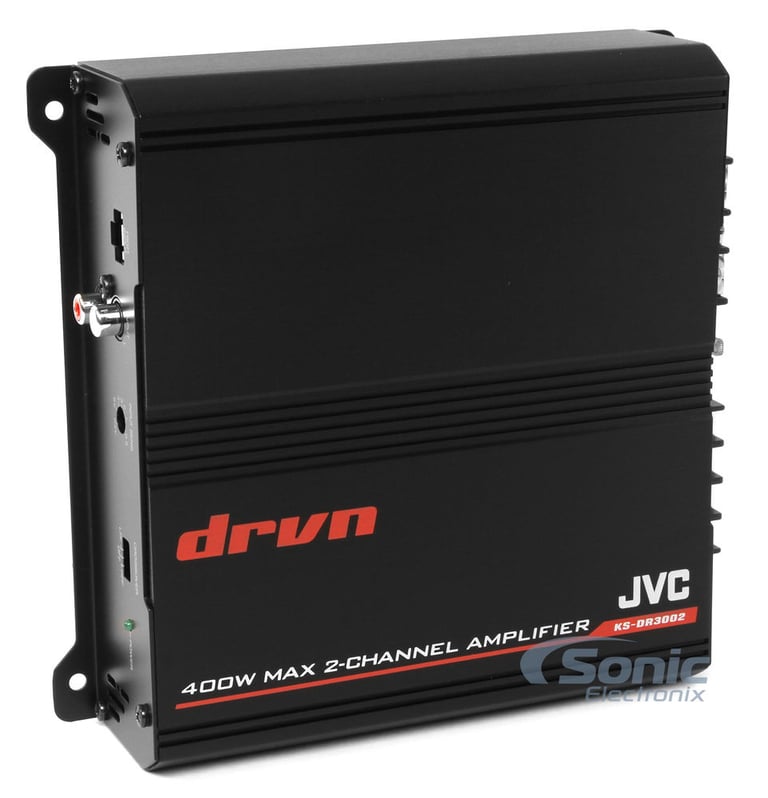

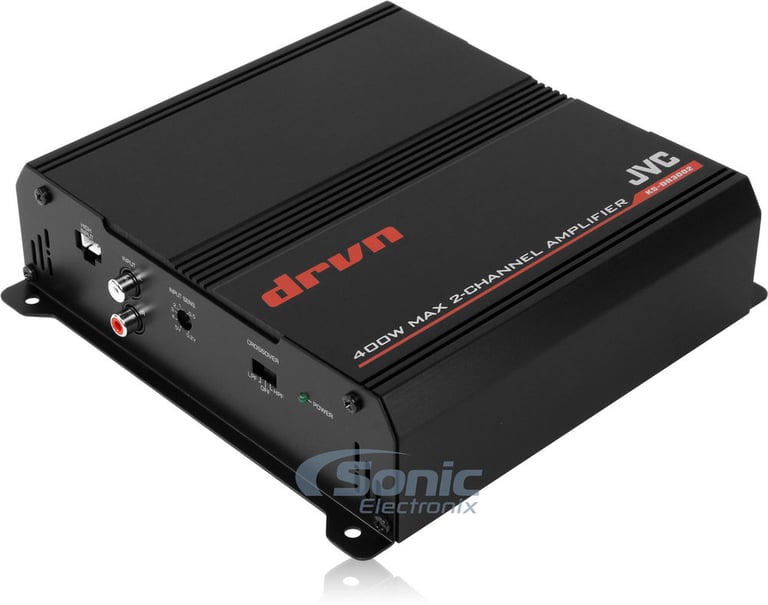

JVC KS-DR3002

400W Peak (180W RMS) DRVN Series Class-A/B Bridgeable 2-Channel Power Amplifier

JVC
Shop all JVC
Product videos
highlight-star-icon

• RMS: 4 ohm: 65 Watts x 2 chan.
• RMS: 2 ohm: 90 Watts x 2 chan.
• Total Peak Power: 400 Watts
• Speaker-level (high-level) inputs
• low and high pass filter
• Frequency Response: 5 - 50,000 Hz

Learn more about the ksdr3002

We apologize

This item has been discontinued


Loading...
40-EU20 main

Metra 40-EU20 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2000-2024 vehicles from Ford, BMW, Chevrolet

3
-35.74%

$8.99

List price $13.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

ADS-MSR main

iDataLink Maestro SR (ADS-MSR) Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

-17.65%

$139.99

List price $169.99

Metra 99-5835G

Single DIN or Double DIN Stereo Dash Kit for select 2015-2019 Transit-350 and Transit-150 and Transit-250

-43.59%

$109.99

List price $194.99

Product Highlights


• RMS: 4 ohm: 65 Watts x 2 chan.
• RMS: 2 ohm: 90 Watts x 2 chan.
• Total Peak Power: 400 Watts
• Speaker-level (high-level) inputs
• low and high pass filter
• Frequency Response: 5 - 50,000 Hz

Description


JVC brand icon

Authorized dealer

General Features:

  • JVC DR Series KS-DR3002 Car Amplifier
  • Class-A/B 2-Ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 65 Watts x 2 chan.
    • 2 ohm: 90 Watts x 2 chan.
    • Bridged at 4 ohm: 180 watts x 1 chan.
  • Total power output: 400 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) indicators
  • Auto turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response: 5 - 50,000 Hz
  • low and high pass filter
  • Fuse Rating: 20 A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

JVC KS-DR3002 thumbnail
(newest, current model)
JVC KS-AX3202 thumbnail
(previous model, replaced by JVC KS-DR3002)
JVC KSAX3102 thumbnail
(previous model, replaced by JVC KS-AX3202)
JVC KS-AX3002 thumbnail
(previous model, replaced by JVC KS-AX3102)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
65 watts x 2 channel
RMS Power @ 2 ohms
90 watts x 2 channel
Bridged RMS Power
180 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
130 watts x 2 channel
Peak Power @ 2 ohms
200 watts x 2 channel
Bridged Peak/Max Power
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
fixed 120 Hz
Low-Pass Crossover Frequency
fixed 80 Hz
Remote bass/level controller
No
Fuse Rating
20A x 1
Total Fuse Rating
20
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers

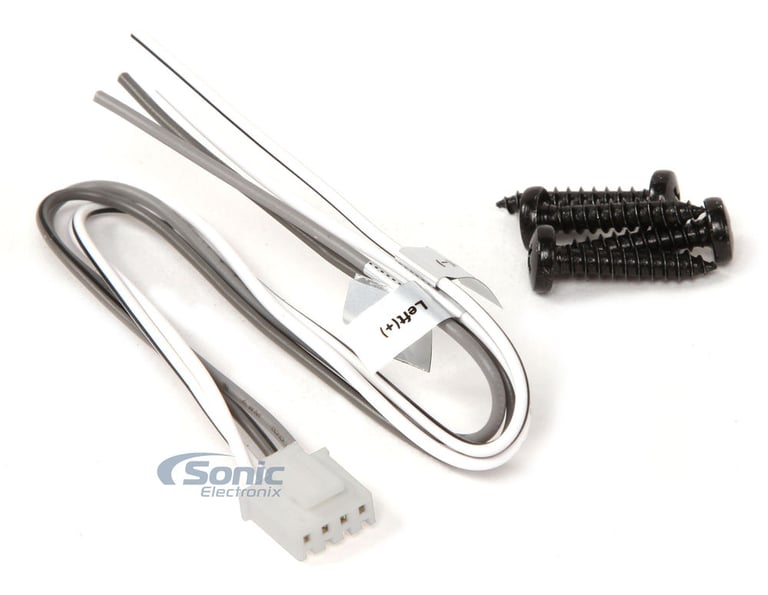

Amplifier
Mounting screws (4)
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-DR3002

Weight:

7.00lbs

Internal SKU:

ksdr3002

Internal Product ID:

107785
