Refurbished - RE Audio DTS-1500.1 (DTS1500.1) 2000W Monoblock Class D Amplifier

by RE Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

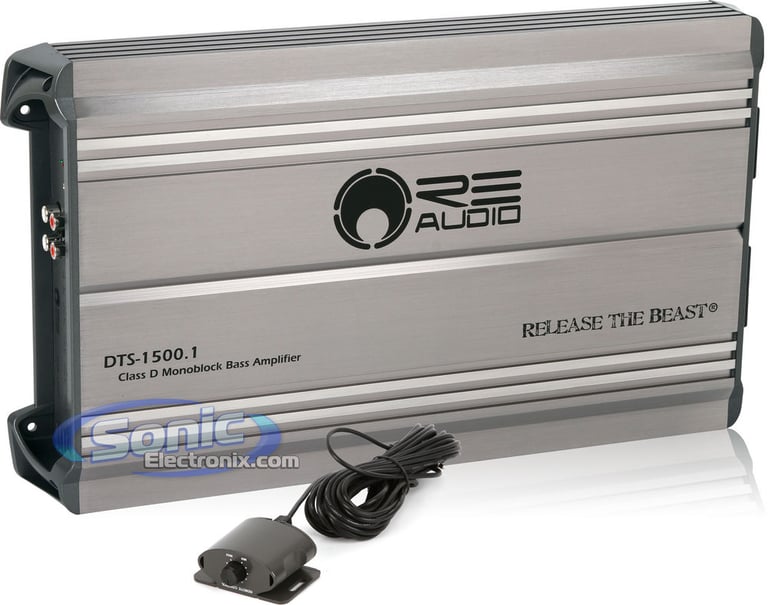

RE Audio DTS-1500.1 (DTS15001) R/B Image 1 — RE Audio DTS-1500.1 (DTS15001) R/B

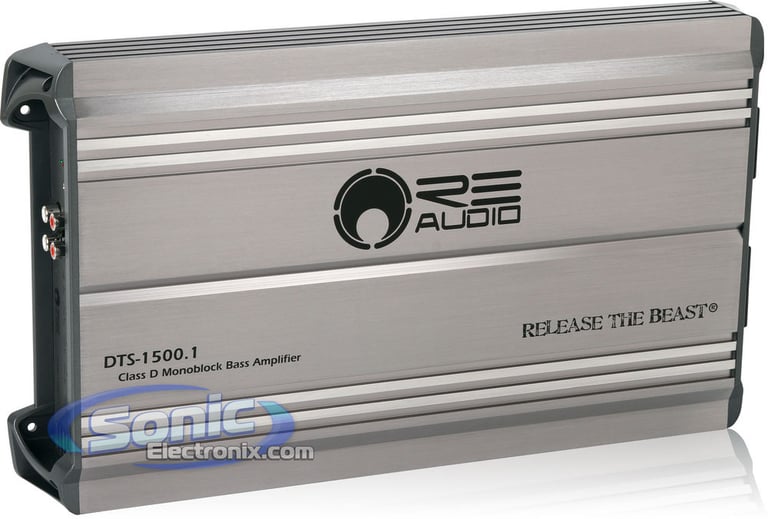

RE Audio DTS-1500.1 (DTS15001) R/B Image 2 — RE Audio DTS-1500.1 (DTS15001) R/B

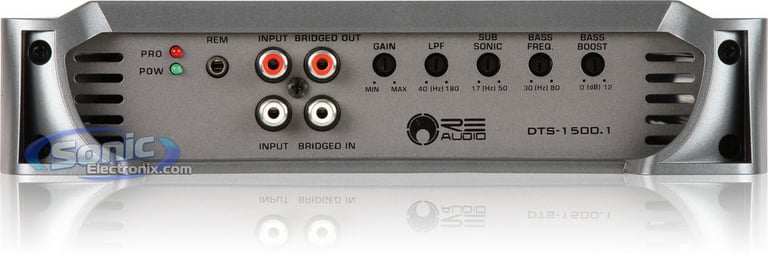

RE Audio DTS-1500.1 (DTS15001) R/B Image 3 — RE Audio DTS-1500.1 (DTS15001) R/B

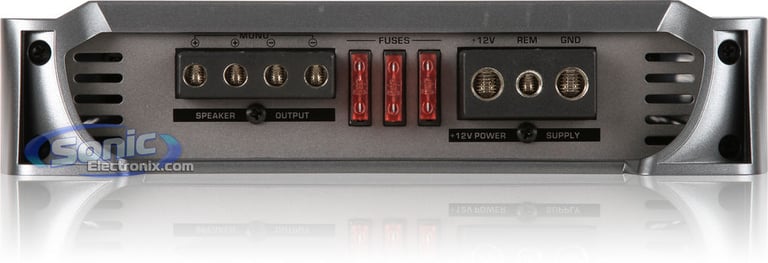

RE Audio DTS-1500.1 (DTS15001) R/B Image 4 — RE Audio DTS-1500.1 (DTS15001) R/B

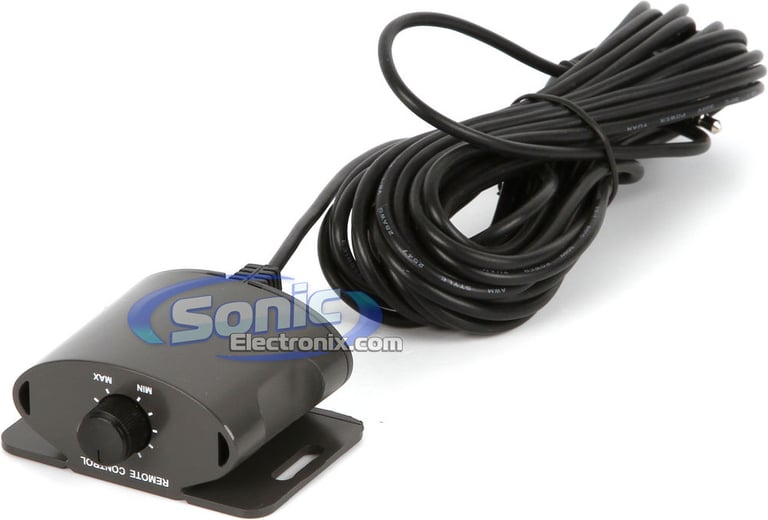

RE Audio DTS-1500.1 (DTS15001) R/B Image 5 — RE Audio DTS-1500.1 (DTS15001) R/B

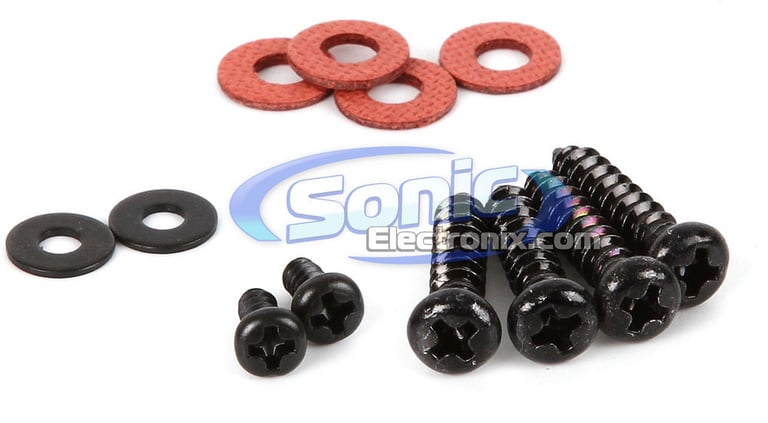

RE Audio DTS-1500.1 (DTS15001) R/B Image 6 — RE Audio DTS-1500.1 (DTS15001) R/B

RE Audio DTS-1500.1 (DTS15001) R/B Image 7 — RE Audio DTS-1500.1 (DTS15001) R/B

RE Audio DTS-1500.1 (DTS15001) R/B Image 8 — RE Audio DTS-1500.1 (DTS15001) R/B

RE Audio DTS-1500.1 (DTS15001) R/B-video

Product videos

Product highlights

DTS Series Monoblock Class D Car Amplifier • 2000W Dynamic • Wired Remote Bass Level Control • Preamp RCA Outputs • Variable Low-Pass Filter • Subsonic Filter • Variable Bass Boost

Learn more about the LS-dts15001-RB

Product Highlights

DTS Series Monoblock Class D Car Amplifier • 2000W Dynamic • Wired Remote Bass Level Control • Preamp RCA Outputs • Variable Low-Pass Filter • Subsonic Filter • Variable Bass Boost

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

DTS Series Monoblock Class D Car Amplifier
RMS Power Rating (14.4V)):
- 4 ohm: 410 watts x 1 chan.
- 2 ohm: 700 watts x 1 chan.
- 1 ohm: 1000 watts x 1 chan.
Dynamic power output: 2000 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
Bridgeable with multi link technology (MLT)
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
2-Way System Protection circuitry (thermal and short circuit)
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty brushed aluminum alloy convection fan cooled heatsink for efficient heat dissipation
Nickel-plated RCA level inputs
Nickel-plated 12AWG screw terminals
Input Impedance: 20 K-Ohm
Input sensitivity:
- Low level: 100mV-6V
Variable low-pass filter (40-180 Hz, 24 dB/octave)
Subsonic filter (17-50 Hz, 24 dB/octave)
Bass frequency (30-80 Hz)
Effective damping factor: 150 @ 4 ohm
Frequency response: 17-180 Hz
Dimensions: 14-9/16"L x 8-11/16"W x 2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

410 watts x 1 channel

RMS Power @ 2 ohms

700 watts x 1 channel

RMS Power @ 1 ohm

1000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2000 watts

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 180 Hz

Subsonic Filter

17 - 50 Hz

Signal-to-Noise Ratio

90 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

40A x 3

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
