See all parts that fit your 2015 Q40

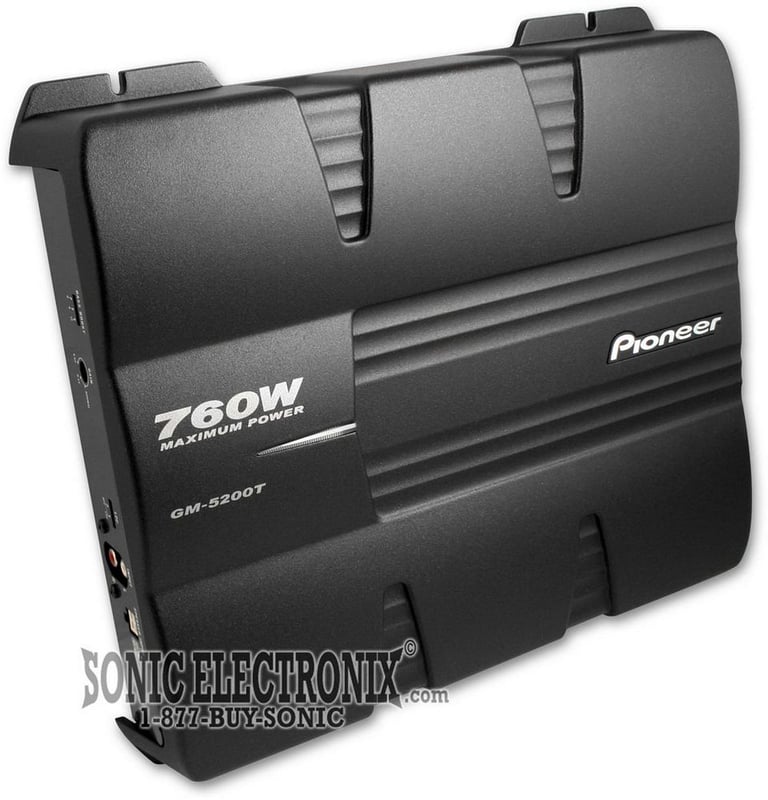

Pioneer GM-5200T

2-Channel Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

760 watts, 2-Channel Pioneer GM-5200T Amplifier • 125W x 2 chan. @ 4 Ohm • 190W x 2 chan. @ 2 Ohm • Bridged, 4 ohm: 380 watts x 1 chan. • speaker and preamp level inputs and outputs • CEA-2006 compliant

Learn more about the gm5200t

We apologize

This item has been discontinued


Loading...
SM65F4, SDSK2, SDRLR1, BTK106, XBAF65 main

SM65F4 with Speaker Installation Kit

RPM STROKER 6.5" 4-ohm 2-way High Output Flush Mount Coaxial Speaker Set

252
-23.10%

$353.52

List price $459.70

HXM65F2, XBAF65, SDSK2, SDRLR1, BTK106 main

Diamond Audio HXM65F2 with Speaker Installation Kit

500W Peak (250W RMS) 6.5" Motorsport Series 2-Way Coaxial Car Speakers + 6.5" Speaker Baffles, Sound Dampening, Roller and Panel Removal Kit

252
-6.13%

$523.52

List price $557.70

HXM65F4, XBAF65, SDSK2, SDRLR1, BTK106 main

Diamond Audio HXM65F4 with Speaker Installation Kit

500W Peak (250W RMS) 6.5” HXM Series 2-Way Coaxial Speakers with 6.5" Speaker Baffles, Sound Dampening, Roller and Panel

252

$503.52

List price $527.70

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

Product Highlights


760 watts, 2-Channel Pioneer GM-5200T Amplifier • 125W x 2 chan. @ 4 Ohm • 190W x 2 chan. @ 2 Ohm • Bridged, 4 ohm: 380 watts x 1 chan. • speaker and preamp level inputs and outputs • CEA-2006 compliant

Description


Pioneer brand icon

Authorized dealer

  • 760 Watt 2-Channel Pioneer GM-5200T Amplifier
  • RMS Power Output
    • 4 ohm: 125 watts x 2 chan.
    • 2 ohm: 190 watts x 2 chan.
    • Bridged, 4 ohm: 380 watts x 1 chan.
  • Selectable low-pass filter (80 Hz, 12 dB per octave)
  • Selectable bass boost (0, 6, 9, 12 dB at 50 Hz)
  • CEA-2006 compliant

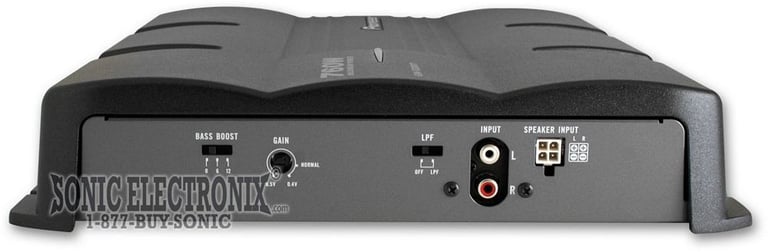

  • speaker- and preamp-level inputs

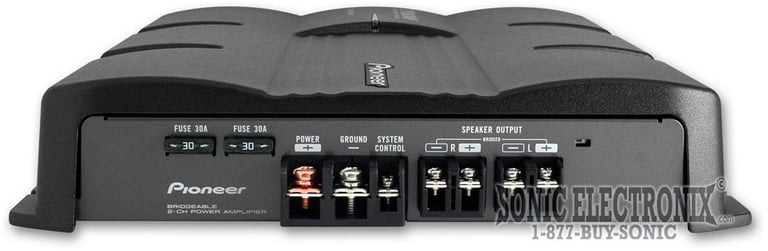

  • fuse rating: 30A x 2
  • Signal-to-Noise ratio: 95 dB
  • Channel Separation: 70 dB
  • 8-gauge power / ground leads recommended
  • Dimensions: 1" D x 12" W x 2-3/8" H
  • 1-year SonicElectronix.com warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
190 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
380 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
380 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
>1%
Speaker Level Inputs
Yes
Preamp Outputs
Yes
Low-Pass Crossover Frequency
10 - 80 Hz
Signal-to-Noise Ratio
95 dB
Channel Separation
70 dB
Bass Boost
0 - 12 dB
Fuse Rating
30A x 2

Item Details


Manufacturer:

Model Number:

GM-5200T

Weight:

10.00lbs

Internal SKU:

gm5200t

Internal Product ID:

7403
