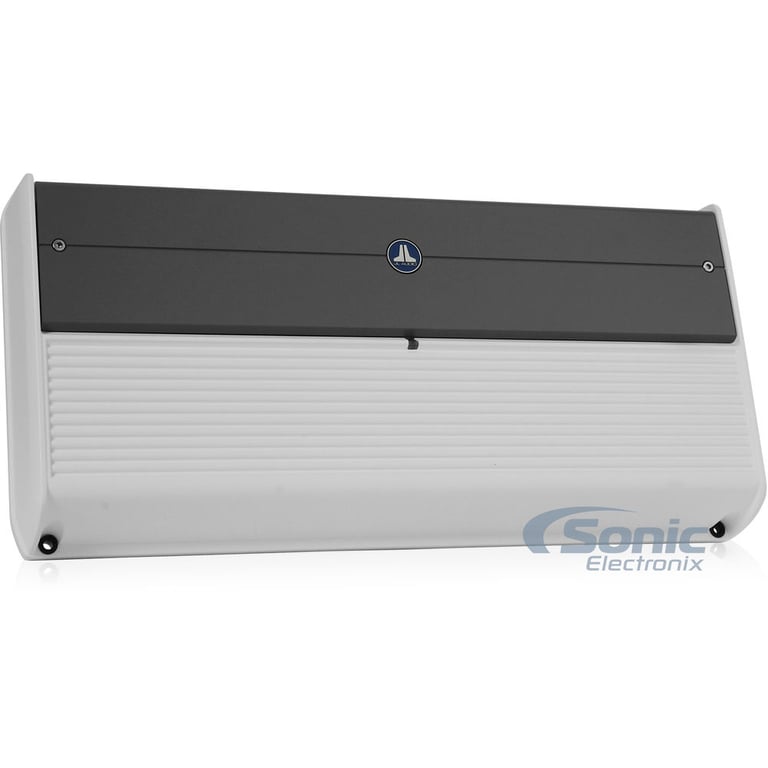

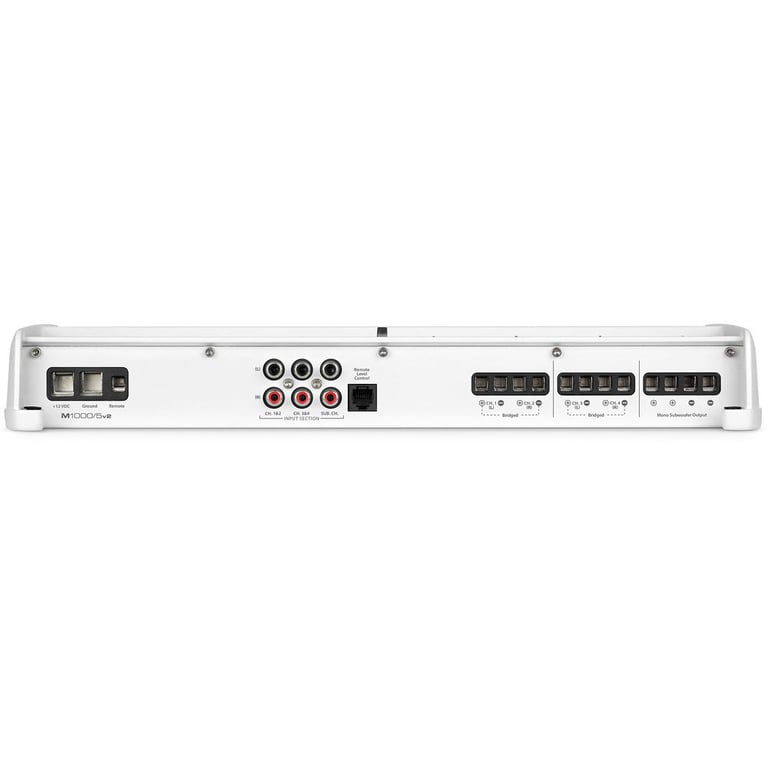

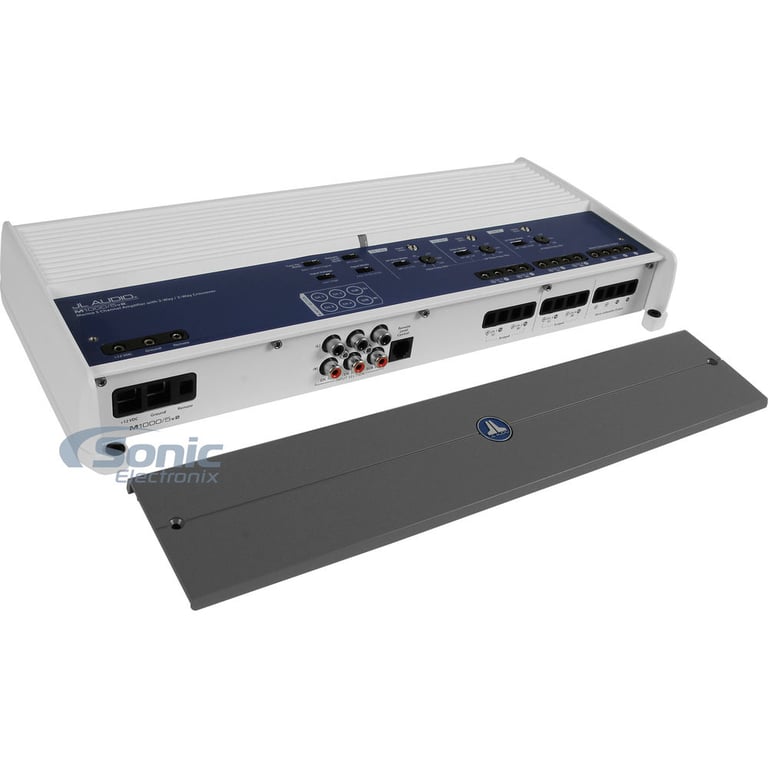

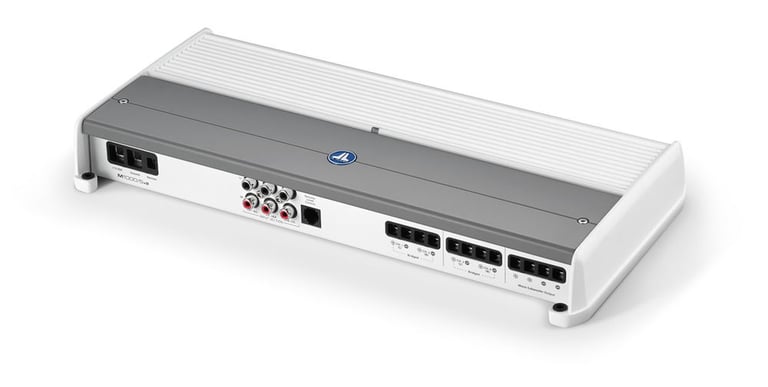

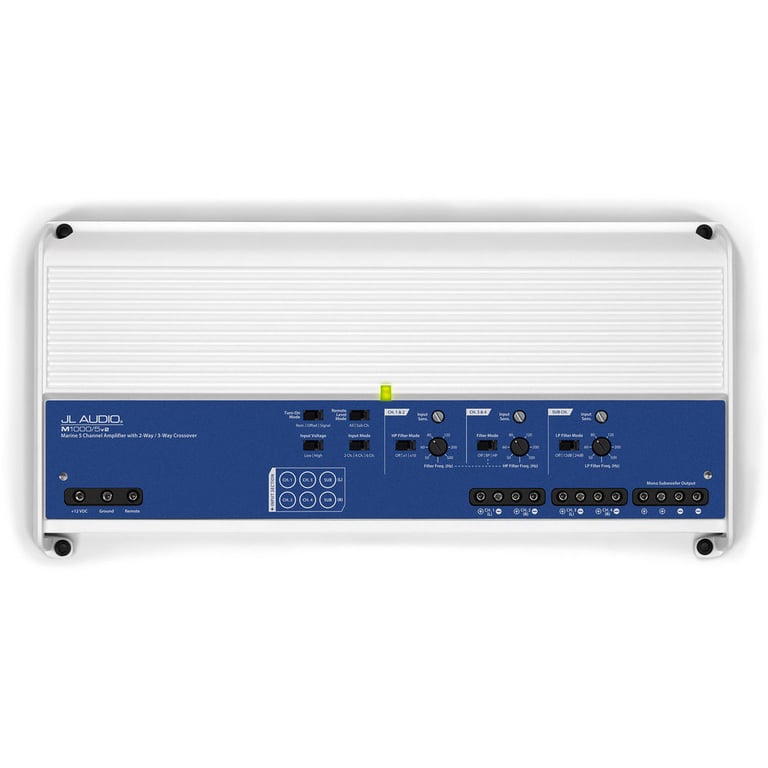

1000W 5-Channel Class D Marine Full-Range Amplifier
• RMS: 75W x 4 + 400W x 1 @ 4 ohm, 100W x 4 + 600W x 1 @ 2 ohm
• Total RMS Power: 1000W
• Unregulated MOSFET switching type
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• NexD Switching Technology
Crux DKGM-48D Stereo Replacement Interface
Stereo Replacement Interface with Steering Wheel Control Retention and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac
$132.30
List price $205.80
450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers
$54.99
List price $79.99
• RMS: 75W x 4 + 400W x 1 @ 4 ohm, 100W x 4 + 600W x 1 @ 2 ohm
• Total RMS Power: 1000W
• Unregulated MOSFET switching type
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• NexD Switching Technology
Here is the perfect, all-in-one solution to drive a potent 4-speaker + dual subwoofer marine audio system. The M1000/5v2 delivers up to 1000 W of clean power and can comfortably drive two pairs of quality component speaker systems with 75 W x 4 @ 4 ohms, while also delivering a stout 600 W of power to a dual subwoofer system. The breakthrough that makes this much power possible in such a small chassis is the NexD switching amplifier design

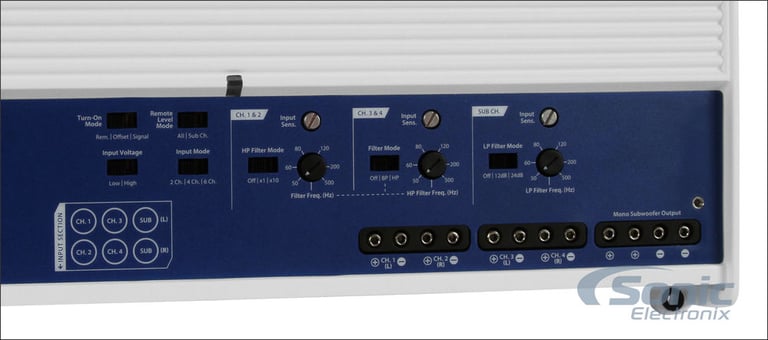

The M1000/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.
The obvious feature that sets the M1000/5v2 apart is its 5 Channels. However, not all setups have the luxury of 5 Channels to get a signal from. JL Audio engineers have you covered; the M1000/5v2 is equipped with the ability to apply only two channels of input to deliver signal to all five amplifier channels. Simply slide the "Input Mode" switch to "2 Ch", use only the inputs to channels 1 & 2, and the amplifier will do the rest of the hard work. With just one pair of RCAs, the M1000/5v2 sends signal to Ch 3 & 4 and will derive its subwoofer channel signal from a sum of all four input signals.
Should your JL Audio amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases, but it ensures that your music keeps on playing, even under the most demanding conditions.
JL Audio have taken the simple fixed PWM approach - found in almost all common amplifiers - and enhanced it with a very high switching frequency: 400 kHz, which is exponentially higher than most Class D Full-range amplifiers. This pushes the amplifier's bandwidth to a much higher frequency than seen before, and still provide minimal distortion and improved efficiency, while keeping typically bulky circuity more compact. Your speakers will reward you with crisp, clear performance. The bottom line is simply great audio: clean, powerful and reliable.
 |
 |
 |

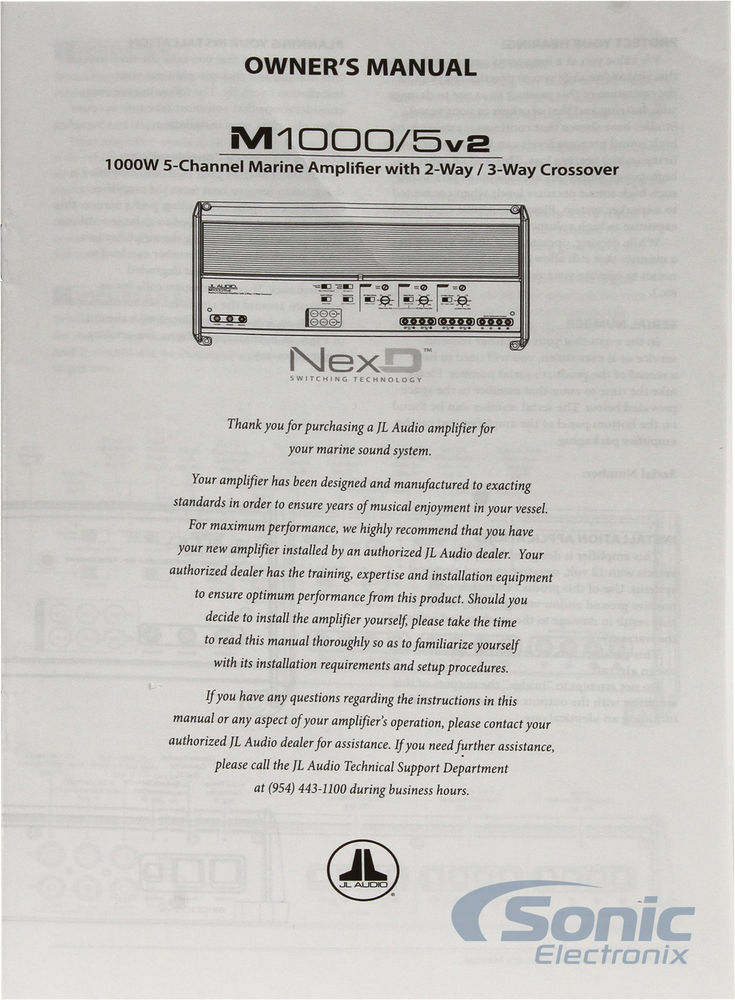

JL Audio M1000/5v2 owner’s manual
