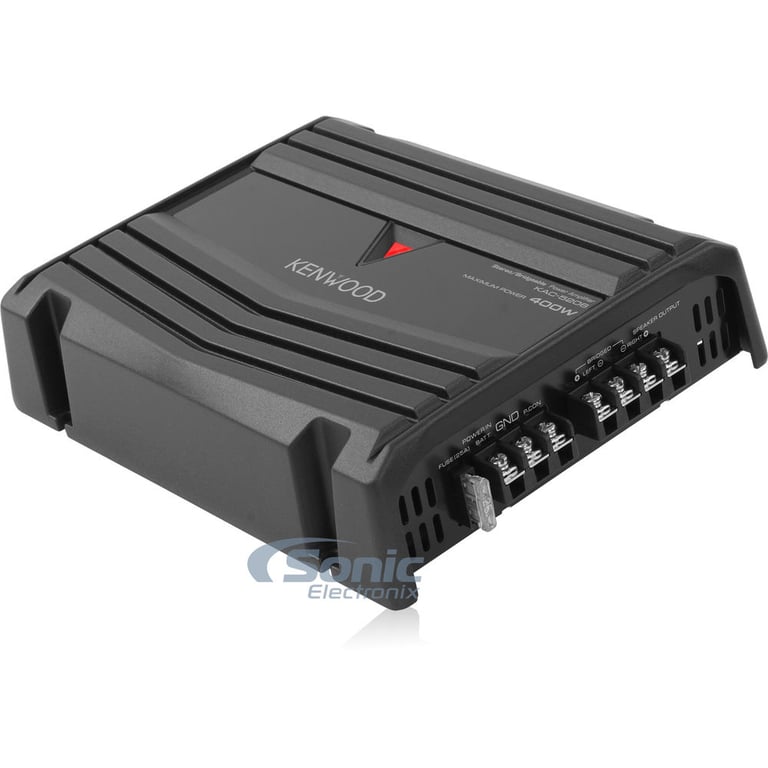

Kenwood KAC-5206

400W Max 2-Channel/Bridgeable Class AB Performance Series Car Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• 60 Watts RMS x 2 @ 4 ohm
• 75 Watts RMS x 2 @ 2 ohm
• 150 Watts RMS x 1 @ 4 ohm, Bridged
• Total Peak Power: 400 Watts
• CEA-2006 Compliant
• Speaker-level (high-level) inputs with Auto Turn-On
• Nickel plated RCA, Power/Ground and Speaker connections
• Signal to Noise Ration: 95 dB

Learn more about the kac5206

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kac5207 thumbnail

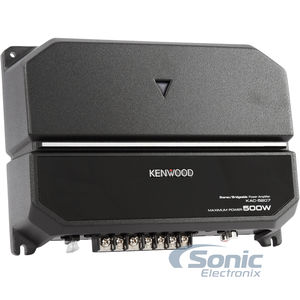

Kenwood KAC-5207

OUR PRICE: $129.99

View item

Loading...
70-7550 main

Metra 70-7550 Wiring Harness

Install a new car stereo in select 1995-2013 vehicles from Nissan, Infiniti, Suzuki

28
70-7551 main

Metra 70-7551 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1995-2012 vehicles from Nissan, Infiniti

27
-15.40%

$10.99

List price $12.99

NN1648B main

Scosche NN1648B / NN1648 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2000-2003 Maxima (Black)

6
-19.85%

$15.99

List price $19.95

40-NI10 main

Metra 40-NI10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1987-2012 vehicles from Nissan, Infiniti

5
-21.44%

$10.99

List price $13.99

95-7417 main

Metra 95-7417 Dash Kit

Install a new Double-DIN car stereo in select 1993-2012 vehicles from Nissan, Mercury, Infiniti

5
-12.00%

$21.99

List price $24.99

99-7417 main

Metra 99-7417 Dash Kit

Install a new Single-DIN car stereo in select 1993-2004 vehicles from Nissan, Mercury, Infiniti

10
-46.89%

$16.99

List price $31.99

46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-16.67%

$99.99

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Product Highlights


• 60 Watts RMS x 2 @ 4 ohm
• 75 Watts RMS x 2 @ 2 ohm
• 150 Watts RMS x 1 @ 4 ohm, Bridged
• Total Peak Power: 400 Watts
• CEA-2006 Compliant
• Speaker-level (high-level) inputs with Auto Turn-On
• Nickel plated RCA, Power/Ground and Speaker connections
• Signal to Noise Ration: 95 dB

Description


Kenwood brand icon

Authorized dealer


General Features:

  • Performance Series Class AB 2-Channel/Bridgeable Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 75 watts x 2 chan.
    • Bridged, 4 ohm: 150 watts x 1 chan.
  • Total peak power output: 400 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Illuminated Red LED Kenwood Emblem
  • Soft start turn-on
  • Speaker-level (high-level) inputs with Auto Turn-On (Harness Included, not shown)
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty cast aluminum alloy heat-sink for extreme heat dissipation

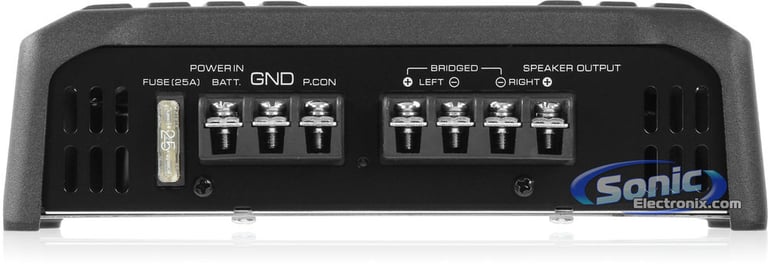

  • Nickel plated RCA, Power/Ground and Speaker connections

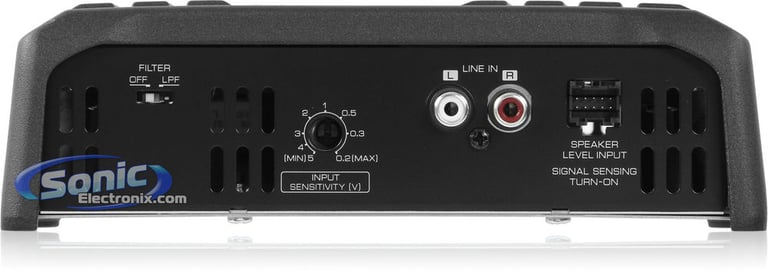

  • Input sensitivity:
    • Low level: 200mV - 5V
    • High level: 4.0V - 12.0V
  • Frequency Response: 5 - 50,000 Hz
  • Total Harmonic Distortion (THD): <1.0 %
  • Signal to Noise Ration: 95 dB
  • Selectable low-pass filter: OFF / 80 Hz (LPF), 18 dB/octave
  • Fuse Rating: 25A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8-7/8" W x 2-3/16"H x 7-1/16" D
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

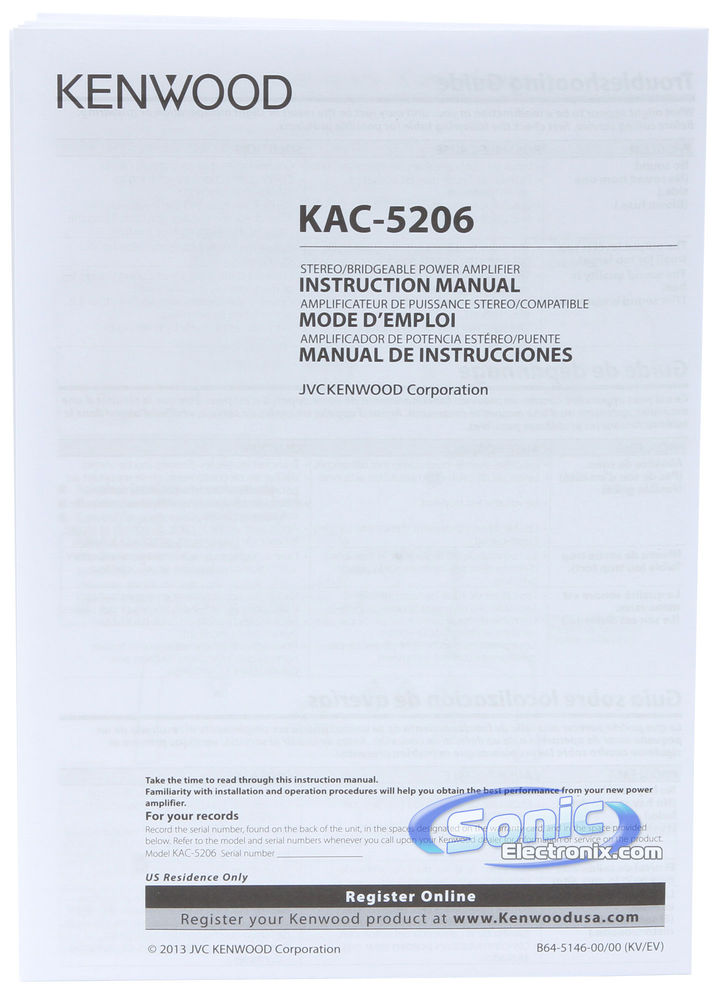

Check out the Kenwood KAC-5206 Owner's Manual

Product history:

Kenwood KAC-5207 thumbnail
(newest, current model)
Kenwood KAC-5206 thumbnail
(previous model, replaced by Kenwood KAC-5207)
Kenwood KAC-5204 thumbnail
(previous model, replaced by Kenwood KAC-5206)
Kenwood KAC-5203 thumbnail
(previous model, replaced by Kenwood KAC-5204)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-16.67%

$99.99

List price $119.99

46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-12.50%

$139.99

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

ATOM-500.2 PRO small

Deaf Bonce Apocalypse ATOM-500.2 PRO

• 231 watts x 2 channel @ 4 ohm
• 390 watts x 2 channel @ 2 ohm
• 500 watts x 2 channel @ 1 ohm
• Bridged: 780 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 500 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$189.90

List price $189.90

VAD8402v2 small

NVX VAD8402 v2 (VAD8402v2)

• 300 watts x 2 channel @ 4 ohm
• 420 watts x 2 channel @ 2 ohm
• Bridged: 840 watts x 1 channel @ 4 ohm
• Total RMS Power: 840 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$229.99

List price $275.99

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$254.96

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
75 watts x 2 channel
Bridged RMS Power
150 watts x 1 channel
Power Specifications - Full Range Channels
Bridged Peak/Max Power
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
150 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
80 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KAC-5206

Weight:

4.00lbs

Internal SKU:

kac5206

Internal Product ID:

76450

Product and How-to Videos


Customer Ratings & Reviews


Kenwood KAC-5206 thumbnail image

5 star
73%
4 star
22%
3 star
4%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.3
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Delivers as Expected

This is a great amp for the price! High quality and solid output! Highly recommend this product

By Jeff on January 2, 2015

71 found this helpful


KAC-5206

Great Amp for the money, very easily installed. Fast shipping. Thanks

By Hankerin on February 6, 2015

67 found this helpful


Great product

Really nice product. Easy to install and at a great price

By Jonathan on March 1, 2015

63 found this helpful


Clean Power

I have this amp powering Polk DB1001 Tweeters. I also have Polk DB651's in the doors and Polk DB461's and a Polk DB840 sub all powered by Kenwood amps at max RMS. The Kenwood amps are clear and clean. Excellent sound quality.

By Brian on February 23, 2015

64 found this helpful


Nice amp

I bought this amp to power four 6x9's at two ohms. It is a no frills, behind the seat of a truck install. It does a great job. The price is perfect. I will always recommend Kenwood products.

By Mike V on May 3, 2015

49 found this helpful


Great bass kit

The following review is for a previous version (KAC-5203).

I highly recommend this package, build yourself some big 1.9cuft vented boxes and they thump, very accurate bass. That said i dont think the 350watt amp is what these speakers want, i got a 1000watt amp and it (ofcourse) really took it to the next level, and they handle extra power very well. had them for about 8months now and still booming.

By Allen on August 23, 2009

25 found this helpful


Great.

The following review is for a previous version (KAC-5203).

The woofer and amp that i got from you guys was a great hit. The set up sounds spectacular. everyone thinks that I have more than one speaker. I couldn't ask for a better deal for the sound they produce. Thank You guys.
Jase

By Jase on July 8, 2009

24 found this helpful


Lotta Punch In Little Package

The following review is for a previous version (KAC-5203).

Like the title says...the power suprized me. I pushed my two 10 inch subs great!!! Good deal and it is small enough to hide if you don't have a lot of room.

By Slappy on August 27, 2009

23 found this helpful


Great!

The following review is for a previous version (KAC-5203).

I ordered this about 6 months ago and installed them in my car. I still love it! It makes for some great bass :) Also, the ordering/shipping was sooo fast, I was very pleased with the service of this website and would order from here again.

By Randi on June 1, 2009

23 found this helpful


$99 for an amp and 2 10 inch woofers? CRAZY CHEAP!

The following review is for a previous version (KAC-5203).

Bought this to put in the wife's expedition. I thought that a vehicle so big a couple of 10's would give it a little bass, but I WAS NOT expecting to feel slight air movement! This amp did a great job on the 10's that came with it!

By James M on August 3, 2009

21 found this helpful




KFC-XP184C main

Kenwood eXcelon KFC-XP184C

• 280 watts Peak Each, 80 watts RMS Each
• 1" Silk Soft Dome tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86.3 dB

(3)

$179.00

List price $290.00


AOEM-CHR3 small

PAC AOEM-CHR3

Amplifier Integration Interface for select 2007-2020 vehicles from Dodge, Jeep, Chrysler

(8)

$53.99

List price $129.00

MR65G3 small

Boss MR65G3

6.5" 2-Way MR Series Marine Grade Coaxial Loudspeakers w/ White, Chrome and Black Interchangeable Grille Covers

$41.99

List price $139.99

M4604 small

RCA M4604 1.8-Inch 4GB Portable MP3/MP4 Audio Video Media Player

4GB Digital Media Player with 1.8" Display and Touch Controls

(1)

$49.95

List price $69.99

RP-HS220-D small

Panasonic RP-HS220-D - Orange

Sports Clip In-Ear Headphones W/ Extension

(2)

$14.95

List price $34.99

82-8602 small

Metra 82-8602 Speaker Adapter Plates

Install 6.5” or 6.75” aftermarket speakers in select 2012-2022 Model S / X

$15.99

List price $29.99

CX750 small

Boss CX750

1600W Max 2-Channel Chaos Exxtreme Series Amplifier (CX-750)

(4)

$89.99

List price $239.99

TH1814 small

RCA TH1814 4GB MP3 Player with Flip-Out USB Connection

4GB MP3 Player with Flip-Out USB Connection and Display

(1)

$29.95

List price $34.99

HD7 DJ small

Sennheiser HD7DJ (HD 7 DJ)

Closed Back Over Ear Professional DJ Headphones (HD7 DJ)

$149.95

List price $299.00

TM6001OE small

MTX Audio Thunder Marine TM6001OE

6.5" White 2-Way Marine Grade Component Boat Speakers

(1)

$82.97

List price $149.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2021 Subaru Ascent

1985 Audi 4000

2003 Nissan Maxima

2023 Lexus ES350

1993 Chevrolet Blazer

2015 Honda Accord

2004 Suzuki Vitara

1982 Dodge Rampage

2014 Land Rover LR2

1978 Jeep J10

Vehicle
Store
Delete

2007 Harley Davidson FLHTCSE Screamin Eagle Electra Glide

2022 Harley Davidson FLTRX Road Glide

2013 Harley Davidson FLD Switchback

Vehicle
Store
Delete

2014 Can-Am Commander DPS 800R

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
