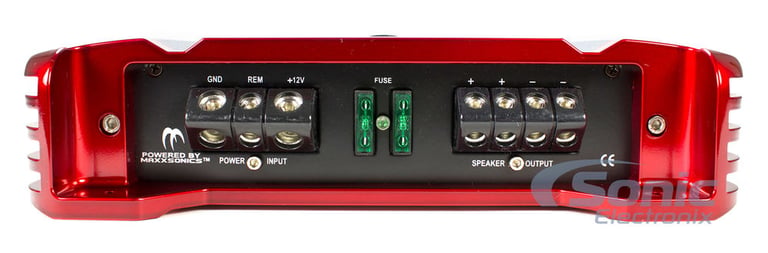

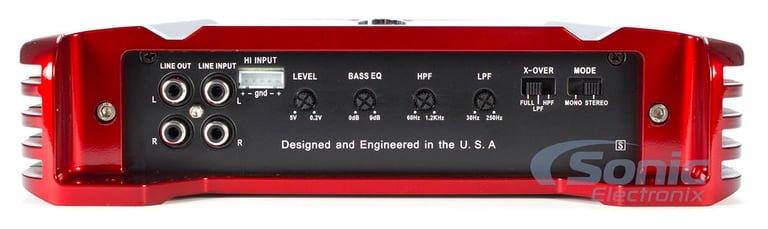

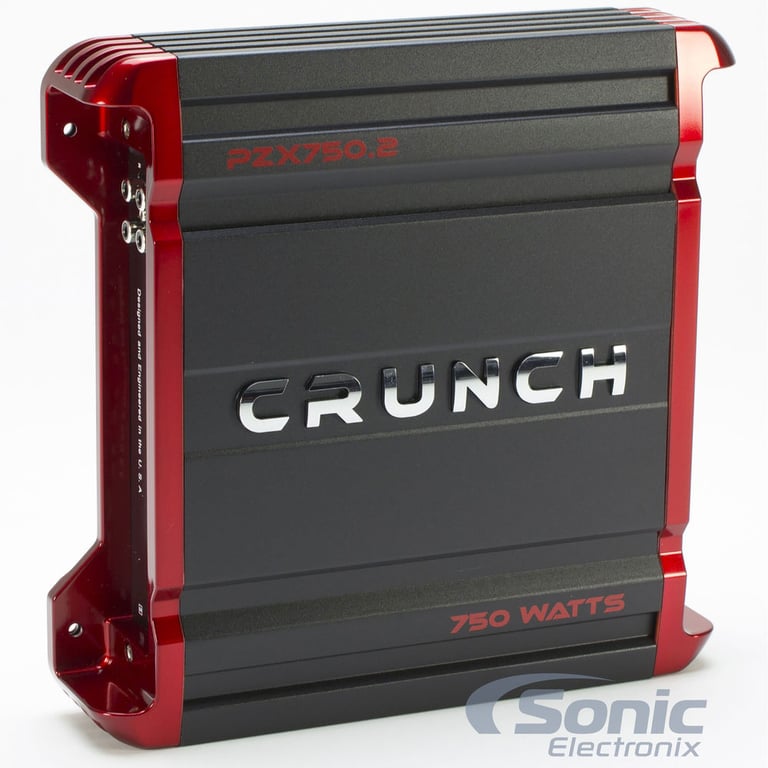

Crunch PZX750.2

750W 2-Channel Powerzone Series Class AB Car Amplifier

Crunch
Shop all Crunch
Product videos
highlight-star-icon

• 165 Watts x 2 @ 4 ohm
• 325 Watts x 2 @ 2 ohm
• 750 Watts x 1 @ 4 ohm, Bridged
• Speaker-level (high-level) inputs
• 2 channel or mono operation
• Signal to Noise Ration: >90 dB
• Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
• Dimensions: 9.29" L x 7.87" W x 2.17" H

Learn more about the pzx7502

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• 165 Watts x 2 @ 4 ohm
• 325 Watts x 2 @ 2 ohm
• 750 Watts x 1 @ 4 ohm, Bridged
• Speaker-level (high-level) inputs
• 2 channel or mono operation
• Signal to Noise Ration: >90 dB
• Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
• Dimensions: 9.29" L x 7.87" W x 2.17" H

Description


Crunch brand icon

Authorized dealer



General Features:

  • 2-Channel Powerzone Series Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 165 watts x 2 chan.
    • 2 ohm: 325 watts x 2 chan.
    • Bridged, 4 ohm: 750 watts x 1 chan.
  • SEPP (Single Ended Push Pull) A/B Class Amplifier Designs
  • Rugged Pulse Width Modulated MOSFET power supply
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • 2 channel or mono operation
  • Speaker-level (high-level) inputs
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 10 - 45,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >90 dB
  • Selectable crossover modes: FULL / LPF / HPF
  • Variable low-pass filter: 30 - 250 Hz
  • Variable high-pass filter: 60 - 1200 Hz
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Fuse Rating: 30A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.29"L x 7.87"W x 2.17"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 2 channel
RMS Power @ 2 ohms
165 watts x 2 channel
Bridged RMS Power
325 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
165 watts x 2 channel
Peak Power @ 2 ohms
325 watts x 2 channel
Bridged Peak/Max Power
750 watts x 1 channel
Amplifier Specifications
Series
PowerZone Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
750 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PZX750.2

Weight:

8.00lbs

Internal SKU:

pzx7502

Internal Product ID:

76940

Product and How-to Videos


Customer Ratings & Reviews


Crunch PZX750.2 thumbnail image

5 star
60%
4 star
30%
3 star
0%
2 star
0%
1 star
10%



Durability
4.2
Value
4.5
Features
4.1
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

Bang for your buck.

I have a similar crinch amp in a different car that I've had for almost four years. I didn't hesitate to buy this one when I was searching for amps.

By Johnathan on April 16, 2015 Checkmark Icon Verified purchase

22 found this helpful


Crunch PZX750

I wanted a sub in my truck because i wanted to hear the entire range of my music. The sound quality is great and its a great amp if you want a reasonable amount of bass. It powers my sub just fine and i am loving my new music

By Liz on February 1, 2017

11 found this helpful


Solid amp for moderate power systems in smaller cars

I installed this in my 2013 MINI Cooper S convertible, to power a 10" dual voice coil subwoofer in the trunk, which supplements the factory Harmon Kardon System. If fit the bill for an amp that was (a) small enough to fit in a shallow well space under the passenger seat, (b) could put out enough power to drive a sub properly and (c) had configuration flexibility.

While Crunch states the PZX750.2 puts out 165 watts RMS into 4 ohms, my estimate is the actual figure is more likely around 130-135 watts, based on a 14 volt supply and the 30 amp fuse. That's adequate to effectively drive my Image Dynamics sub, which is rated for 250 watts. Conveniently, the amp has a stereo/mono switch that allows those using it for subs to collapse two channels into one, thus creating a mono signal which in my case can be sent into two separate channels, ideal for my dual voice coil application.

The amp offers the standard adjustments of high and low pass crossovers, bass boost (referred to on the amp as "bass EQ") and speaker level inputs. On the PZX750.2, that requires using an included proprietary connector that uses what IMHO are ridiculously thin wires to carry in the high speaker level signals.

The only other critique I have of the PZX750.2 is that it has screw terminals for the power inputs and speaker outputs, instead of the higher quality cast hex nut terminals one finds on more expensive amps. That forced me to go out and hunt for ring connectors that were large enough to handle 12 gauge speaker cable and 8 gauge power cable, while still being small enough to fit into the comparatively narrow slots the screw connectors in this amp are housed in. For reference, the ones I found that met those criteria are Autocraft Part # 85414.

By mikeymars on July 11, 2016

11 found this helpful


Does the job

If your on a tight budget this will work. Dont really know what kind of power it puts out, but it does enough to push 2 tens. It does the job.

By Andrew on September 15, 2015 Checkmark Icon Verified purchase

12 found this helpful


Works great 👍

I bought this amp to power a portable boom box I made out of a large suitcase, it's powered by two 12 volt 5 ah batteries wired to 12 volt and 10 ah, it's driving two 8 inch woofers and 2 tweeters wired to 4 ohms per channel, this amp pushes this setup VERY LOUD!, I couldn't be happier and the bass boost helps round out the bottom nicely, again it plays very loud and clean, it's easily worth the $$. I would buy again.

By C-Money on October 21, 2016

10 found this helpful


Crunch

This was my second one, the first one sounded so good my son stole it from me, so I had to replace it!! Can't beat the price and shipping was fast. This is one of my favorite stores.

By Smokey on July 17, 2016

10 found this helpful


Great price and good power

I bought 2 of these amps to power 4 12" P1's and it sounds good in both of my cars. I have 1 amp powering 12" and it beats. Good amp

By G unit on June 25, 2016

10 found this helpful


Garbage

Not even worth the low cost.. The thing with these b.s manufactures who put all their cost into astetic design and stickers that come in the box is that they are not CEA2006 certified and even when they do list rms rather than the maxxxx with a thousand "cool" x's it's a lie.. Even bridged I could barely push a 100watt 8in sub. My Rockford fosgate 300watt from 10 years ago would murder this thing. Keep your money and don't buy flashy products that lie to you.. Crunch..boss...pyle(of crap)...they are all garbage... Save up a little more cash and buy a quality product.. You pay for what you get

By Kelvin on March 13, 2016 Checkmark Icon Verified purchase

10 found this helpful


More than I need

Bought this to replace an older amp that fell apart on me. Im running two 10" subs off of it. 750 watts is probably more power than i need, but at this price why not go big? I have had it installed for a couple weeks now and have been quite happy with it. It has more adjustments than my older amp so i am still trying to get it dialed in just right.

By Sim on January 31, 2016

10 found this helpful


By Shawn on April 1, 2024 Checkmark Icon Verified purchase

5 found this helpful




AR4.1200 small

Soundstream AR4.1200

1200W Peak (160W RMS) Arachnid Series Class-A/B 4-Channel 2-Ohm Stable Amplifier

(1)

$89.99

List price $89.99

VDB1 small

T-Spec VDB1

2-Position Distribution Block

$24.99

List price $27.00

VCW10GR small

NVX VCW10GR

Mesh Grille for NVX 10" VC-Series V1 and V2 Subwoofers

(5)

$12.99

List price $17.99

AXUSB-SUB2 small

Axxess AXUSB-SUB2

Factory USB Port Retention Adapter in select 2015-2025 vehicles from Subaru

$30.99

List price $34.99

3MYVBC small

Install Bay 3MYVBC

3M Yellow 12/10 Gauge Vinyl Butt Connectors

$33.99

List price $37.99

SC 200 small

Cobra SC 200

Compact Dual-View Smart HD Dash Cam with Bluetooth, GPS, and Wi-Fi

$159.95

List price $159.95

MVPA1 small

NVX MVPA1

Marine-V Series 600W RMS Monoblock Class D Compact Marine/Powersports/Motorcycle Amplifier

(38)

$229.99

List price $349.99

6XS small

AudioControl 6XS Crossover - Black

Concert Series 6-Channel Electronic Crossover with 5-year warranty*!

(2)

$249.99

List price $299.99

50CWCD84 small

Kicker CWCD84 (50CWCD84)

400W Peak (200W RMS) 8" CompC Series Dual 4-ohm Car Subwoofer

$79.96

List price $119.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Ford Thunderbird

1990 Dodge B150

2016 Lexus IS300

2012 Nissan Maxima

2020 Tesla Model S

1983 Subaru DL

2023 Audi A3

2025 Audi A3

1975 Ford Pinto

2004 BMW X5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
