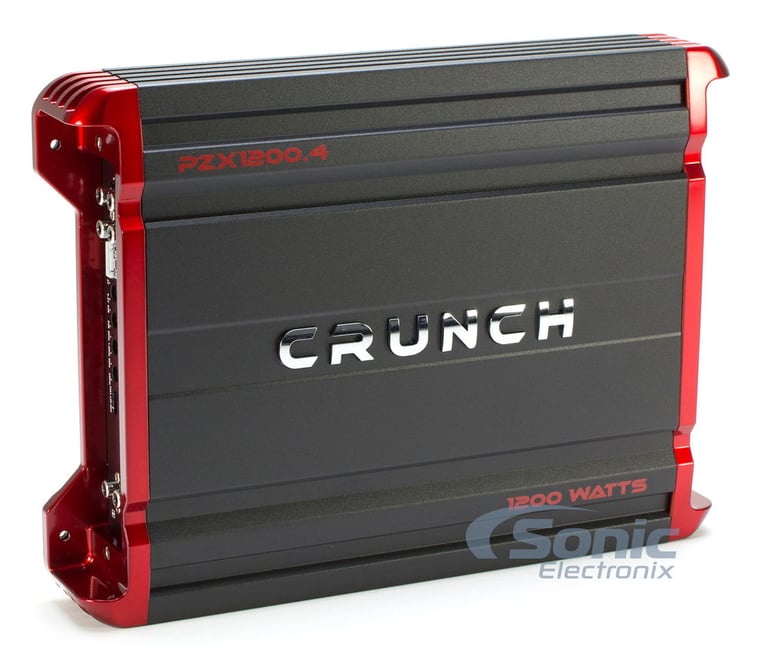

Crunch PZX1200.4

1200W 4-Channel Powerzone Series Class A/B Car Amplifier

Crunch
Shop all Crunch
Product videos
highlight-star-icon

• 150 Watts x 4 @ 4 ohm
• 300 Watts x 4 @ 2 ohm
• 6000 Watts x 2 @ 4 ohm, Bridged
• Speaker-level (high-level) inputs
• 4, 3 or 2 channel operation
• Signal to Noise Ration: >90 dB
• Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
• Dimensions: 9.29" L x 11.02" W x 2.17" H

Learn more about the pzx12004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• 150 Watts x 4 @ 4 ohm
• 300 Watts x 4 @ 2 ohm
• 6000 Watts x 2 @ 4 ohm, Bridged
• Speaker-level (high-level) inputs
• 4, 3 or 2 channel operation
• Signal to Noise Ration: >90 dB
• Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
• Dimensions: 9.29" L x 11.02" W x 2.17" H

Description


Crunch brand icon

Authorized dealer



General Features:

  • 4-Channel Powerzone Series Class A/B Car Amplifier
  • Max Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 300 watts x 4 chan.
    • Bridged, 4 ohm: 600 watts x 2 chan.
  • Max power output: 1200 watts
  • SEPP (Single Ended Push Pull) A/B Class Amplifier Designs
  • Rugged Pulse Width Modulated MOSFET power supply
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • 4, 3 or 2 channel operation
  • Speaker-level (high-level) inputs
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 10 - 45,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >90 dB

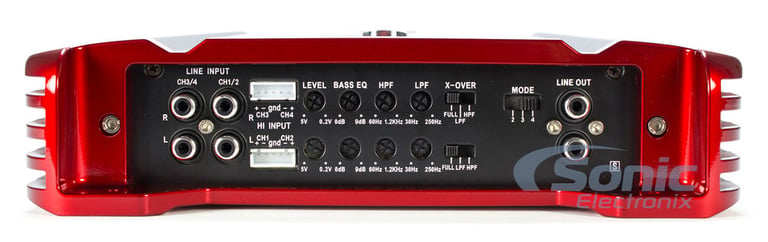

  • Selectable crossover modes: FULL / LPF / HPF
  • Variable low-pass filter: 30 - 250 Hz
  • Variable high-pass filter: 60 - 1200 Hz
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz

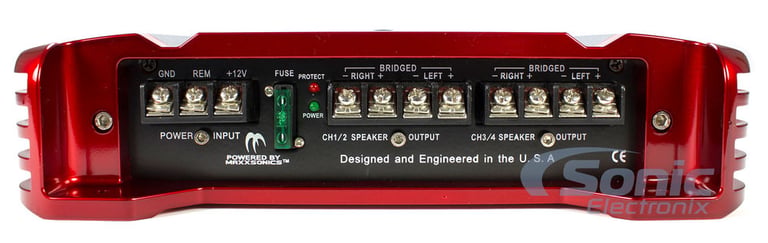

  • Fuse Rating: 30A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.29"L x 11.02"W x 2.17"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
150 watts x 4 channel
Peak Power @ 2 ohms
300 watts x 4 channel
Bridged Peak/Max Power
600 watts x 2 channel
Amplifier Specifications
Series
PowerZone Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PZX1200.4

Weight:

8.00lbs

Internal SKU:

pzx12004

Internal Product ID:

76945

Product and How-to Videos


Customer Ratings & Reviews


Crunch PZX1200.4 thumbnail image

5 star
60%
4 star
40%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
5
Features
4.8
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

perfect amp for me

I needed a 4channel to replace one of my kicker amps powering my separates. This one was hundreds less than I found shopping @stereo shops. I never considered &didn't really trust the idea of buying online, but I went for it because the dollar to watt value was inarguably worth a try, & I didn't want to wait &save another $200+ to buy something that might work just the same as this could. I can't speak to the durability rating bcuz it's been a week. My goal is another 12 years. But I had to rate all categories.
This size amp is perfect- discreetly mounted alongside another kicker amp used for my sub. My stereo is hidden, no giant chrome amps thief-ready, & the power is fantastic.
My new Crunch amp installed in minutes. I will buy Crunch amp again if their is a need. Thank you.
It is powering 2 separate sets of kicker mids & tweets, each of the 4 sets of separates have crossovers. 8 speakers: 4 crossovers: and this amp handles whatever sound and volume I give it. no problem. Thank you.

By js on March 18, 2016

11 found this helpful


Working awesome

Hits like a brick with very little power draw !!!! Good amp

By Matt on July 22, 2019

10 found this helpful


Great item best deal

Play perfect with Mi 2dr speakers and my 2 10" subs great deal

By Victoria on August 31, 2017

10 found this helpful


Great Amp for the Money

We bought this amp for my son's truck, and because I have been doing car stereo for 25 years or so I knew that Crunch is affordable but dependable.

One complaint I have is that in 3 channel mode the channel you use for the sub woofer is only stable to 4 Ohms. (It should be able to 2 Ohms bridged and that's why I dropped a star on features)

I missed that when I bought this and our 10" subs are 4 Ohms each. We should have bought 8 Ohm subs then we could have used the 3 channel with the sub channel bridged in a series.

Because of this I now have to run the amp 4 channel to run both subs that we bought. (We are thinking about different subs now)

It's not the amps fault, it's my fault for missing it when I was reading about the amp before we bought it.

For the price this is a great amp and it is very stable at full gains, and full volumes.

By 323tech on October 29, 2016

10 found this helpful


For the price excellent

It been a while since I put a custom sound system in, but I bought a truck with a busted radio. Sound I have a nice project ahead if me. Everybody is amazed the deal I got on the package.

By Vishwa on April 25, 2016

10 found this helpful




0010058-1 small

Escort Standard Hardwire

Direct Wire Power Cord for Radar and Laser Detectors

$29.95

List price $29.95

BAWPC1 small

Belva BAWPC1

Waterproof Cover for use with BAWPL

$1.99

List price $1.99

CA 12 small

DLS CA 12

500W, 1-Channel Class AB Classic Series Monoblock Car Amplifier (Performance Classic -- 10-30212)

(1)

$319.99

List price $399.95

53PL7TDF12 small

Kicker PL7TDF12 (53PL7TDF12)

1200W Peak (600W RMS) Loaded Single 12" Sealed Amplified Truck Enclosure

$599.99

List price $649.97

CS-DR1721 small

JVC CS-DR1721

600W Peak (100W RMS) 6.75" DRVN DR Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

(4)

$99.00

List price $119.00

MRP-F300 small

Alpine MRP-F300

300W V-Power Series 4-Channel Class AB Car Amplifier

(18)

$149.99

List price $239.95

99-3045 small

Metra 99-3045

Single DIN or Double DIN Stereo Dash Kit for select 1994-1997 vehicles from GMC, Chevrolet, Oldsmobile (Black)

(12)

$19.99

List price $34.99

BT-E500 small

Eclipse BT-E500

Bluetooth Hands-free Interface Kit for Select Eclipse In-dash Receivers (BTE500)

(11)

$36.99

List price $189.99

SPS-517 small

Alpine Type-S SPS-517

460W Max (150W RMS) 5" x 7" / "6 x 8" 2-Way Type-S Series Coaxial Car Speakers

(15)

$99.95

List price $150.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Volkswagen Eos

2004 Ford Thunderbird

2017 Audi Q7

2000 Dodge Stratus

2012 Dodge Durango

1995 Mitsubishi Eclipse

2017 Ford Flex

2019 Mazda 3

1986 Ford E Series

2007 Ford Freestar

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
