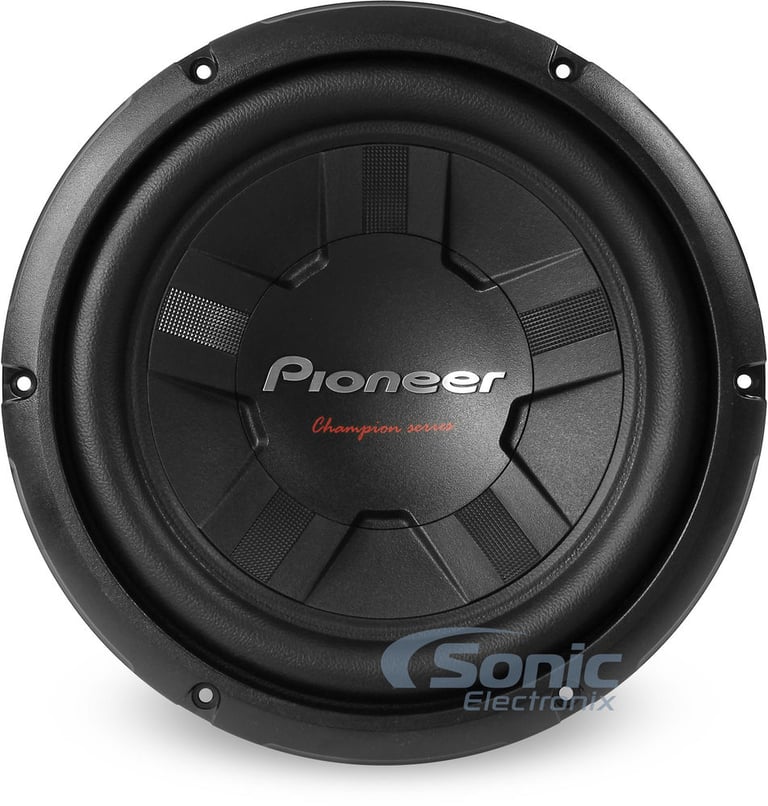

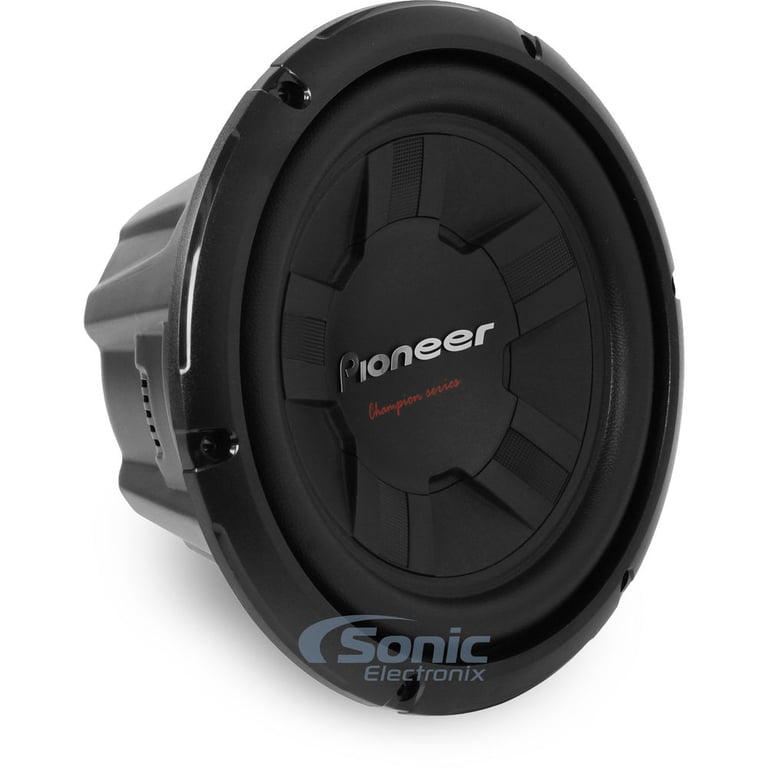

Pioneer TS-W261D4

1200W 10" Champion Series Dual 4 ohm Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 350W
• IMPP Composite Cone
• Dual Layer Fiber Reinforced Elastic Polymer Surround

Learn more about the tsw261d4

We apologize

This item has been discontinued


Loading...
ADS-THR-HA3 main

Flash Logic ADSTHRHA3

T-Harness Kit for Select 2008-Up Honda and Acura Vehicles

-37.50%

$49.99

List price $79.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

XAV-AX8100 main

Sony XAV-AX8100

8.95" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay and Android Auto (SiriusXM Ready)

3
-8.00%

$598.00

List price $649.99

Infinity REF-6532ex (REF6532EXAM)

330W Peak (110W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

6
-38.47%

$79.99

List price $130.00

PRO-X6BM main

DS18 PRO-X6BM (Sold Individually)

500W Peak (250W RMS) 6.5” PRO-X Series Pro Audio Mid-range 8-ohm Loudspeaker

1

Rockford Fosgate Punch P1 P1675-S

240W Peak (120W RMS) 6.75" Punch Series 2 Way Component 4-ohm Speakers

20

$159.99

Product Highlights


• Peak Power: 1200W
• RMS Power: 350W
• IMPP Composite Cone
• Dual Layer Fiber Reinforced Elastic Polymer Surround

Description


Pioneer brand icon

Authorized dealer

General Features:

  • 10" Dual 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 350 watts
  • Newly redesigned injection molded polypropylene composite cone
    • Delivers a durable cone structure for accurate powerful bass
  • Dual layer fiber reinforced elastic polymer surround

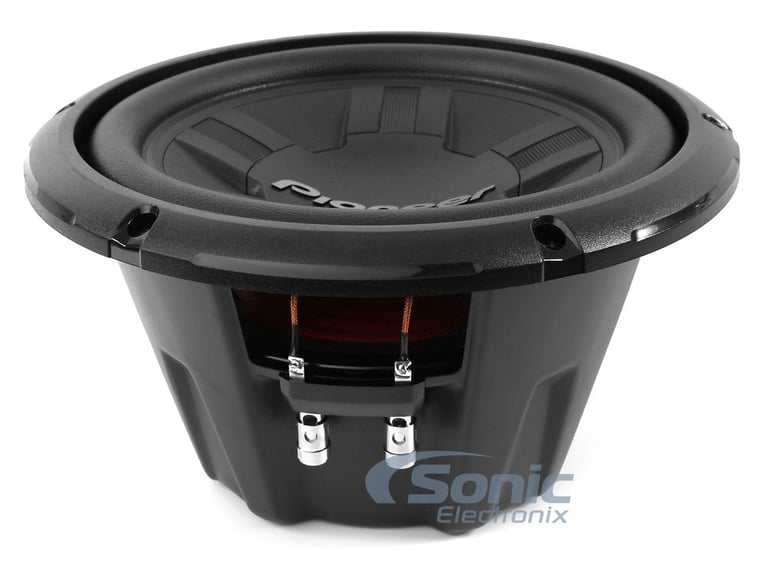

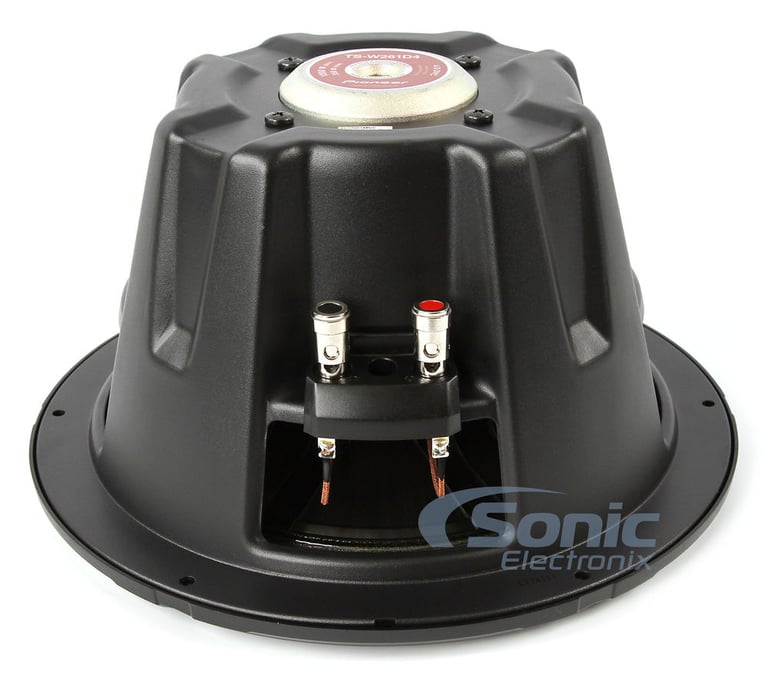

  • Highly rigid, fully enclosed single piece basket
  • Resigned spider assembly allows the subwoofer to produce more accurate, rich bass
  • Top-mount depth: 5.5"
  • Frequency Response: 20 - 125 Hz
  • Sensitivity: 93dB
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W261D4 thumbnail
(newest, current model)
Pioneer TS-W260D4 thumbnail
(previous model, replaced by Pioneer TS-W261D4)
Pioneer TS-W259D4 thumbnail
(previous model, replaced by Pioneer TS-W260D4)
Pioneer TS-W258D4 thumbnail
(previous model, replaced by Pioneer TS-W259D4)
Pioneer TS-W257D4 thumbnail
(previous model, replaced by Pioneer TS-W258D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W261D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W261D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W261D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W261D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 125 Hz
Sensitivity
93 dB
Xmax (millimeters)
10.1 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.8 cubic feet
Optimum Ported Box Volume
1.1 cubic feet
Top-Mount Depth (Mounting Depth)
5.5"
Cutout Diameter
9.3"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
46 Hz
Equivalent Compliance (Vas)
17.7 liters
Total Speaker Q Value (Qts)
1.04
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W261D4

Weight:

11.40lbs

Internal SKU:

tsw261d4

Internal Product ID:

91073
