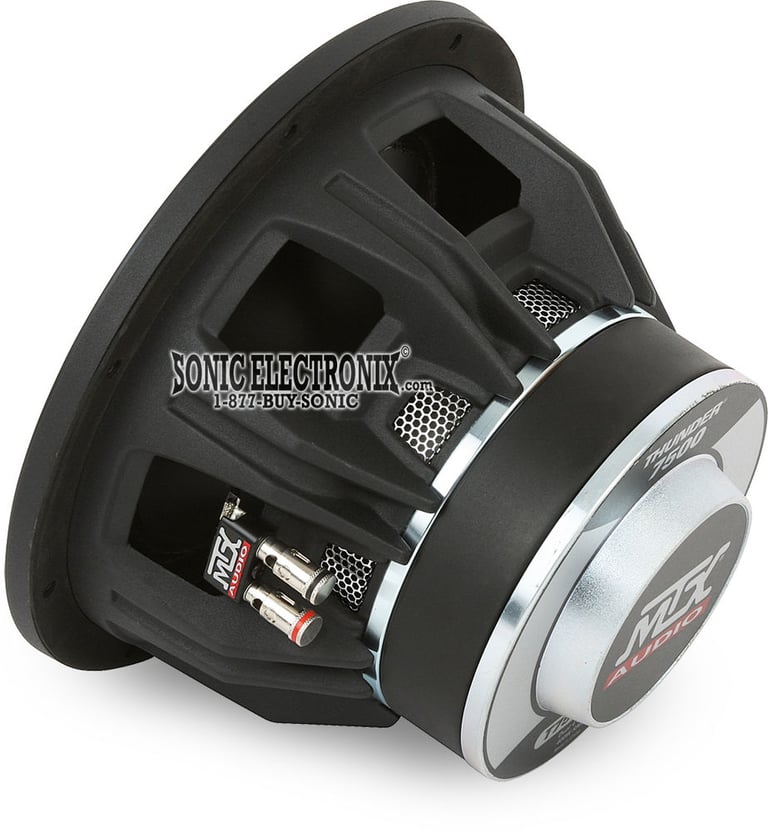

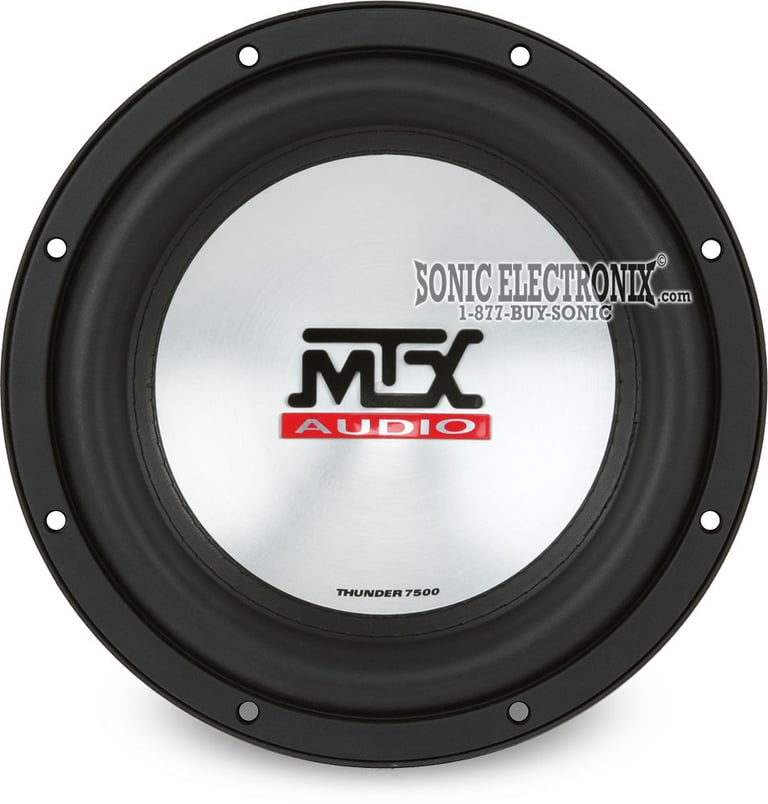

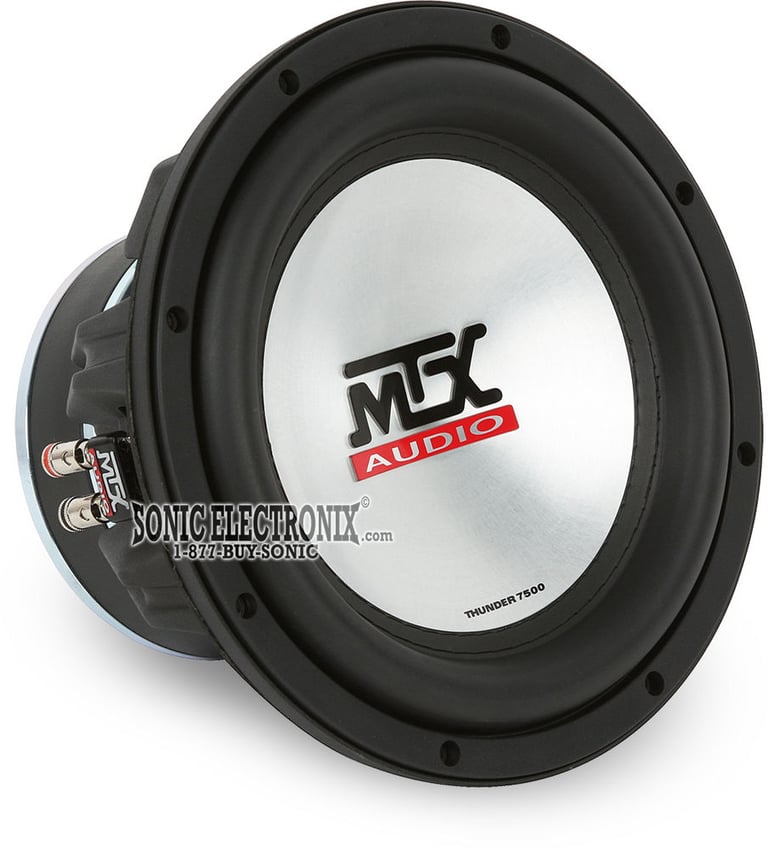

MTX Audio T7510-04

Thunder 7500 10" Single 4 ohm Subwoofer

MTX
Shop all MTX
Product videos
highlight-star-icon

Thunder 7500 10" Single 4 ohm Subwoofer • Power Handling: Peak: 800 watts / RMS: 400 watts • Asymmetrical Linear Drive Technology • Progressive Nomex Spider • Woven Tinsel Leads • 8 Gauge Compression Terminals • Frequency Response: 47 Hz - 150 Hz

Learn more about the t751004

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

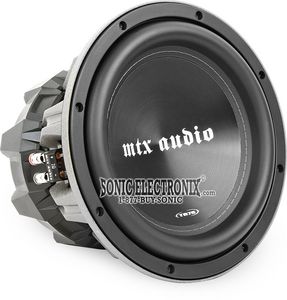

tr751022 thumbnail

MTX Audio TR7510-22

OUR PRICE: $99.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

45
-21.92%

$17.95

List price $22.99

72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

FD1330B main

Scosche FD1330B / FD1330 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

50
-15.14%

$10.99

List price $12.95

99-5804 main

Metra 99-5804 Dash Kit

Install a new Single-DIN car stereo in select 1998-2011 vehicles from Ford, Lincoln, Mercury

3
-42.56%

$26.99

List price $46.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
Limited time!
DMX4710S main

Kenwood DMX4710S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM & iDatalink Maestro Ready)

2
-37.71%

$299.00

List price $480.00

Product Highlights


Thunder 7500 10" Single 4 ohm Subwoofer • Power Handling: Peak: 800 watts / RMS: 400 watts • Asymmetrical Linear Drive Technology • Progressive Nomex Spider • Woven Tinsel Leads • 8 Gauge Compression Terminals • Frequency Response: 47 Hz - 150 Hz

Description


MTX brand icon

Authorized dealer

  • 10" Single 4 Ohm Thunder 7500 Car Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
    • Recommended RMS: 200-400 watts
  • Impedance: 4 ohm
  • Carbon filled IMPP (injection molded polypropylene) cone with aluminum deposition improves the stiffness/weight ratio
  • Nitrile Butadiene Rubber (NBR) Surround
  • Stitched cone surround for enhanced durability
  • FEA optimized roll geometry to increase excursion without reducing surface cone area
  • Precision stamped basket for a stronger structure
  • Spider Plateau Venting that keeps voice coils cool during use
  • Dual layer, progressive spider for greater stability
  • Asymmetrical Linear Drive System (ALDS) which includes flat spider and extended pole piece for a linear, piston like drive
  • Easy installation using industry standard cut out pattern
  • 2-3/8" High temperature aluminum voice coil
  • Voice coil made with 428°F coil wire
  • 8 Gauge spring terminals
  • Woven tinsel leads
  • Precision CNC Machined T-Yoke with aluminum shorting ring
  • 93 oz. Magnet structure for mirror fuzzing power
  • Compatible with sealed and vented enclosures
  • High Xmax of 5/8" for greater excursions and deeper bass
  • Frequency response: 47-150 Hz
  • Sensitivity: 88.4 dB
  • 1-year Manufacturer's warranty

Product history:

MTX TR7510-22 thumbnail
(newest, current model)
MTX T7510-04 thumbnail
(previous model, replaced by MTX Audio TR7510-22)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MTX Audio T7510-04 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MTX Audio T7510-04 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MTX Audio T7510-04 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 MTX Audio T7510-04 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
47 - 150 Hz
Sensitivity
88.4 dB
Xmax (millimeters)
16.50 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Aluminum-Coated Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.45 cubic feet
Maximum Ported Box Volume
1.45 cubic feet
Top-Mount Depth (Mounting Depth)
6-7/10"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

T7510-04

Weight:

21.00lbs

Internal SKU:

t751004

Internal Product ID:

8436

Product and How-to Videos


Customer Ratings & Reviews


MTX Audio T7510-04 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
4.5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

MTX Superwoofer

This sub Hits!! For a 10 inch sub it overpowers all of my friends 12's with just one 10 and im only running it at 200 RMS. It has great excursion. If you run enough power to it, plan on setting off car alarms. Im planning on adding a second.

By Joshua on September 28, 2007

5 found this helpful


Great upgrade

Wow, these things pound! I replaced MTX 4500's with these, there is no comparison. These are on par with my buddies' W6's. Great detail, and they rock when you push them. I am thinking about upgrading my amp just to find a limit with these beasts! They are taking 400 watts per and don't sweat at all. AWESOME!!!

By Marc on July 13, 2007

4 found this helpful




M100 GREY small

KEF M100 Grey

M Series Wired On-Ear Hi-Fi Earphones w/ Inline mic and volume control - Grey

$149.99

List price $149.99

DCX 570.3 small

Hertz DCX 570.3

240W Peak (120W RMS) 5x7" 2-way 4-ohm Dieci Series Coaxial Car Speaker

$199.99

List price $230.00

VX4014 small

Jensen VX4014

Single DIN Bluetooth DVD/CD Car Stereo Receiver w/ Flip Out 7" Touchscreen and Apple Car Play

(1)

$266.95

List price $519.99

Crescent (White) iSound-5205 small

iSound Crescent (iSound-5205)

White Wireless Bluetooth Portable Speaker / Speakerphone with 4 Hour Battery by DreamGear

$29.99

List price $49.99

SPT5124B small

Stinger SPT5124B

4 Gauge Barrier Spade #8 - 25 Pack

$24.99

List price $99.00

AXGMLN-06 small

Axxess AXGMLN-06 Wiing Interface

Install a New Car Stereo and Retain OnStar, Bluetooth and Other Factory Features in select 2006-2007 ION and Vue

$134.99

List price $249.00

010-00697-41 small

Garmin Oregon 450t

High-sensitivity GPS Navigation Receiver with Barometric Altimeter, Photo Navigation Capability and Preloaded Mpas (010-00697-41)

$359.99

List price $499.99

RF-31-EDP small

Excalibur RF-31-EDP

Deluxe 1-way RF Kit

(2)

$48.99

List price $99.99

V124DV2 small

Cerwin Vega V124DV2

1300W Peak (450W RMS) 12" Vega Series Dual 4-ohm Subwoofer

(7)

$149.99

List price $179.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Ford Ranger

2005 Lincoln LS

1964 Ford Thunderbird

1982 Volkswagen Scirocco

1995 Cadillac DeVille

2017 BMW M2

1989 Eagle Medallion

2011 Ford Expedition

1968 Ford Thunderbird

2009 Ford Taurus

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
