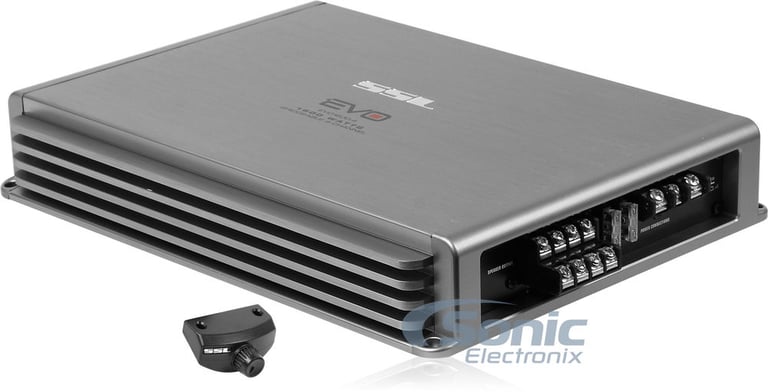

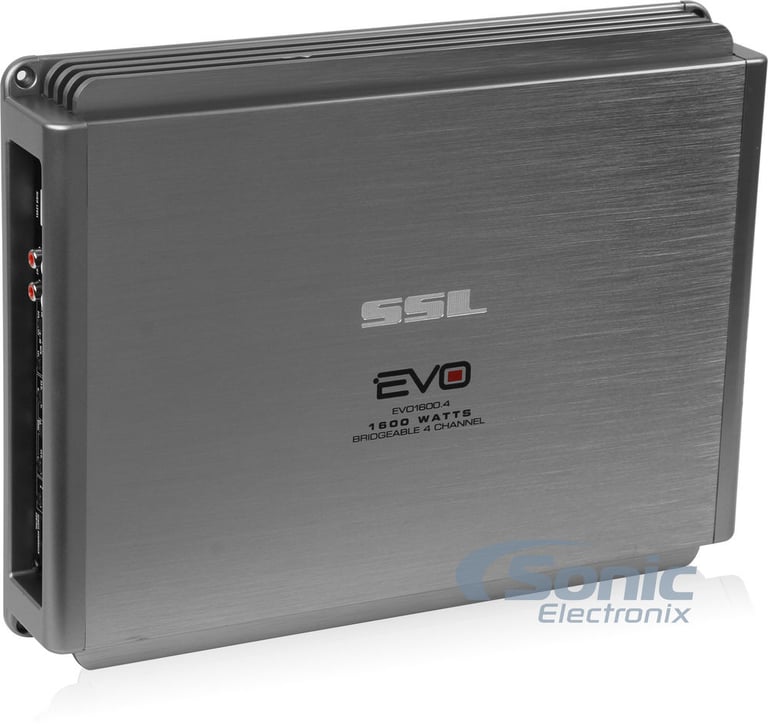

SoundStorm (SSL) EVO1600.4

1600W EVOLUTION Series 4 Channel Class A/B Car Amplifier

Product videos
highlight-star-icon

• 200W x 4 Chan. @ 4 Ohm
• 400W x 2 Chan. @ 2 Ohm
• 800 x 2 Chan. Bridged @ 4 Ohm
• Peak Power: 1600W
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Learn more about the evo16004

We apologize

This item has been discontinued


Loading...
Limited time!
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
-7.69%

$59.99

List price $64.99

P152 main

Rockford Fosgate Punch P1 P152

160W Peak (80W RMS) 5.25" Punch Series 2 Way Coaxial 4-ohm Speakers

27

Product Highlights


• 200W x 4 Chan. @ 4 Ohm
• 400W x 2 Chan. @ 2 Ohm
• 800 x 2 Chan. Bridged @ 4 Ohm
• Peak Power: 1600W
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Description


Sound Storm Labs (SSL) brand icon

Authorized dealer

SSL Platinum Dealer

General Features:

  • Evolution Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 4 chan.
    • 2 ohm: 400 watts x 4 chan.
    • Bridged @ 4 ohm: 800 x 2 chan.
  • Total power output: 1600 watts
  • Pulse Width Modulated MOSFET power supply

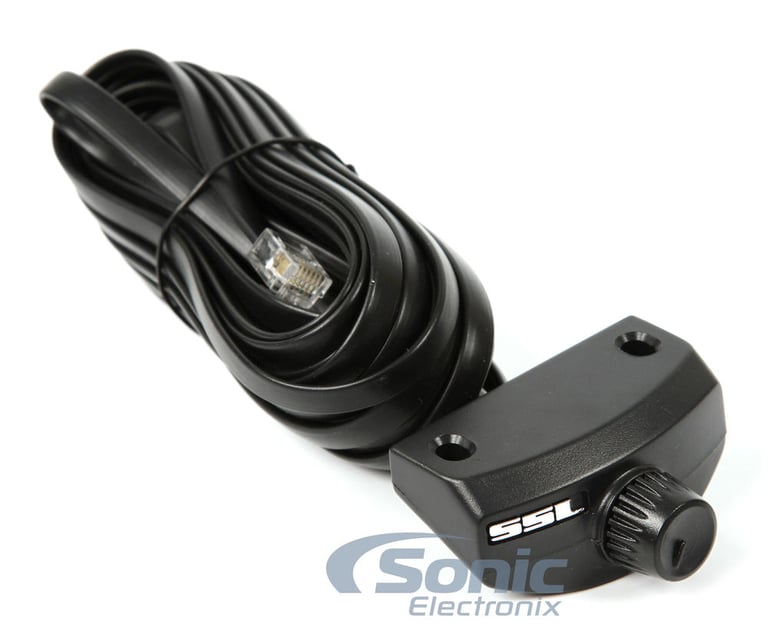

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4, 3 or 2 channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

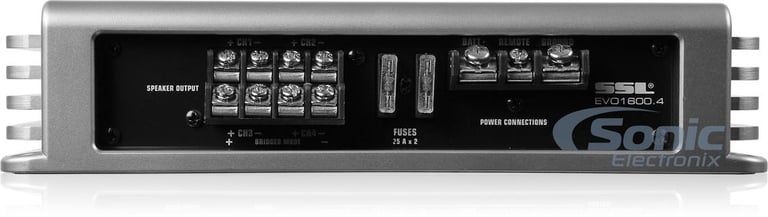

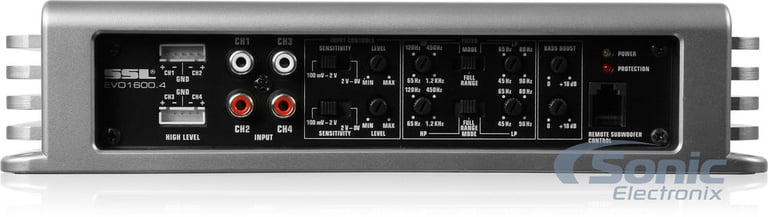

  • Nickel plated RCA, Power and Speaker connections
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 100mV - 2V
    • High level: 2V - 8V
  • Frequency Response: 9 - 50,000 Hz
  • Total Harmonic Distortion (THD): <0.01%
  • Signal to Noise Ration: 103dB
  • Selectable crossover modes: LP / FULL / HP
  • Variable high-pass filter: 65 - 1,200 Hz, 24 dB/octave
  • Variable low-pass filter: 45 - 90 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 45 Hz
  • Fuse Rating: 25A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 2.3"D x 10"W x 13.19"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
21576K main

Select Increments Intra-Pod (21576K)

Custom-fit center console subwoofer enclosure with 8" Kicker Subwoofer for select 1976-1995 CJ7 and Wrangler and Scrambler

1
-7.02%

$529.91

List price $569.94

21576KA main

Select Increments Intra-Pod (21576KA)

Custom-fit center console with 8" Kicker subwoofer and Amplifier for select 1976-2006 vehicles from Jeep

108
-13.10%

$729.90

List price $839.92

63092KA main

Select Increments Sono-Pod (63092KA)

Custom-fit subwoofer enclosure with 10" Kicker Subwoofer and 400W Monoblock

109
-17.58%

$543.90

List price $659.92

63092K main

Select Increments Sono-Pod (63092k)

Custom-fit enclosure with 10" Kicker subwoofer for

2
-11.80%

$343.91

List price $389.94

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 4 channel
RMS Power @ 2 ohms
400 watts x 4 channel
Bridged RMS Power
800 watts x 2 channel
Amplifier Specifications
Series
Evolution Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
65 - 1,200 Hz
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
103 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EVO1600.4

Weight:

9.00lbs

Internal SKU:

evo16004

Internal Product ID:

89527
