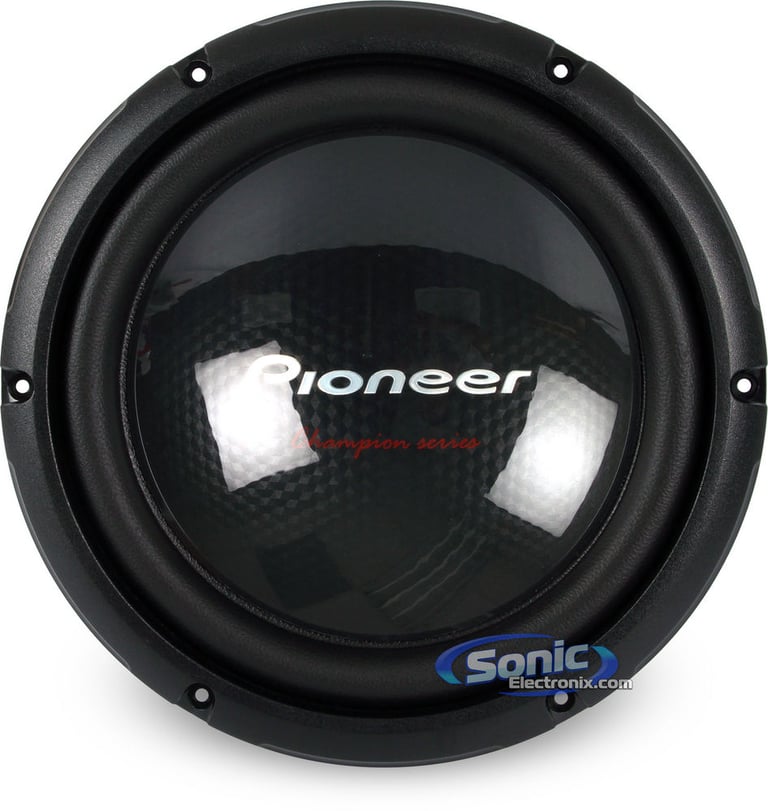

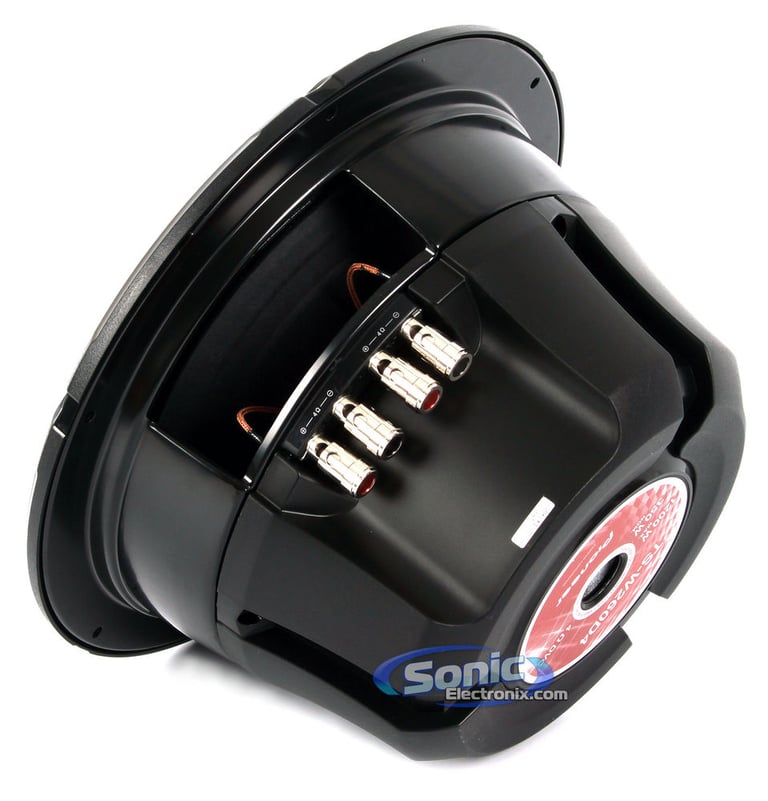

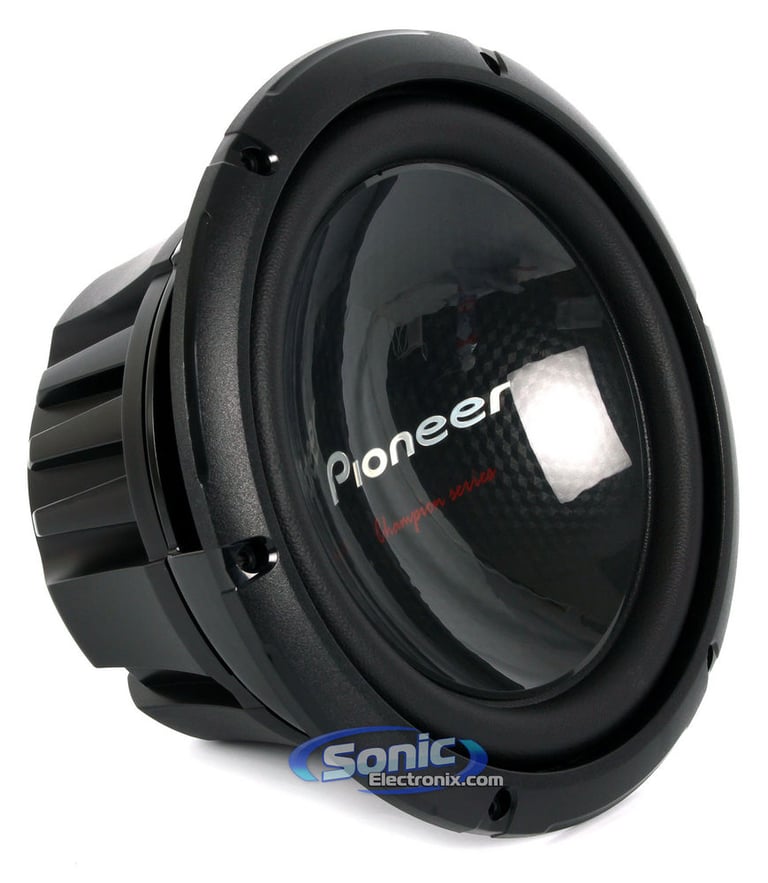

Pioneer TS-W260D4

350W 10" Champion Series Dual 4-Ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 1200W Peak
• 350W RMS
• Dual 4-Ohm Voice Coil
• Composite Seamless Cone
• Dual-Layer Elastic Polymer Surround
• 3/4" Medium Density Fiberboard Construction
• Durable Black Carpeting

Learn more about the tsw260d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw261d4 thumbnail

Pioneer TS-W261D4

OUR PRICE: $59.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

Product Highlights


• 1200W Peak
• 350W RMS
• Dual 4-Ohm Voice Coil
• Composite Seamless Cone
• Dual-Layer Elastic Polymer Surround
• 3/4" Medium Density Fiberboard Construction
• Durable Black Carpeting

Description


Pioneer brand icon

Authorized dealer

IMPP Composite Seamless Cone

An extremely durable, yet lightweight cone is vital to prevent cone failure at high sound pressure levels. Pioneer’s New IMPP Composite Seamless Cones meet this need perfectly while delivering accurate yet powerful bass.

Dual-Layer Elastic Polymer Surround

Another world's first from Pioneer. Dramatically improves durability and lightness for superior response, especially for louder volume.

Large Surface Area

A speaker cone is essential for air to vibrate and carry sound to listeners’ ears. Our Champion Series subwoofer cones have 14% more surface area than conventional subwoofer cones, for louder, better bass reproduction.

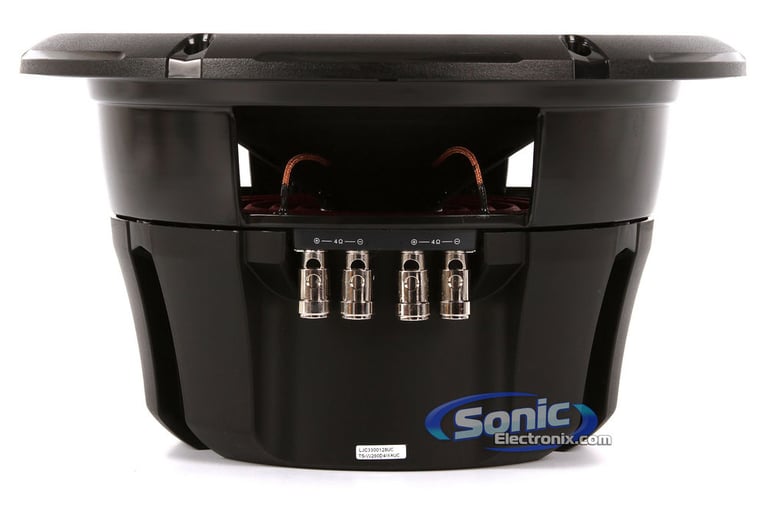

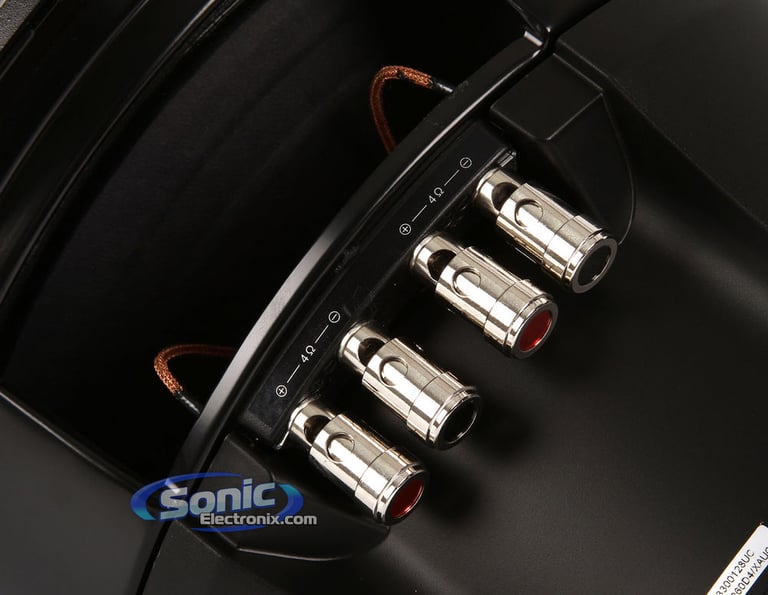

Single/Dual Voice Coil Design

Pioneer offers single voice coil and dual voice coil designs. The Dual 4 ohm subwoofer has the flexibility to be wired at 2 or 8 ohms, to get the most from the amplifier. To simplify installation even further, all speaker terminals have been placed on one side of the subwoofer rather than on opposite sides.

Air Vent

The movement of air within the subwoofer is smoothly channeled for optimal ventilation to ensure a quick response and clear reproduction of bass.

General Features:

  • 10" Dual 4-Ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1,200 watts
    • RMS: 350 watts
  • Impedance: 4 ohm x 2
  • Composite Seamless Cone
  • Dual-Layer Elastic Polymer Surround
  • 4-Layer Copper voice coil with aluminum former
  • Frequency response: 20-250 Hz
  • Resonance Frequency (Fs): 47 Hz
  • Top-mount depth: 5-1/2"
  • Sensitivity: 93dB
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W261D4 thumbnail
(newest, current model)
Pioneer TS-W260D4 thumbnail
(previous model, replaced by Pioneer TS-W261D4)
Pioneer TS-W259D4 thumbnail
(previous model, replaced by Pioneer TS-W260D4)
Pioneer TS-W258D4 thumbnail
(previous model, replaced by Pioneer TS-W259D4)
Pioneer TS-W257D4 thumbnail
(previous model, replaced by Pioneer TS-W258D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W260D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W260D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W260D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W260D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 250 Hz
Sensitivity
93 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene Composite
Woofer Surround
Elastic Polymer
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
47 Hz
Equivalent Compliance (Vas)
11.5 liters
Total Speaker Q Value (Qts)
1.15
Electrical Q Value (Qes)
1.27
Electrical Resistance of Voice Coil (Re)
Dual 3.3 ohm
Mechanical Q Value (Qms)
12.07
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W260D4

Weight:

10.00lbs

Internal SKU:

tsw260d4

Internal Product ID:

63984

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W260D4 thumbnail image

5 star
81%
4 star
19%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.7
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

2 ten subwoofer

These pioneer subwoofer are really good I recommend these to every one that gets these speakers n the rating 5. I like them n my girl love's them

By Dandre on May 27, 2014

29 found this helpful


great subwoofer

Great subwoofer bought 2 of them to replace my old soundstream woofers should have done this a long time ago. extremely efficient, you can't go wrong buying these woofers absolutely awesome.

By Lyons on November 6, 2014

20 found this helpful


feels like 2 12s

I bought a pair of these to go in my 2014 fiesta titanium with the pioneer gm-8601 amp. These things pound. Period. Feels like 2 12s when it comes to bassy music and still super tight when I comes to metal. Rattles the mirrors so bad I can't use em lol. I got them in a super small sealed box (minimum spec) and they still sound great. Would give them a 10/10 but the surround is too small I.m.o. it they could extend further they'd hit way you harder. Still great though, and super value as well. Definitely going back to pioneer next vehicle.

By Allen on March 27, 2014

21 found this helpful


Pioneer TS-W260D4

This is an excellent subwoofer. I own a lot of Pioneer Pro DJ equipment and the audio system in my car is strictly Pioneer, so I went with a brand I trust. I bought a pair of these subwoofers from Sonic Electronix and have them mounted in a custom cabinet in the trunk of my 2004 Mustang. They sound really good and are extremely durable. I would recommend installing them in the trunk as they do put out a lot of pressure. I would definitely recommend this product. The best sounding 10" subs by far.

By Tiger on June 20, 2013

19 found this helpful


Good Bass for your Money

I just ordered this pioneer sub for a box I found to see if they would sound good. I only bought one because I wanted to do it separately to keep track of how much everything costs. I am on a budget, so I went ahead and gave this sub a try. I hooked it up to the stereo in my house where the sub goes and turned it up a bit just to make sure it was working fine. It was hitting pretty good but the thing is I only ran it single. So I imagine it would sound better with both coils connected. I give this sub 5 stars for this price. Very happy.

By coycrown on November 7, 2013

18 found this helpful


great price/performance and features

This sub not only looks nice but sounds great too. I have 2 of these in a ported box that I made to fit the slope of my back seat ( 14" bottom 8" at top and 28" wide) so its not conventional and they still sound great these subs fill the gap to my 6.5's better than any other 10 I have had. I have a lanzar htg257 running these in stereo 2 ohm ,and its OK but these seem to be asking for more power so if you have the coin go with something more powerful . they are not very punchy in the ported box so if you are more interested in a bit harder hit go with a sealed box but the ported gives a wider frequency range as per graphs included on the box . for the price you cannot go wrong with these subs I was impressed with how they sound and would be pretty loud in a truck or hatch , my back seat kills like 20-30% of their volume compared to if you were sitting in the trunk.

By mark on March 29, 2014

19 found this helpful


descent 10" subwoofer

should of bought a 12", lol, but this is a descent subwoofer simple setup and its just a basic upgrade from factory system. good price.

By iveeeezy on March 13, 2014

19 found this helpful


Pioneer TS-W260D4

I am very happy with this subwoofer..It sounds great and is very reliable and even cost effective...Ive always liked Pioneer speakers and this has confirmed why..It is installed in a small compact box and handles awesome.I am sure it would sound even better in a bigger box but I dont have as much space as I would like. .I will continue to buy Pioneer product in the future..

By Mike on November 1, 2013

14 found this helpful


Good value

Very good performance, exactly what I was looking for. Best quality vs price

By Matt on July 23, 2013

15 found this helpful


Now I see why name brand products become name brand products!

These are the first name brand subwoofers I've bought and the difference is obvious between these and off brands. Much deeper bass and WAY louder.
I own a large sedan. A 2000 Toyota Avalon. And it is hard to fill this car with bass. You really need good equipment to make a big car like this pop. These really do pack a punch and put a beating on this vehicle. (I love it.)
I have these in a sealed box at .8 cubic feet for each sub which is what pioneer recommends. The bass is stunning. I've never heard subs in a sealed box this loud. These are actually louder in a sealed box than my other setups were in ported boxes.

By Brian on August 16, 2013

12 found this helpful




GM-D7400M small

Pioneer GM-D7400M

800W Max, Class D Monoblock GM Series Amplifier with New Small-Footprint Design

(16)

$139.99

List price $219.99

No picture

JBL GTO325 3-1/2" GTO Series

$37.99

List price $69.99

TID-735NR small

Farenheit TID-735NR

In-Dash 7" Double DIN Touchscreen TFT-LCD Monitor with DVD, CD, MP3 Receiver

(5)

$244.95

List price $449.99

E17 small

FiiO E17 Alpen

USB Rechargeable Portable Headphone Amplifier & DAC w/ 2 1/8" (3.5mm) Output Jacks for 2 Headphones

(10)

$139.00

List price $159.95

D3-2 small

FiiO D3 Digital to Analog Audio Converter

Converts Digital Audio via Coaxial or Optical Inputs to 2-Channel Analog Audio Output

(6)

$27.99

List price $49.95

SPS-G51244 small

Boston Acoustics SPS-G51244 (P#010001916)

Dual 4 ohms Cone Replacement Kit for 12" G5 Subwoofer (SPS-G512-44, G512-44SPS, G51244-SPS, G51244-SPS)

(3)

$94.95

List price $129.99

MAX675VD small

Clarion MAX675VD (FREE UPGRADE TO MAX675VDII)

Double DIN 7" TFT-LCD Monitor with DVD/CD/MP3 Player and Remote

(3)

$599.99

List price $1099.99

JWTJ97T20-TN small

MTX Audio Thunderform JWTJ97T20-TN (Tan, Loaded)

Jeep Wrangler TJ 1997-2006, 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

$449.95

List price $549.95

VX709+NP509+CCB509 small

Clarion VX709 + NP509 + CCB509 Package

Combo with GPS Navigation + Double DIN 7" TFT-LCD Touchscreen Monitor with Built-in Bluetooth, DVD Multimedia Player, and Remote

$659.98

List price $1629.97

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Ford Taurus

2018 Ford Flex

2014 Subaru Forester

2020 BMW X2

2007 Audi A4 Quattro

2002 Ford Mustang

2019 Mazda 3

2022 Mazda 3

2019 Buick Encore

2008 Dodge Magnum

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
