See all parts that fit your 2022 Cooper

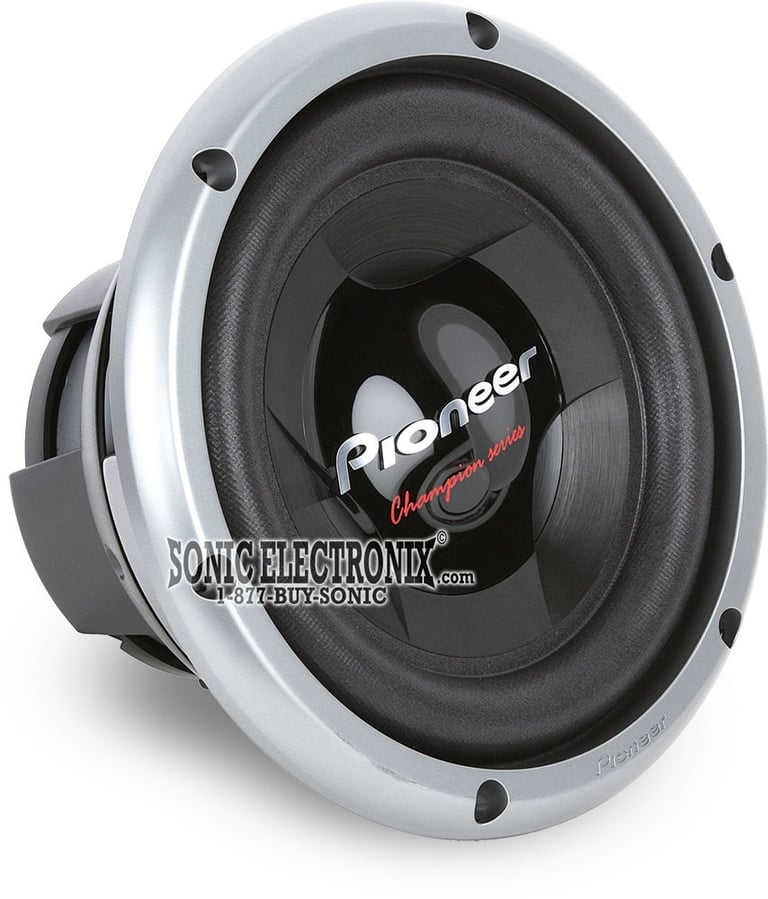

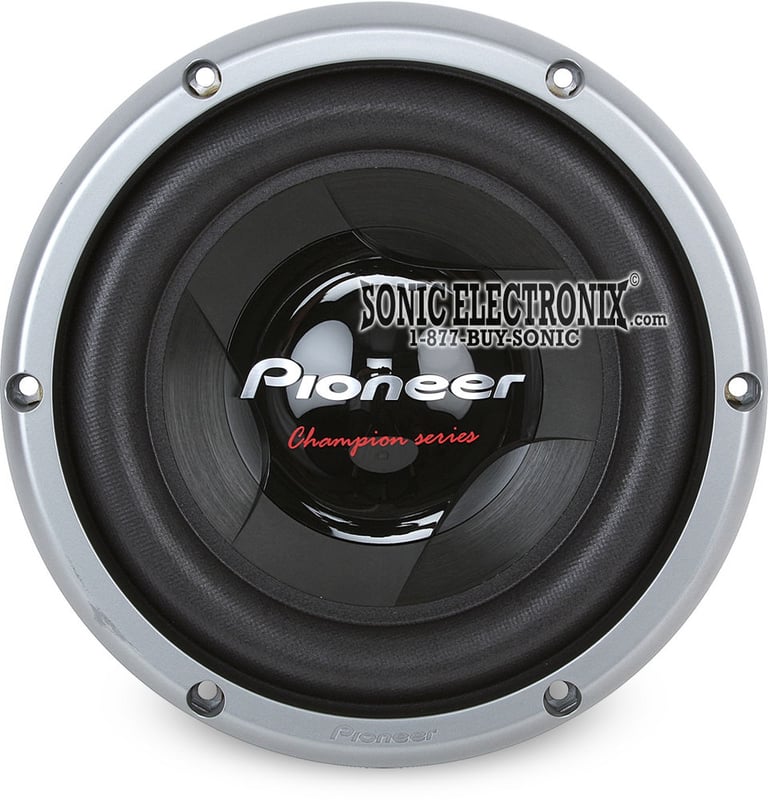

Pioneer TS-W258D4

10" Dual 4 ohm Champion Series Subwoofer w/ Double Stacked Magnet

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

10" Champion Series Subwoofer • 1200 Watts Max • 350 Watts RMS • Dual 4 Ohm • Interlaced Basalt/Carbon Fiber Reinforced IMPP Cone • Three-Layer Fiber Woven Surround • High-Power (74oz) Magnet • Conex Spider

Learn more about the tsw258d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw261d4 thumbnail

Pioneer TS-W261D4

OUR PRICE: $59.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Product Highlights


10" Champion Series Subwoofer • 1200 Watts Max • 350 Watts RMS • Dual 4 Ohm • Interlaced Basalt/Carbon Fiber Reinforced IMPP Cone • Three-Layer Fiber Woven Surround • High-Power (74oz) Magnet • Conex Spider

Description


Pioneer brand icon

Authorized dealer

  • 10" Dual 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 350 watts
  • Impedance: Dual 4 ohm
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Cone reinforcement arcs
  • Wide roll, three-layer fiber woven radial surround
  • Standard top plate
  • Stamped basket with magnet cover
  • 4-Layer long voice coil
  • Double mass high-power (74oz) magnet
  • Frequency response: 20-450 Hz
  • Mounting depth: 5-5/8"

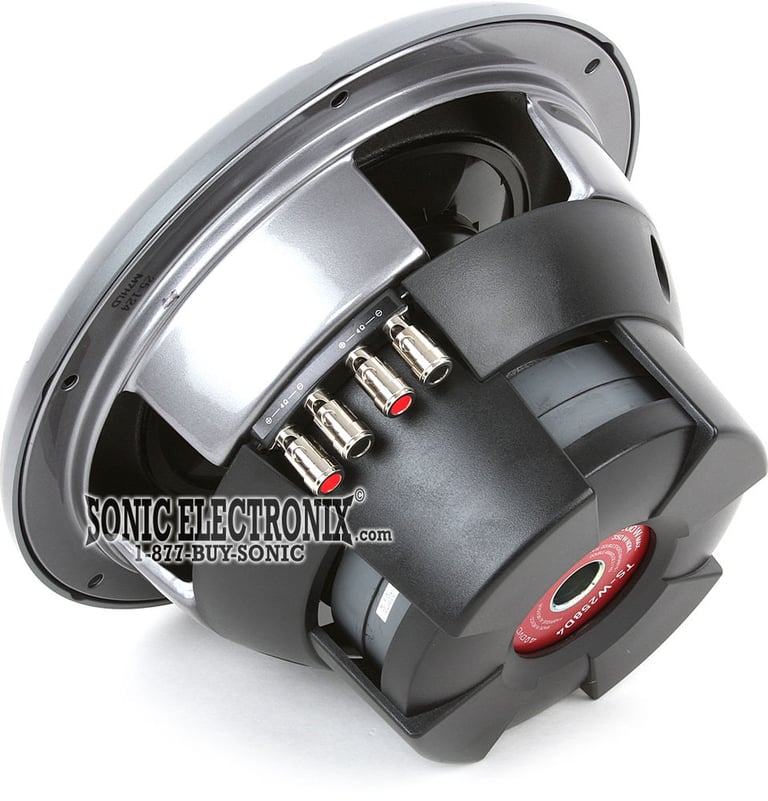

  • Integrated single-sided silver compression wire terminals
  • Conex damper (spider)
  • Molded gasket
  • Phenol resin coated glass cloth voice coil bobbin
  • Copper voice coil wire
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W261D4 thumbnail
(newest, current model)
Pioneer TS-W260D4 thumbnail
(previous model, replaced by Pioneer TS-W261D4)
Pioneer TS-W259D4 thumbnail
(previous model, replaced by Pioneer TS-W260D4)
Pioneer TS-W258D4 thumbnail
(previous model, replaced by Pioneer TS-W259D4)
Pioneer TS-W257D4 thumbnail
(previous model, replaced by Pioneer TS-W258D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W258D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W258D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W258D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W258D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 450 Hz
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Fiber
Woofer Surround
Fiber Woven Radial
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W258D4

Weight:

15.00lbs

Internal SKU:

tsw258d4

Internal Product ID:

16650

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W258D4 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
5
Features
4.9
Design
4.5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Tough Cone

Just got this about 2 weeks ago and this subwoofer packs a punch. The cone has such a hard material that you could use it as a punching ball. hits the extremely deep bass very well in a sealed box. I would highly recommend this product considering its design as well.

By Joseph on June 24, 2010

6 found this helpful


Good Value

Compared to other Subs on the market, this one is not the best, biggest and/or baddest boy on the block by any stretch. It is however a good value, very efficient, attractive, and so far has held up and performed well for me. Basket is a little fat, had open my mounting hole up a bit, but it as real nice binding posts.

Currently it is installed in a box that is under 1 cubic foot and is attempting to fill the entire planet with bass only powered by a 400watt amp (I have a rag top TA). I am able to enjoy fairly balanced sounding music at highway speeds with the top down. If you are looking to attract attention with your bass, this is probably not a good pick for you. If you want a good sub for a good price to listen to music, this sub might be the one for you.

This sub replaced an Orion driver that only lasted a couple of seasons before destroying itself, so this one still needs to live a few more years to impress me completely (I gave it a 4 because it has lasted one season and is still going strong). Also, it does not seem to be as tight as the Orion it replaced, the bass is a little muddy. I own an older pair of Orion Extreme 10" subs that are in my daily driver. They absolutely blow this sub away, but they also cost me $200 each. I thought it might be the car, but I actually took the time to pop one of my Orion drivers in the TA box, and it was awesome so I'm pretty sure the Pioneer is just not as good. Makes me feel better about the $200 price tag on the Orion's. Funny, on paper they look pretty close except for power handling.

Hope this helps.

By Topless In NY on October 27, 2009

8 found this helpful


sddsf

have 2 of these running off of a pioneer amp. s*** hits real hard

By j dub on September 7, 2009

7 found this helpful


pioneer TS-W258D4

For the price of this sub it performs great. Good sound, hits hard. of course i do have a phoenix gold 900 watt amp pushing them but they are holding up good so far.

By Bengalsmt on August 26, 2010

6 found this helpful


Great Sub, NOT Made in China!

I had heard that Pioneer made good products, and so I purchased this subwoofer. One of my main considerations, however, was that I buy one that was NOT made in China--and my particular one was not (I don't know about the country of origin as of today, so be sure to check before you buy if this is important to you). This speaker has exceptional frequency response, and it seems to sound good whether I limit the response or not--as either a sub-woofer or woofer, in other words. It seems to be constructed well, with adequate documentation.

By BrianKV4EX on March 21, 2011

5 found this helpful


Great Product!

Simply amazing!! i have one of these bad boys in my Nissan frontier truck and it bumps very nice!! i would get one again in a heartbeat, i just don't need another one

By Chris on June 17, 2010

5 found this helpful
