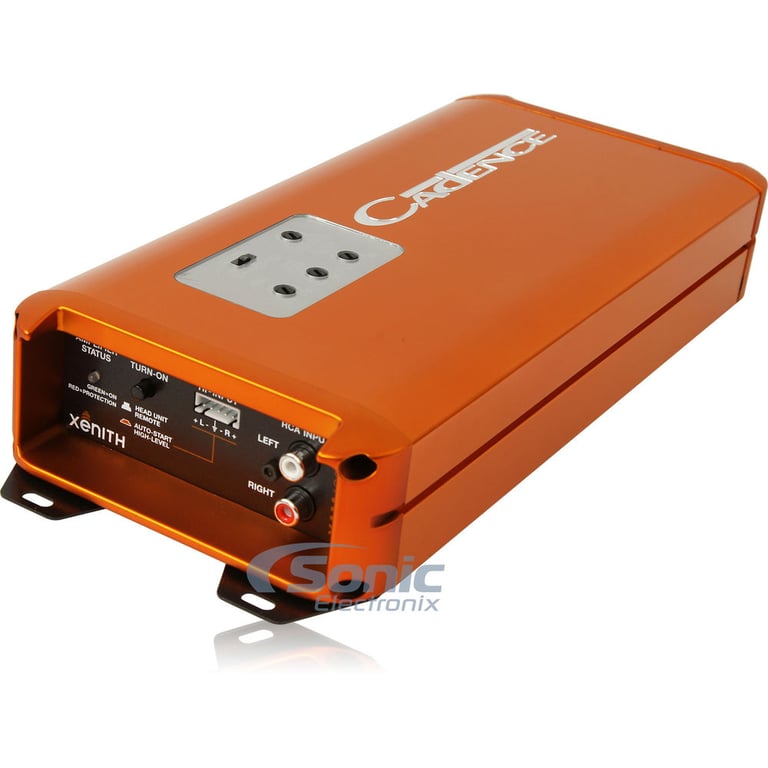

Cadence XAM400.2

800W 2-Channel Xenith (XAM) Series Class D Full Range Amplifier

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• RMS: 125W x 2 @ 4 ohm, 200W x 2 @ 2 ohm, Bridged, 4 ohm: 400 watts x 1 chan.
• Total Peak Power: 800W
• Full Range Digital Amplifier
• Top Mount Backlit Plexiglass control area
• Aluminum Extruded Chassis
• 11.18" L x 5.00" W x 2.00" H

Learn more about the xam4002

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-8151 main

Metra 99-8151 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2001-2005 IS300 (Matte Black)

8
-41.19%

$19.99

List price $33.99

SOHTL-20 main

CRUX SOHTL-20 Wiring Interface

Install new car stereo and retains accessory power and other factory features in select 2003-2016 vehicles from Toyota, Scion, Lexus

-35.71%

$81.00

List price $126.00

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

iLX-507 main

Alpine iLX-507

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wireless Android Auto (SiriusXM and iDataLink Maestro Ready)

17
-17.03%

$779.95

List price $940.00

CS65C main

Crunch CS65C

600W Peak (120W RMS) 6.5" CS Series 2-Way 4-ohm Component Speaker System

28
-30.01%

$34.99

List price $49.99

DB6502 main

Polk Audio DB6502 (DB 6502)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

8

$200.00

List price $209.99

Pioneer MVH-S622BS

Double DIN Digital Media Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-10.00%

$179.99

List price $200.00

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Product Highlights


• RMS: 125W x 2 @ 4 ohm, 200W x 2 @ 2 ohm, Bridged, 4 ohm: 400 watts x 1 chan.
• Total Peak Power: 800W
• Full Range Digital Amplifier
• Top Mount Backlit Plexiglass control area
• Aluminum Extruded Chassis
• 11.18" L x 5.00" W x 2.00" H

Description


Cadence brand icon

Authorized dealer


General Features:

  • 2-Channel Xenith (XAM) Series Class D Full Range Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 2 chan.
    • 2 ohm: 200 watts x 2 chan.
    • Bridged, 4 ohm: 400 watts x 1 chan.
  • Max power output: 800 watts x 1 chan.
  • Minimum THD: < 0.1%
  • Frequency Response: 10Hz - 40,000Hz
  • Signal-to-Noise Ratio: > 97dB
  • Damping Factor: > 200 @ 100Hz
  • Channel Separation: > 50dB
  • Preamp Input Voltage: 200mV - 8V
  • Fuse Rating: 40A X 1
  • Full Range Digital Amplifier
  • Top Mount Backlit Plexiglass control area
  • Low Level RCA Inputs
  • High Level Inputs with Auto Start Technology
  • Custom Engraved Logo
  • Aluminum Extruded Chassis
  • Custom Molded Plastic End Caps
  • Dimensions: 11.18"D x 5.00"W x 2.0"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
Bridged RMS Power
400 watts x 1 channel
Amplifier Specifications
Series
Xenith Series
Amplifier Class
D
Number of Channels
2-Channel
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 150 Hz
Low-Pass Crossover Frequency
50 - 150 Hz
Signal-to-Noise Ratio
>97 dB
Channel Separation
>50 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XAM400.2

Weight:

5.09lbs

Internal SKU:

xam4002

Internal Product ID:

94111
