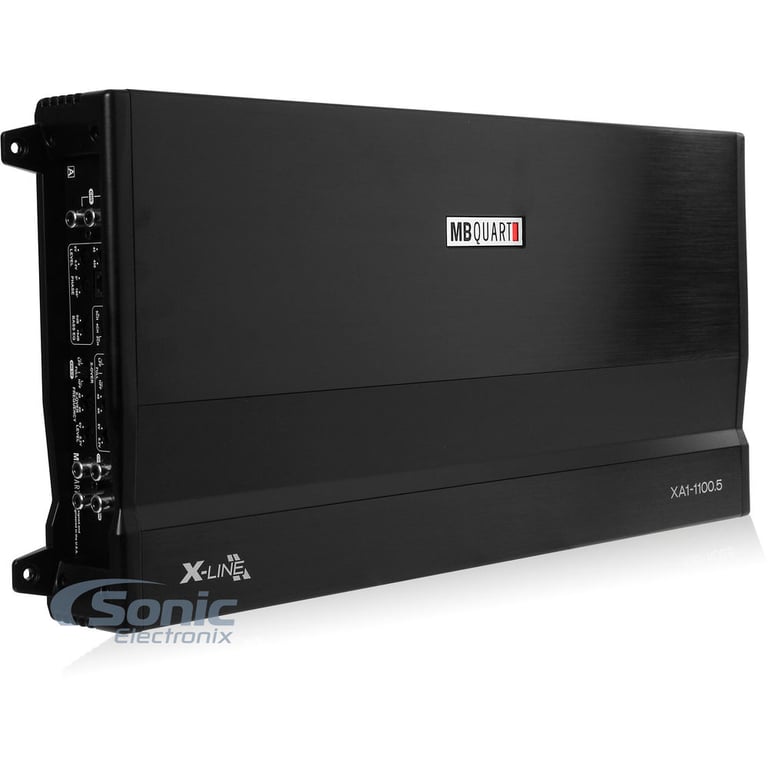

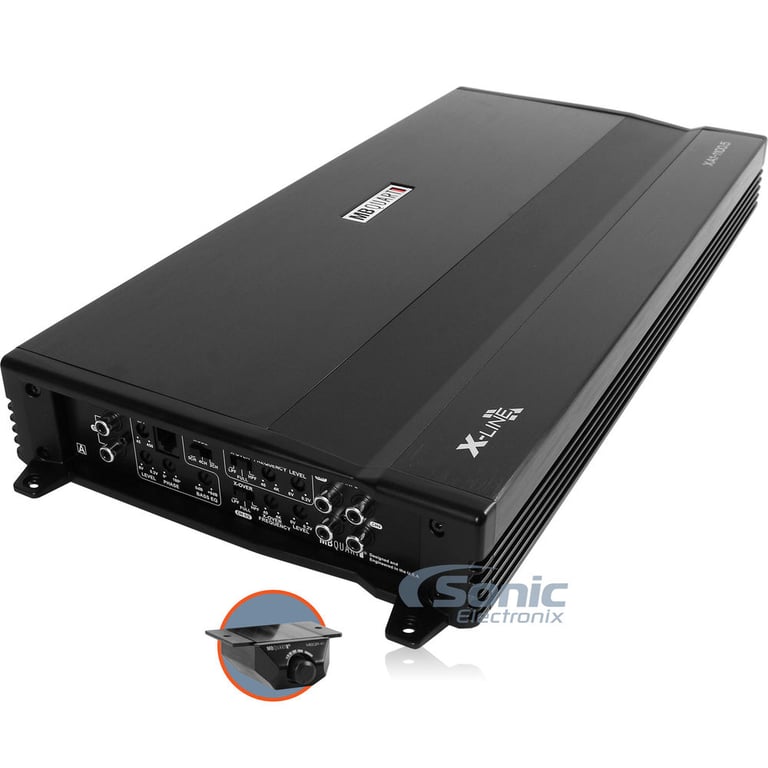

MB Quart XA1-1100.5

1100W 5-Channel X-Line Series Class A/B Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• RMS: 75W x 4 @ 4 ohm, 150W x 4 @ 2 ohm, 300W x 2 @ 4 ohm Bridged , Sub Ch: 500W x 1 @ 1ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Elaborate preamplifier with extended control
• Frequency Response: 10 - 45,000 Hz

Learn more about the xa111005

We apologize

This item has been discontinued


Loading...
NIS02B3 main

GROM Audio NIS02B3 Infiniti and Nissan Bluetooth Streaming Kit (GROM-BT3-NIS02)

Add Bluetooth Hands Free Calling and Music Streaming to Select 2004-2013 Infiniti and Nissan Factory Radios

4
51KST2504 main

Kicker 51KST2504

450W Peak (150W RMS) 1" KS Series 4-ohm Car Tweeters

1
-14.29%

$119.99

List price $139.99

PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4
Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Product Highlights


• RMS: 75W x 4 @ 4 ohm, 150W x 4 @ 2 ohm, 300W x 2 @ 4 ohm Bridged , Sub Ch: 500W x 1 @ 1ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Elaborate preamplifier with extended control
• Frequency Response: 10 - 45,000 Hz

Description


MB Quart brand icon

Authorized dealer

General Features:

  • X-Line Series 5-Channel Class AB Amplifier
  • Ch 1 - 4 RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
    • Bridged 4 ohm: 300 watts x 2 chan.
  • Subwoofer Power Rating:
    • 1 ohm: 500 watts x 1 chan.
  • Fluid-FETS hand selected insulated MOSFETS
  • Focused mass heat sink designs
  • Q-Stasis preamp stage with wide input range
  • Elaborate preamplifier with extended control
  • Easy access mounting tabs for a secure install
  • LED power (green) and protect (red) indicators

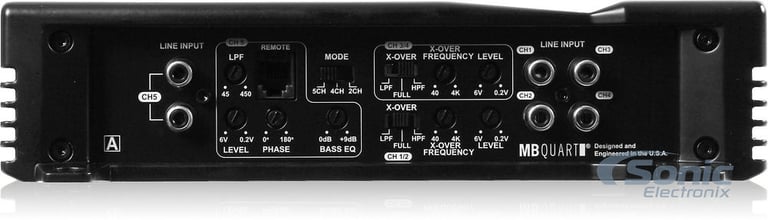

  • Selectable input modes: 2ch / 4ch / 5ch
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 10 - 45,000 Hz
  • Signal to Noise Ratio: >90 dB
  • Total Harmonic Distortion (THD): <0.5%
  • Ch 1 - 4 Selectable crossover modes: LPF / Full / HPF
  • Variable low-pass filter: 40 - 4,000 Hz
  • Variable high-pass filter: 40 - 4,000 Hz
  • Sub Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Sub Variable low-pass filter: 45 - 450 Hz
  • Variable phase control: 0 - 180°
  • Recommended Fuse Rating: 150A x 1 (not included)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9.20"W x 20.0"L x 2.20"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(10)

$259.99

List price $323.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$499.99

List price $600.00

HD900/5 small

JL Audio HD900/5

• 100 watts x 4 channel + 500 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 150 watts x 2 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 1.5 ohm Stable 5-Channel Amplifier

(23)

$1549.99

List price $1549.99

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$649.99

List price $779.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
Not Specified by Manufacture
RMS Power @ 2 ohms
Not Specified by Manufacture
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Series
X-Line Series
Amplifier Class
A/B
Number of Channels
5-Channel
Total RMS Power Output
1100 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Fuse Rating
150A X 1 In-Line Fuse Recommended
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XA1-1100.5

Weight:

15.00lbs

Internal SKU:

xa111005

Internal Product ID:

94866
