Name: MB Quart XA1-800.4
Brand: MB Quart
SKU: xa18004
Price: 109.95 USD
Availability: Discontinued
Rating: 4.7500 (4 reviews)

Shop all MB Quart

by MB Quart

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

MB Quart XA1-800.4 Image 1 — MB Quart XA1-800.4

MB Quart XA1-800.4 Image 2 — MB Quart XA1-800.4

MB Quart XA1-800.4 Image 3 — MB Quart XA1-800.4

MB Quart XA1-800.4 Image 4 — MB Quart XA1-800.4

MB Quart XA1-800.4 Image 5 — MB Quart XA1-800.4

MB Quart XA1-800.4 Image 6 — MB Quart XA1-800.4

Product videos

Product highlights

• RMS: 100W x 4 @ 4 ohm, 200W x 4 @ 2 ohm, Bridged: 400W x 2 @ 4 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Elaborate preamplifier with extended control
• Frequency Response: 10 - 45,000 Hz

Learn more about the xa18004

Product Highlights

Description

Authorized dealer

General Features:

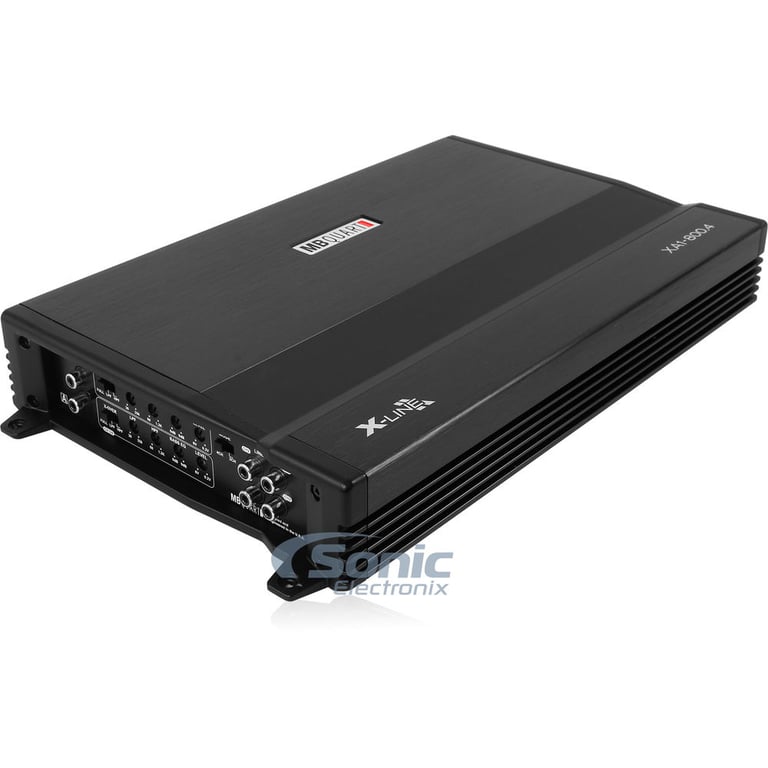

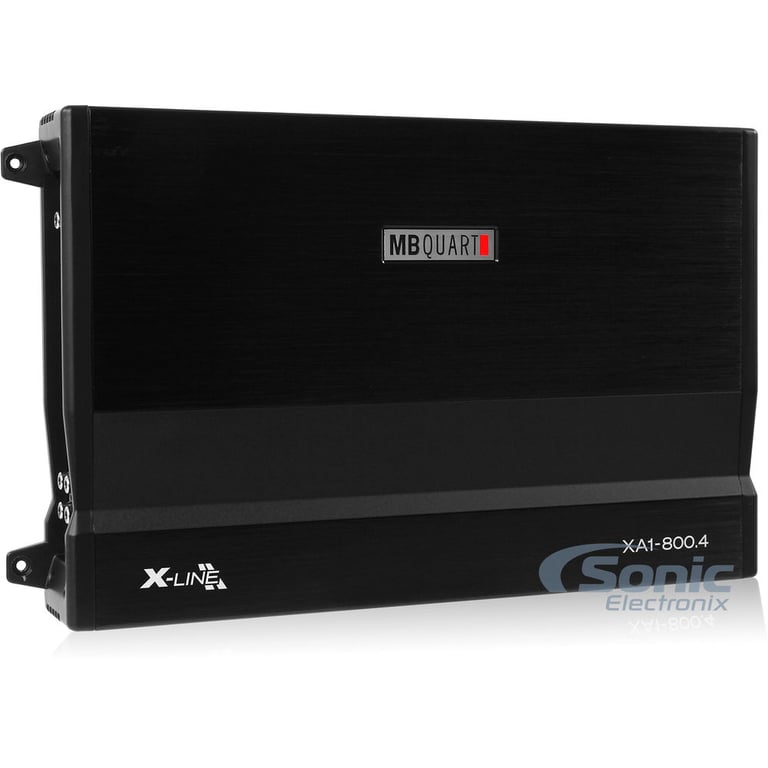

X-Line Series 4-Channel Class SQ A/B Amplifier
RMS Power Rating:

4 ohm: 100 watts x 4 chan.
2 ohm: 200 watts x 4 chan.
Bridged 4 ohm: 400 watts x 2 chan.

Fluid-FETS hand selected insulated MOSFETS
Focused mass heat sink designs
Q-Stasis preamp stage with wide input range

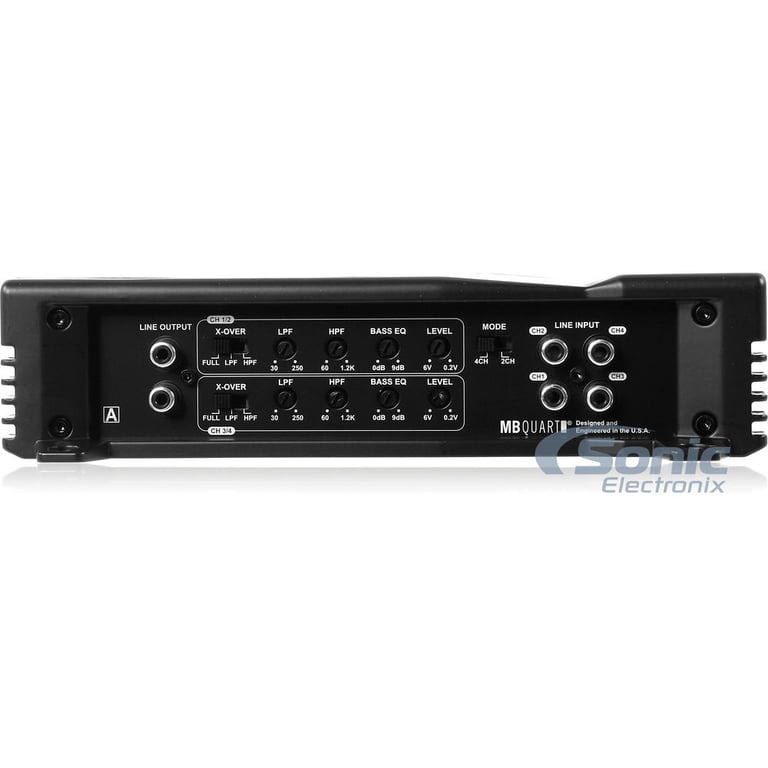

Elaborate preamplifier with extended control
Easy access mounting tabs for a secure install

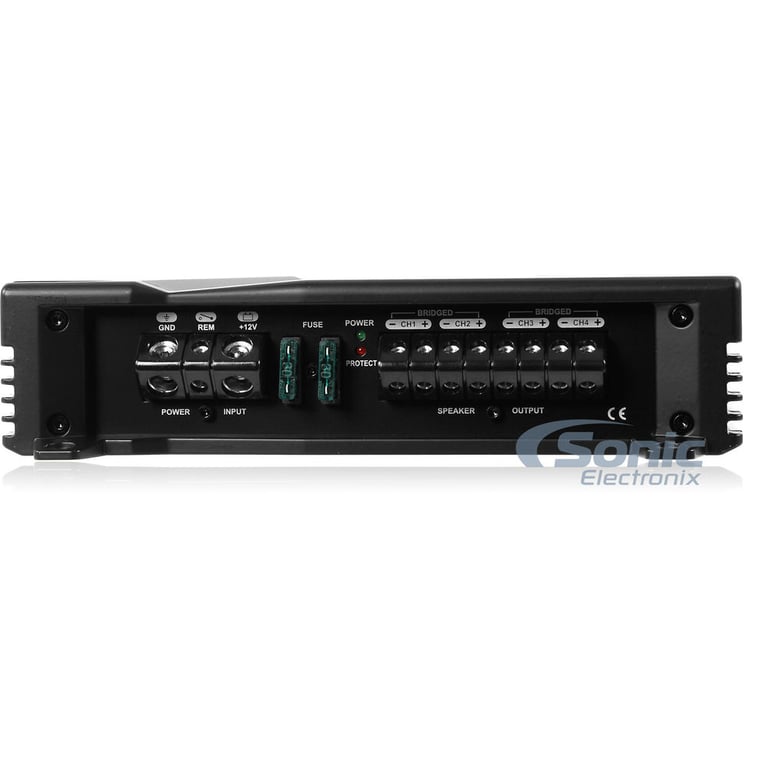

LED power (green) and protect (red) indicators
Input sensitivity: 200mV - 6V
Frequency Response: 10 - 45,000 Hz
Signal to Noise Ratio: >90 dB
Total Harmonic Distortion (THD): <0.5%
Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
Variable high-pass filter: 60 - 1,200 Hz
Variable low-pass filter: 30 - 250 Hz
Fuse Rating: 30A x 2
CEA-2006 compliant amplifier
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 9.20"W x 15.70"L x 2.20"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Similar Products

Best selling similar products

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

200 watts x 4 channel

Bridged RMS Power

400 watts x 2 channel

Amplifier Specifications

Series

X-Line Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

800 watts

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.5%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

60 - 1,200 Hz

Low-Pass Crossover Frequency

30 - 250 Hz

Signal-to-Noise Ratio

>90 dB

Bass Boost

0 - 9 dB

Fuse Rating

30A x 2

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		75%
4 star		25%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		4.8
Features		5
Design		4.8
Usability		5

Customer Reviews

Sort by:

Great value

They price matched from another company so I paid 99.99. Randy was awesome and helped order my entire system. I also price matched two mb quart components sets the xc1 216 for 132.00 so all four doors for 132.99. With this amp everything rocks.

By Ice on August 15, 2016 Checkmark Icon

Verified purchase

2 found this helpful

Report abuse

Great value

Great product for the price building a low budget system for one of my old school cars. Can't wait until everything is done

By Hudson on April 11, 2016

2 found this helpful

Report abuse

Lots of power

Amplifier still works after 6 months. It does run hot. I had to install cooling fans to keep it from shutting down after about 30 mins of loud volume. I expected this with an a/b amp. I would buy another one in a second.

By alan on November 3, 2016 Checkmark Icon

Verified purchase

1 found this helpful

Report abuse

Great Value!

Good amplifier!!! Item arrived in time! I buy another product at sonic electronic in the future!!

By Teiva on July 14, 2016 Checkmark Icon

Verified purchase

Report abuse
