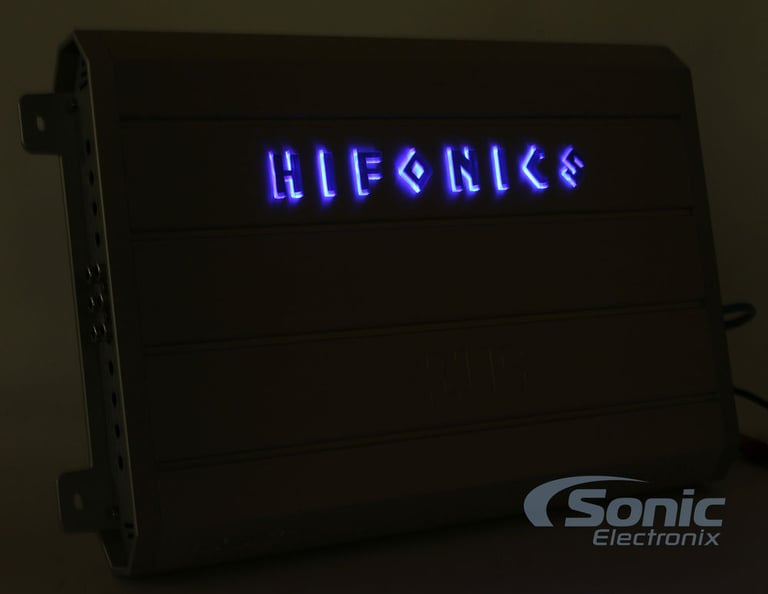

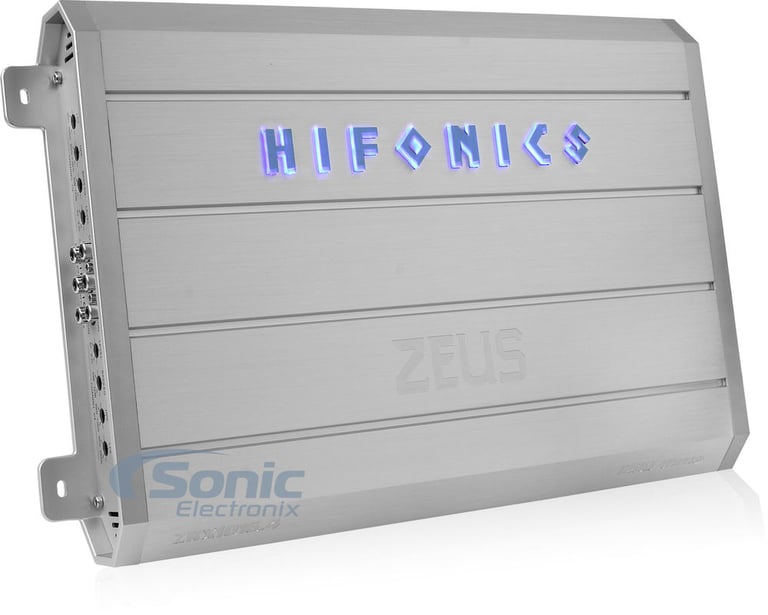

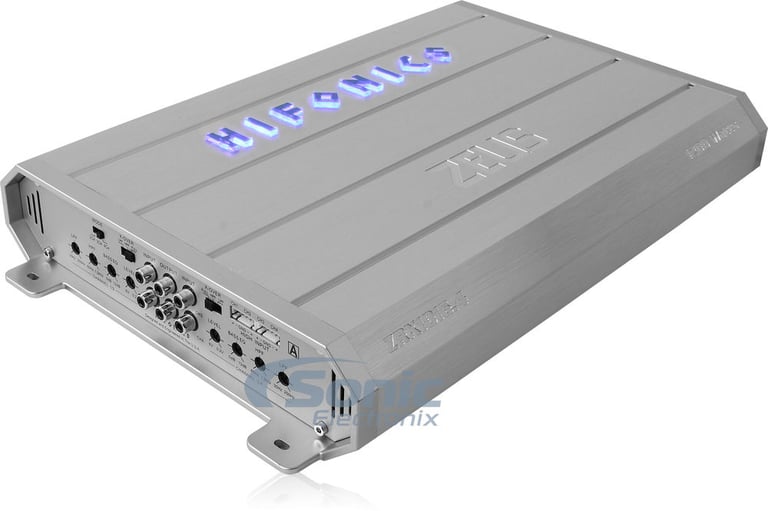

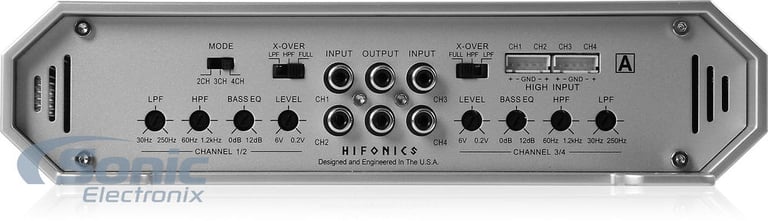

Hifonics Zeus ZRX1016.4

1000 Watt 4 Channel Zeus Series Class AB Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• Max Power: 125W x 4 @ 4 ohm, 250W x 4 @ 2 ohm
• Total Peak Power: 2000W
• Variable Low and High Pass Filters
• Dimensions: 10" W x 15.7" L x 2.4" H

Learn more about the zrx10164

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

82-8147 main

Metra 82-8147

6"-6 3/4" Speaker Adapter for select 2002-2024 vehicles from Toyota, Subaru, Lexus

7
-44.45%

$24.99

List price $44.99

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
ADS-MIC1 main

iDataLink ADS-MIC1

Factory Microphone Retention Interface Module for select 2010-2024 vehicles from Ford, Subaru, Toyota (Requires ADS-MSR, MRR, or MR2 Module)

1
-20.00%

$79.99

List price $99.99

SWRSU-38D main

Crux SWRSU-38D

Install a New Car Stereo and Retain Harman Kardon Amplifier, Steering Wheel Controls and Other Factory Features in select 2015-2022 vehicles from Subaru

1
-35.71%

$125.55

List price $195.30

95-8906HG main

Metra 95-8906HG Dash Kit

Install a new Double-DIN car stereo in select 2015-2019 Outback and Legacy (High Gloss Black)

-10.81%

$32.99

List price $36.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

VSP69 main

NVX VSP69

900W Peak (300W RMS) 6x9" V-Series 2 Way Coaxial Car Speakers

56
-16.67%

$109.99

List price $131.99

ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

14
-18.19%

$44.99

List price $54.99

Product Highlights


• Max Power: 125W x 4 @ 4 ohm, 250W x 4 @ 2 ohm
• Total Peak Power: 2000W
• Variable Low and High Pass Filters
• Dimensions: 10" W x 15.7" L x 2.4" H

Description


Hifonics brand icon

Authorized dealer



General Features:

  • Zeus Series 4-Channel Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 250 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
  • Max power output: 1000 watts
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs
  • Variable high-pass filter (60-1200 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Frequency Response: 10-45,000 Hz
  • Old School Hifonics heatsink provides superior heat dissipation
  • Military grade PCB construction
  • Simpatico coil design
  • Hifonics surface mount design

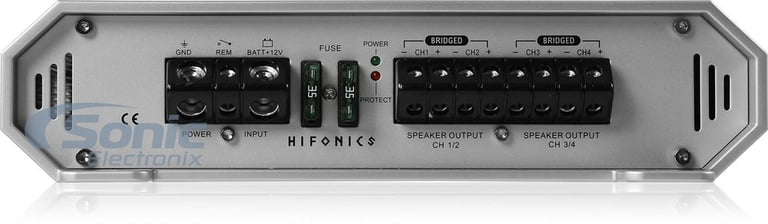

  • DC, short circuit, thermal and overload protection
  • 4 gauge power and ground wiring is recommended for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 10"W x 15.7"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Hifonics ZRX1016.4 thumbnail
(newest, current model)
Hifonics ZRX1000.4 thumbnail
(previous model, replaced by Hifonics Zeus ZRX1016.4)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
125 watts x 4 channel
Peak Power @ 2 ohms
250 watts x 4 channel
Bridged Peak/Max Power
500 watts x 2 channel
Amplifier Specifications
Series
Zeus Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRX1016.4

Weight:

9.40lbs

Internal SKU:

zrx10164

Internal Product ID:

94886

Product and How-to Videos


  • Maxxsonics Hifonics Zeus + Brutus Car Amplifiers | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Hifonics Zeus ZRX1016.4 thumbnail image

5 star
80%
4 star
10%
3 star
5%
2 star
2%
1 star
2%



Durability
4.5
Value
4.7
Features
4.5
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great product

The following review is for a previous version (ZRX1000.4).

Fast shipping nice amp I hooked it up and the sound was amazing clear as ever

By Tae on March 21, 2014

45 found this helpful


Amp of the gods Zeus

The following review is for a previous version (ZRX1000.4).

This amp puts out so much power your gains are down to a minimum excellent product would recommend this product to all who love powerful sounds in your vehicles

By tito on May 12, 2014

41 found this helpful


Great little amp

The following review is for a previous version (ZRX1000.4).

Great amp for a great price point nothing that will blow your socks off, but will not disapoint either.

By john on January 13, 2014

41 found this helpful


pretty good

I run four,6.5s and four 6x9s on this amp and it does a darn good job, it will get hot if you play it at a super high volume ,but at a moderate level it will play without getting hot for hours .for running this amp at a 2 ohm load an play as well as it does i give this boy a 5 star

By dagwood on April 25, 2015

39 found this helpful


Hifonics for now on

The following review is for a previous version (ZRX1000.4).

I bought this amp for my lil bro's first system. We amped his speakers, made a huge difference. Very happy with this product

By Mike on January 20, 2014

37 found this helpful


good amp

The following review is for a previous version (ZRX1000.4).

this is a nice little amp for the price, you wont go wrong with this although it does run pretty hot it has never gone to protected on me.

By rene on August 22, 2013

32 found this helpful


GREAT DEAL

The following review is for a previous version (ZRX1000.4).

Great Performance !!! 4 speaker and 1 SUB easy handling!! Great Sound.. Highly Recommended

By Kikin on October 15, 2013

31 found this helpful


Good Amp Great Price

The following review is for a previous version (ZRX1000.4).

Amp is nice have it hooked up to my mids and highs and its so loud it makes my ears ring and very clear i would recommend this amp to anyone who needs an amp in this price range.

By Nickthename on June 30, 2014

32 found this helpful


Good value

I ordered this amp got it within 5 days. Installed and sounds great. Very good price too

By gus on May 24, 2015

30 found this helpful


Great product

Recommend it to anyone looking for great quality sound.I will be buying again in a near future.

By Rob on May 29, 2015

30 found this helpful
