See all parts that fit your 2017 Edge

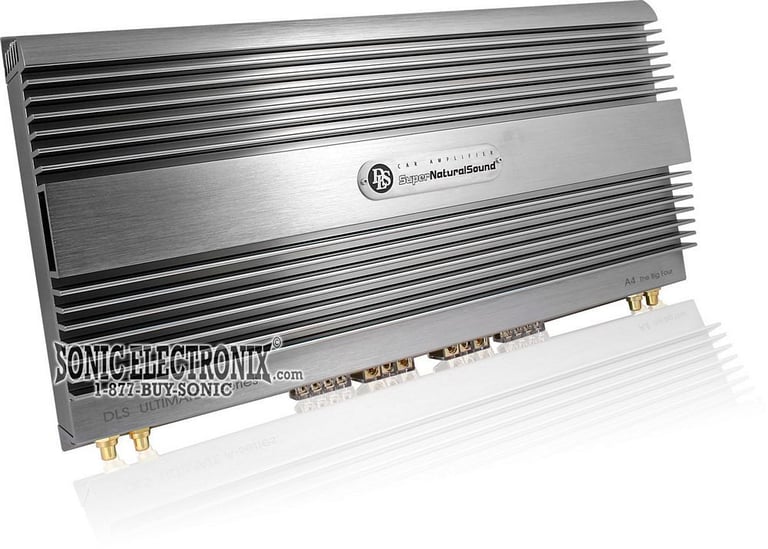

DLS Ultimate A4

"The Big Four" 4-Channel Amplifier (Ultimate A 4 -- 10-34400)

DLS
Shop all DLS
Product videos
highlight-star-icon

Ultimate Series "The Big Four" 4-Channel Class AB Car Amplifier • 85W x 4 chan. @ 4 ohm • 145W x 4 chan. @ 2 ohm • 220W x 4 chan. @ 1 ohm • 250W x 2 chan. @ 4 ohm • 400W x 2 chan. @ 2 ohm • Built-in fan with output for external control

Learn more about the dlsa4

We apologize

This item has been discontinued


Loading...
APX-S8-FO1 main

iDataLink Maestro APX-S8-FO1 Dash Kit and Harness

APX 8" Floating Stereo Dash Kit and Harness for select 2011-2022 vehicles from Ford, Lincoln

1
-17.86%

$229.99

List price $279.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

C2-600 main

JL Audio C2-600

120W RMS 6" C2 Series 2-Way 4-ohm Component Speaker System

5
ADS-MRR main

iDataLink Maestro RR Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

35
-17.39%

$189.99

List price $229.99

Product Highlights


Ultimate Series "The Big Four" 4-Channel Class AB Car Amplifier • 85W x 4 chan. @ 4 ohm • 145W x 4 chan. @ 2 ohm • 220W x 4 chan. @ 1 ohm • 250W x 2 chan. @ 4 ohm • 400W x 2 chan. @ 2 ohm • Built-in fan with output for external control

Description


DLS brand icon

Authorized dealer

  • Ultimate Series "The Big Four" 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 85 watts x 4 chan.
    • 2 ohm: 145 watts x 4 chan.
    • 1 ohm: 220 watts x 4 chan.
    • Bridged, 4 ohm: 250 watts x 2 chan.
    • Bridged, 2 ohm: 400 watts x 2 chan.
  • LED power and protection indicators
  • Bridgeable operation
  • Automatic remote turn on/off on high level input without connecting any remote wire
  • Short circuit, DC offset, and thermal protection circuitry
  • Built-in fan with output for external control
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter:
    • Front channels: 20-200 Hz, 12 dB/octave
    • Rear channels: 90-400 Hz, 12 dB/octave
  • Variable low-pass filter:
    • Front channels: 50-125 Hz, 12 dB/octave
    • Rear channels: 45-200 Hz, 12 dB/octave
  • Frequency response: 10-50000 Hz
  • Dimensions: 18.30"L x 9.45"W x 2.87"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
85 watts x 4 channel
RMS Power @ 2 ohms
145 watts x 4 channel
RMS Power @ 1 ohm
220 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
800 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency

  • Front channels: 20-200 Hz, 12 dB/octave
  • Rear channels: 90-400 Hz, 12 dB/octave
Low-Pass Crossover Frequency

  • Front channels: 50-125 Hz, 12 dB/octave
  • Rear channels: 45-200 Hz, 12 dB/octave
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
95A
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

DLS-A4

Weight:

16.00lbs

Internal SKU:

dlsa4

Internal Product ID:

10506
