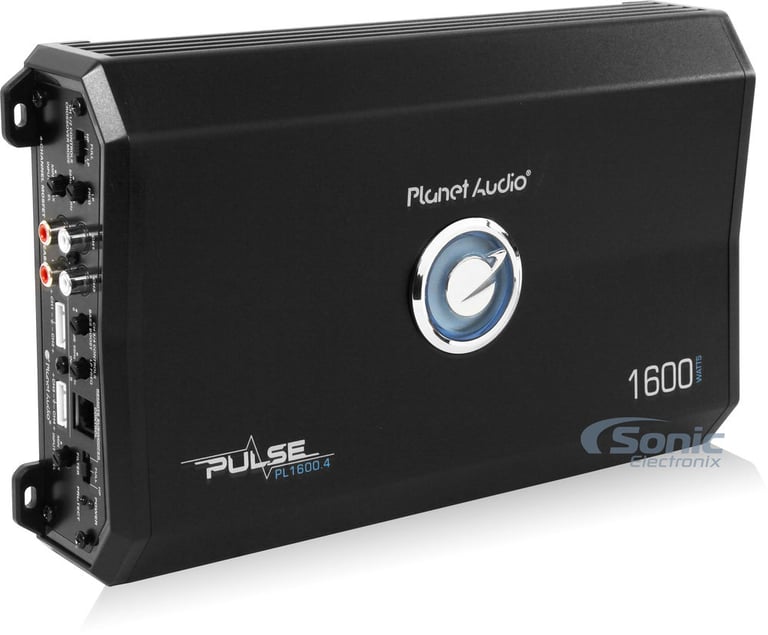

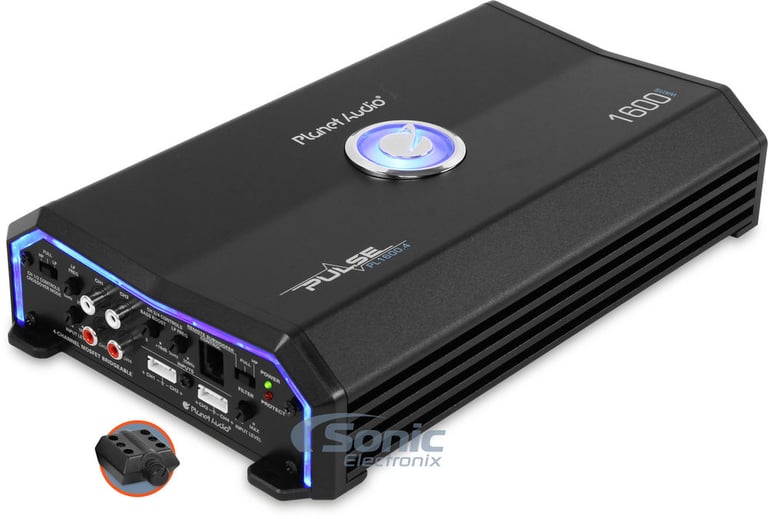

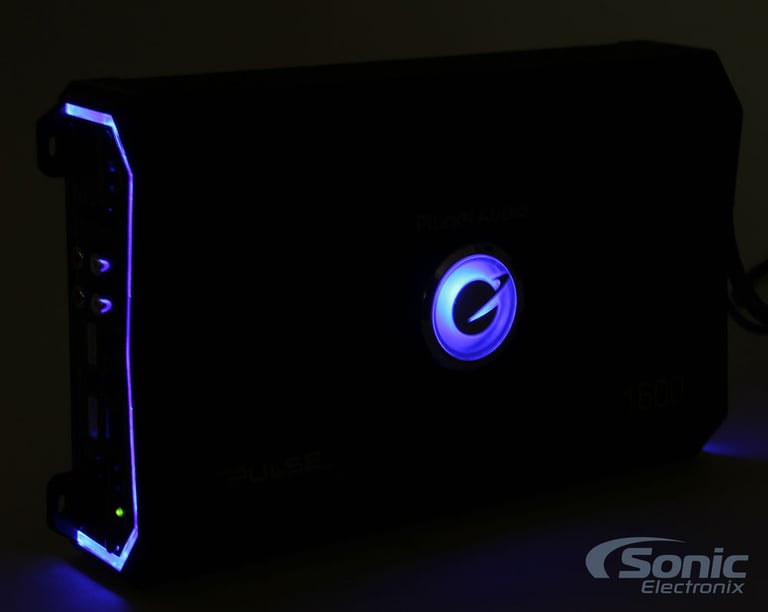

Planet Audio PL1600.4

1600W Peak 4-Channel Pulse Series Bridgeable Class A/B Car Amplifier

3
Planet Audio
Shop all Planet Audio
Product videos
highlight-star-icon

• 150 Watts RMS x 4 @ 4 ohms
• 300 Watts RMS x 4 @ 2 ohms
• 400 Watts RMS x 2 @ Bridged
• Total Peak Power: 1600 Watts
• Speaker-level (high-level) inputs
• Frequency Response: 9Hz - 50kHz
• Fixed high-pass filter: 200Hz
• Variable low-pass filter: 35 Hz to 160 Hz

Learn more about the pl16004

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• 150 Watts RMS x 4 @ 4 ohms
• 300 Watts RMS x 4 @ 2 ohms
• 400 Watts RMS x 2 @ Bridged
• Total Peak Power: 1600 Watts
• Speaker-level (high-level) inputs
• Frequency Response: 9Hz - 50kHz
• Fixed high-pass filter: 200Hz
• Variable low-pass filter: 35 Hz to 160 Hz

Description

Planet Audio

Authorized dealer

Planet Audio Authorized Dealer

General Features:

  • Planet Audio PL1600.4
  • Class-A/B FullRange 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 150 watts x 4 chan.
    • 2 ohms: 300 watts x 4 chan.
    • Bridged, 4 ohms: 400 watts x 2 chan.
  • Total power output: 1600 watts
  • Pulse Width Modulated MOSFET power supply

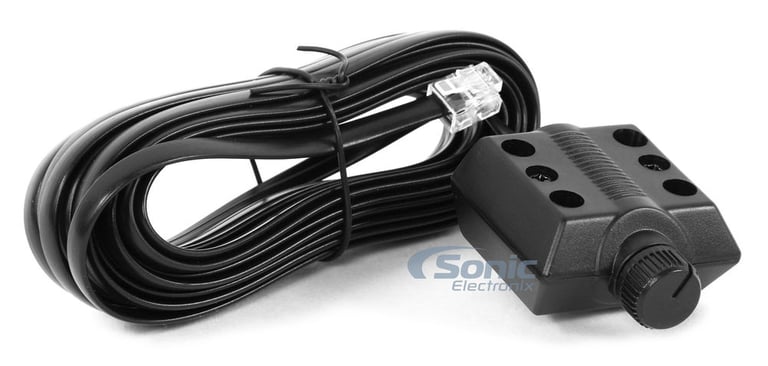

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators

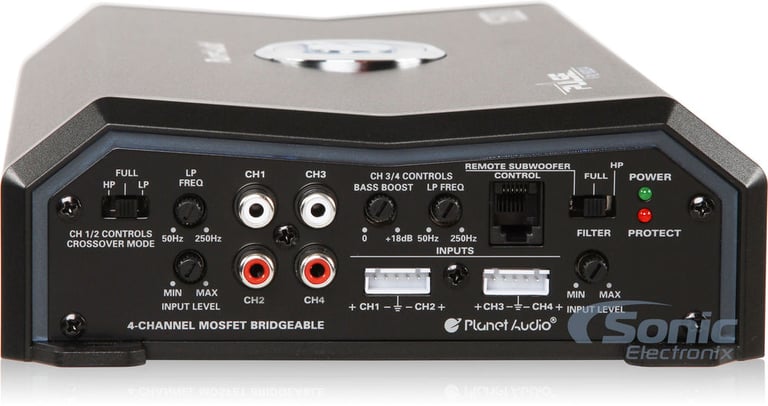

  • 4/3/2 channel operation
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Black anodized heatsink
  • Signal to Noise Ratio: 105 dB
  • Frequency Response: 9Hz - 50kHz
  • Fixed high-pass filter: 200Hz
  • Variable low-pass filter: 35 Hz to 160 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost

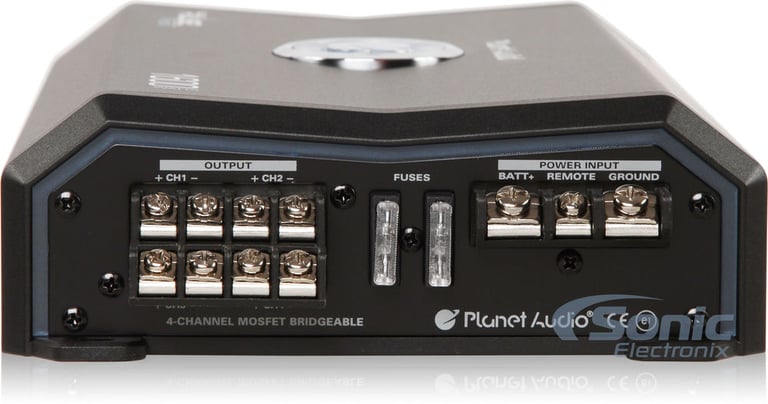

  • Fuse Rating: 25 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7"W x 18.875"L x 2.26"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty


Planet Audio PL1600.4 owner’s manual

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 4 channel
RMS Power @ 2 ohms
300 watts x 4 channel
Bridged RMS Power
600 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
300 watts x 4 channel
Peak Power @ 2 ohms
400 watts x 4 channel
Bridged Peak/Max Power
800 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Pulse Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
4
Total Peak Power Output
1600 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 2
Total Fuse Rating
50
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)

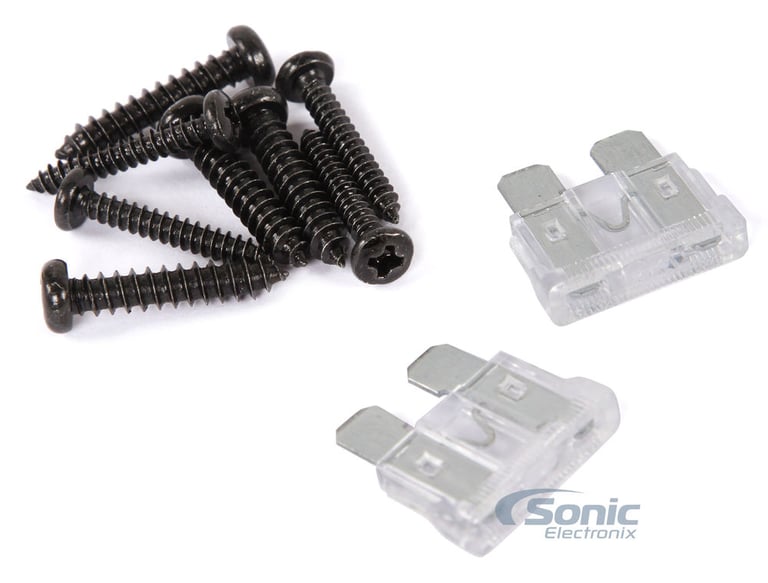

Mounting screws (6)

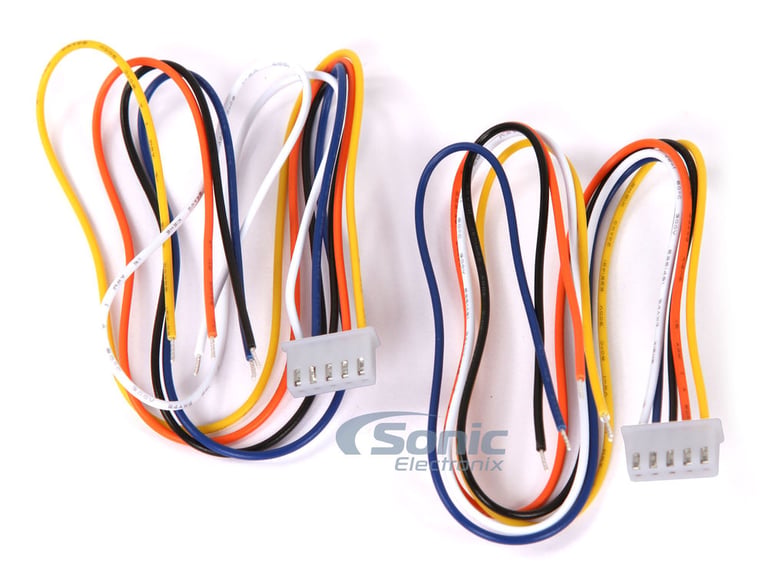

High-level input wiring harness w/ molex connector
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Planet Audio

Model Number:

PL1600.4

Weight:

5.00lbs

Internal SKU:

pl16004

Internal Product ID:

108555

Product and How-to Videos

Customer Ratings & Reviews

Planet Audio PL1600.4
3
Rate or review product
5 star
33%
4 star
33%
3 star
33%
2 star
0%
1 star
0%
Durability
4.4
Value
4
Features
5
Design
4.4
Usability
4.7
Sort by:
Loading...

Wattage over rated! Please read!

Bought this because it was cheap enough to take a gamble on. Currently powering 4 tweeters/channel on 1+ 2 and 2 midwoofers/channel on 3 +4. One thing DO NOT GO BY THEIR RMS RATING! On my oscilloscope the amp begins to clip around 15volts which is roughly 100 watts at 2 ohms or about 50 watts at 4 ohms. Then again no manufactures seem to tell the truth so I’m not surprised. Still an excellent amp if you don’t push it past it’s real limits.

By Corbin on February 16, 2018 checkmarkIcon Verified purchase

15

found this helpful.
Helpful? Report abuse

WORTH EVERY PENNY!

A BRAND NAME 1600WATT 4CHANNEL AMP FOR $79.99. HARD TO BEAT PRICE, WAY WORTH THE VALUE. EXTREMELY SATISFIED. GREAT PERFORMANCE.

By Anonymous on December 18, 2018 checkmarkIcon Verified purchase

6

found this helpful.
Helpful? Report abuse

Good buy

Ordered an amp, come in within days and works great.

By Hensley on January 6, 2020

4

found this helpful.
Helpful? Report abuse
