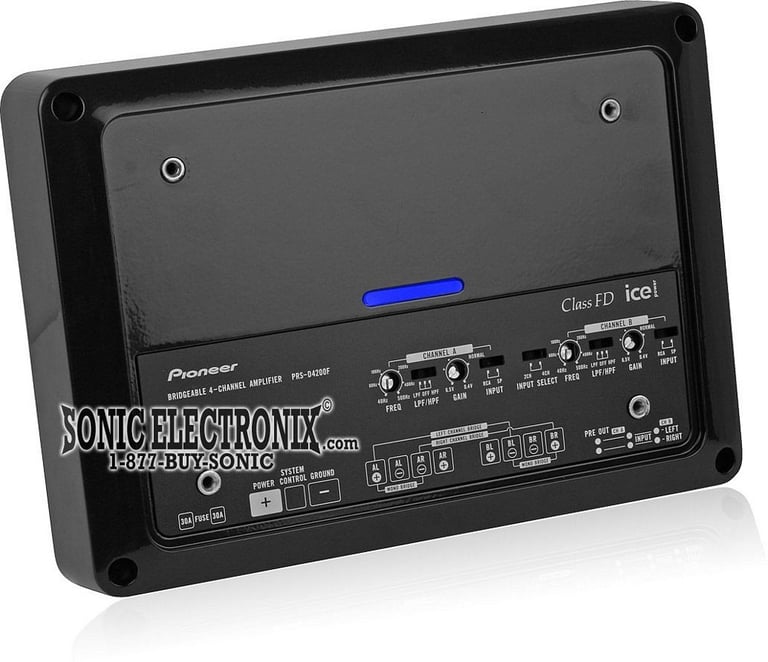

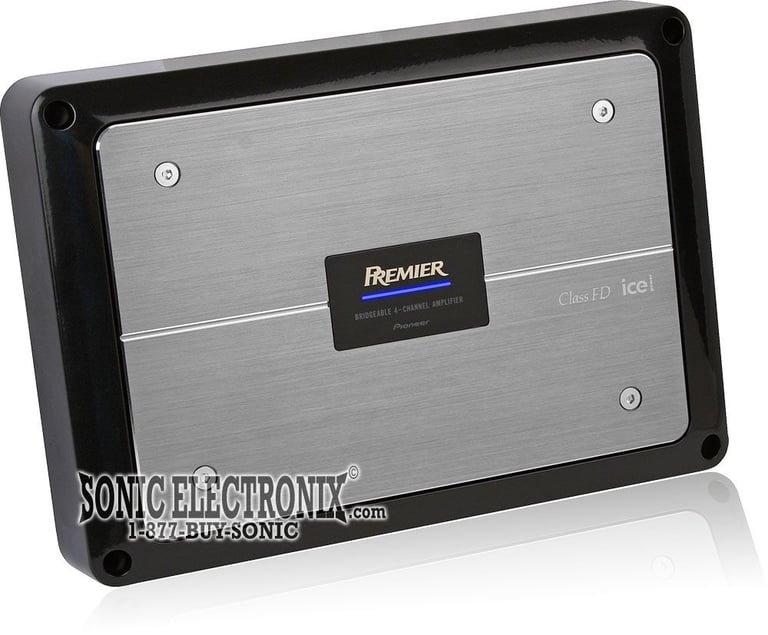

Pioneer Premier PRS-D4200F

1200W Max, 4-Channel Premier PRS Series Full-Range Class D with ICEpower Technology Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

Premier PRS Series 4-Channel Full-Range Class D Car Amplifier • 75W x 4 chan. @ 4 ohm • 150W x 4 chan. @ 2 ohm • 300W x 2 chan. @ 4 ohm • 300W x 4 chan. Max • ICEpower gives the amplifier incredible efficiency

Learn more about the prsd4200f

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

REF687F main

Infinity REF687F (INFSPKRF687FUS)

360W Peak (120W RMS) 6x8" Reference Series 2-Way Coaxial 3-ohm Speakers

1
-18.76%

$129.95

List price $159.95

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Limited time!
C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15
-15.63%

$134.99

List price $159.99

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

3
-30.04%

$55.96

List price $79.99

UNIFRING main

NVX UNIFRING

Universal Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 6)

5
-16.65%

$29.99

List price $35.98

Product Highlights


Premier PRS Series 4-Channel Full-Range Class D Car Amplifier • 75W x 4 chan. @ 4 ohm • 150W x 4 chan. @ 2 ohm • 300W x 2 chan. @ 4 ohm • 300W x 4 chan. Max • ICEpower gives the amplifier incredible efficiency

Description


Pioneer brand icon

Authorized dealer

  • Premier PRS Series 4-Channel Full-Range Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
    • Bridged, 4 ohm: 300 watts x 2 chan.
  • Max power output: 300 watts x 4 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply
  • LED power indicator
  • Full-range Class-D ICEpower gives the amplifier incredible efficiency that enables it to put out tight bass with minimal lag effect as well as crystal clear mids and highs
  • Independent left and right channel circuitry gives this PRS amplifier a cleaner signal output as it maintains channel separation while eliminating signal interference
  • LT OP AMP (Linear Technology Operational Amplifier) prevents any sound quality deterioration
  • Energy saving design allows this PRS amplifier to draw less draw from your vehicle's alternator, giving you improved gas mileage
  • Full custom-made power supply capacitor bank
  • Compact design

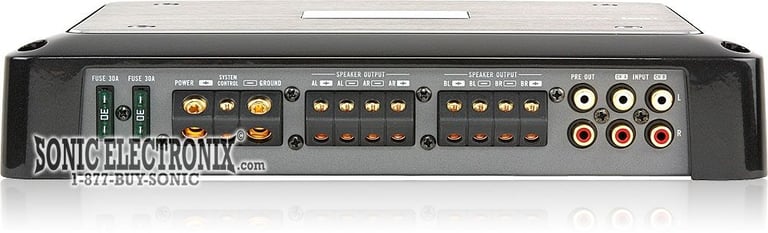

  • Speaker-level inputs with included high-level to RCA adapter
  • Preamp RCA outputs
  • Compression-type speaker terminals
  • Balanced isolator input circuit
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter (40-500 Hz, 12 dB/octave)
  • Variable low-pass filter (40-500 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-50000 Hz
  • Dimensions: 12"L x 8-3/8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 2-year SonicElectronix.com warranty

Product history:

Pioneer PRS-D4200F thumbnail
(newest, current model)
Pioneer PRS-D4100F thumbnail
(previous model, replaced by Pioneer Premier PRS-D4200F)
Pioneer PRS-D4000F thumbnail
(previous model, replaced by Pioneer Premier PRS-D4100F)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.005%
Speaker Level Inputs
Through included high level to low level adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
70 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PRS-D4200F

Weight:

11.00lbs

Internal SKU:

prsd4200f

Internal Product ID:

13242
