MB Quart ZA2-1500.5 w/ Universal Bluetooth Controller Knob

1500W RMS Z-Line Class-D 5-Channel 1-Ohm Stable Amplifier with Universal Bluetooth Playback Controller Knob

MB Quart
Shop all MB Quart
highlight-star-icon

• 60 Watts Peak x 4, 350 watts x 1 @ 4 ohm
• 100 watts x 4 chan., 750 watts x 1 chan @ 2 ohm
•1 ohm: 1,000 watts x 1 chan. only @ 1 ohm
• Total Peak Power: 1,400 Watts
• Built-in High and Low Pass Filters
• Heavy Duty Aluminum Alloy Heatsink
• NVX XUBT3 Universal Bluetooth Knob for Cars, Trucks, Motorcycles, ATVs & Boats

Learn more about the za215005_xubt3

We apologize

This item has been discontinued


Loading...
40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

70-1732 main

Metra 70-1732

Factory Amplifier Bypass Harness for select 2007-2013 MDX

-45.01%

$32.99

List price $59.99

HON2MVL2 main

GROM Audio HON2MVL2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2010-2015 vehicles from Acura, Honda

AXBUCH-MDX main

Axxess AXBUCH-MDX

Install a New Car Stereo and Retain Backup Camera in select 2010-2013 MDX

-10.00%

$26.99

List price $29.99

Description


MB Quart brand icon

Authorized dealer

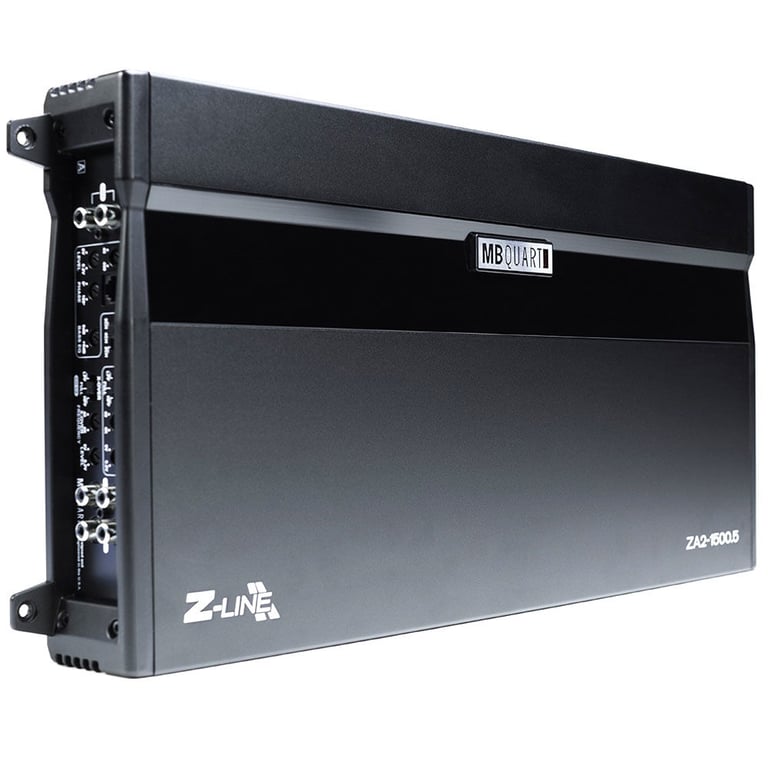

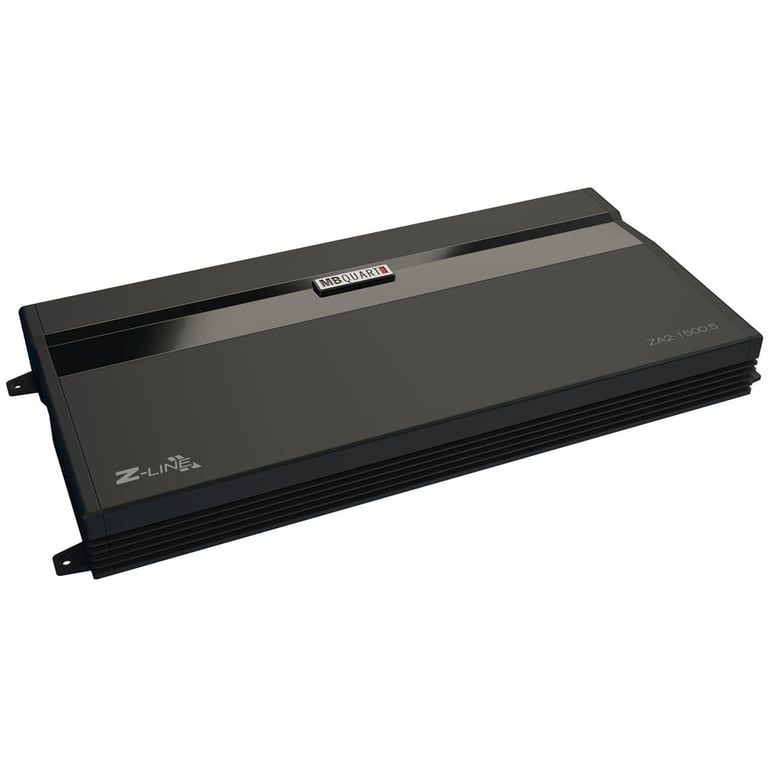

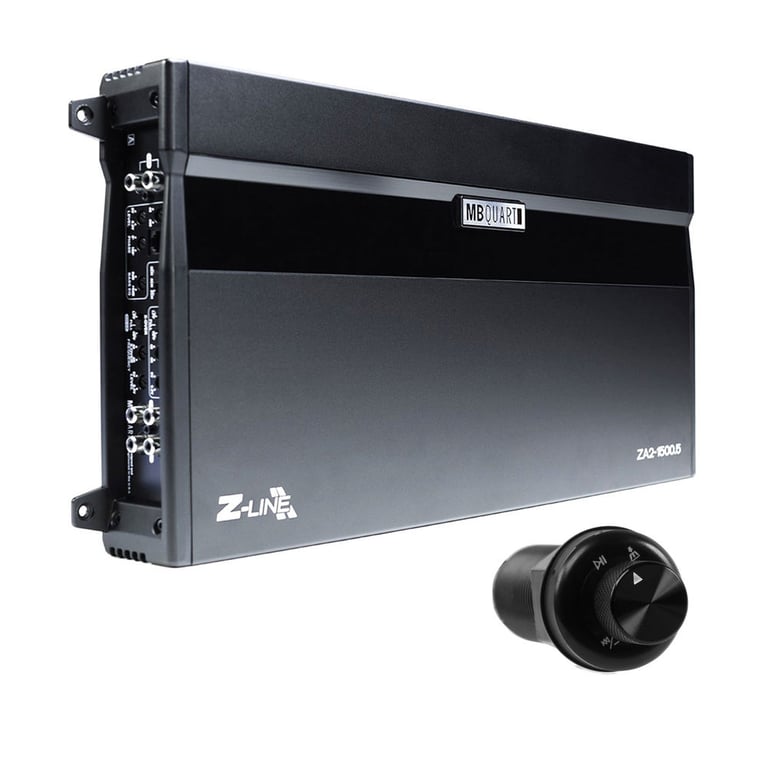

MB Quart ZA2-1500.5 (ZA21500.5)

1500W RMS Z-Line Class-D 5-Channel 1-Ohm Stable Amplifier with Bass Knob Included
Quantity: 1

General Features:

  • MBA Quart ZA2-1500.5
  • Class-Q1 (D) Full Range 5-Channel Amplifier with 1 ohm stable 5th channel
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan., 350 watts x 1 chan.
    • 2 ohm: 100 watts x 4 chan., 750 watts x 1 chan.
    • 1 ohm (Subwoofer channel only): 1,000 watts x 1 chan. only
    • 4 ohm, bridged: 300 watts x 2 chan., 500 watts x 1 chan.
  • Total Power Output: 1400 watts total (100W x 4 chan. at 2 ohm + 1000W x 1 chan. at 1 ohm)
  • Wired remote bass level control included

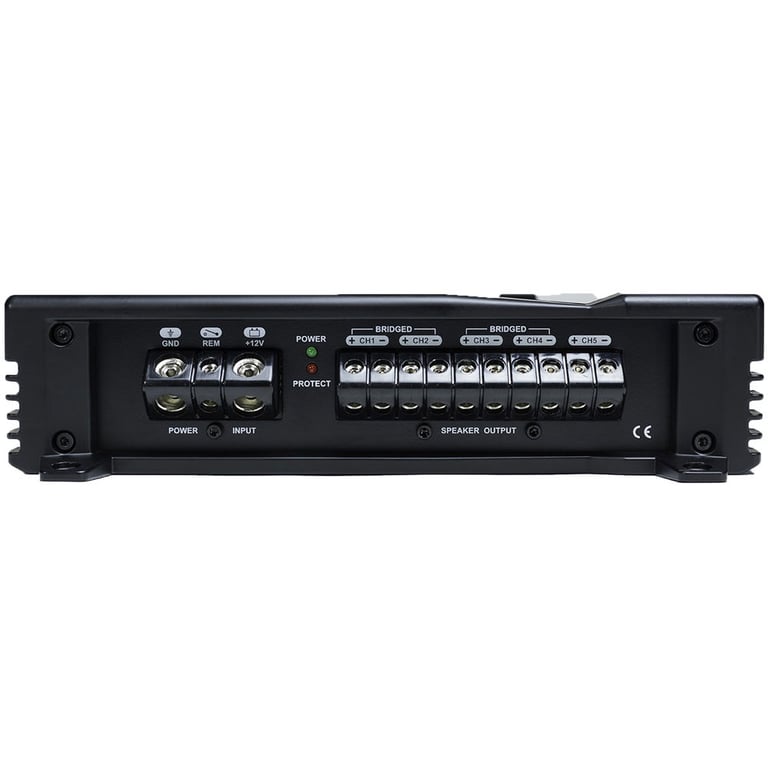

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Frequency Response: 10 - 45,000 Hz
  • Total Harmonic Distortion (THD): <.05%
  • Signal to Noise Ratio: >90 dB

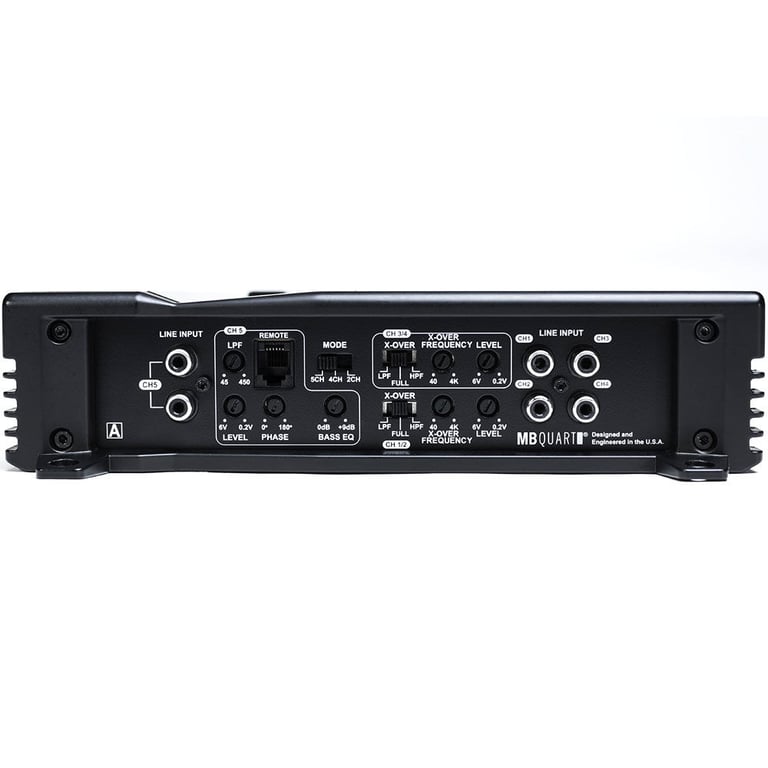

  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Subsonic filter: 10 -40 Hz, 12dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 50 Hz
  • Fuse Rating: 150 A x 1, external
  • 2-4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 23.38"W x 10.63"L x 3.25"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the ZA2-1500.5 product manual

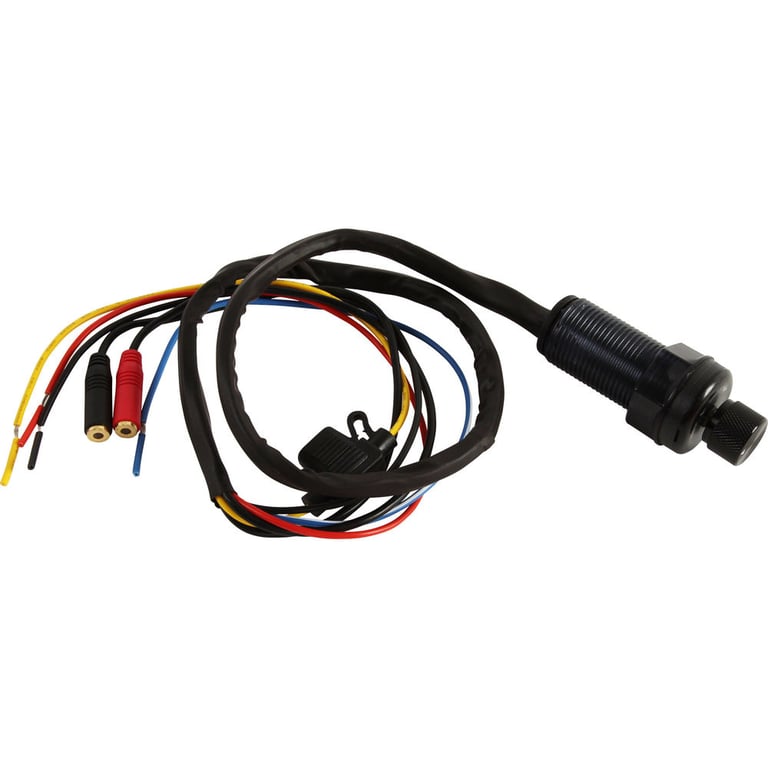

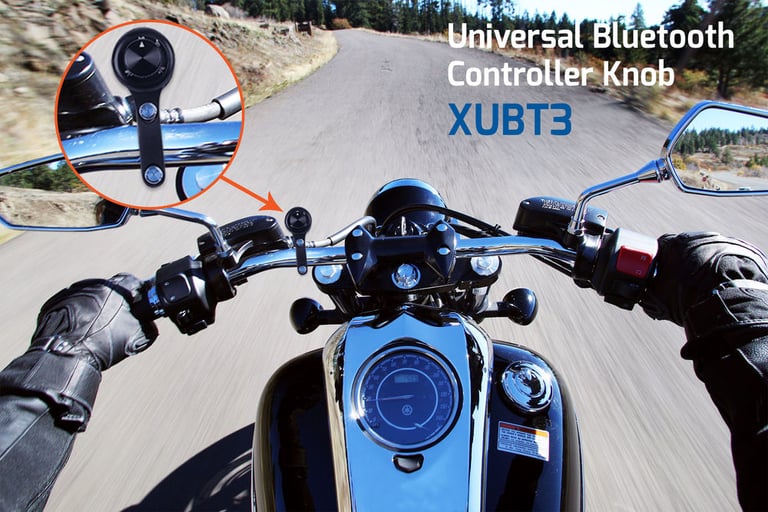

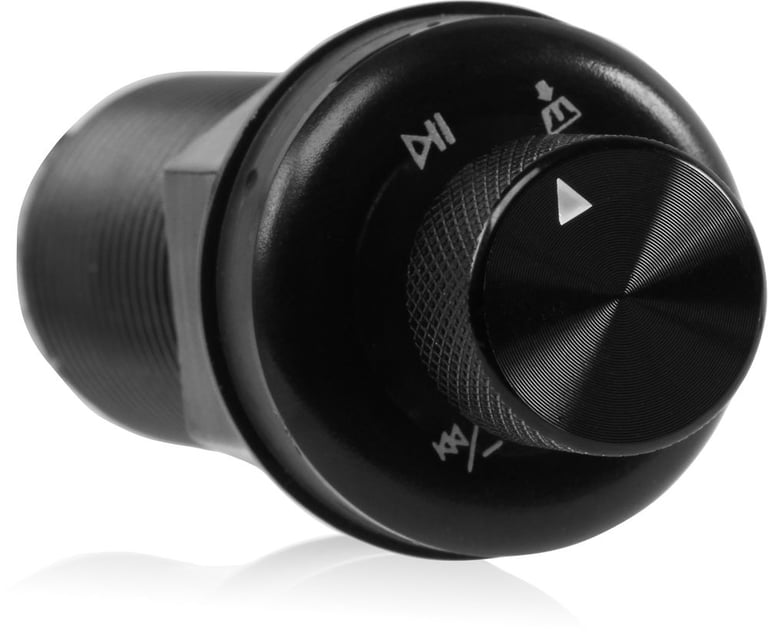

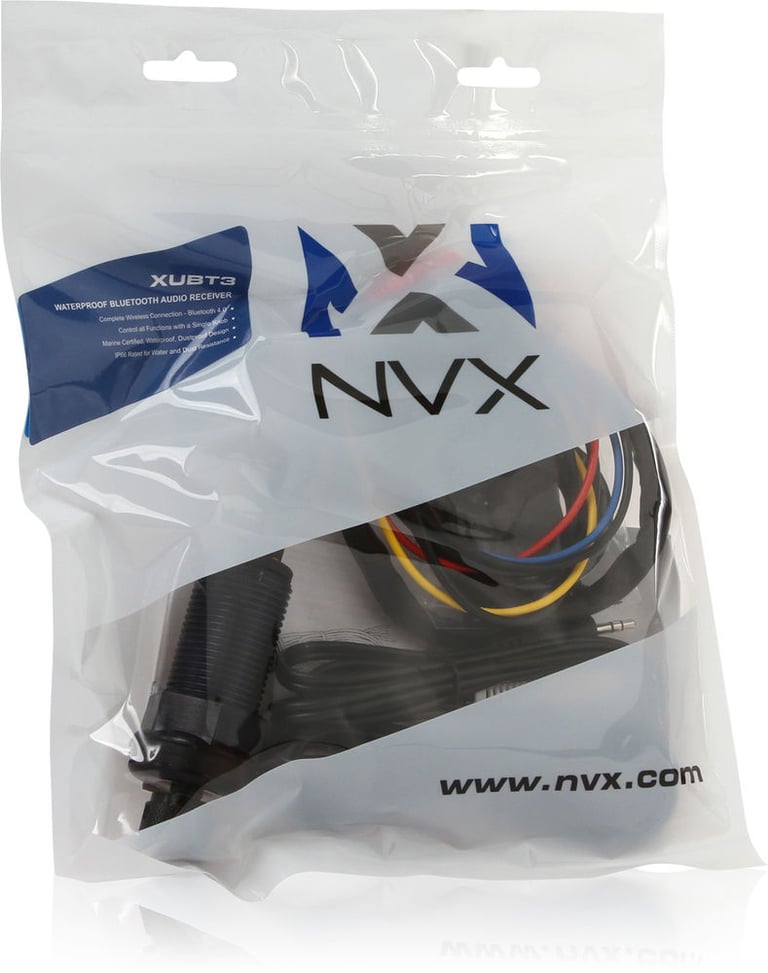

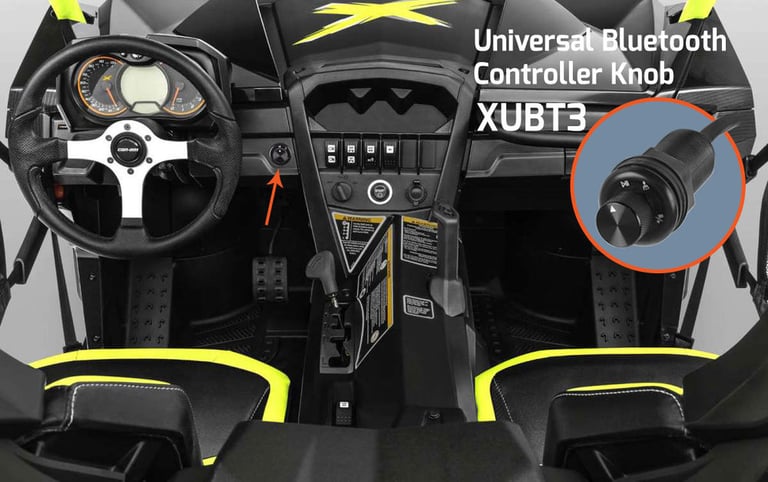

NVX XUBT3 Universal Bluetooth Controller Knob

Universal Bluetooth Audio Receiver & Volume/Playback Controller Knob for Cars, Trucks, Motorcycles, ATVs & Boats (X-Series)
Quantity: 1

Product Details:

  • Universal Bluetooth Audio Receiver & Volume/Playback Controller Knob
  • The perfect add on for the NVX XEQ7
  • iPhone, Android and Bluetooth Device Ready
  • One knob controls it all - track, pause & volume
  • Flush in dash or under dash mounting options

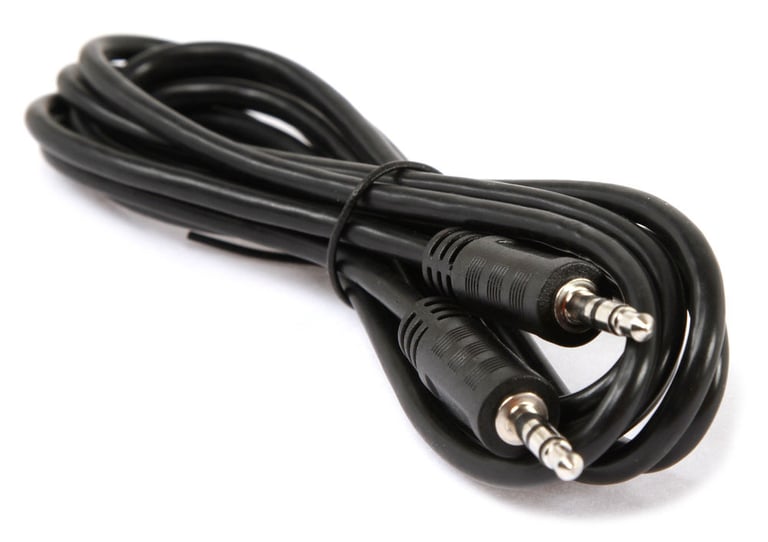

  • 3.5 mm output - Easy Add-on to any radio or device with AUX input
  • 12v Remote Turn on for Amplifiers

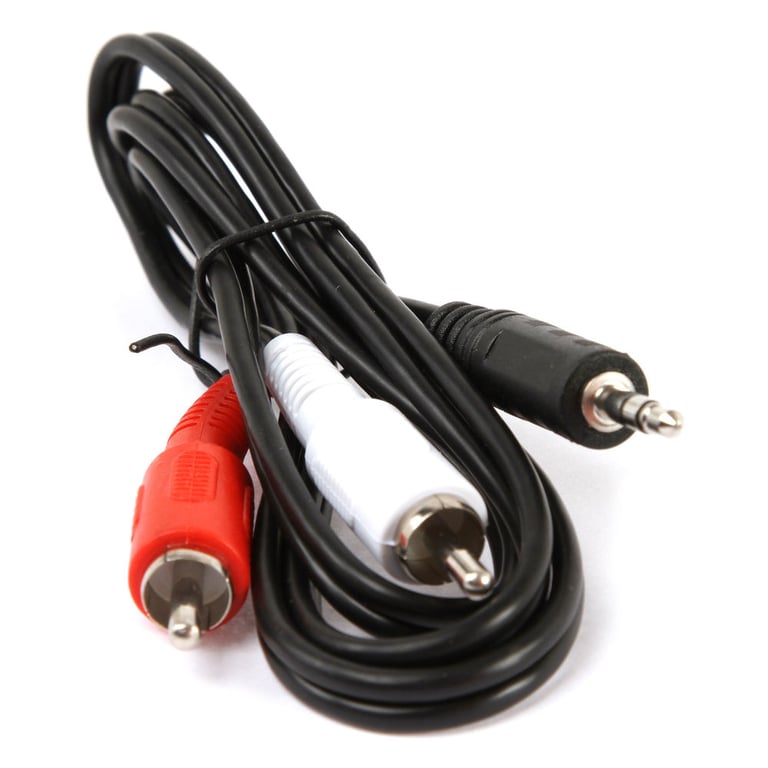

  • Can also be connected via RCAs to Headunits, Amplifiers or any audio device that has RCA inputs
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the NVX XUBT3 Owner's Manual

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(10)

$259.99

List price $323.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$499.99

List price $600.00

HD900/5 small

JL Audio HD900/5

• 100 watts x 4 channel + 500 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 150 watts x 2 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 1.5 ohm Stable 5-Channel Amplifier

(23)

$1549.99

List price $1549.99

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$649.99

List price $779.98

Specifications & Details


Power Specifications - Full Range Channels
Peak Power @ 4 ohms
60 watts x 4 channel
Peak Power @ 2 ohms
100 watts x 4 channel
Bridged Peak/Max Power
300 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
350 watts x 1 channel
Peak Power @ 2 ohms
750 watts x 1 channel
Peak Power @ 1 ohm
1,000 watts x 1 channel
Amplifier Specifications
Series
Z-Line Series
Amplifier Class
SQ
Number of Channels
5-Channel
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 4,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
150A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZA2-1500.5_XUBT3

Weight:

13.25lbs

Internal SKU:

za215005_xubt3

Internal Product ID:

137933

Customer Ratings & Reviews


MB Quart ZA2-1500.5 w/ Universal Bluetooth Controller Knob thumbnail image

5 star
76%
4 star
6%
3 star
6%
2 star
12%
1 star
0%



Durability
4.7
Value
4.7
Features
4.7
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

NVX XUBT3 Bluetooth Control

The following review is for XUBT3, which is a part of the bundle you are viewing.

Links instantly and sounds like it is connected thru cables crystal clear very impressed range is impressive also by far best I've tried

By Robert on October 14, 2015

60 found this helpful


Won’t last long on a Harley

The following review is for XUBT3, which is a part of the bundle you are viewing.

Purchased this for my Harley which is not equipped with a fairing or stereo system.
XUBT3 is mounted to a hard saddlebag and connected to an NVX VADM4 amp. Since my bike is an 03, it’s not an M8 engine with the counter balance, which lessens vibration. My XUBT3 has lasted about 1 year and now increases volume on its own, shuts off, on its own and sometimes will not even power up.
My guess, it cannot handle vibration and it’s solder points must be failing.
As for me, I don’t think I’d recommend this for anyone with an HD motorcycle.

By Mr, on January 15, 2022

49 found this helpful


As clean as a cord long range

The following review is for XUBT3, which is a part of the bundle you are viewing.

Installed in Artic Cat sounds great links fast and has long range just wish it was a little smaller on back side bigger and cheaper than Wet Sounds but I can't tell any difference in sound quality or ease of use.

By Robert on January 25, 2016 Checkmark Icon Verified purchase

53 found this helpful


Perfect for my need

The following review is for XUBT3, which is a part of the bundle you are viewing.

This controller was very easy to install and works great. I needed something small and weather proof. This was mounted on a small space on the dashboard of a golf cart. The hole required is only 1" diameter and the full width about 1-3/4". I think it will be durable as it looks like quality powder coat. I prefer this knob unit to the dial on the control of NVX XUBT4, not only for the smaller size, but to the probable durability as compared to the plastic pressure buttons.

Blue tooth has excellent range and very clear sound.

By OldGuyStillTry on December 8, 2016

50 found this helpful


NVX XUBT3 Universal Bluetooth Controller Knob

The following review is for XUBT3, which is a part of the bundle you are viewing.

This item was a lifesaver. Let the customer keep their oem radio and functions saving them a lot on a costly install.

By Anonymous on June 22, 2018 Checkmark Icon Verified purchase

45 found this helpful


Works great!

The following review is for XUBT3, which is a part of the bundle you are viewing.

Item works as described and has held up to rain and washing with a garden hose; both of which were issues for a couple higher priced/supposed "better" brand units I had prior to this one. Only thing I wish were slightly different would be for the track skip vs volume timing; I tend to skip tracks when trying to make a slight volume adjustment. Not a big issue, just something to get used to.

By Jp on February 6, 2018 Checkmark Icon Verified purchase

45 found this helpful


Works as advertised.

The following review is for XUBT3, which is a part of the bundle you are viewing.

Ok device for simple operation. Unfortunately the stereo separation is not that great for the connections,& Bluetooth. I ended up recycling my head unit in place of xubt3. Live, & learn.

By William on September 9, 2017

44 found this helpful


works perfect for my car

The following review is for XUBT3, which is a part of the bundle you are viewing.

works well with using my phone/tablet as the head unit and this as the volume controller. This unit fits perfectly in the location of where the stock cigarette lighter was.

By Tim on March 17, 2016 Checkmark Icon Verified purchase

49 found this helpful


Good value

The following review is for XUBT3, which is a part of the bundle you are viewing.

Simple product, easy install, and fast shipping! I'd recommend it especially for motorcycle or powersports!

By Josh on March 19, 2018

43 found this helpful


Works ok, but NO MIC!!!

The following review is for XUBT3, which is a part of the bundle you are viewing.

Beware - this unit streams music only. There is no mic so you cant make phone calls with it. Parts of the manual does not match the actual product. Its frustrating. Other than that, seems like it works ok.

By anthony on January 2, 2021 Checkmark Icon Verified purchase

40 found this helpful




ZA2-1500.5_VUBT2 small

MB Quart ZA2-1500.5 w/ Universal Bluetooth Receiver

1500W RMS Z-Line Class-D 5-Channel 1-Ohm Stable Amplifier with Universal Bluetooth Audio Receiver

(25)

$188.49

List price $428.99

KAC-8401 small

Kenwood KAC-8401

(1)

$144.99

List price $249.99

KFC-1354S small

Kenwood KFC-1354S

5-1/4" 2-Way Sport Series Coaxial Car Speakers

(7)

$19.95

List price $40.00

OV4-600 small

Power Acoustik OV4-600

4-Channel Gothic Series Amplifier

$84.99

List price $168.99

LRx1.400 small

Audison LRx 1.400

900 watts, MonoBlock Amplifier

$324.99

List price $899.99

OV2-400 small

Power Acoustik OV2-400

2-Channel Gothic Series Amplifier

(2)

$63.99

List price $123.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Acura MDX

2007 Infiniti M45

2013 BMW X3

2011 Honda Accord

1959 Chrysler Imperial

1992 Acura Integra

1986 Chevrolet El Camino

1999 GMC Jimmy

2012 Chevrolet Silverado 3500 HD

1991 Chrysler LeBaron

Vehicle
Store
Delete

2005 Harley Davidson FLHTI Electra Glide Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
