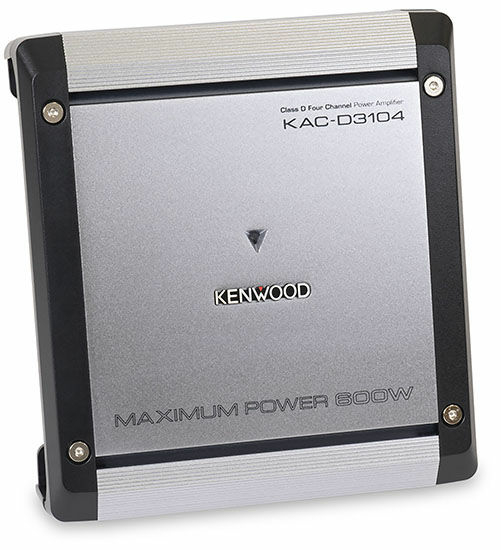

Kenwood KAC-D3104 | 600 Watt Class D 4-Channel Amplifier

Kenwood KAC-D3104

Class D 4-Channel Amplifier (600 Watts Peak Power)

Class D 4-Channel Amplifier (600 Watts Peak Power)

• 4 ohms: 50 watts x 4 chan.
• 2 ohms: 75 watts x 4 chan.
• Total Peak Power: 600 Watts
• Speaker Level Input
• Signal Sensing Turn-On
• Variable Low Pass/High Pass Filter
• Variable Bass Boost: 0 to +18 dB bass boost at 40 Hz

5.0

(2)
List price $300.00
Save: $100.01

$199.99

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Kenwood

Authorized dealer

Product Details:

  • Kenwood KAC-D3104
  • Class-D 4-channel 4-Ohm Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 chan.
    • 2 ohms: 75 watts x 4 chan.
  • Peak power output: 600 watts
  • CEA-2006 compliant
  • Speaker Level Input
  • Signal Sensing Turn-On

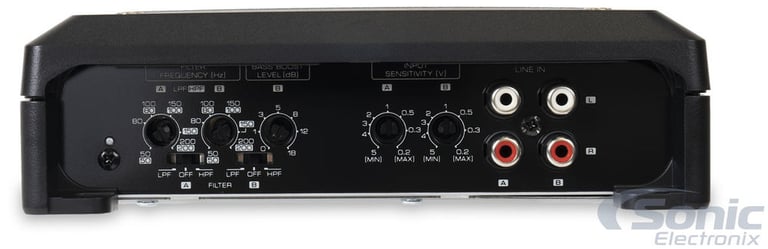

  • Variable Low Pass/High Pass Filter
  • Variable Bass Boost: 0 to +18 dB bass boost at 40 Hz

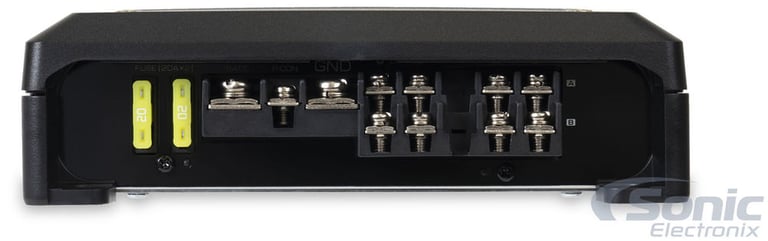

  • Fuse rating: 30A x 2
  • 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • Dimensions: 6-11/16"W x 2-3/16"H x 7-3/8"D
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channels
RMS Power @ 2 ohms
75 watts x 4 channels
Bridged RMS Power
150 watts x 2 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
100 watts x 4 channels
Peak Power @ 2 ohms
150 watts x 4 channels
Bridged Peak/Max Power
300 watts x 2 channels
Amplifier Specifications
Amplifier Series
Performance (Kenwood)
Marine Certified
No
Amplifier Class
D
Number of Channels
4
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Speaker Level Inputs
No
Preamp Outputs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Bass Boost
0 - 18 dB
Bass/Gain Remote
Fan Cooled
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier

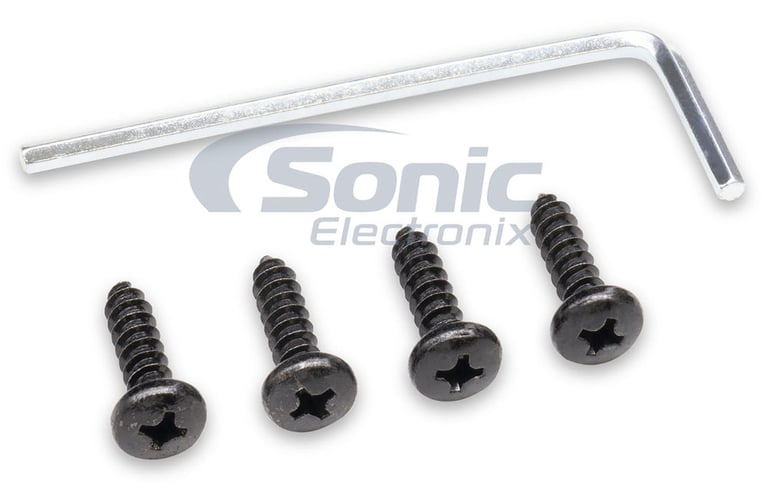

Mounting screws (4)
Allen wrench
Paperwork

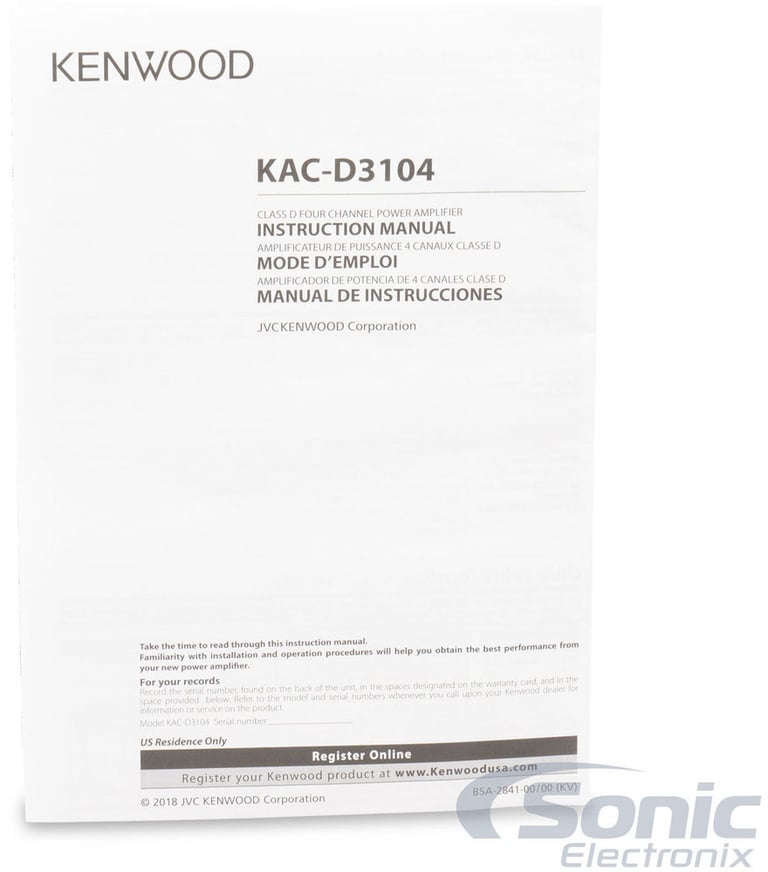

User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
REVIEWS
Kenwood KAC-D3104

Kenwood KAC-D3104

5.0

(2)

Write a review

Overall rating distribution

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
5
Value
5
Features
5
Design
5
Usability
5

Lane

July 22, 2020

Great for 4 6/8 door speakers

Got it hooked up to all 4 of my Fosgate 6/8’s and it pushes them way better than factory I also hooked it up to my 2 10” Fosgate for shits and giggles and for a small amp did excellently.

2

found this helpful.

Kyle

June 14, 2020

Good amp for the price

This is a good amp for the pricing. The compact size worked perfectly for the space I was putting it into. Good sound quality and power output.

2

found this helpful.
