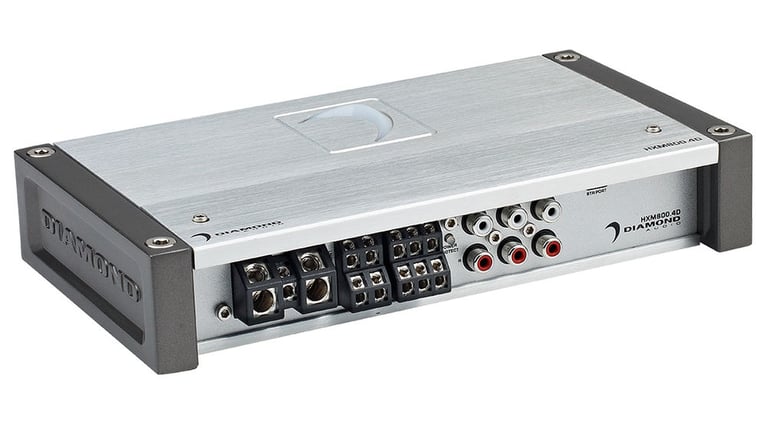

Diamond Audio HXM800.4D

800W RMS HXM Series Class-D 4-Channel Full Range Amplifier

Diamond Audio
Shop all Diamond Audio
highlight-star-icon

• 120 watts x 4 channel @ 4 ohms
• 200 watts x 4 channel @ 2 ohms
• Bridged: 400 watts x 2 channel @ 4 ohms
• Total RMS Power: 800 watts
• Class D 2 ohms Stable 4-Channel-Channel Amplifier

Learn more about the hxm8004d
Was $679.99 Details
Thanks , You Pay:

$659.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one hxm8004d.

Set your vehicle or Return to product page
shipping truck icon
FREE shipping to VA. Delivers Oct. 5 - Oct. 7
Quantity
In Stock.
Brand new

Buy it now

×

Buy Now with Credit Card

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Offered by Allstate

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description

Diamond Audio

MOTORSPORT series amplifiers not only deliver exceptional sound quality but are constructed to withstand the outdoor elements. Engineered with superior full-range Class D Digital Technology, MOTORSPORT series amplifiers generate BIG RMS Power in a very small footprint.

Look to MOTORSPORT amplifiers to bring the Diamond Audio listening experience to your boat, UTV, motorcycle or any mobile audio application that demands the quality, precision and performance built into our water-resistant MOTORSPORT amplifiers.

Conformal coated multi-layer circuit boards for marine applications - Balanced differential inputs for noise-free operation regardless of the source - Full-range digital Class D technology with DirectFET power MOSFET output stage - 12dB per octave adjustable crossovers and phase control for system tuning - Top mounted controls for convenient adjustment - Selectable 3 option Auto Turn-On Mode circuit designed to work with ANY OEM headunit, simplifies installation.


Product Details:

  • RMS Power Rating:
    • 4 ohms: 120 watts x 4 channel
    • 2 ohms: 200 watts x 4 channel
    • Bridged, 4 ohms: 400 watts x 2 channel
  • Total power output: 800 watts
  • Pulse Width Modulated MOSFET power supply
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 0.2 - 10 volts
  • Frequency Response: 10 - 35k Hz
  • Total Harmonic Distortion (THD): 0.07%
  • Signal to Noise Ratio: 77.4 dB
  • Variable high-pass filter: 40 - 400 Hz
  • Variable low-pass filter: 40 - 400 Hz
  • Dimensions: 5.27" W x 9.3" L x 1.75" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details

Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
120 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Series
HXM Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 35k Hz
THD at Rated RMS Power
0.07%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
77.4 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
Yes
Low-Level Input Sensitivity
0.2 - 10 volts
High-Level Input Sensitivity
0.2 - 10 volts
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Diamond Audio

Model Number:

HXM800.4D

Weight:

7.00lbs

Internal SKU:

hxm8004d

Internal Product ID:

174463
