Name: JBL DSP4086 (DSP4086AM)
Brand: JBL
SKU: dsp4086
Price: 399.95 USD
Availability: InStock
Rating: 4.4000 (5 reviews)

Shop all JBL

by JBL

Expert Bundles
Current Promos
About
Similar Products
Specs & Details
Reviews
Add-ons
Related Products
Related Searches

Limited time!

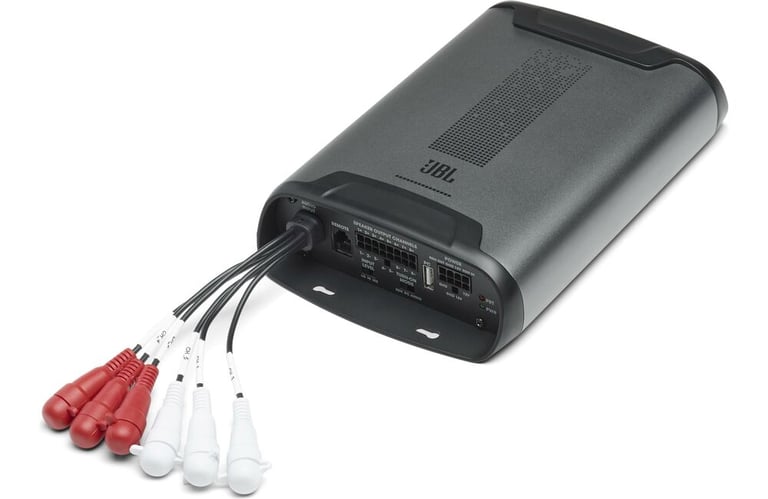

JBL DSP4086 (DSP4086AM) Image 1 — JBL DSP4086 (DSP4086AM)

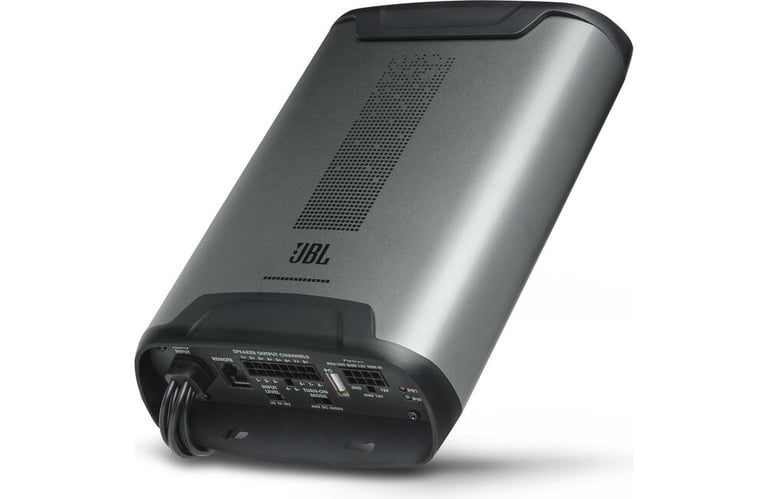

JBL DSP4086 (DSP4086AM) Image 2 — JBL DSP4086 (DSP4086AM)

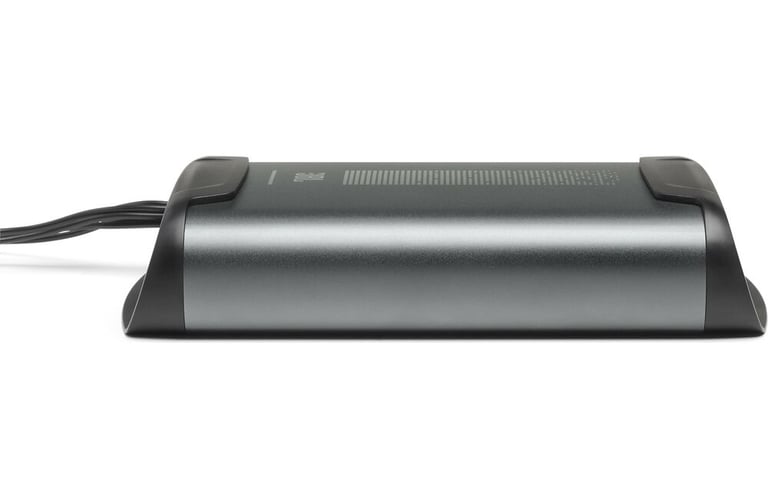

JBL DSP4086 (DSP4086AM) Image 3 — JBL DSP4086 (DSP4086AM)

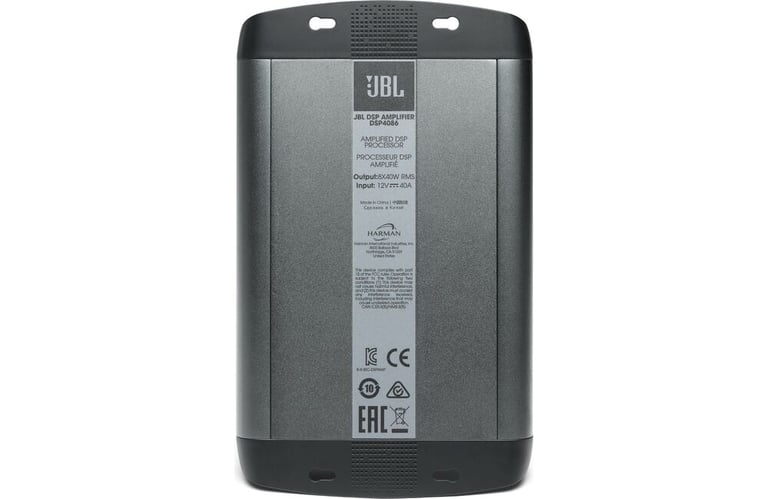

JBL DSP4086 (DSP4086AM) Image 4 — JBL DSP4086 (DSP4086AM)

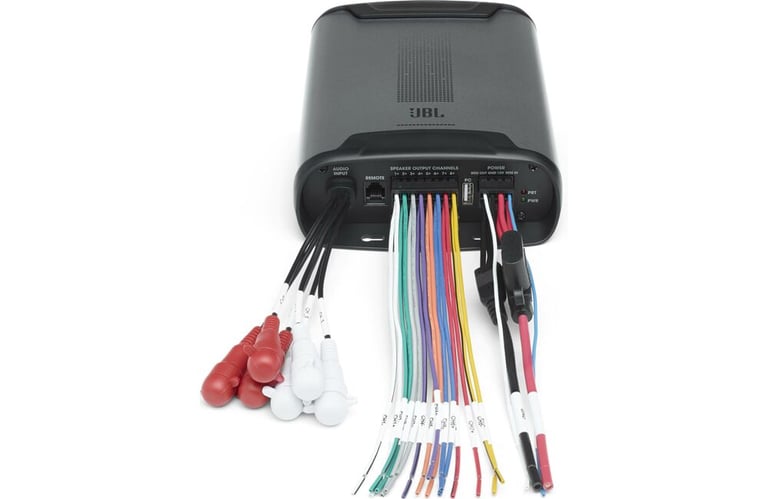

JBL DSP4086 (DSP4086AM) Image 5 — JBL DSP4086 (DSP4086AM)

Product highlights

• 40 watts x 8 channel @ 4 ohm
• 60 watts x 8 channel @ 2 ohm
• Total RMS Power: 320 watts
• Class D 2 ohm Stable 8-Channel Amplifier

Learn more about the dsp4086

Universal – fits most vehicles.

Similar items | Update vehicle | Vehicle store

List price $549.95

Save $150.00

-27%

$399.95

with warranty

Starting at $37/mo

or 4 payments of $100

Free shipping in USA. Provide zip for delivery date.

VIP Product Get $40.00 in rewards to spend later

Quantity Qty

In Stock

Brand new

Buy it now

Additional conditions

Open Box, Great $279.96

Popular alternative

NVX VAD22008 v2 (VAD22008v2) 2200W RMS Class D V-Series 8-Channel Car, Marine and Powersports Amplifier

(2)

$399.99 $539.99

Current Promotions (1 offer)

30% Off an Amp Kit with Purchase!

This offer cannot be combined with any other coupons or offers.

JBL DSP4086 (DSP4086AM)

https://images.sonicelectronix.com/images/5749752/main/xkit88.jpg

30% off

JBL DSP4086 (DSP4086AM)

$399 ⁹⁵

NVX XKIT88

$96 ⁹⁸

Priced separately $496 ⁹³

Promo Savings of $29 ⁰⁹

Total price:

$467 ⁸⁴

Description

Authorized dealer

JBL DSP4086

JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy-to-use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.

Product Details:

DSP Series Class D 2 ohm Stable 8-Channel Amplifier
RMS Power Rating:

4 ohm: 40 watts x 8 channel
2 ohm: 60 watts x 8 channel

Total power output: 320 watts
LED Power/Protect Light
Wired bass level remote control included
Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
CEA-2006 standard compliance
Digital Signal Processing:

DSP and EQ tuning tool adjustments made via USB connection to a Windows PC
Each channel has an independent 31-band graphic or parametric EQ
Adjustable high-pass, low-pass, and band-pass filters (20-20,000 Hz)
Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
31-band EQ (selectable parametric or graphic)
Selectable phase: 0 or 180 degrees
Adjustable delay: 0 to 12ms in 0.2ms increments

Input sensitivity: 680mV - 6 volts
Frequency Response: 10 - 22000 Hz
Total Harmonic Distortion (THD): 1%
Signal to Noise Ratio: 90 dB
Variable high-pass filter:
Variable low-pass filter:
Fuse Rating: 40
8 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 9-3/8" L x 5-11/16" W x 2" H
Authorized Internet Dealer
1-year Manufacturer's Warranty
MFR #: DSP4086AM

Specifications & Details

Key Features

Amplifier Key Features

Built-in DSP
Speaker Level Inputs

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

40 watts x 8 channel

RMS Power @ 2 ohms

60 watts x 8 channel

Amplifier Specifications

Series

DSP Series

Amplifier Class

Number of Channels

8-Channel

Total Peak Power Output

1000 watts

Total RMS Power Output

320 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

Frequency Response

10 - 22000 Hz

THD at Rated RMS Power

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

Signal-to-Noise Ratio

90 dB

Remote bass/level controller

Yes

Fuse Rating

40A x 1

Total Fuse Rating

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

Low-Level Input Sensitivity

680mV - 6 volts

High-Level Input Sensitivity

1.6 - 15 volts

What is in the box?

Paperwork

User manual
Warranty/Registration card

WITB: Amplifiers

Amplifier
Wired gain knob (wire attached)
Mounting screws (6)
Washers (6)
One spare fuse
High-level input wiring harness w/ molex connector

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		80%
4 star		0%
3 star		0%
2 star		20%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.7
Value		5
Features		5
Design		4.8
Usability		4

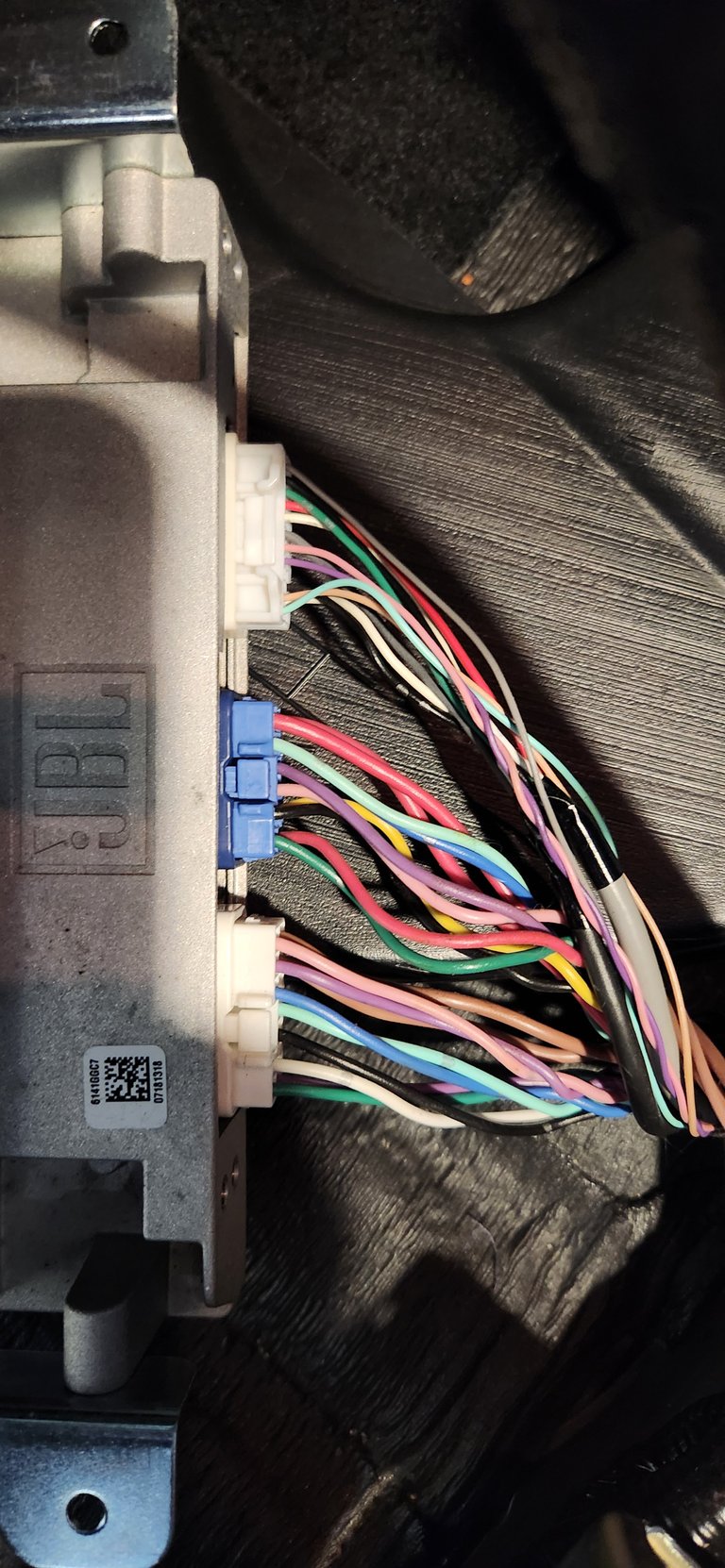

Customer Photos & Videos

Customer Reviews

Sort by:

Very Clean Sounding Amp/ DSP

I was replacing an old JBL MS-8 in my BMW. I originally gutted the entire audio system. So, all the infrastructure was already in place. It was a simple swap of connectors etc. Even if I didn’t have all the various connectors etc in place, it wouldn’t be too bad.

I have 2 additional amps in the car. I did not use the filters in the software (high pass & low pass) on any speakers that were already using filters (via the amp). The ability to parallel settings is a nice & time saving feature. My only complaint about it is that the USB connector cable needs to be about 2-3’ longer.

You do need to set the mixer and tell the DSP what channels you are using and what speakers are powered by each channel. This was not clear in the directions.

The software was easy to down load from the JBL website. It can be a little overwhelming to look at, at first. I’d suggest using YouTube / https://youtu.be/CNPjM3Xe7bI

The above was a helpful video.

By matthew on January 19, 2022 Checkmark Icon

Verified purchase

39 found this helpful

Report abuse

Love this little amp ( for my needs)

Great for a factory upgrade. Installed in a 18 4Runner under the driver seat. I've got 9 (8 + 1 sub) speakers on 7 channels. I'm running it off the stock Toyota head unit. This amp about doubles the power and nearly doubles the volume. What sets it apart though is the value for the DSP. The channel delay function although subtle is noticeable improvement in sound stage. The software is easy to use. I had my installer route the amp's USB cable to my center console so I can plug in my laptop anytime and tweak. You could spend hours tuning. If you are replacing stock speakers randomly this will allow you to really overcome issues. I would think even adding this to a totally stock system would make a world of difference. We'll see if lasts !

By Michael on August 12, 2022 Checkmark Icon

Verified purchase

35 found this helpful

Report abuse

Perfect condition. Great Value

Perfect condition. excellent Value. Controls are awesome, allowing for custom tweaking. Sound is excellent

By Tim on June 29, 2022 Checkmark Icon

Verified purchase

34 found this helpful

Report abuse

Great Amp, Terrible Webstore

I love the amp, but so far I keep getting let down by Sonic Electronix. The first time I ordered it, I received and installed it, but it had numerous problems. The first one was that auto turn on would not work using the audio signal. The second is that it would not accept low level input. The third is that when using high level input, the amp would cut out under moderate load. I sent that one back, and received another, this one will not accept input from channels, 2, 4, and 6. I would love to give this amp 5 stars, but 2 duds in a row seem very unlikely unless there are a considerable amount of bad quality amps out there.

By Tyler on April 24, 2023 Checkmark Icon

Verified purchase

32 found this helpful

Report abuse

Good replacement amp for Tundra.

By Tom on October 27, 2025 Checkmark Icon

Verified purchase

2018 Toyota Tundra

Report abuse
